KA1-1410005

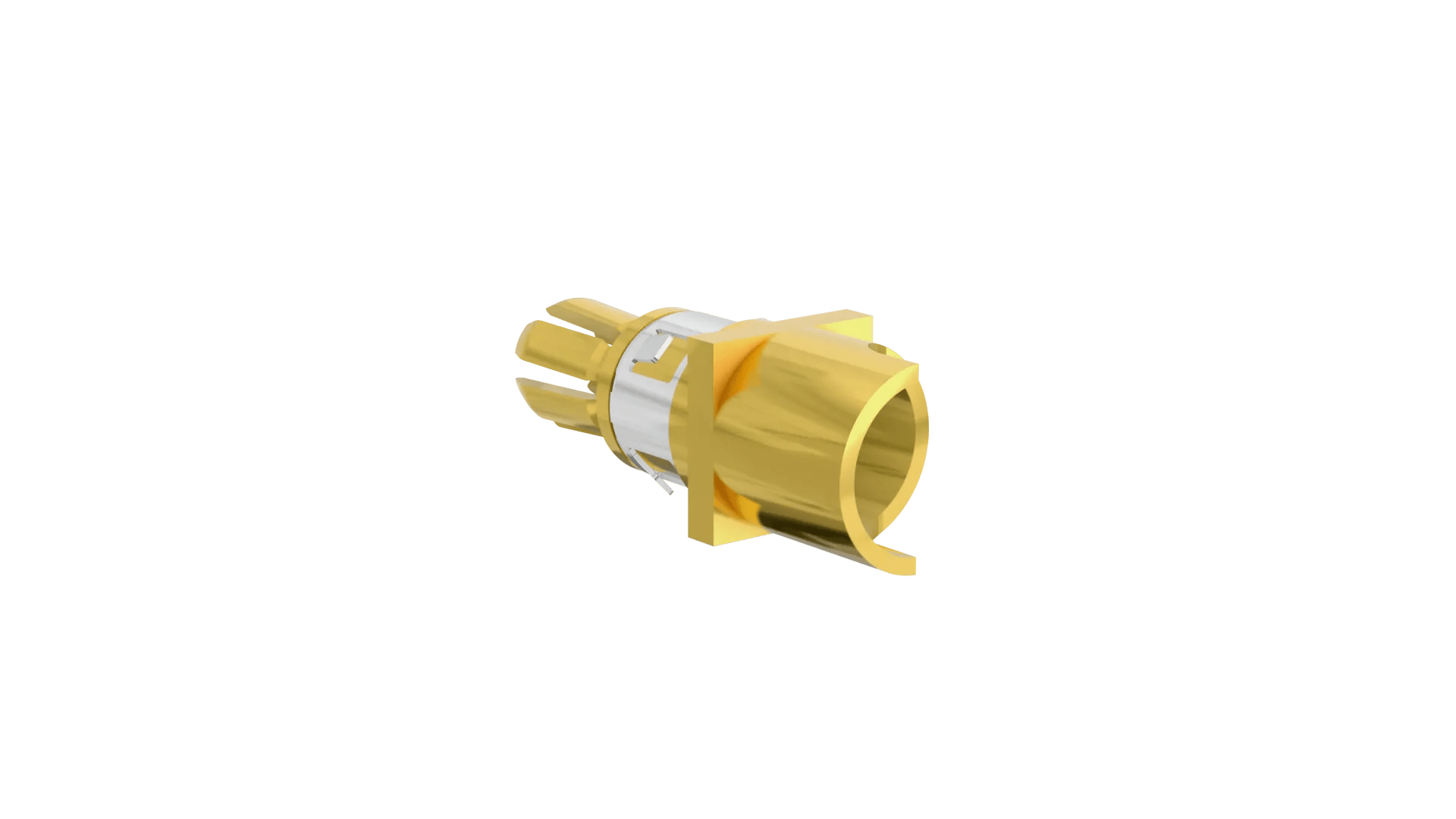

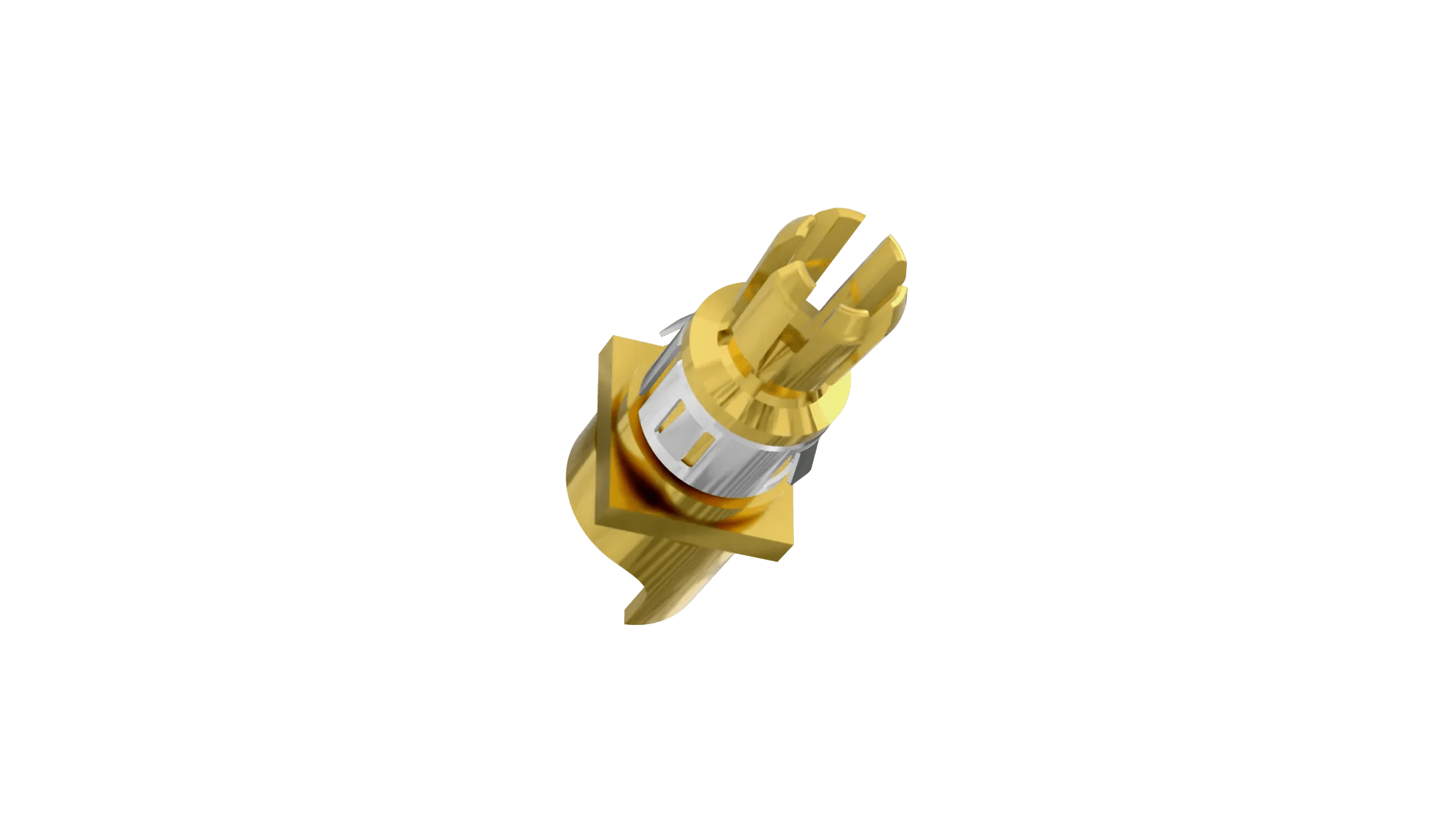

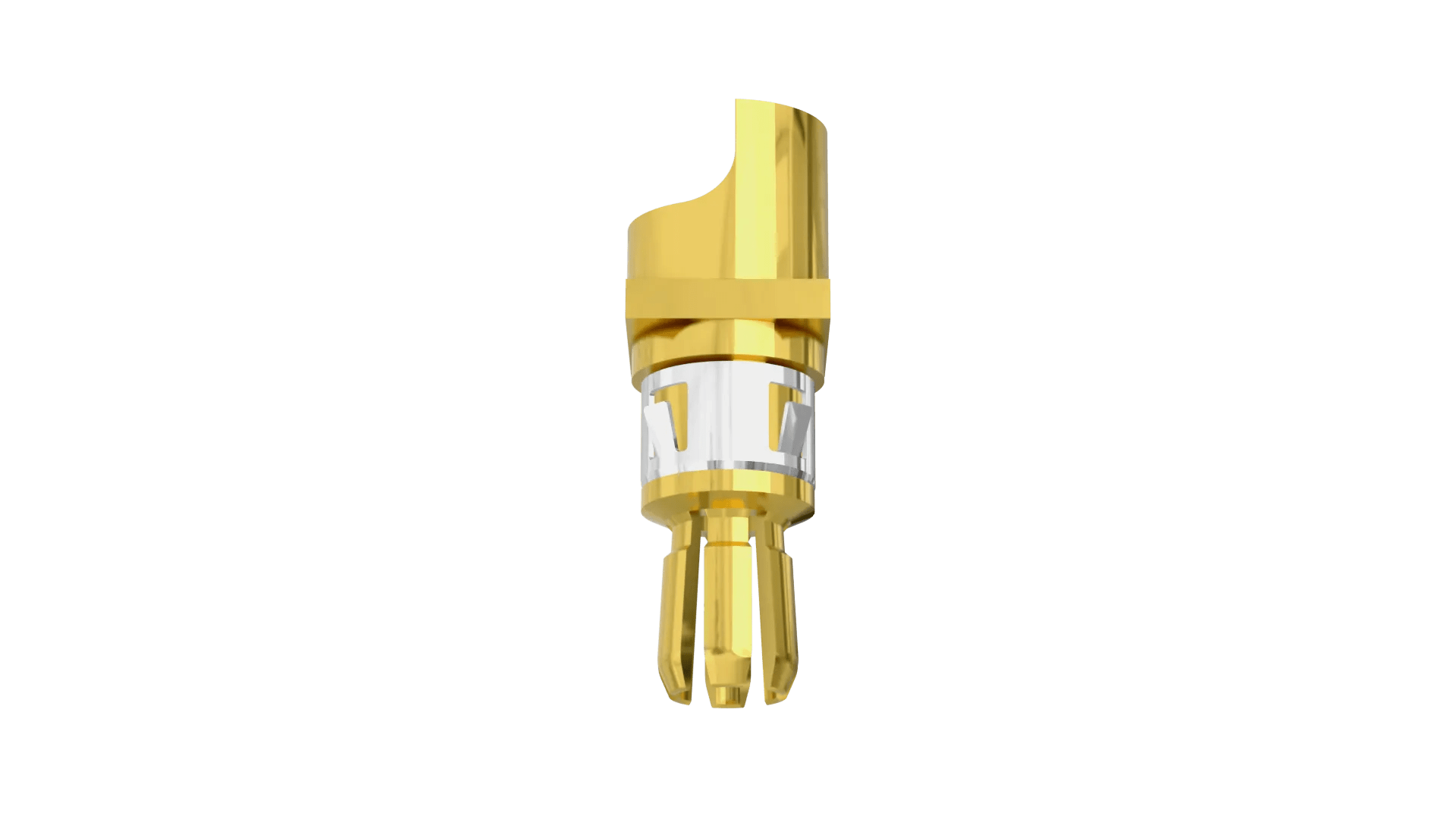

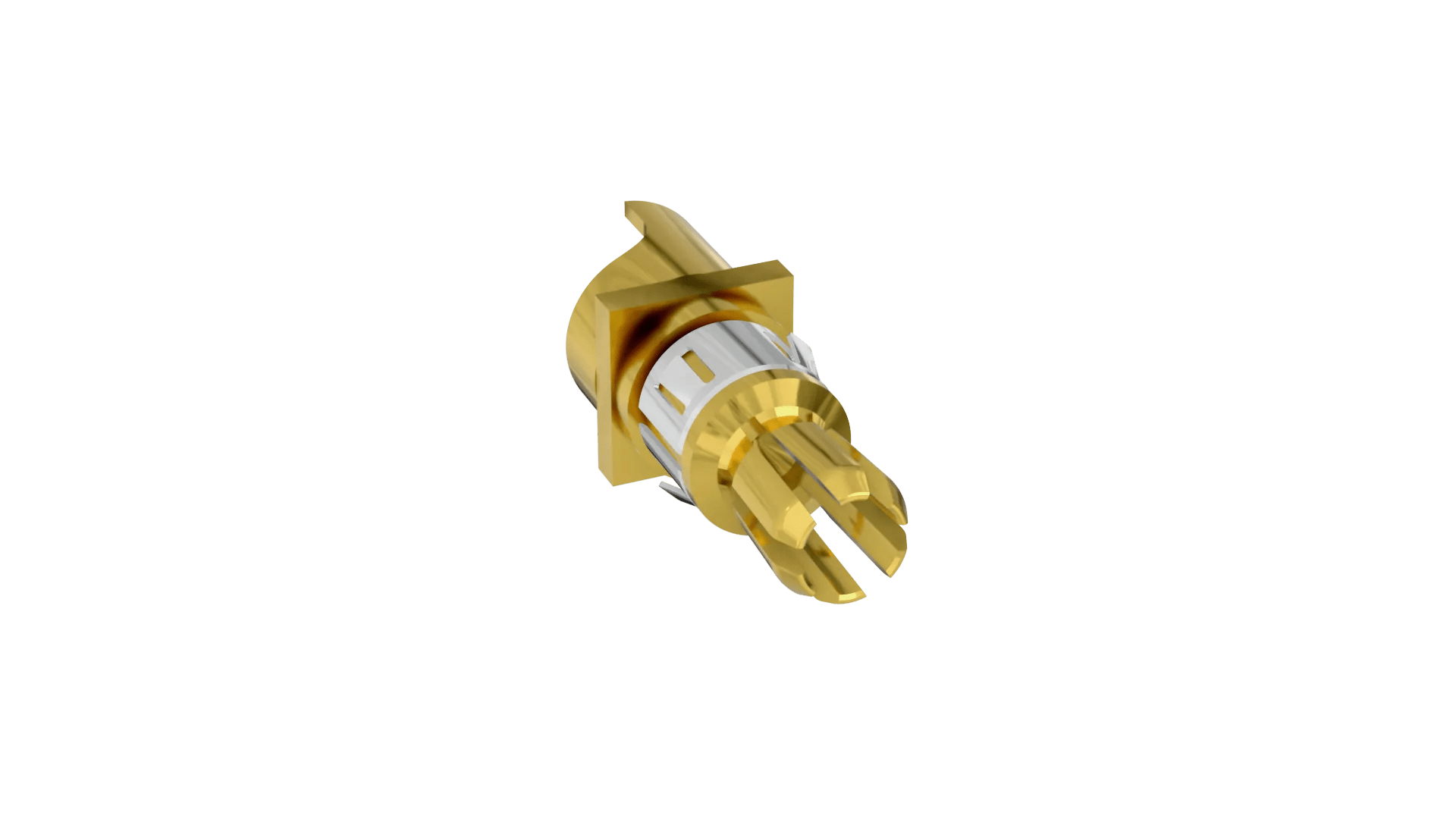

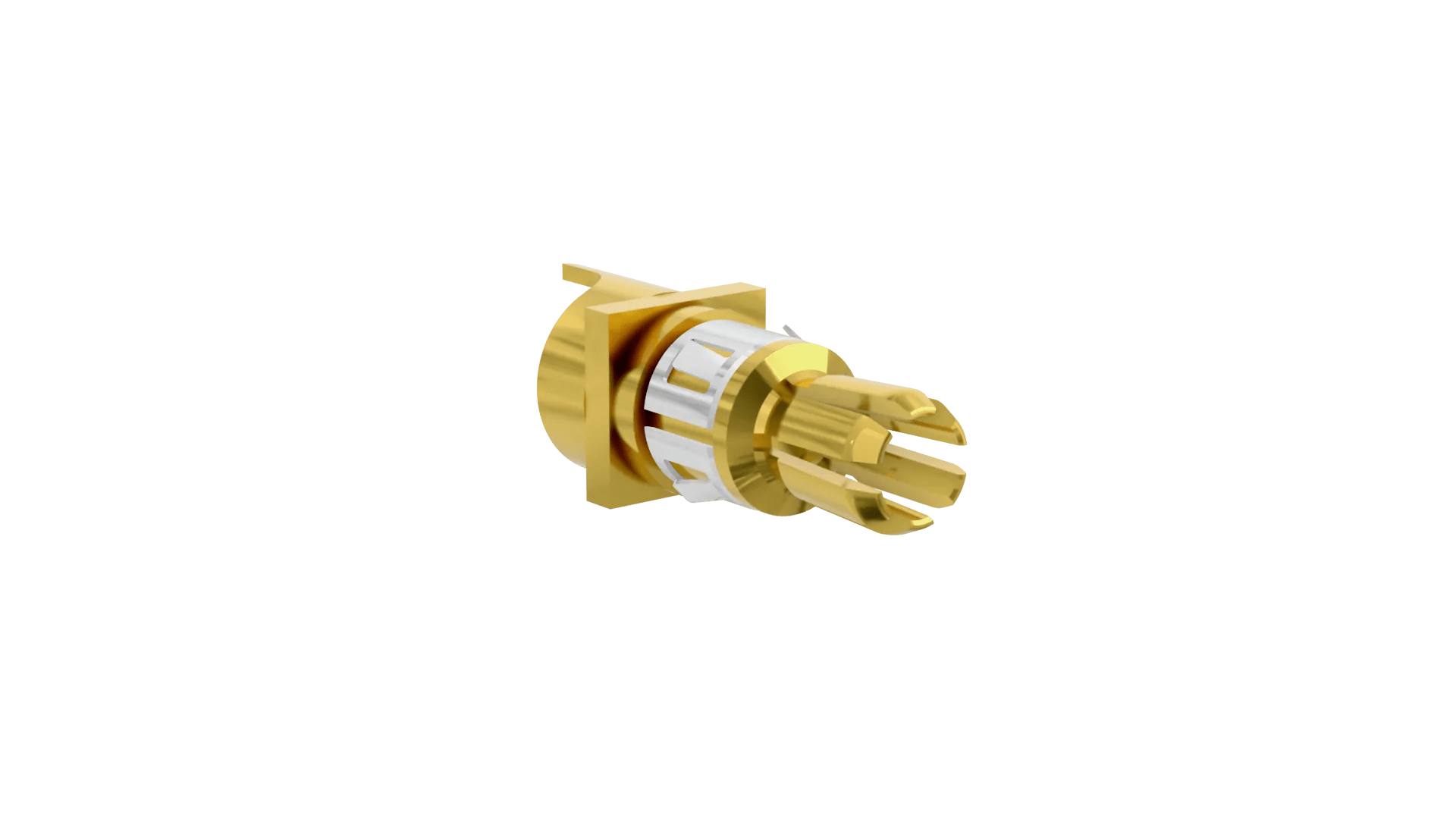

Male 8 AWG Straight Solder Power Contact, loose
8.50mm Pitch High-Reliability Connector - Kona
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description
- Individual straight male solder contact, suitable for 8 AWG cable, up to 60A per contact nominal.
- Use with crimp housings: KA1-3010298M1, KA1-3010398M1, KA1-3010498M1, KA1-3010298M3, KA1-3010398M3, KA1-3010498M3, KA1-3010298M5, KA1-3010398M5 or KA1-3010498M5.
- Gold finish on contact area and termination.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
8.50mm (0.335")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Solder)
Cable Conductor Size:
8 AWG
Current Rating:
60A max per contact
Operating Temperature:
-65°C to +150°C
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.311g
Overall Dimensions (L x W x D) in mm:
16.63 x 5.70 square
Frequently Asked Questions Ask a Question
On the Kona series is the temperature rise shown in the test data the contact temperature rise or overall connector temperature rise?
In the Test Report Summary HT076, each connector tested is wired in series, as shown in the diagram and explained in section 3.2. This means the current passes through all contacts in each size connector tested, so the temperature rise will be for the whole connector. If you need any further assistance on this, please do contact one of our Experts.
Was this answer useful?
What’s the derate curve for Kona connections?
You can find derate curves for the mated connectors in the Test Report HT076.
Was this answer useful?
Is there a crimp version of this solder contact? What wire do you recommend?
Sorry, I’m afraid we only have a solder contact available at this time. The wire we recommend is 8AWG fitted with a Silicone insulation – this gives you a thinner insulation to fit on 8.5mm pitch, and allows for some flexibility. You can see specific information on some possible options in the document Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona.
Was this answer useful?
What’s the gold plating thickness on this connector?
Gold thickness on both male and female connectors is 0.76-1.00 microns (30-40 microinches) over a nickel undercoat. Please also consult our Support article on plating thicknesses for all our high-reliability connectors, where you can download a statement with more detailed information.
Was this answer useful?
What tool do I need for assembling the contacts?
No tool is required for assembling the soldered contacts into the housing. We do supply an optional extraction tool if you need to remove a cable contact from the housing – see part ZA1-9040000.
Was this answer useful?
