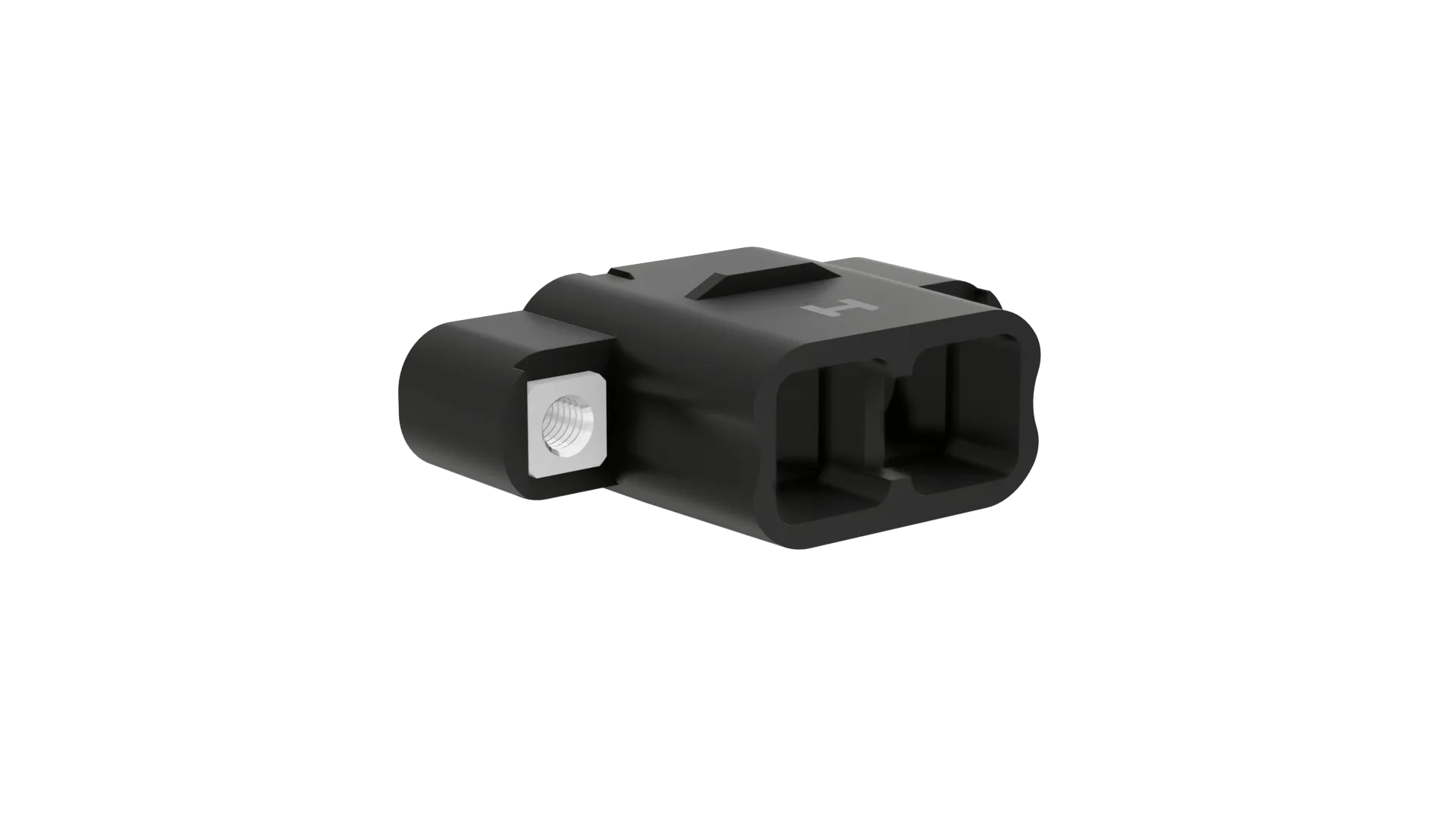

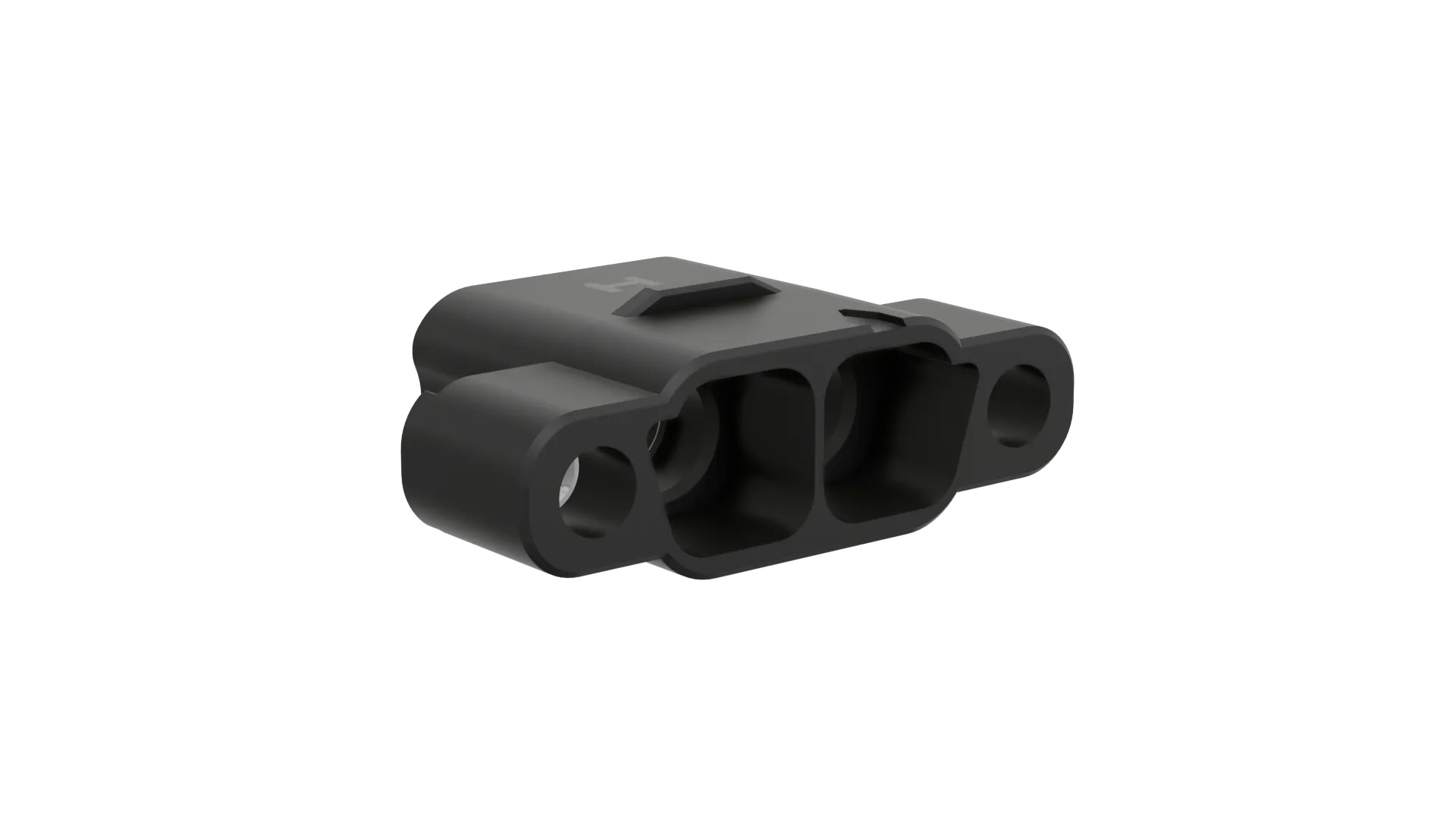

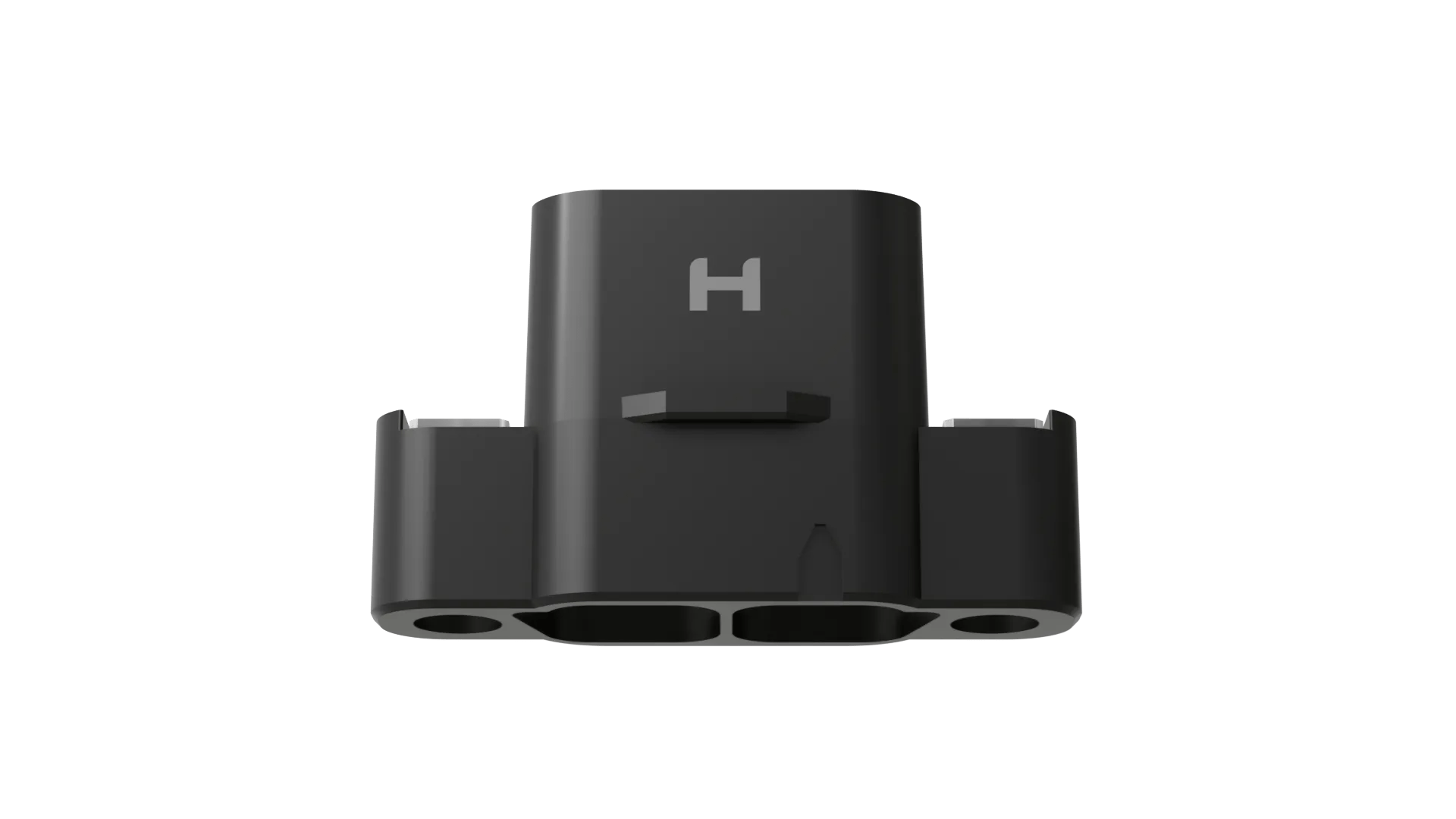

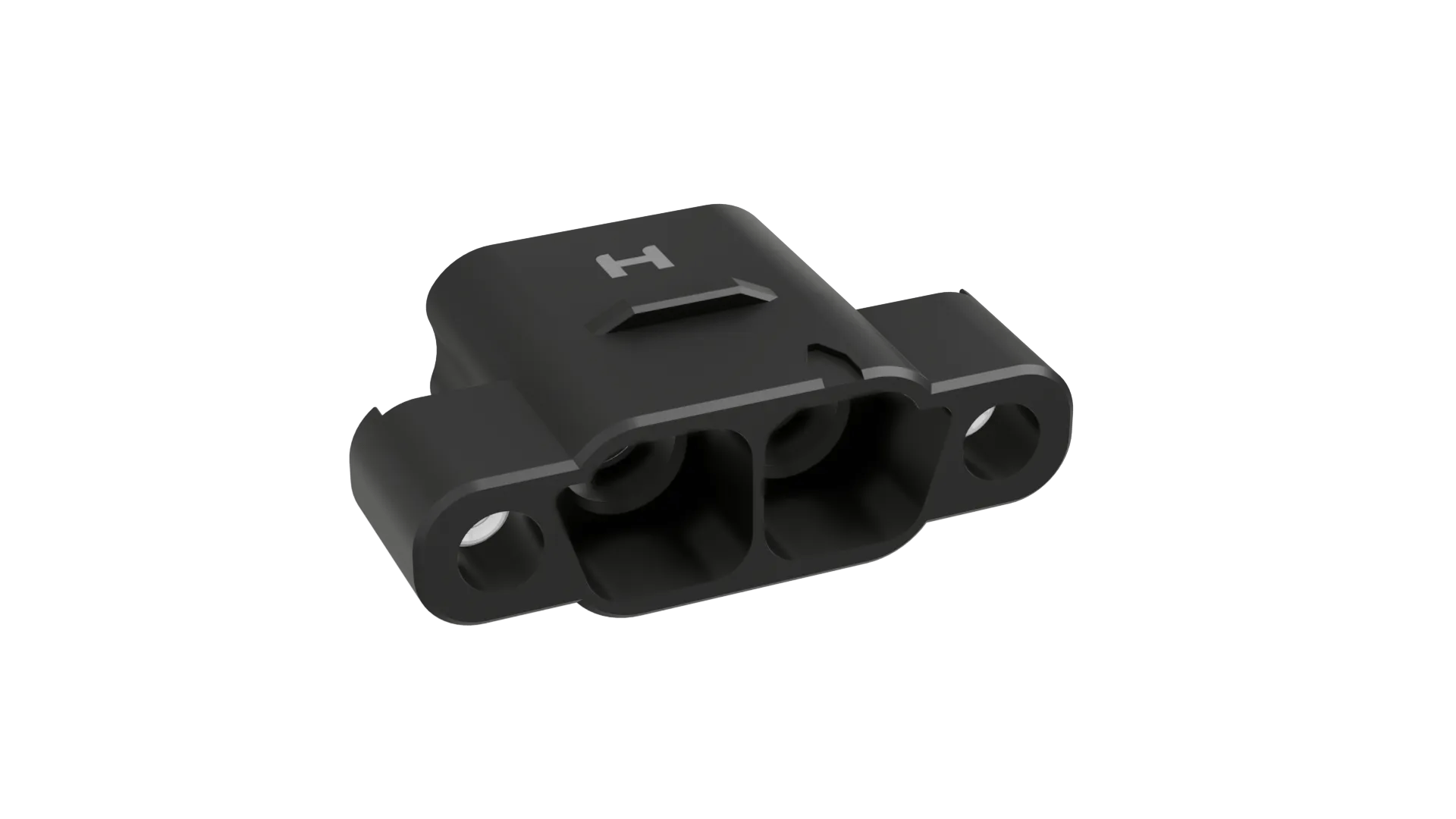

Single Row Male Straight housing, polarized with individually shrouded recessed contact locations - 2 contact. Includes fitted internal threaded screw-locks.
Contacts to be purchased separately - use with 8 AWG power solder contact KA1-1410005.
For complete pin numbering or pin out information, see Component Specification C052XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing
Number of Rows
1
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
2
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
60A max per contact
Polarised
Yes
Cuttable
No
Materials
Housing Material
PPS
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Housing Colour
Black
Dimensions
Contact Pitch
8.50mm (0.335")
Weight
4.47g
Dimensions
33.00 x 12.50 x 19.65
Thread Size
M3
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-301XX98M3.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Kona contacts
Product Information
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
IS-49 - Kona Contact Assembly and Removal Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Kona range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for KA1-301XX98M3 series
RoHS Declaration - KA1-3010298M3
