Harwin launches SYCAMORE Contact; ultra-reliable, durable three-point SMT contact for high volume, advanced automated assembly
Superior pin retention for modules and devices subject to multiple insertions and removals; patent-pending design; supplied on Tape & Reel

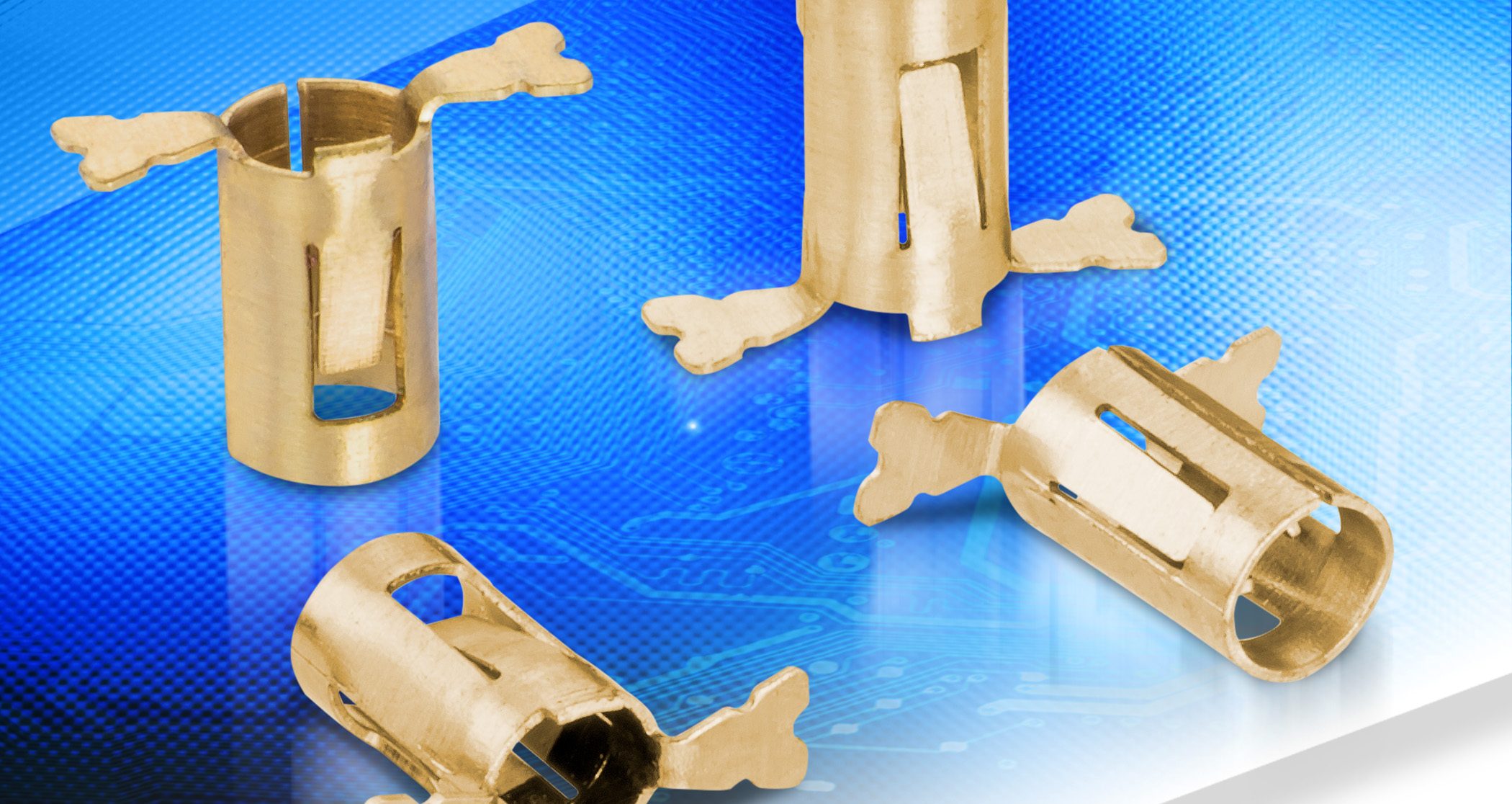

Harwin announces its new SYCAMORE Contact surface-mount socket which provides superior pin retention and durability for high-volume applications manufactured using advanced automated systems. The SYCAMORE Contact’s design features three points of contact, providing the assurance of continuity and robustness previously only available from two-piece assemblies which are rarely available on Tape & Reel.
Key markets for SYCAMORE Contact include domestic and commercial gas detection systems, fire alarms and metering systems, plus many other applications which require modules and devices such as field-replaceable parts or temperature-sensitive components to be mounted to a PCB.
SYCAMORE Contact is a unique, proprietary Harwin contact design with patents pending.
SYCAMORE Contact is a single-part SMT socket design featuring a low profile of only 0.43mm max above the PCB. Available in top and bottom entry versions, it accepts 1mm or 1.5mm diameter pins and is open-ended, so mating pin depth is not limited. Manufactured from Beryllium Copper, contacts are gold-plated to ensure high conductivity and durability over a temperature range of -50°C to +125°C.
SYCAMORE Contacts are available now, packaged on Tape & Reel, with 1400 parts per reel.
At Harwin, we understand the challenges of our customers right from design through to manufacturing and the unique contact design of our new SYCAMORE Contact surface-mount socket addresses their need to apply advanced manufacturing processes for high volume output with no compromise on contact performance.
- Beryllium Copper base material – for an operating temperature range -50°C to +125°C
- Gold-plating finish – in combination with the Beryllium Copper gives a durability of 500 mating cycles
- 4 styles available
- Tape and Reel (1400 contacts per reel), ideally suited for automated assembly
- 6A current rating
- 0.43mm maximum above PCB

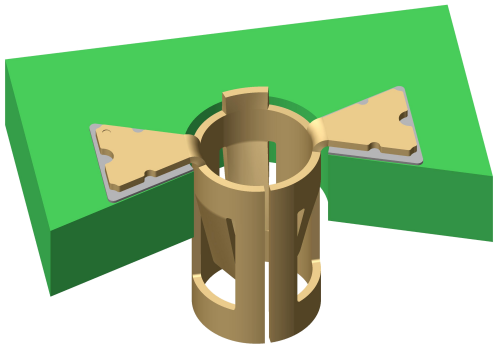

Right: View of a cutaway PCB showing the SYCAMORE Contact assembled
