Home > S9341-45R
Active Product

S9341-45R

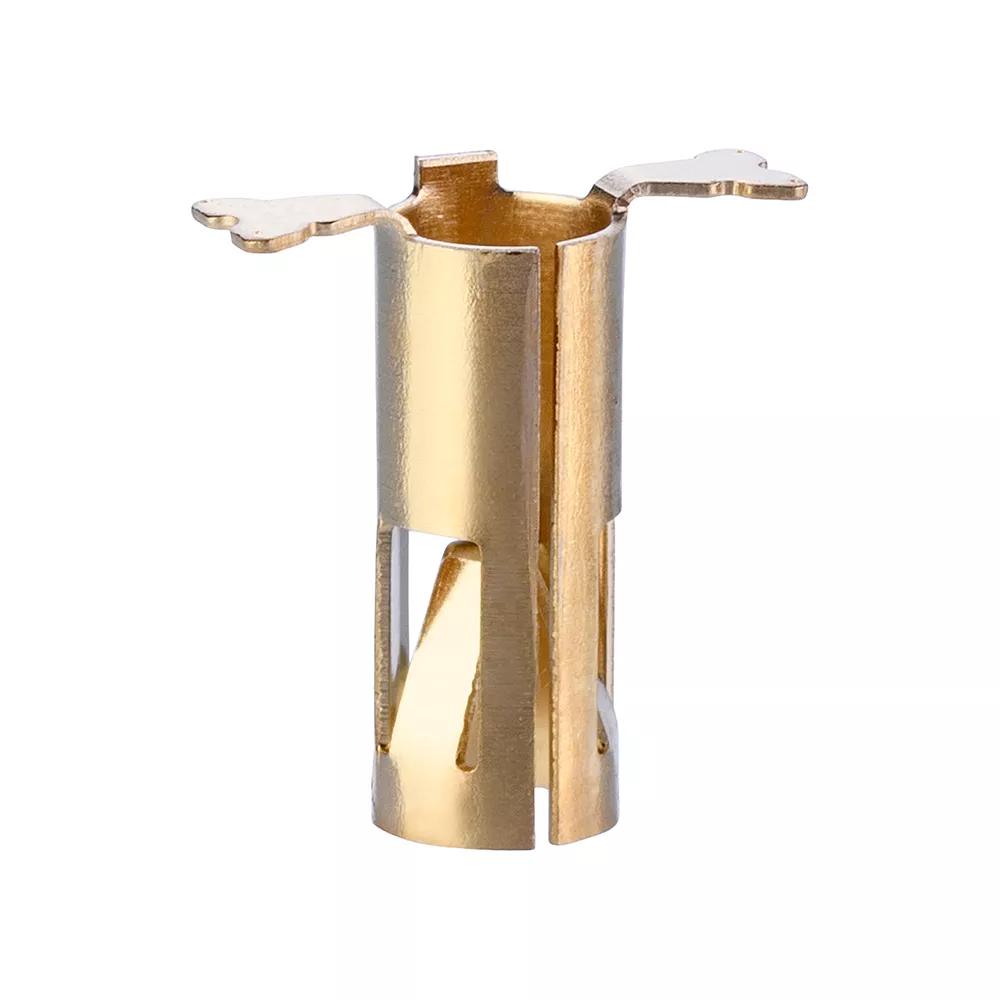

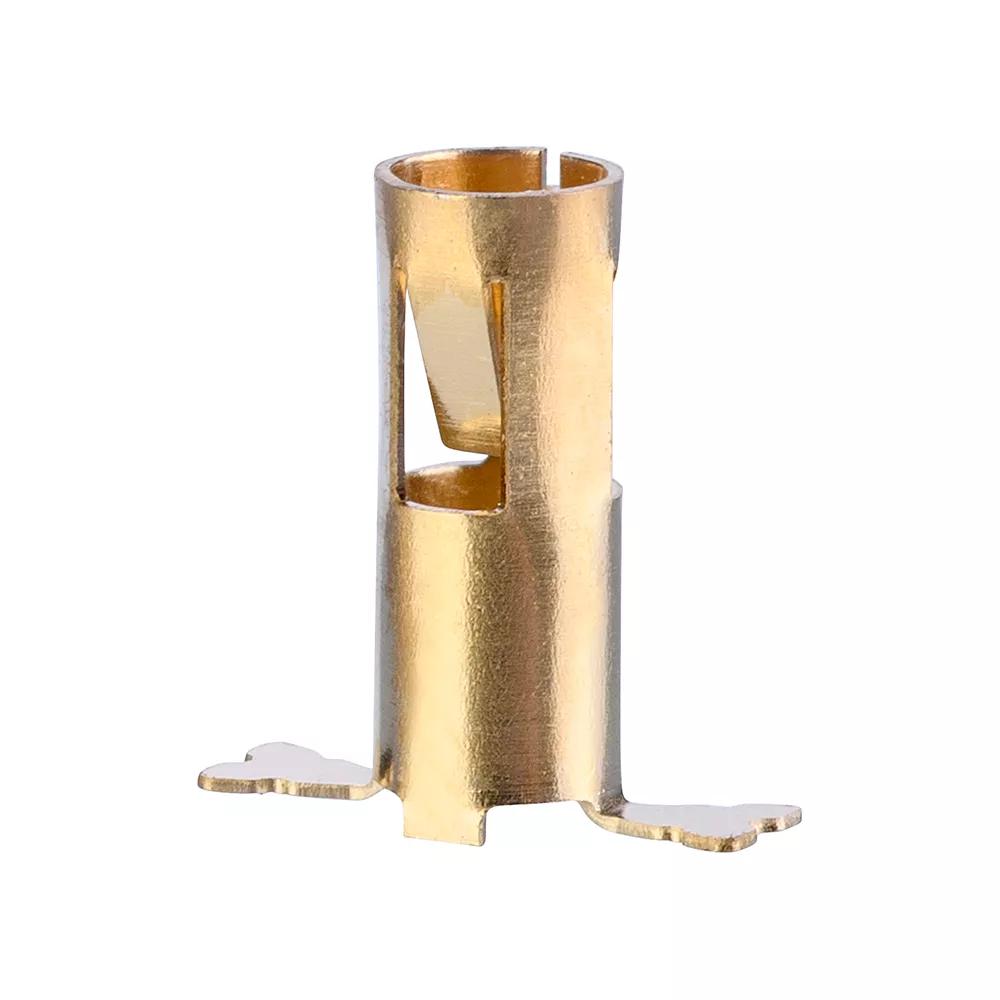

Female Vertical SMT Ø0.80-1.30mm Sycamore Contact (T+R)

Sockets - Individual SMT PCB Socket

Add to Favorites

15,954 in stock   Check availability

15 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single-piece Surface Mount PC Board Socket, extremely low profile. 3 points of contact for additional signal integrity. 5.87mm body length.
  • Suitable for mating pins Ø0.8 to 1.3mm. Bottom entry orientation. Gold finish on contact area and termination.
  • Packaged in Tape & Reel for automated placement.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.8-1.3mm

Current Rating:

8A

Operating Temperature:

-50°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Entry Style:

Bottom Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.05g

Overall Dimensions (L x W x D) in mm:

5.50 x 2.30 x 6.30 max

Height of Connector above PCB:

0.43mm max

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
