S9131-45R

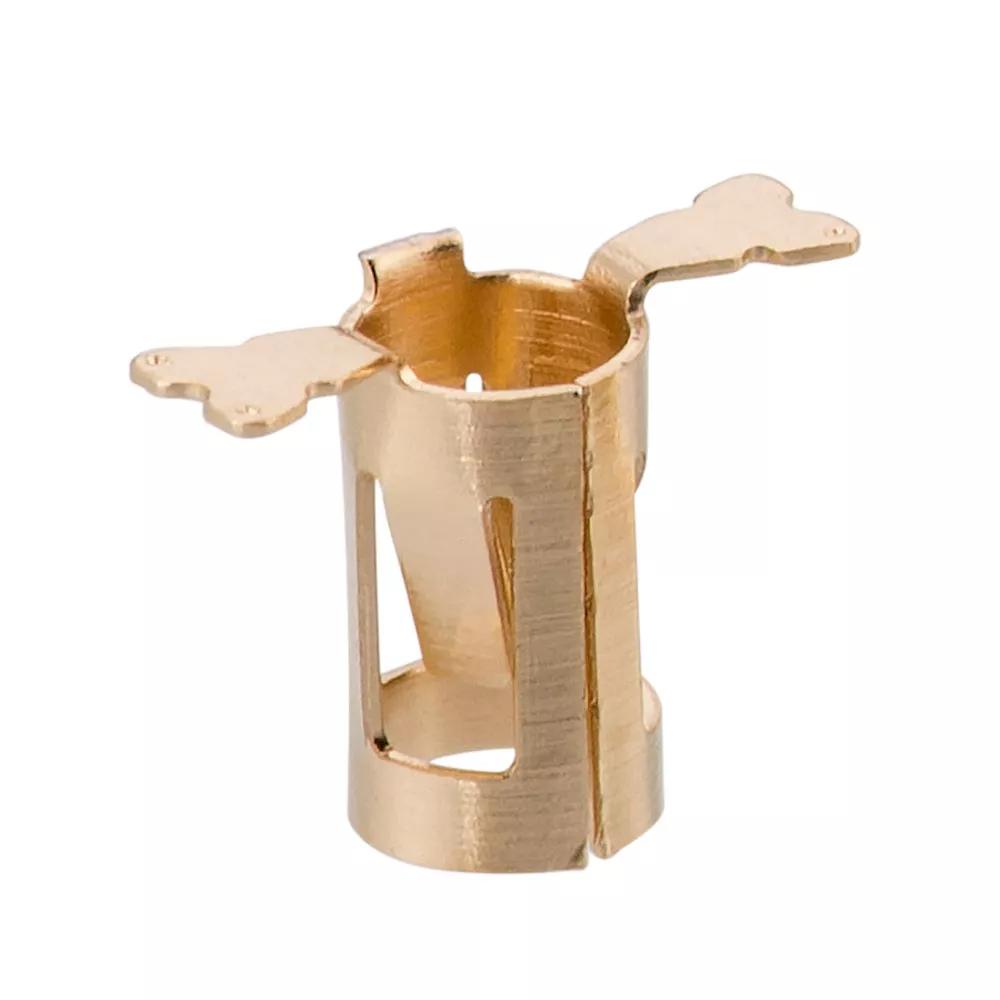

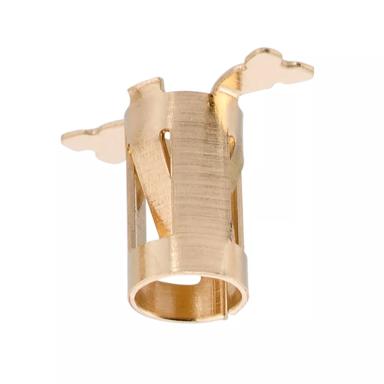

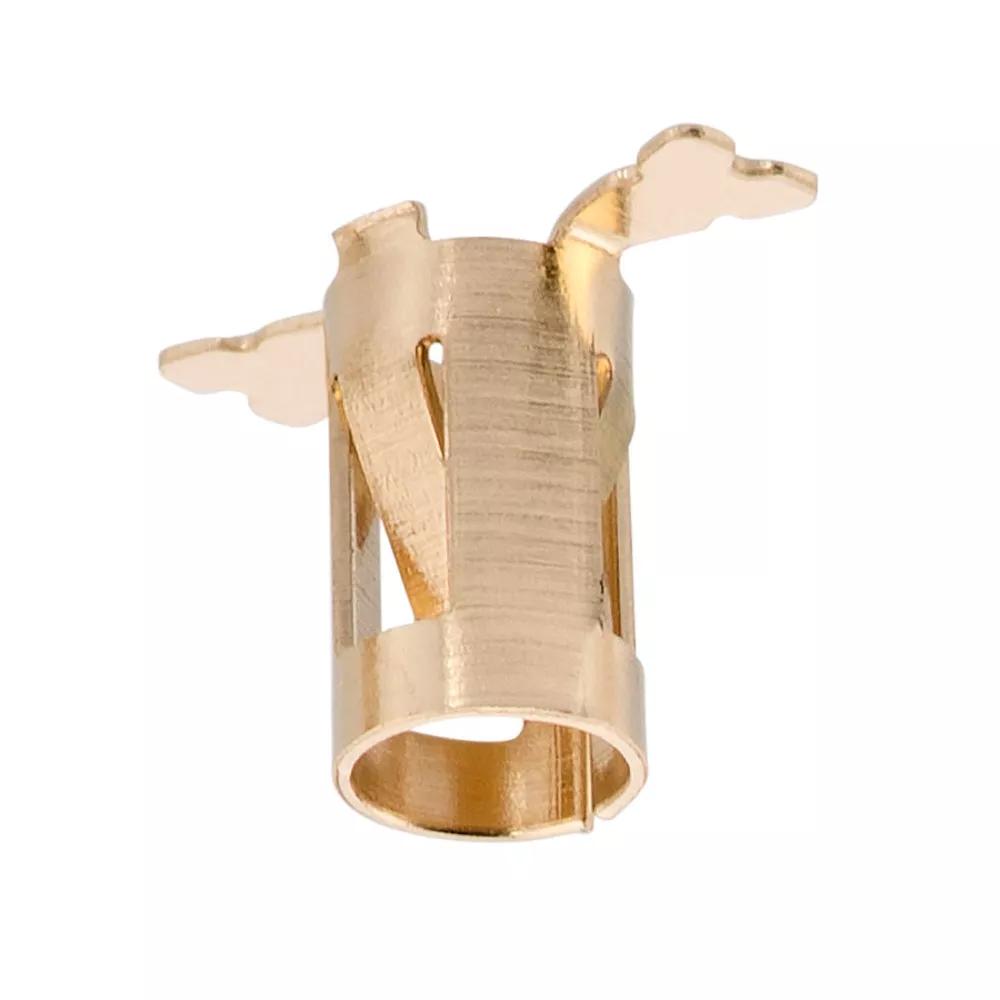

Female Vertical SMT Ø0.80-1.30mm SYCAMORE Contact (T+R)

Sockets - Individual SMT PCB Socket

  • Single-piece Surface Mount PC Board Socket, extremely low profile. 3 points of contact for additional signal integrity.
  • Suitable for mating pins Ø0.8 to 1.3mm. Top entry orientation. Gold finish on contact area and termination.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.8-1.3mm

Current Rating:

6A

Operating Temperature:

-50°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.033g

Overall Dimensions (L x W x D) in mm:

5.50 x 2.30 x 4.30 max

Height of Connector above PCB:

0.43mm max

Availability

16,588 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 6100
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3898
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1900
Distributor Newark
Location USA
Quantity (Updated Daily) 1840
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1400
Distributor Newark
Location USA
Quantity (Updated Daily) 1400
Distributor Anglia
Location Europe
Quantity (Updated Daily) 50

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
