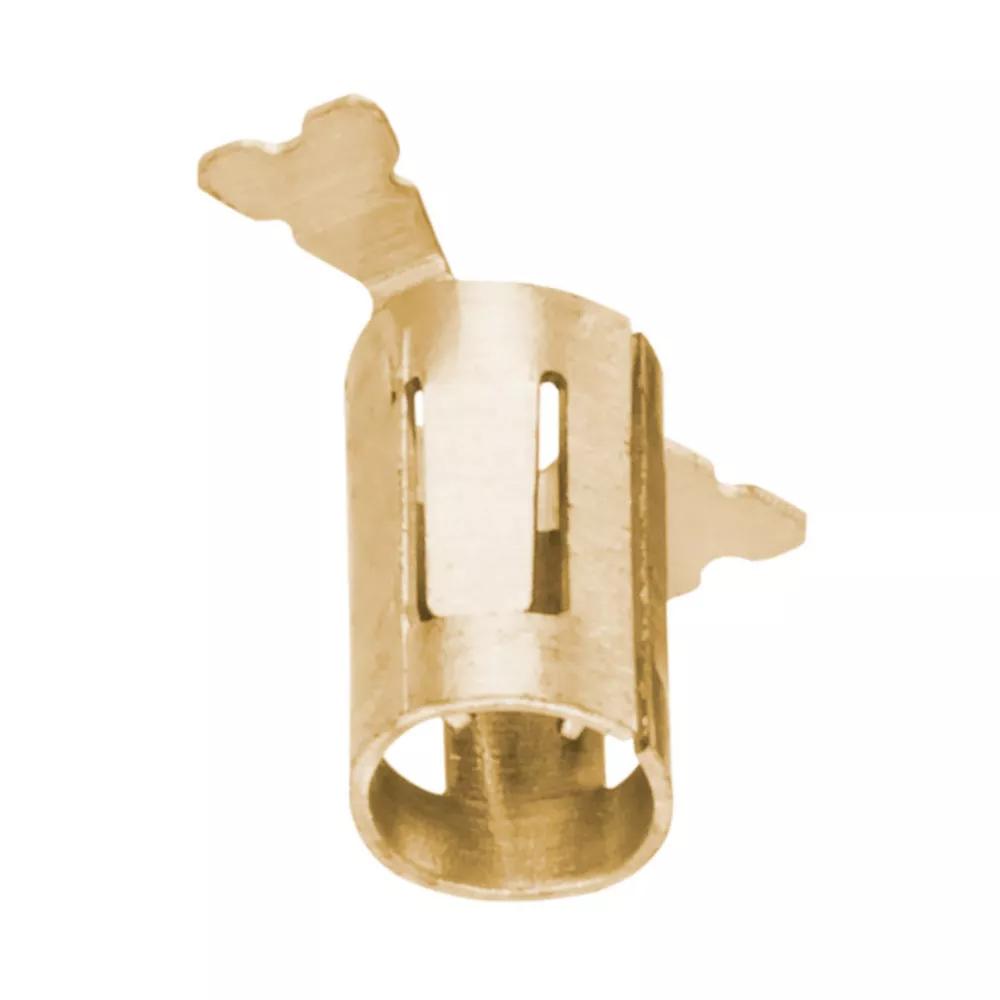

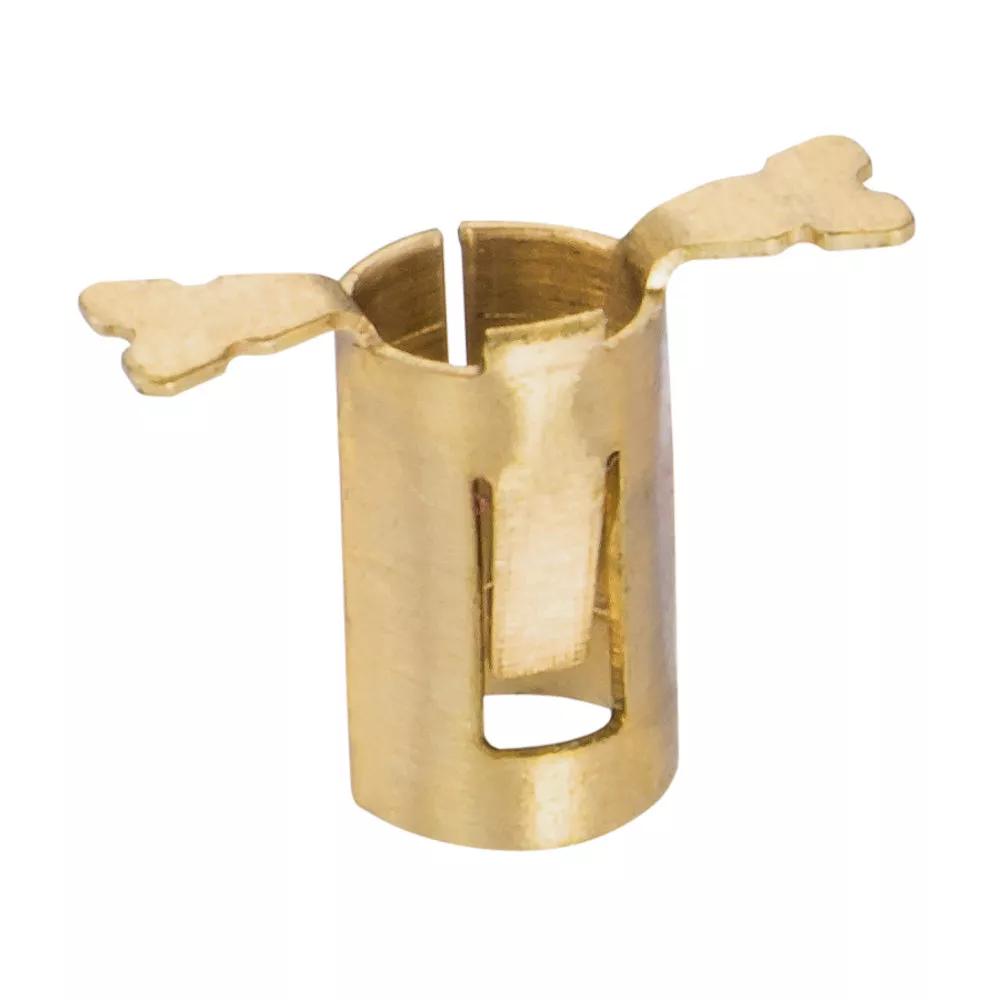

Female Vertical SMT Ø1.50-1.90mm SYCAMORE Contact (T+R)
Sockets - Individual SMT PCB Socket
- Single-piece Surface Mount PC Board Socket, extremely low profile. 3 points of contact for additional signal integrity.
- Suitable for mating pins Ø1.5 to 1.9mm. Top entry orientation. Gold finish on contact area and termination.
- Packaged in Tape & Reel for automated placement.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
-50°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
5.50 x 2.30 x 4.30 max
Height of Connector above PCB:
115,529 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
