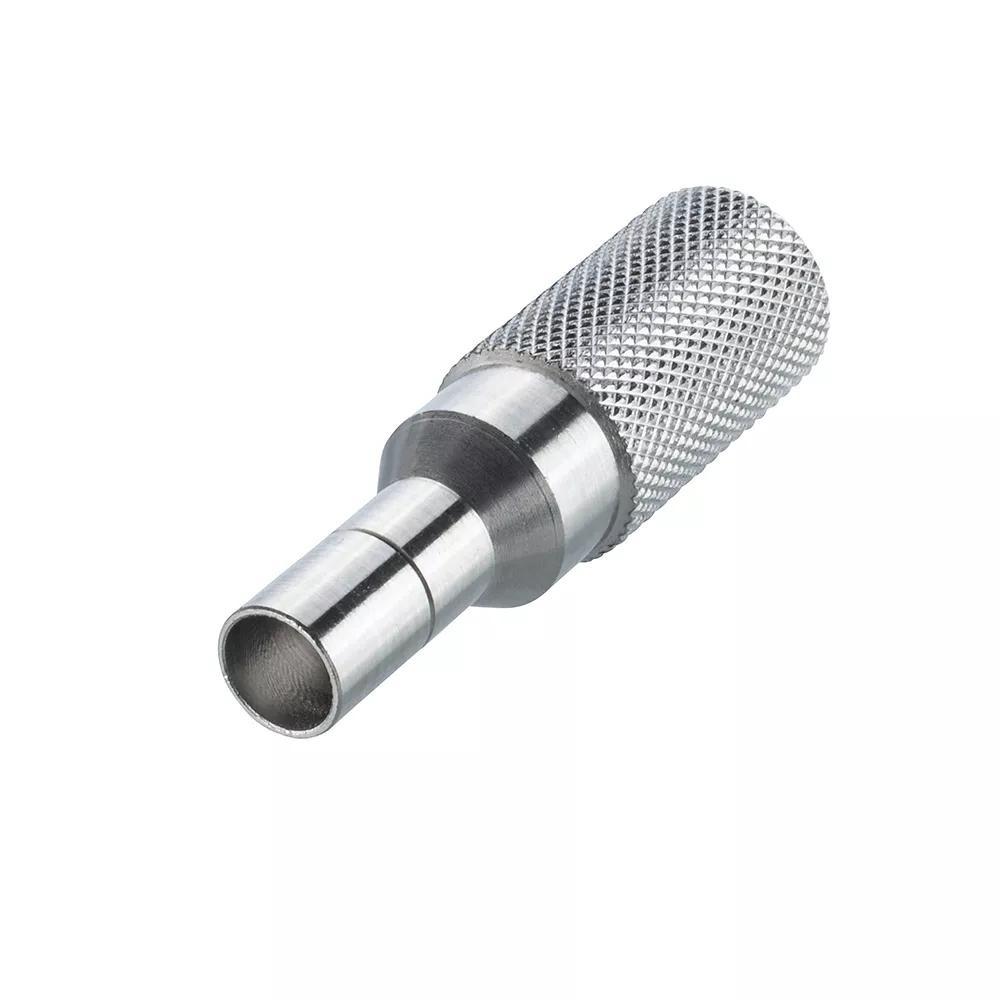

ZA1-9040000
8.50mm Pitch High-Reliability Connector - Kona
For correctly extracting contacts KA1-0400005, KA1-0450005, KA1-0500005 and KA1-1410005 from the housing.
Use with Kona cable connector housings KA1-201, KA1-202 and KA1-301.
See instruction sheet IS-49 for advice on use.
View Technical Details
Out of Stock
Getting Part Info...
Choose format to download:
Converting...
Bundling files together.
Your download will begin shortly.
Your part has been downloaded.
Something went wrong :(
Please drop us a line for more info.
We've sent a validation email. Check your email to complete the registration.
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
Not applicable to RoHS (2015/863/EU)
Packaging Style:
Single Pack
Weight:
14.41g
Dimensions:
35.00 x Ø10.00
Technical Drawing / Datasheet - ZA1-904.pdf
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-49 - Kona Contact Assembly and Removal Instruction Sheet
Product Datasheet - Kona range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - ZA1-9040000
