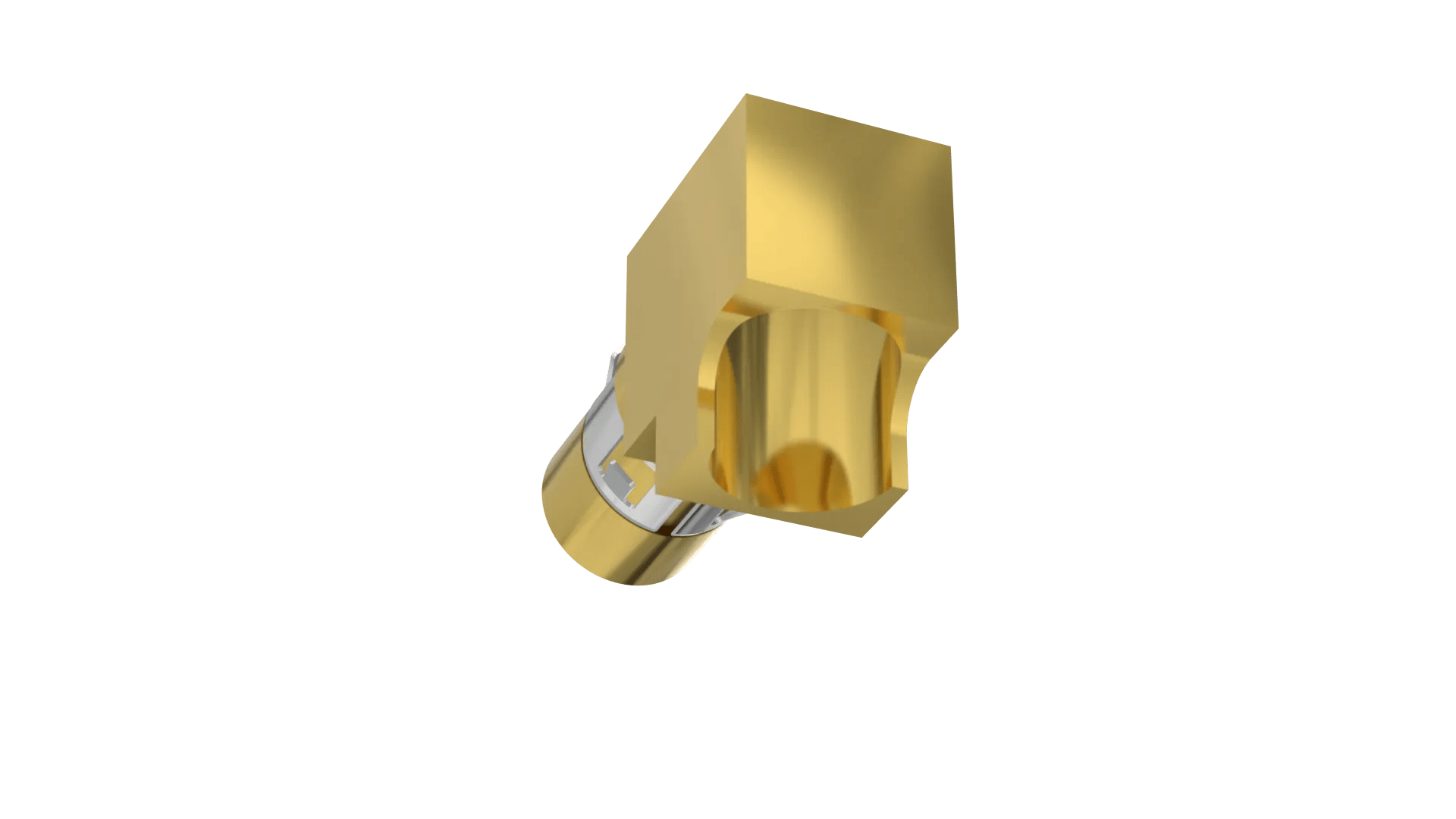

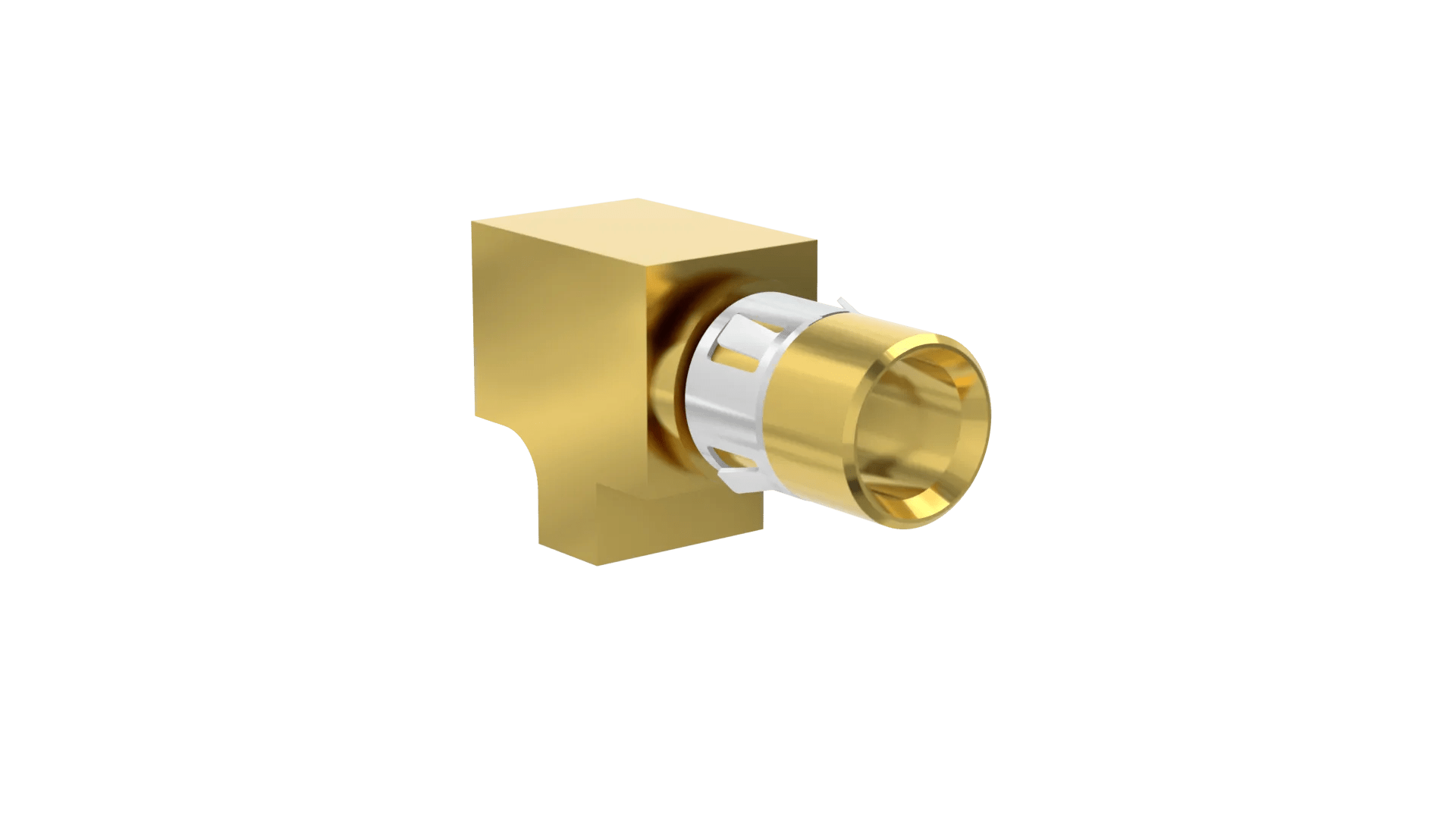

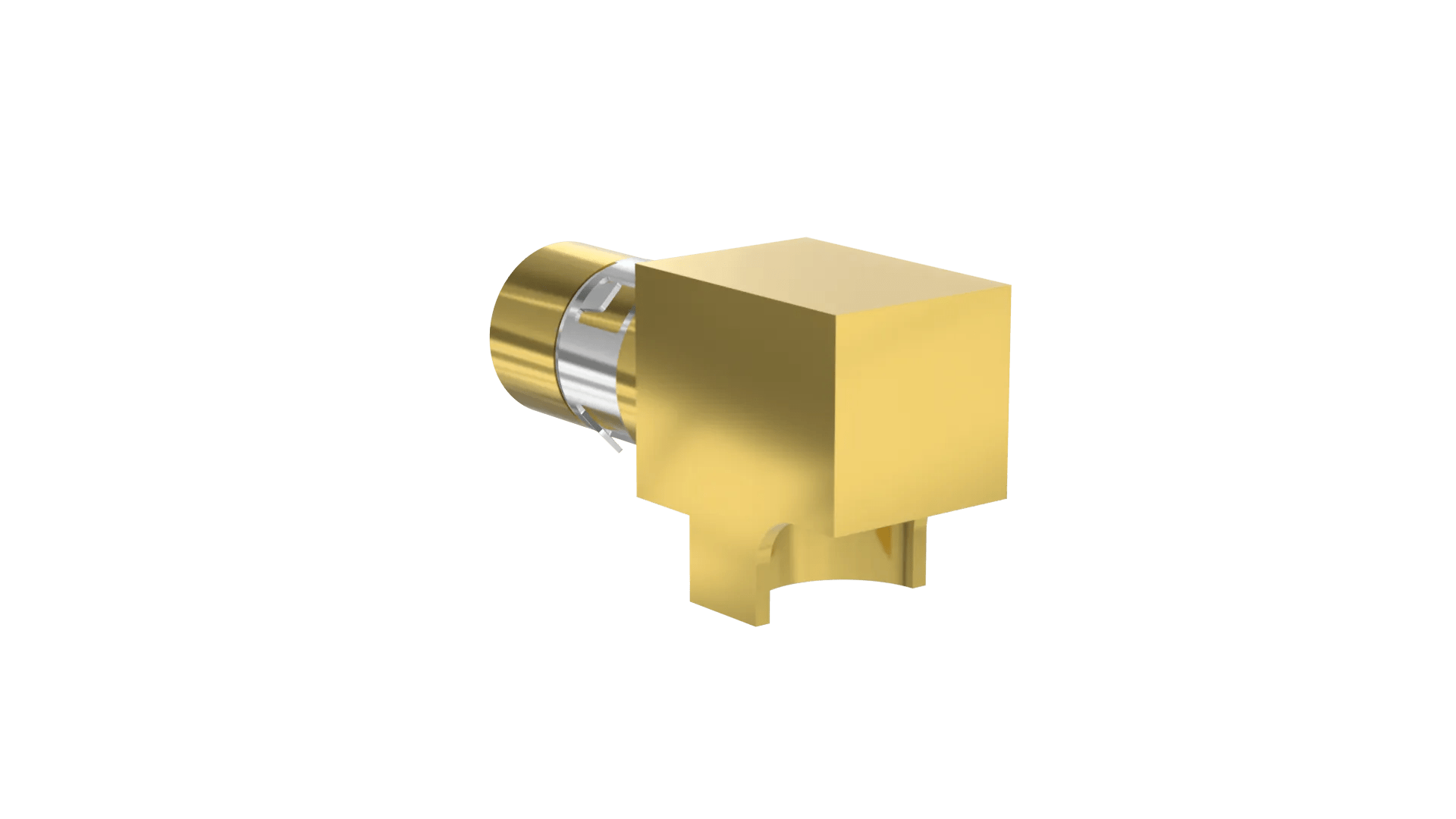

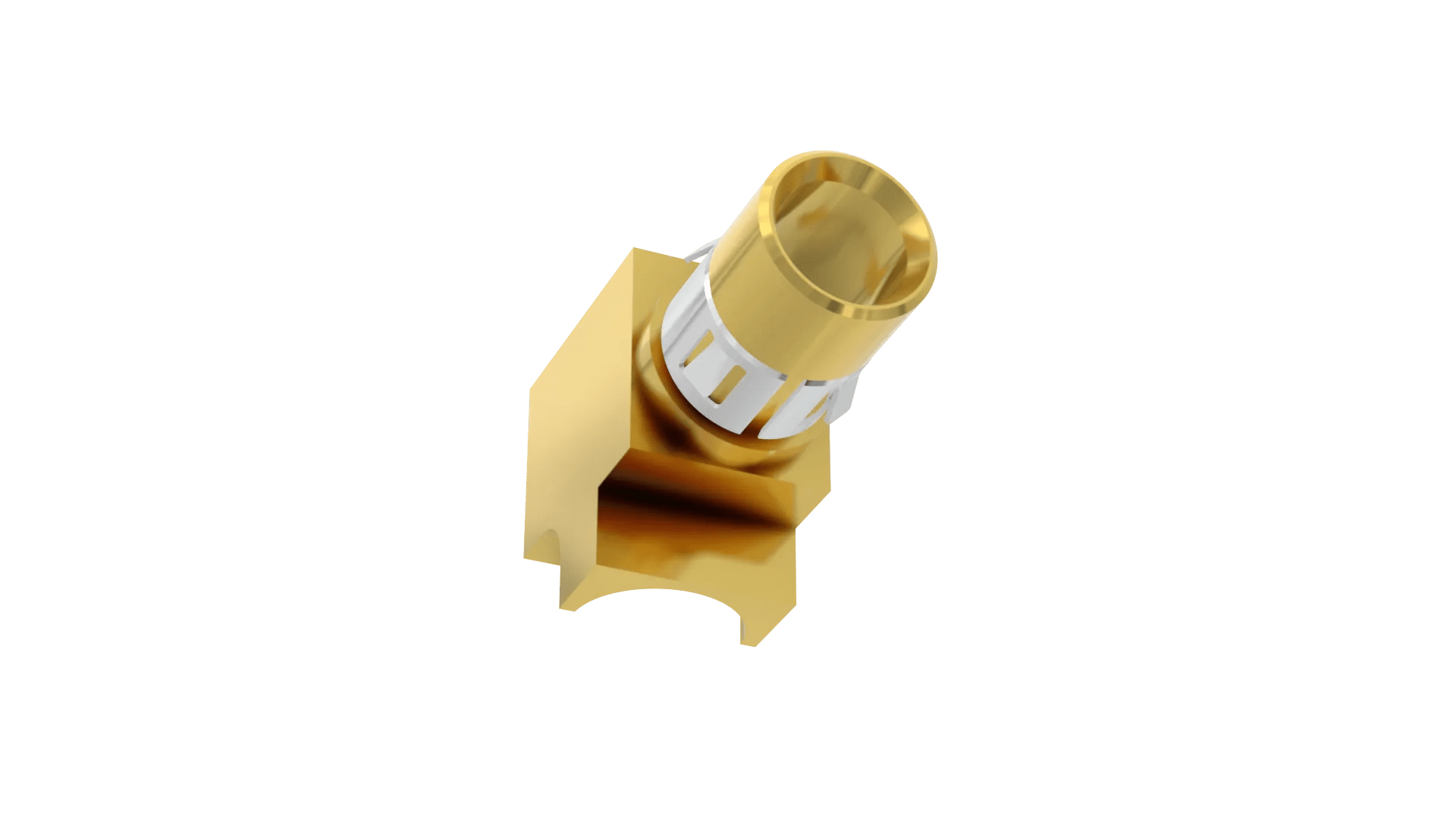

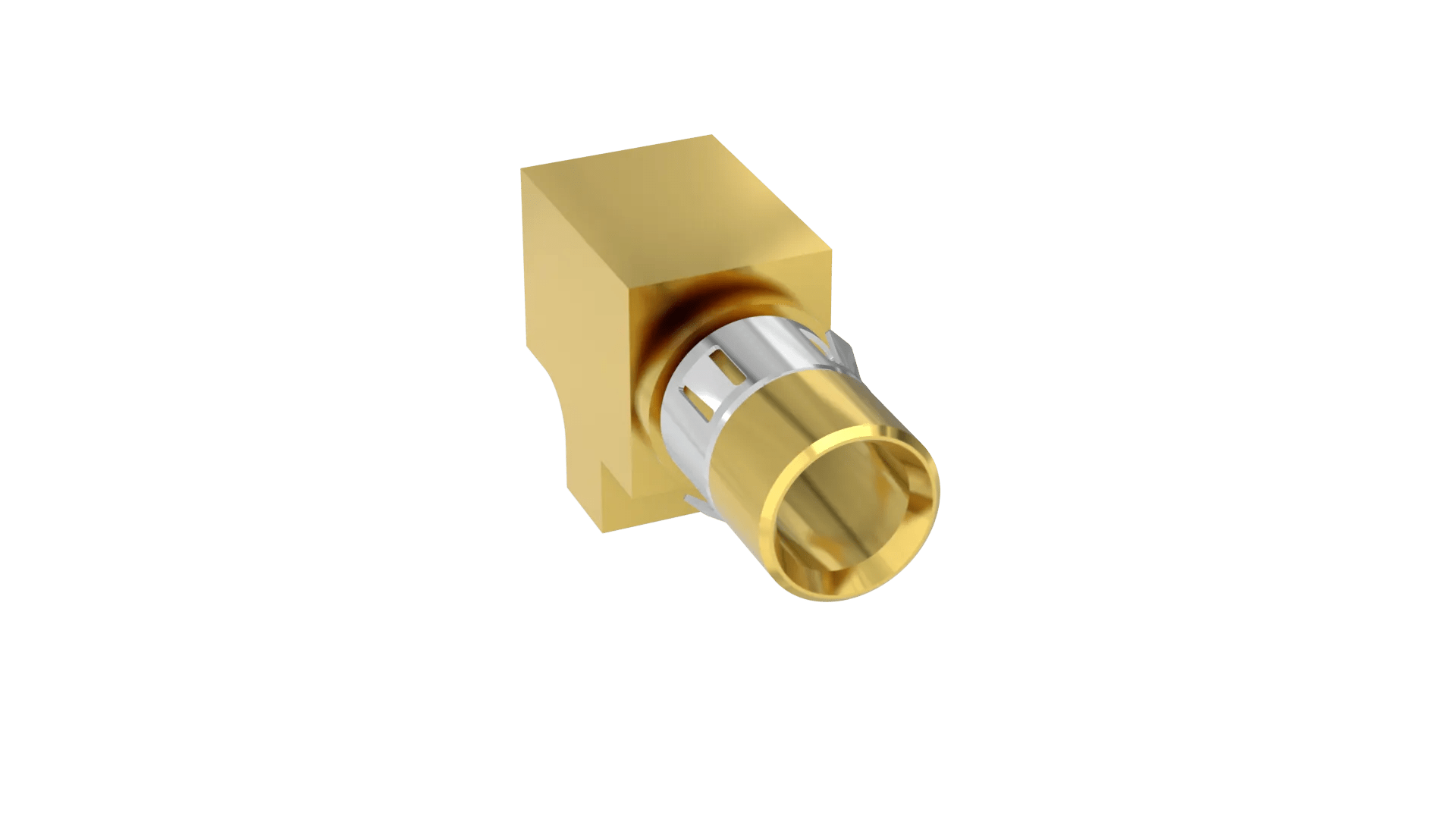

Individual right angled female solder contact, suitable for 8 AWG cable, up to 60A per contact nominal.
Use with thumbscrew cable housings KA1-2020298F1, KA1-2020398F1 or KA1-2020498F1.
Gold finish on contact area and termination. See instruction sheet IS-49 for advice on use.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation:
Angled
Country of Origin:
GB
Number of Power/Coax Contacts:
1
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
60A max per contact
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Contact Pitch:
8.50mm (0.335")
Weight:
2.588g
Dimensions:
15.40 x 5.70 x 8.50
Wire Size:
8 AWG
