Z80-293
Image may be representative. Refer to the product title for more information.
4.00mm Pitch High-Reliability Connector - Datamate Coax

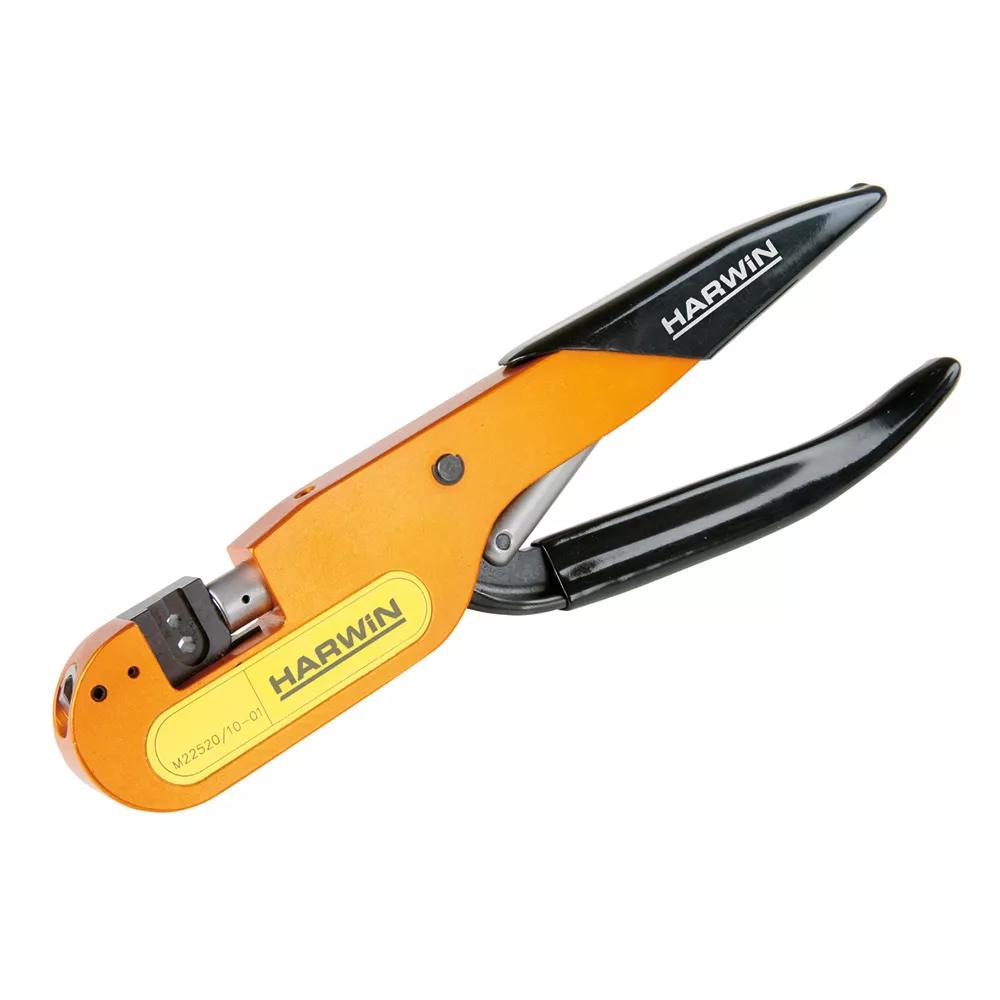

Hand Crimp Tool for outer sleeve of Datamate Mix-Tek coax contacts.
Suitable for coax contacts M80-305, M80-307, M80-308, M80-309, M80-315, M80-317, M80-318, M80-319.
No Positioner required. See instruction sheet IS-34 and Straight Coax instruction video or Angled Coax instruction videofor advice on use.
