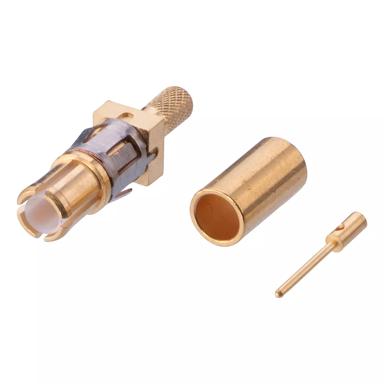

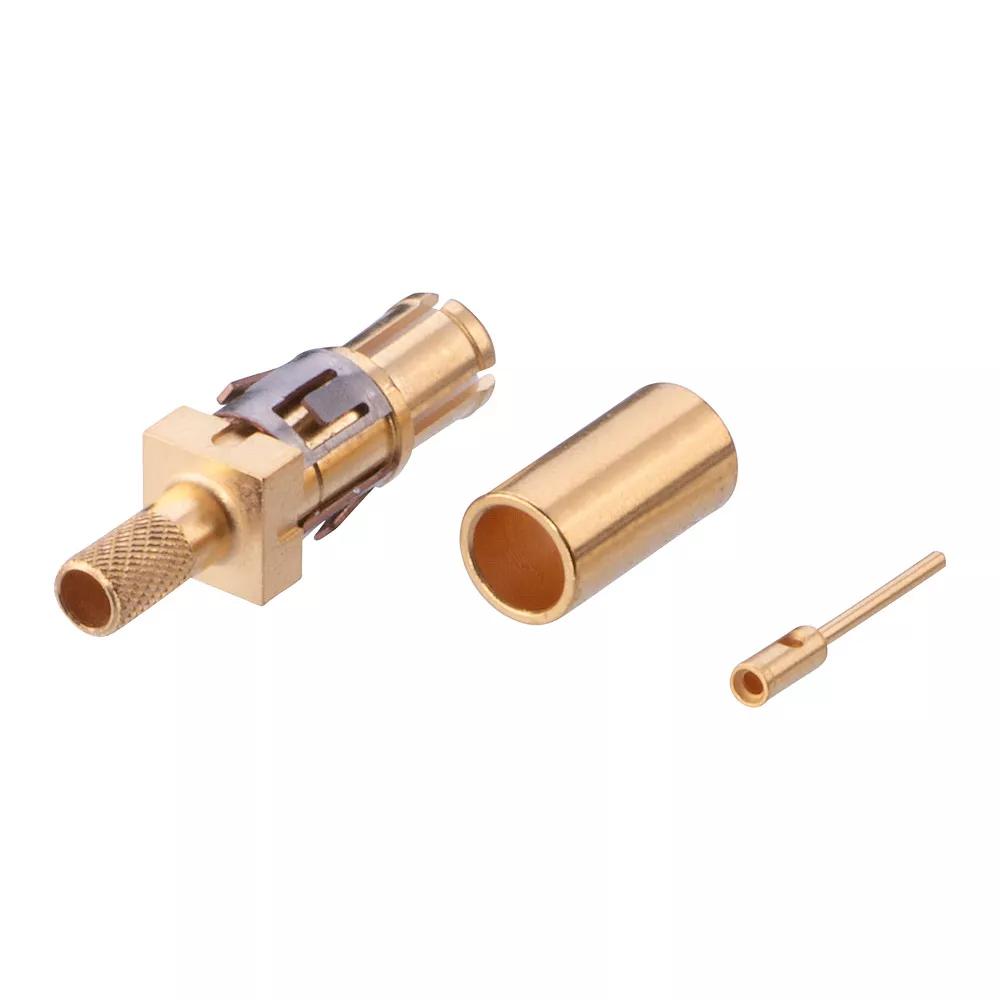

Image may be representative. Refer to the product title for more information.
Straight Crimp, suitable for Ø2mm coax cable (RG178).
Specified as 315 in a Mix-Tek connector part number. Use with any male Datamate Mix-Tek housing in a power/coax cavity.
Gold finish on contact areas and termination. See instruction sheet IS-52 for advice on assembly to housing.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Straight
Country of Origin
GB
Number of Power/Coax Contacts
1
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
0.5A per contact
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
PTFE
Base Material of Contact
Phosphor Bronze inner contact, Brass outer contact
Packaging Style
Single Pack
Finish / Plating on Termination
Gold
Housing Colour
White
Dimensions
Contact Pitch
4.00mm (0.157")
Weight
0.409g
Dimensions
13.40 x 3.00 square
Wire Size
Ø2mm (RG178) coax
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-315-317.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Plating thickness on Datamate power and coax contacts
Product Information
Product Training Module - Guide to the Datamate Coax range
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-34 - Z80-292 and Z90-293 Hand Crimp Tools Instruction Sheet
IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Reports
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-315 product
RoHS Declaration - M80-315
