Z80-291

Positioner / Insert for Hand Crimp Tool

2.00mm Pitch High-Reliability Connector - Datamate Tooling

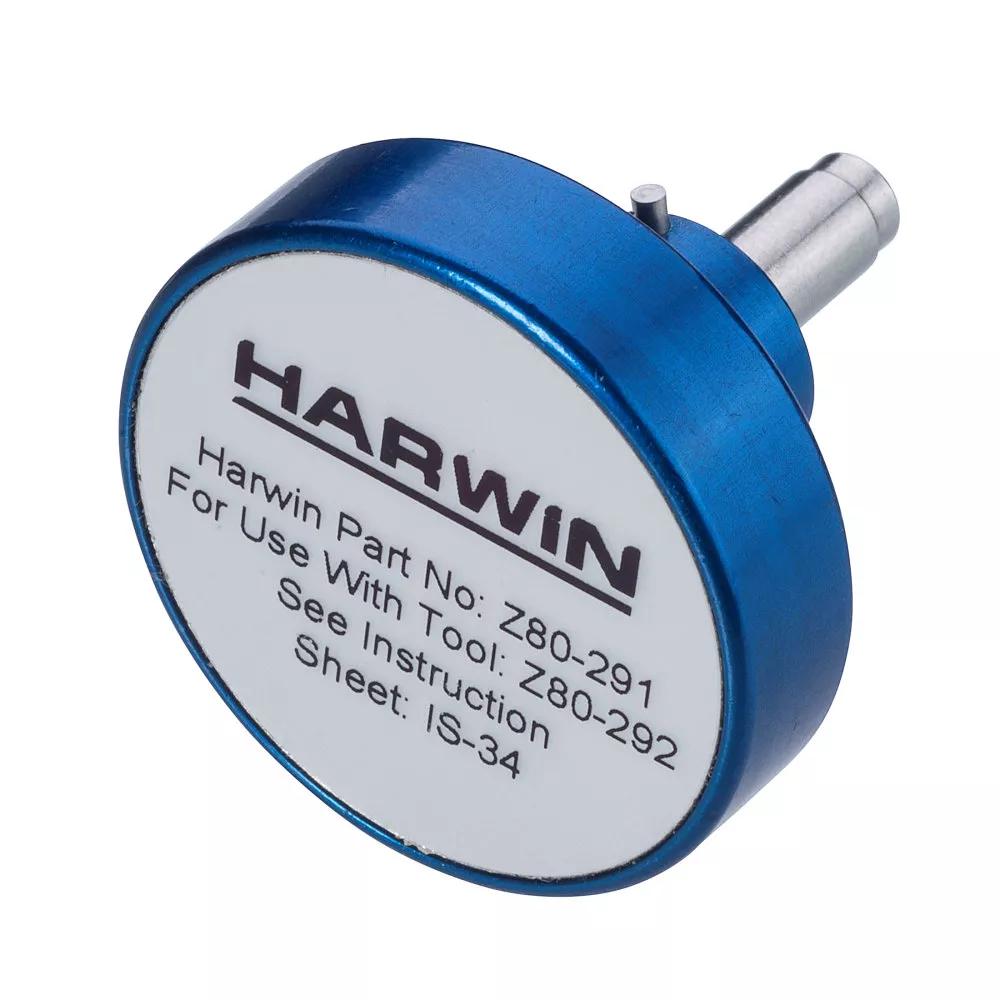

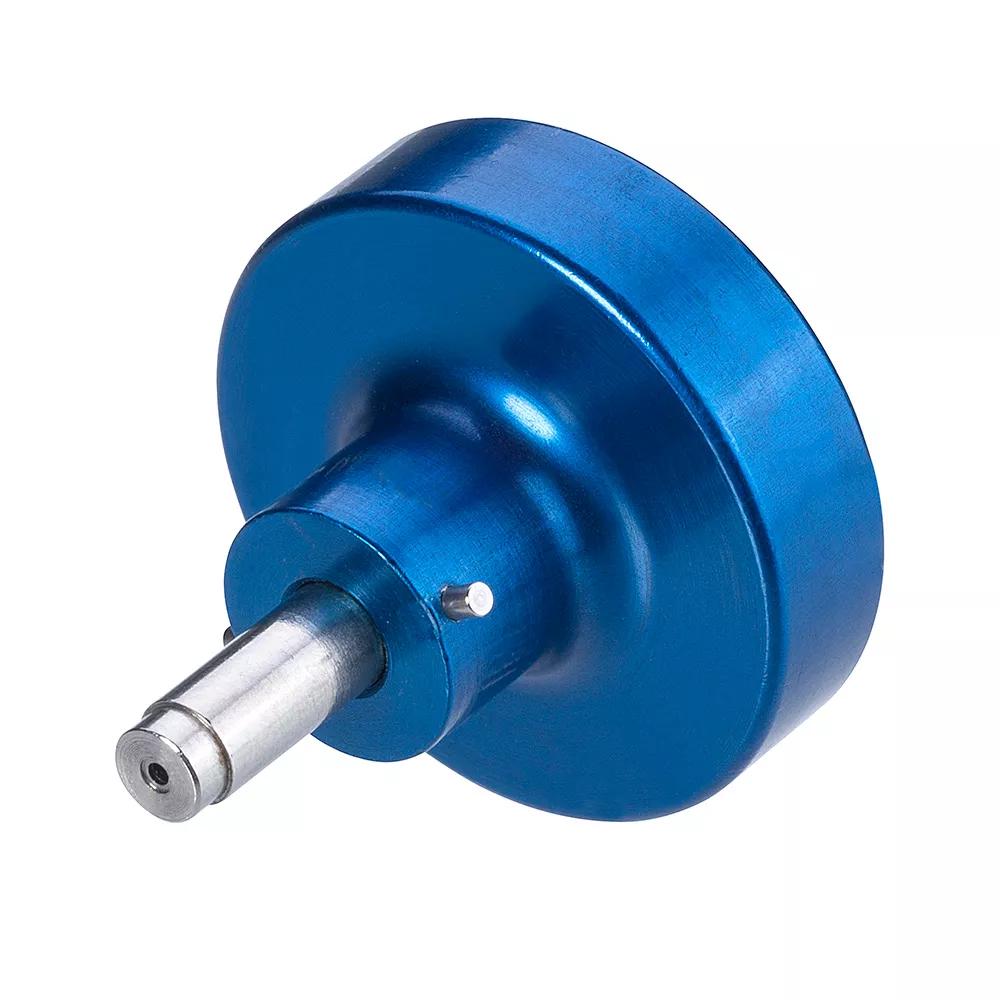

Positioner for inner contact of Datamate Mix-Tek coax contacts – for correctly positioning crimps in tool whilst crimping.
Suitable for coax contacts M80-305, M80-307, M80-315, M80-317.
Use with Hand Crimp Tool Z80-292.

Add to Favorites

Z80-291 - Positioner / Insert for Hand Crimp Tool

Z80-291 - Positioner / Insert for Hand Crimp Tool

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Packaging Style:

Single Pack

Individual Part Weight:

10.26g

Overall Dimensions (L x W x D) in mm:

Ø23.65 x 23.80
