M22-3060046

M22-3060046

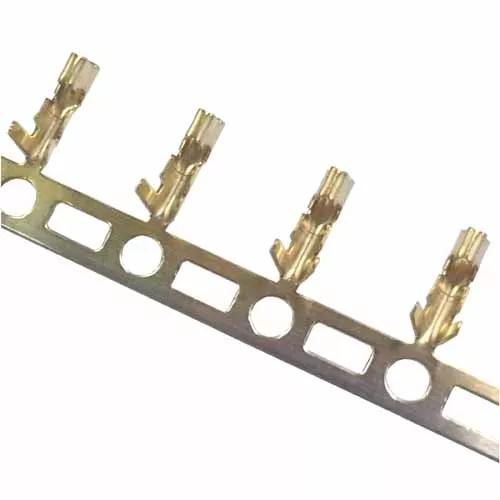

2.00mm (0.079") Pitch Female Crimp Contact, tin, reeled, for use with M22-307 housings

BBi

Traceparts account required

M22-3060046

2.00mm (0.079") Pitch Female Crimp Contact, tin, reeled, for use with M22-307 housings


2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Female crimp contacts on reel - Tin finish contact area.

  • Suitable for cable conductor sizes from 24 to 30 AWG.

  • Use with crimp housings M22-307 series.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    24-30 AWG

  • Mating Pin Size:

    0.5mm square

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Base Material of Contact:

    Phosphor Bronze

  • Packaging Style:

    Reel

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    2A per contact

  • Weight:

    0.04g

  • Dimensions:

    5.80 x 2.20 x 2.90 (contact only)

  • Operating Temperature:

    -25°C to +85°C

  • Country of Origin:

    TW

Downloads

    Environmental Compliance

  • RoHS - M22-3060046

  • Material composition for M22-306 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M22-306.pdf

  • C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-05 - Z22-020 Hand Crimp Tool Instruction Sheet

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin
