S25-546

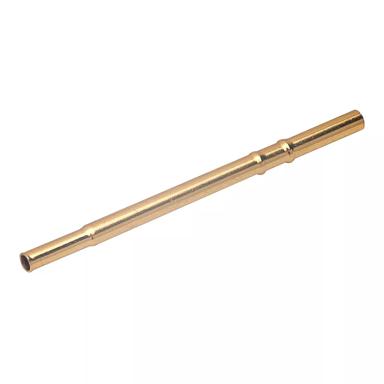

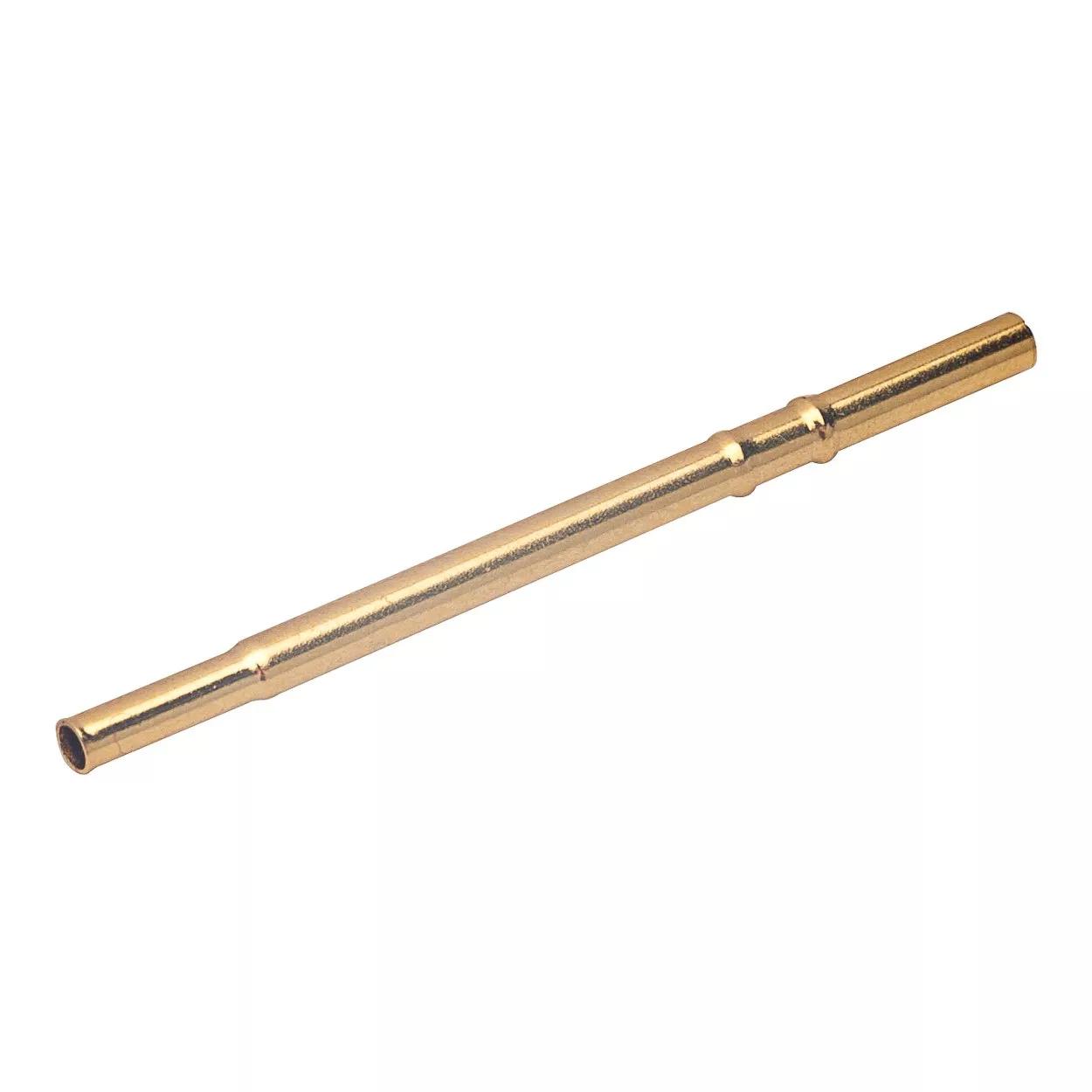

ATE Spring Probe Sleeve for Two-Part Probe, 2.54mm Centres

ATE Spring Probe Receptacle, Test Probe Sleeve

  • Sleeve / Receptacle for Two Part Spring Probe, 7.5mm retaining feature, crimp or solder.
  • Use with probe P25-0126, P25-1726, P25-3226 or P25-4026.
  • Gold finish.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

Dependent on assembled probe

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Materials

Finish / Plating on Termination:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.158g

Overall Dimensions (L x W x D) in mm:

30.10 x Ø1.90

Availability

1,729 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 940
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 789

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
