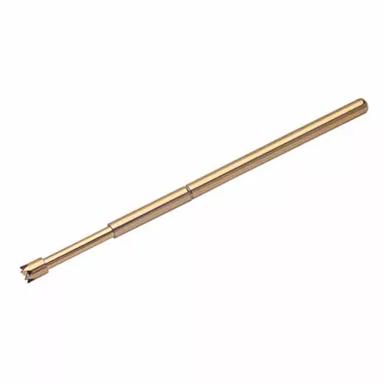

Image may be representative. Refer to the product title for more information.
Two Part Spring Probe, 2.54mm (0.1") minimum pitch, Ø1.5mm Tulip Head.
Gold finish on probe head and body.
Use with receptacle / sleeve S25-346 or S25-546. See instruction sheet IS-41 for advice on use.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Vertical
Country of Origin
CN
Number of Signal Contacts
1
Operating Temperature
-40°C to +180°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
3A max
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Beryllium Copper plunger, Phosphor Bronze shell
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Dimensions
Weight
0.25g
Dimensions
33.30 x Ø1.50
Downloads
Product Information
Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)
IS-41 - ATE Spring Probes Instruction Sheet
ATE Test Probes - graph of complete range of heights and compression
