P25-0822

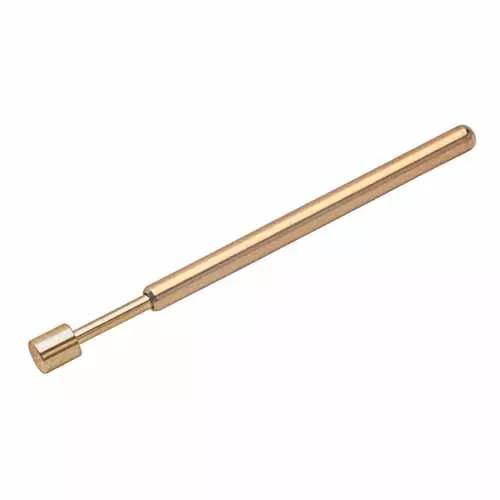

ATE Spring Probe, Spring Contact, Test Probe
Two Part Spring Probe, 2.54mm (0.1") minimum pitch, Ø1.8mm Flat Head.
Gold finish on probe head and body.
Use with receptacle / sleeve S25-022, S25-212 or S25-512. See instruction sheet IS-41 for advice on use.
View Technical Details
Checking stock availability...
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Connector Orientation:
Vertical
Country of Origin:
CN
Number of Signal Contacts:
1
Operating Temperature:
-40°C to +180°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
3A
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper plunger, Brass shell
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Weight:
0.12g
Dimensions:
24.70 x Ø1.80
Technical Drawing / Datasheet - P25-0822.pdf
Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)
IS-41 - ATE Spring Probes Instruction Sheet
ATE Test Probes - graph of complete range of heights and compression
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - P25-0822
