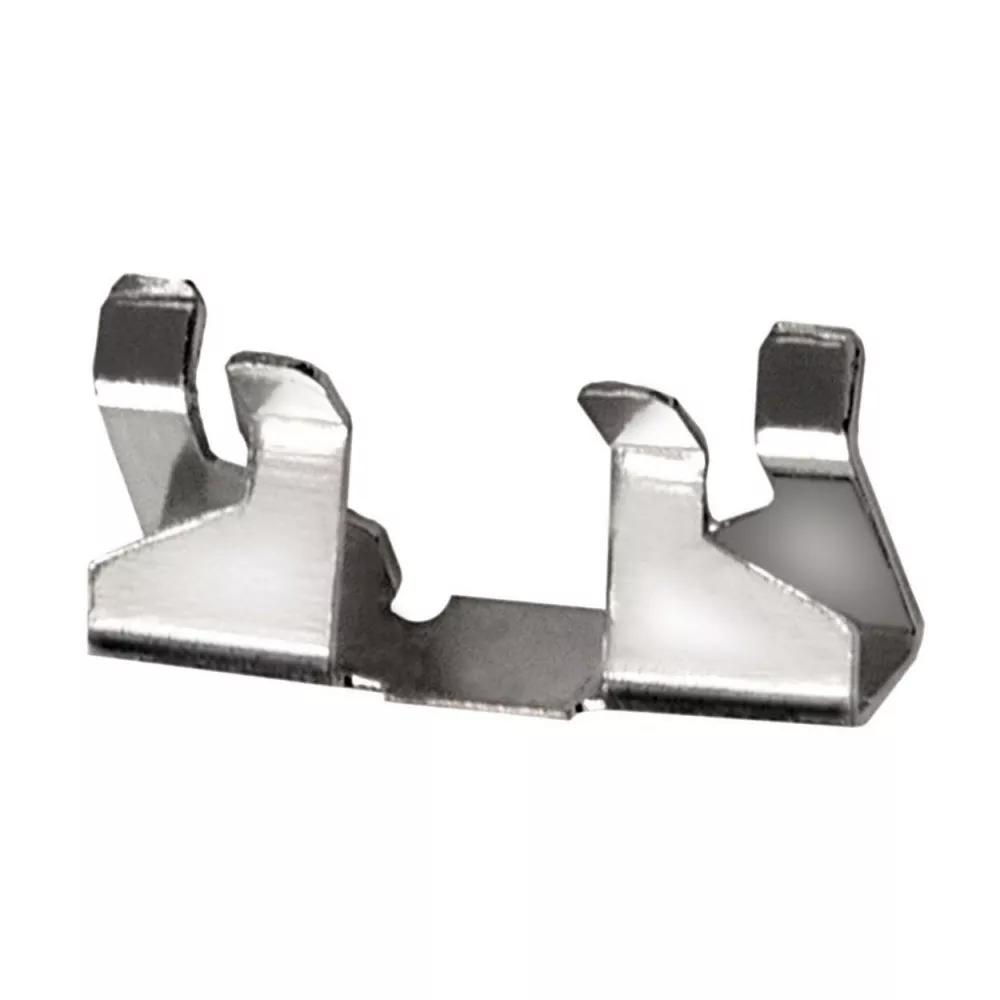

Mini size (5.08mm long, 2.23mm high), for 0.13-0.23mm shield thickness. Tin finish on contact area and termination.
Packaged in Tape & Reel for automated placement.
Recommended for use with S02-20150300, S02-25200300, S02-30200250, S03-10100300, S03-15100300 or S03-30100300 Shield Cans.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Entry Style
Top Entry
Connector Orientation
Vertical
Country of Origin
GB
Operating Temperature
-40°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Base Material of Contact
Beryllium Copper
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Weight
0.013g
Dimensions
5.20 x 1.07 x 2.23
Height of Connector above PCB
2.23mm
Downloads
Product Information
Product Training Module - EMC/RFI Shield Clips and Shield Cans
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Test Reports
Test Report HT026 - Shield Clips S1411 + S1711 + S1721 Environmental (Vibration + Shock + Bump)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S1721 series
RoHS Declaration - S1721-46R
