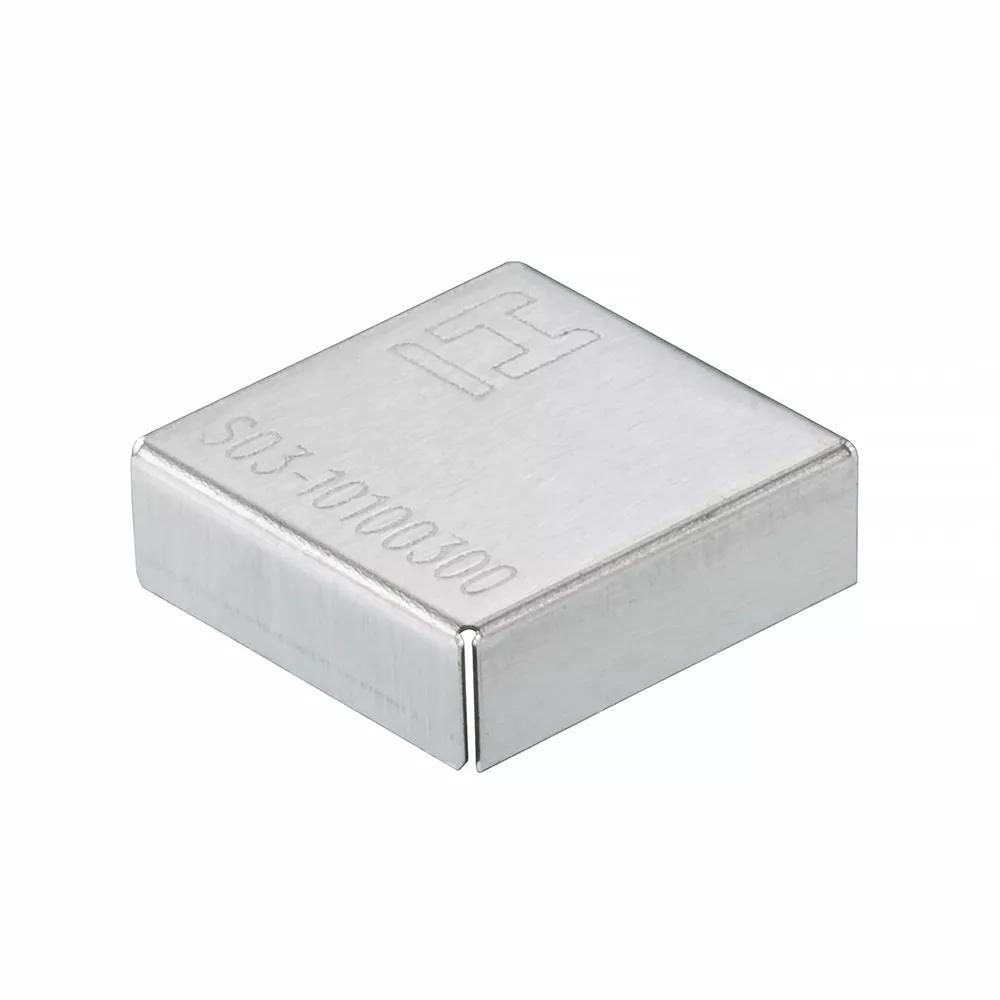

5-sided Nickel Silver board-level shield can, removable when used with SMT clips. Easy to use and rework - no additional soldering operations required.
10mm x 10mm, 3mm high, 0.15mm shield thickness.
Recommended for use with S0911-46R, S0941-46R, S0961-46R, S1001-46R or S1721-46R surface mount shield clips.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Country of Origin
TW
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Finish / Plating on Contact Surface
Unplated
Base Material of Contact
Nickel Silver
Packaging Style
Tape and Reel Strip
Dimensions
Weight
0.273g
Dimensions
10.15 x 10.15 x 3.15
Downloads
Product Information
Product Training Module - EMC/RFI Shield Clips and Shield Cans
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Test Reports
Test Report HT026 - Shield Clips S1411 + S1711 + S1721 Environmental (Vibration + Shock + Bump)
Test Report HT066 - Shield Clips S0901 + S0911 + S0921 - General
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S03-10100300R product
Harwin REACH Statement - S03-10100300
RoHS Declaration - S03-10100300
