S03-30100300R
EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

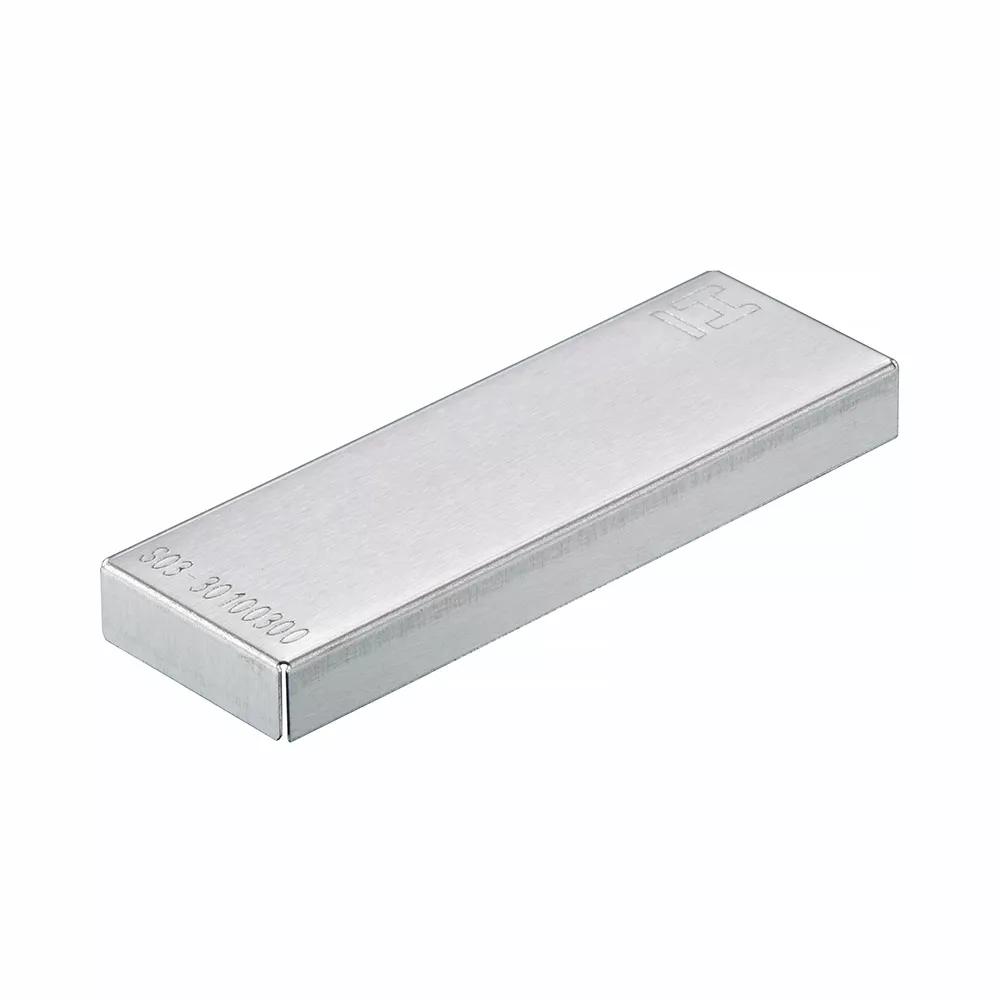

30mm x 10mm, 3mm high, 0.15mm shield thickness. Packaged in Tape & Reel for automated placement.
Recommended for use with S0911-46R, S0941-46R, S0961-46R, S1001-46R or S1721-46R Surface Mount Shield Clips.
Easy to use and rework - no additional soldering operations required.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Country of Origin:
TW
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Finish / Plating on Contact Surface:
Unplated
Base Material of Contact:
Nickel Silver
Packaging Style:
Tape and Reel
Weight:
0.691g
Dimensions:
30.15 x 10.15 x 3.15
Technical Drawing / Datasheet - S03-XXXXXXX0R.pdf
Product Training Module - EMC/RFI Shield Clips and Shield Cans
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Test Report HT026 - Shield Clips S1411 + S1711 + S1721 Environmental (Vibration + Shock + Bump)
Test Report HT066 - Shield Clips S0911 + S0921 - General
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S03-30100300R product
RoHS - S03-30100300R
