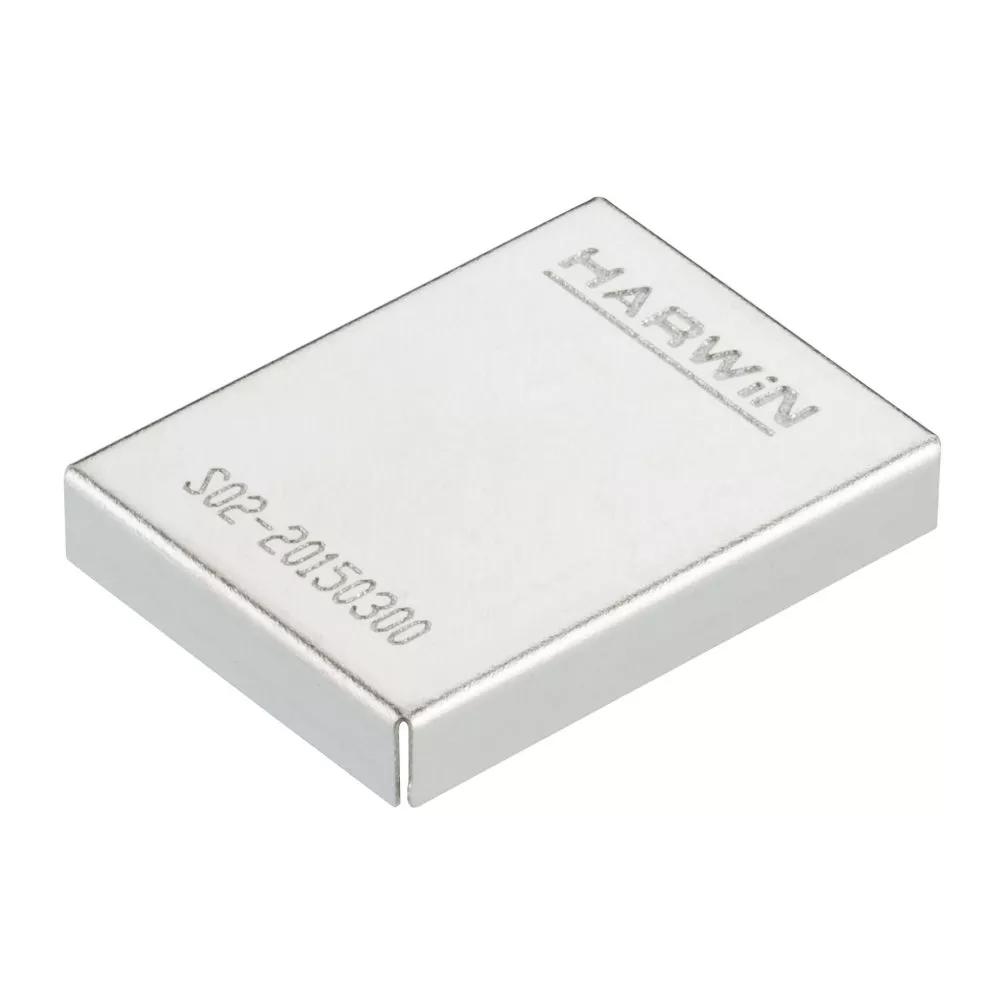

Image may be representative. Refer to the product title for more information.
20mm x 15mm, 3mm high, 0.2mm shield thickness. Packaged in Tape & Reel for automated placement.
Recommended for use with S0911-46R, S0951-46R, S0961-46R, S0971-46R, S0981-46R, S0991-46R, S1001-46R or S1721-46R Surface Mount Shield Clips.
Easy to use and rework - no additional soldering operations required.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Country of Origin
TW
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Finish / Plating on Contact Surface
Unplated
Base Material of Contact
Nickel Silver
Packaging Style
Tape and Reel
Dimensions
Weight
0.861g
Dimensions
20.20 x 15.20 x 3.20
Downloads
Product Information
Product Training Module - EMC/RFI Shield Clips and Shield Cans
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Test Reports
Test Report HT026 - Shield Clips S1411 + S1711 + S1721 Environmental (Vibration + Shock + Bump)
Test Report HT066 - Shield Clips S0901 + S0911 + S0921 - General
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S02-20150300 product
