M80-FB10468F2-0150L

2+2 Pos. Female T-Contact DIL 22 AWG Cable Assembly, 150mm, single-end, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

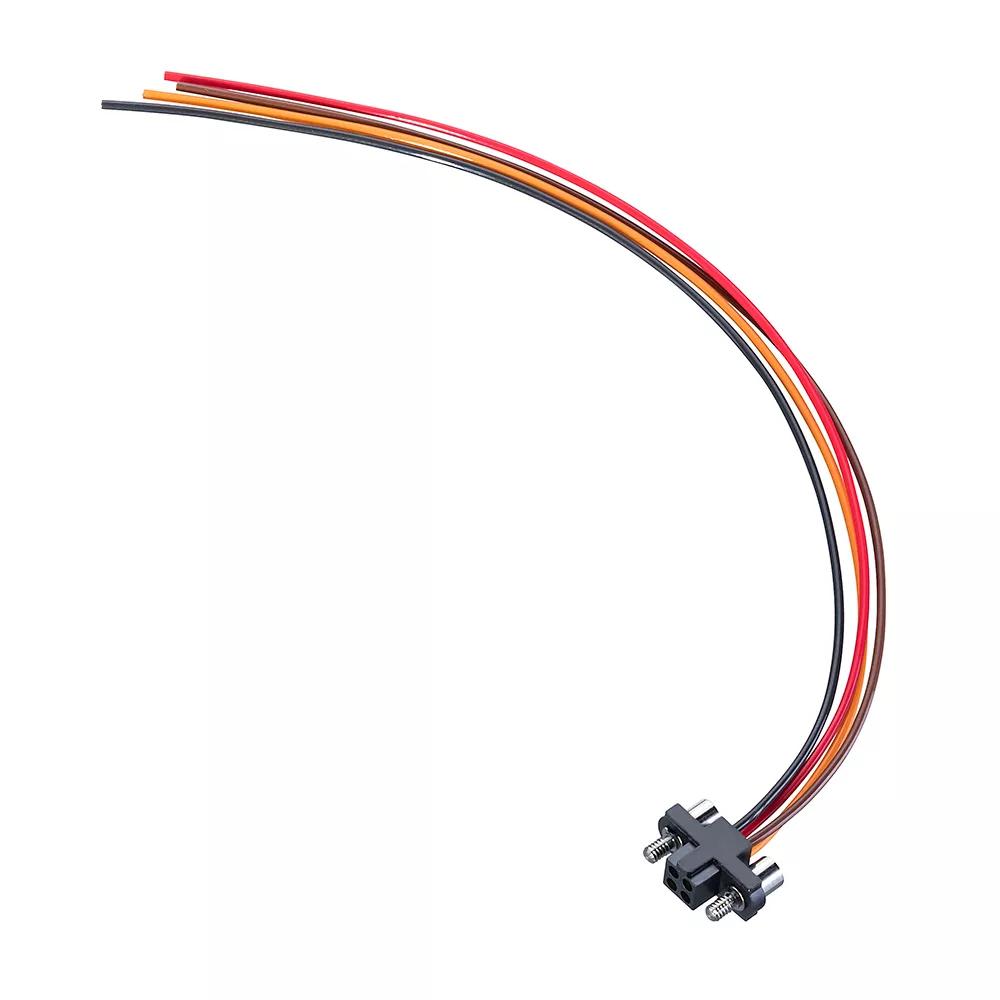

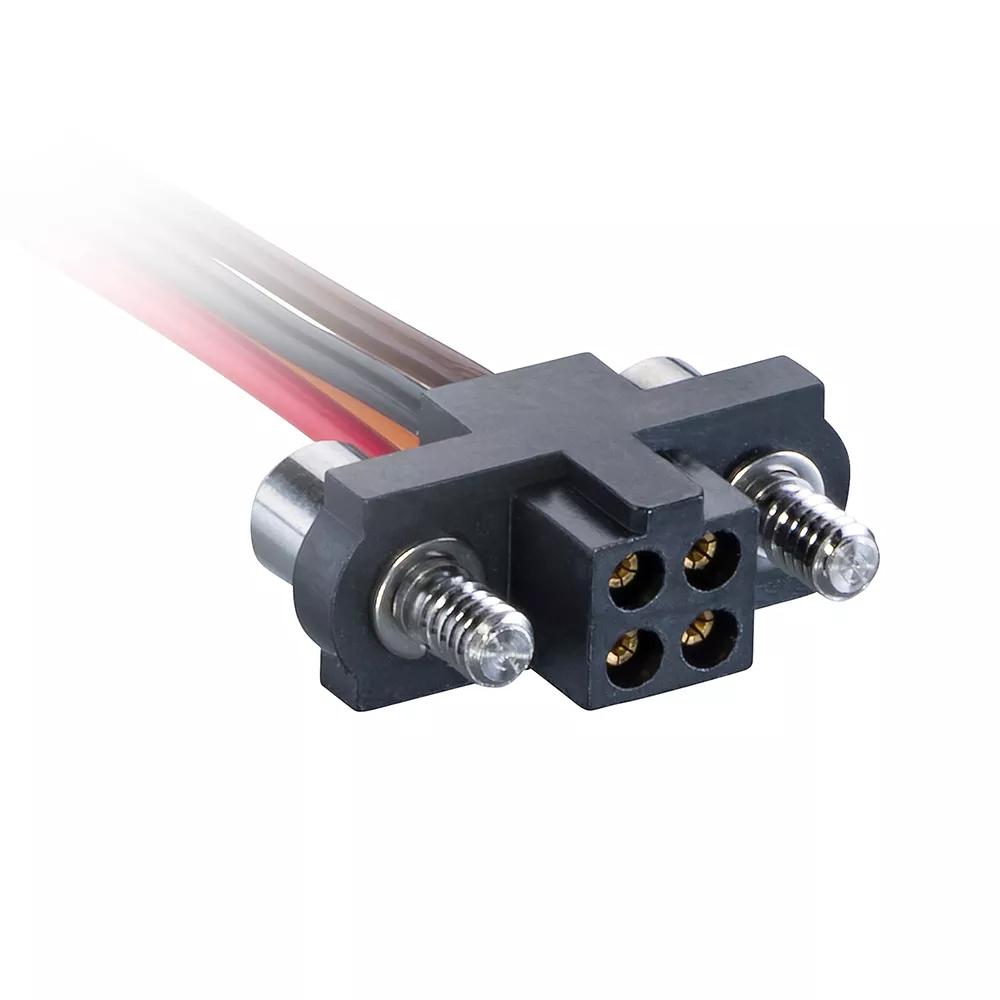

  • Female Single-Ended with multicolor 22 AWG cable, 150mm (6") long - 4 contacts (2+2). Fitted with floating jackscrews, hex socket head.

  • Manufactured with the M80-2060005 T-Contact crimp contacts, M80-4140498 Double Row crimp housing. Gold finish on contact areas.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Screw Fixing (floating) with Hex Socket Head

  • Mating Pin Size:

    Ø0.5mm

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB/US

  • Side Stackable:

    No

  • Number of Signal Contacts:

    4

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    8.5A max individual contact, 3.5A max simultaneous (25°C)

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Beryllium Copper

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    2.705g

  • Dimensions:

    150.30 x 14.00 x 5.50

  • Thread Size:

    M2

  • Wire Size:

    22 AWG

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M80-FB1XX68F2-XXXXL.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Datamate signal contacts & T-Contact

    • Product Information

  • Catalog page - Datamate J-Tek Mating Profiles

  • Product Training Module - Guide to the Datamate T-Contact and associated housings

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Panel Mount with Datamate

  • Product Datasheet - Datamate range: signal connectors (HRi)

    • Test Reports

  • Test Report HT062 - Datamate T-Contact 8.5A signal contact - General

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • RoHS - M80-FB10468F2-0150L
