M80-4140498

M80-4140498

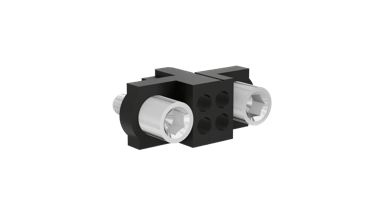

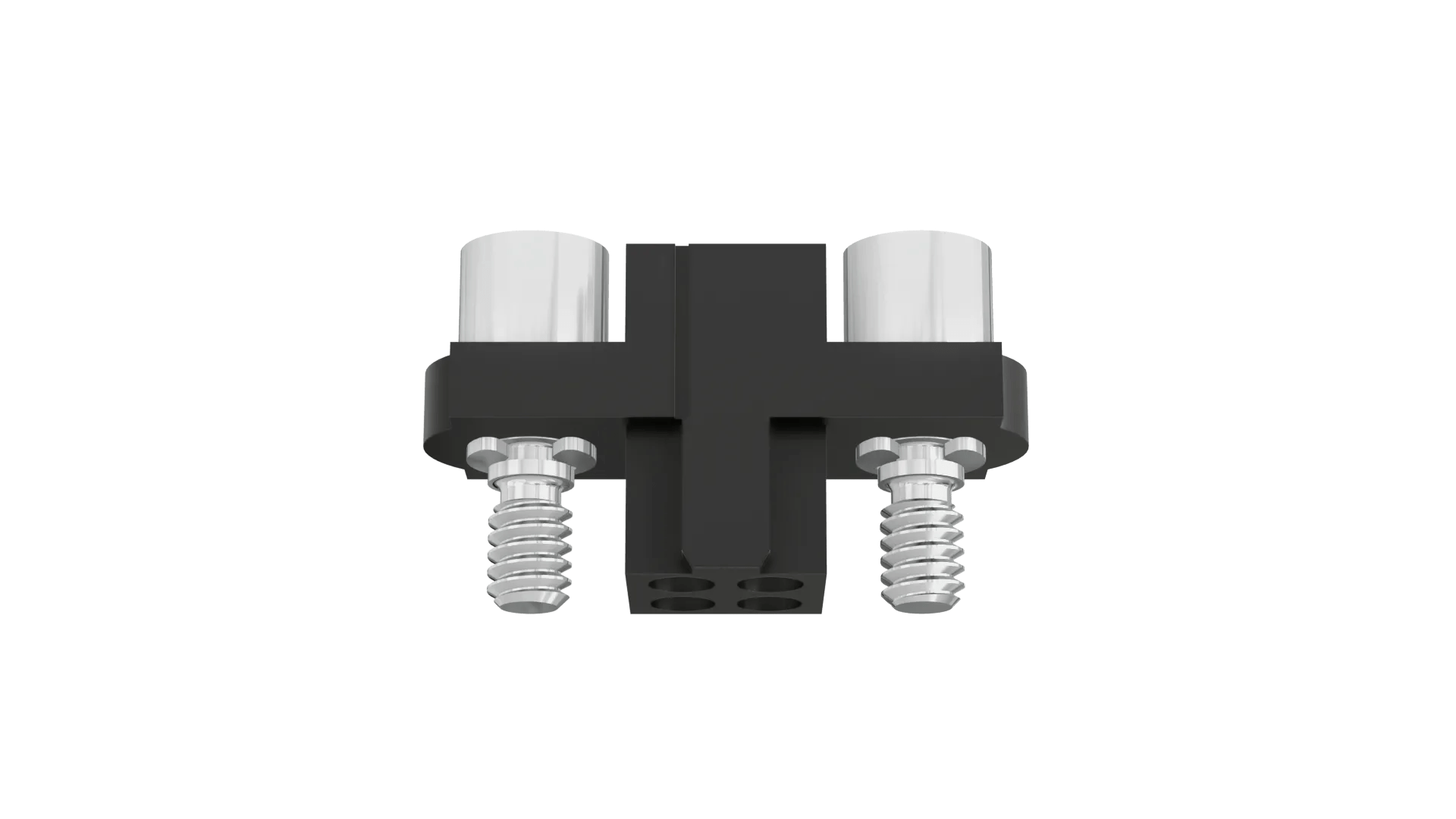

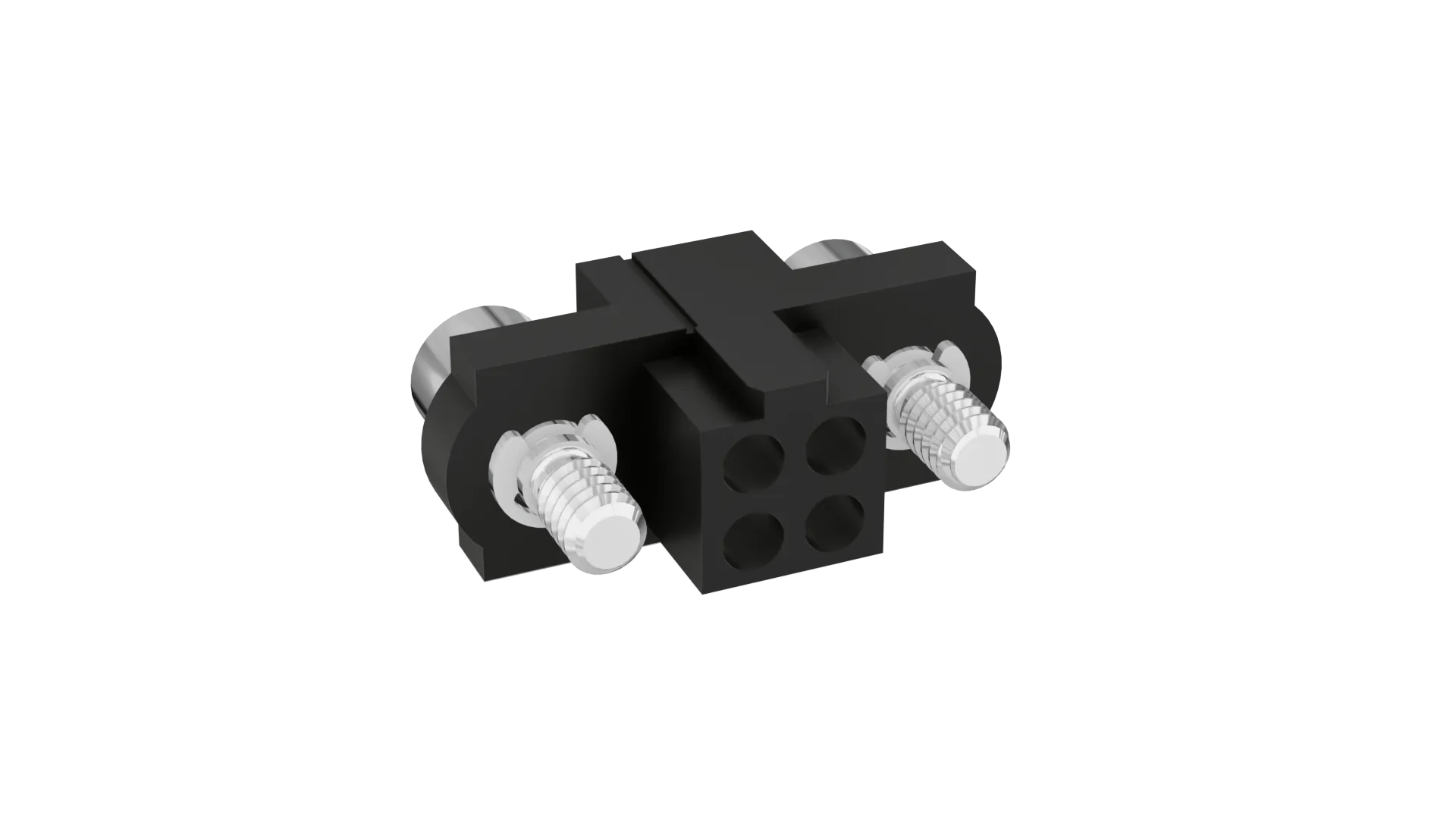

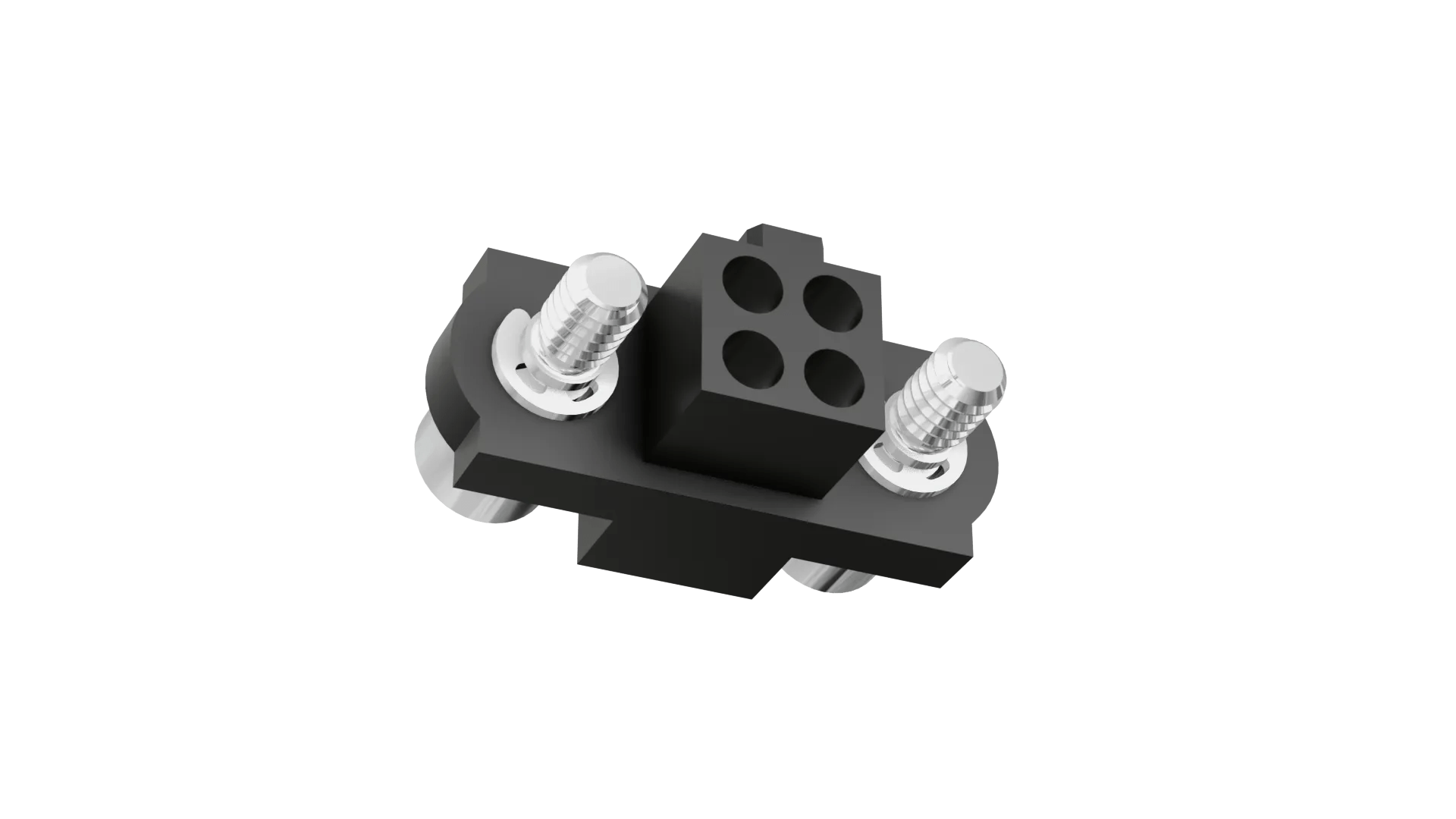

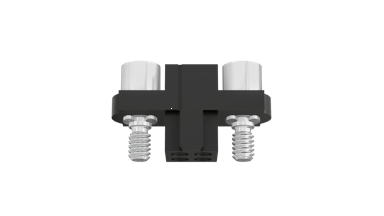

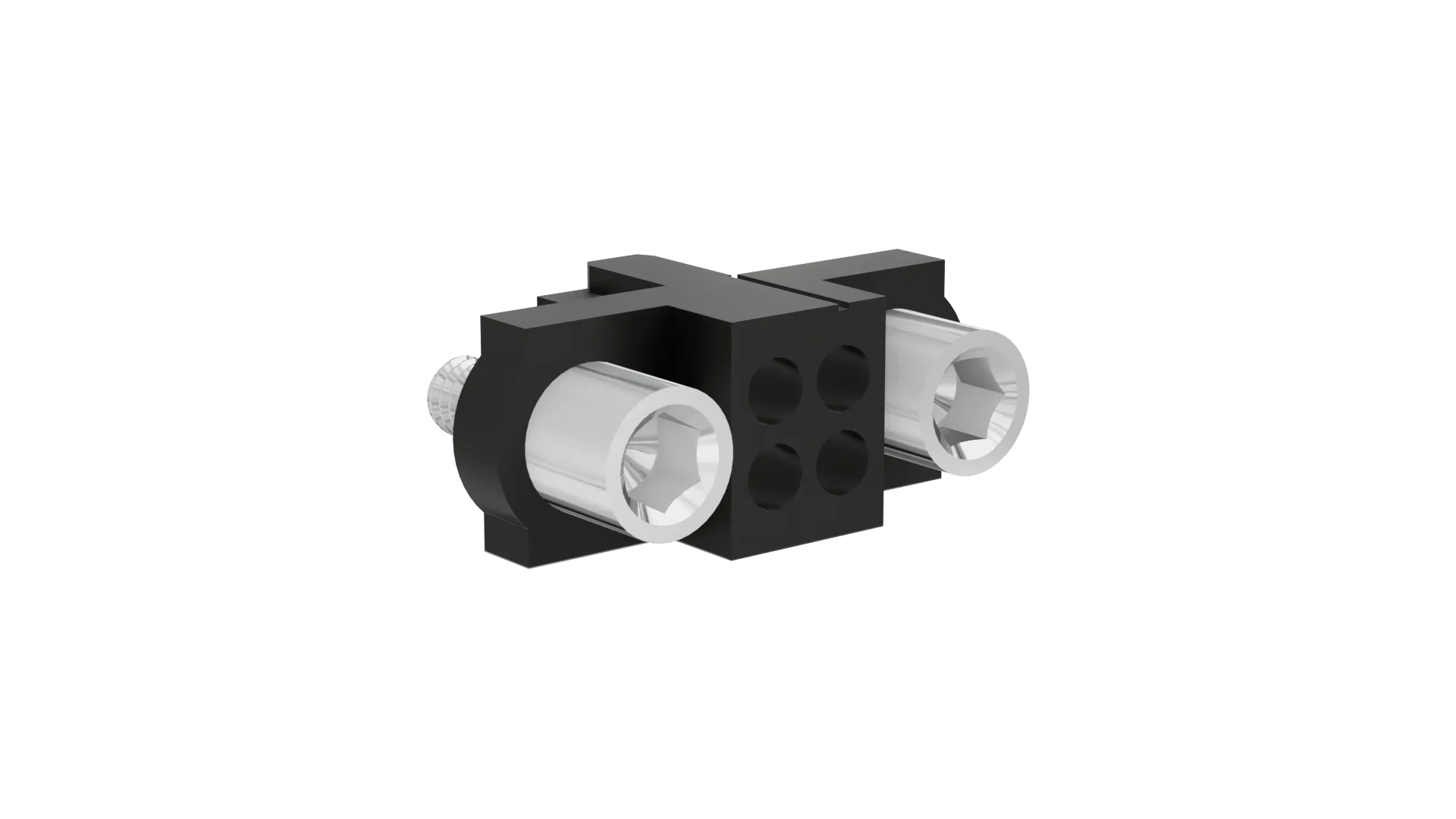

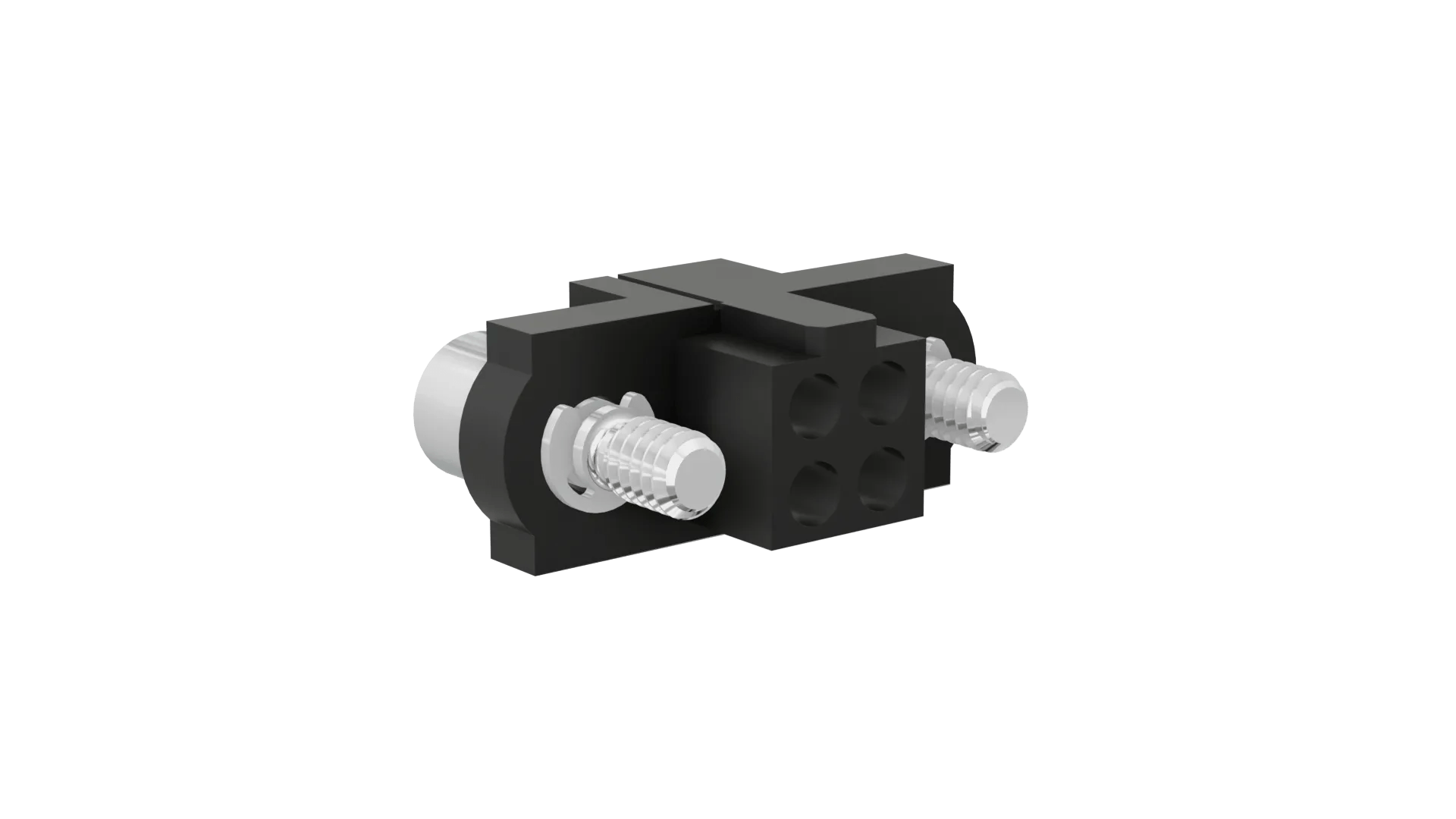

2+2 Pos. Female DIL Cable Housing, Jackscrews

Image may be representative. Refer to the product title for more information.

M80-4140498

2+2 Pos. Female DIL Cable Housing, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • J-Tek Female cable housing fitted with hex socket (for 2mm A/F allen key) floating jackscrews. Accommodates 4 (2+2) signal contacts.

  • Ideal for use with M80-2060005 T-Contact (22 AWG), but can also be used with other female signal crimp contacts from the Datamate range.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • Technical Drawing

    View

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable

    No

  • Style of Jackscrews

    Screw Fixing (floating) with Hex Socket Head

  • Number of Rows

    2

  • Connector Orientation

    Straight

  • Country of Origin

    GB

  • Side Stackable

    No

  • Number of Signal Contacts

    4

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating

    Dependent on assembled contacts

  • Polarised

    Yes

  • Cuttable

    No

Materials

  • Housing Material

    PPS

  • Flammability Rating

    UL94V-0

  • Packaging Style

    Bulk/Loose

  • Housing Colour

    Black

Dimensions

  • Contact Pitch

    2.00mm (0.079")

  • Weight

    0.884g

  • Dimensions

    14.00 x 5.50 x 8.50

  • Thread Size

    M2

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M80-414.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

Product Information

  • Catalog page - Datamate J-Tek Mating Profiles

  • Product Training Module - Guide to the Datamate T-Contact and associated housings

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Panel Mount with Datamate

  • Product Training Module - Cable Products from Harwin

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Datamate range: signal connectors (HRi)

Test Reports

  • Test Report HT062 - Datamate T-Contact 8.5A signal contact - General

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-414 series

  • RoHS Declaration - M80-4140498
