Home > M80-9464802
Active Product

M80-9464802

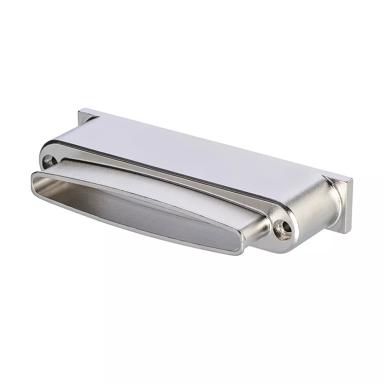

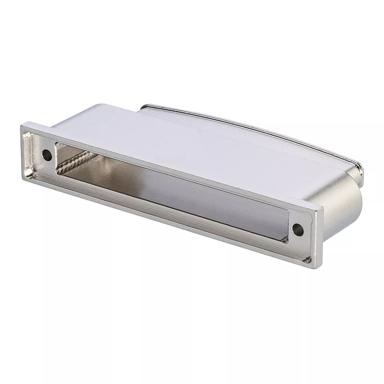

24+24 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate

Add to Favorites

Loading…   Check availability

2 similar products View products

Traceparts account required

Product Description

  • Female kit includes aluminium alloy backshell (nickel plated), 2 x hex socket jackscrew, 4 x e-clip (2 as spare).
  • For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 48 (24+24) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
  • Accessory kit only – connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see IS-42).

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

48

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

18.443g

Overall Dimensions (L x W x D) in mm:

62.20 x 30.00 x 10.70

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Can I use this backshell with a Mix-Tek connector fitted with PF5 or PM5 contacts (10AWG High Power)?

Sorry no, I’m afraid the backshell is not suitable for use with a Datamate Mix-Tek connector using PF5 or PM5 contacts. You will need to specify contacts from the range 325 to 329 for female connectors and 335 to 339 for male connectors.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
