5+5 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate

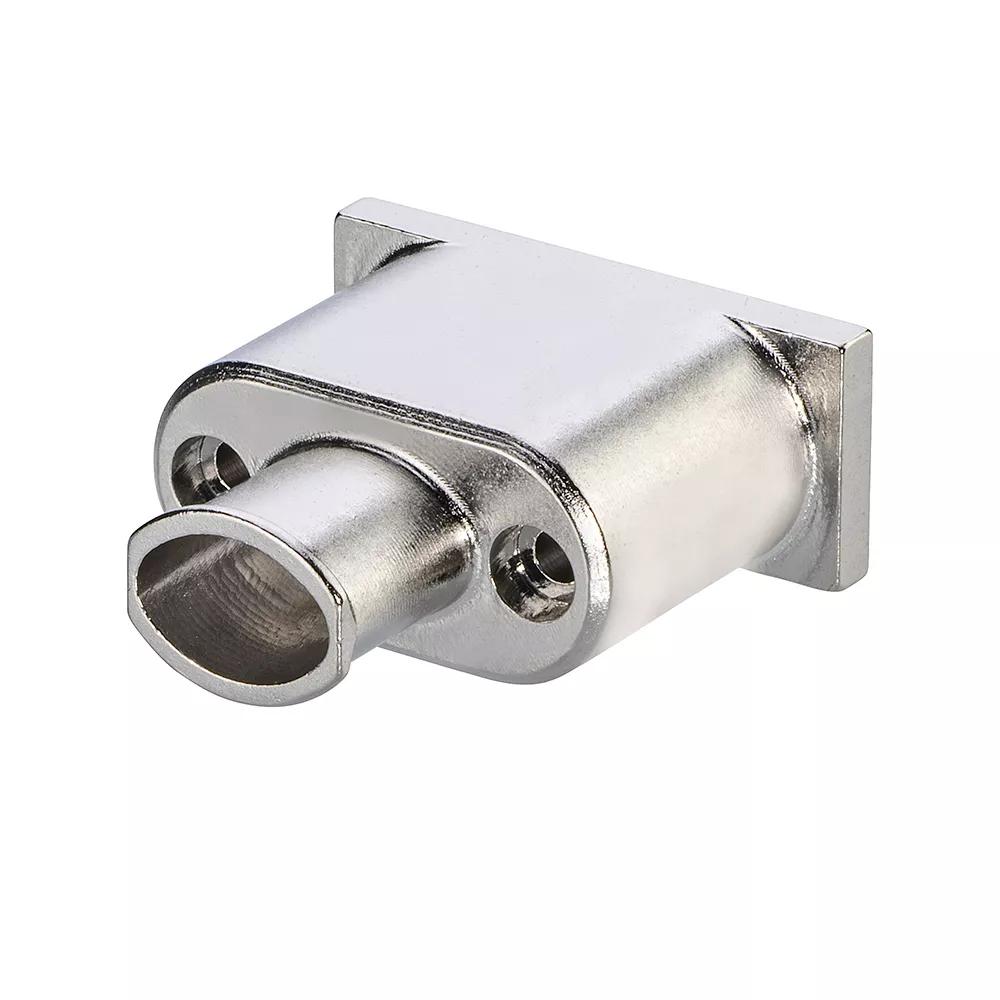

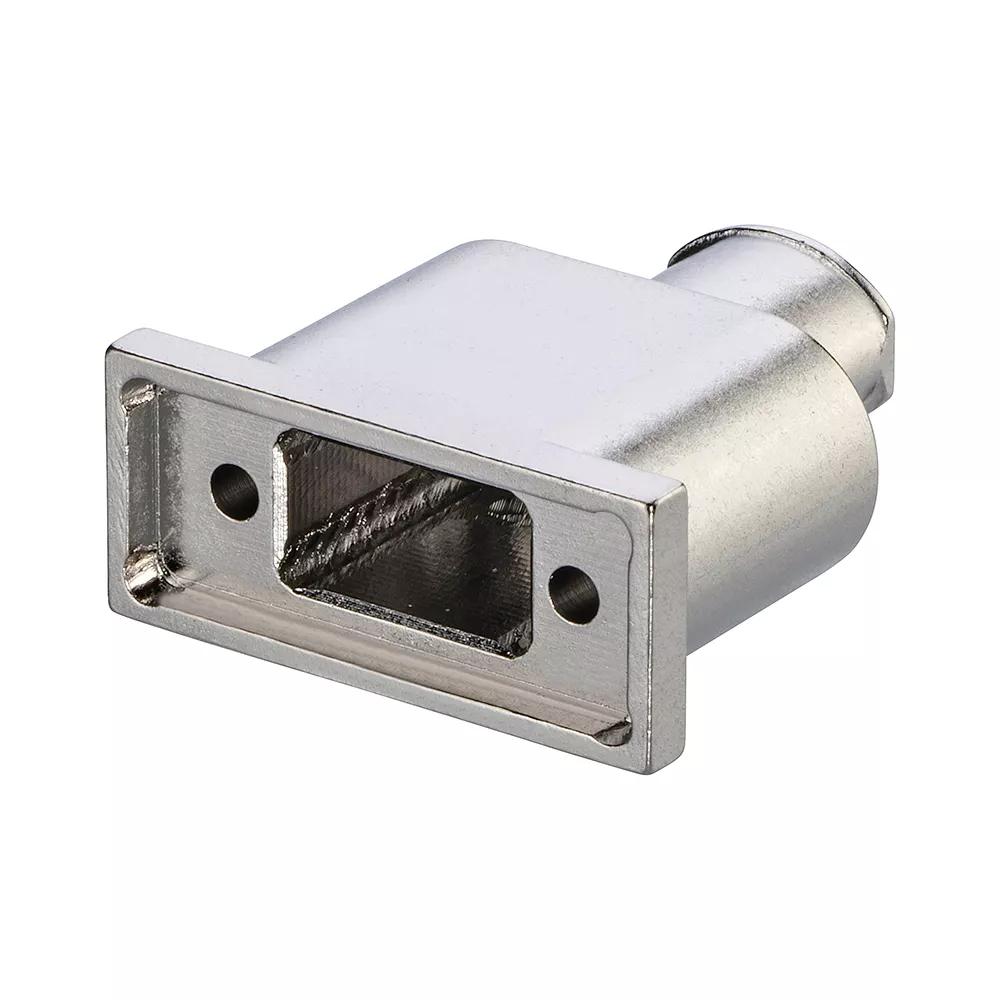

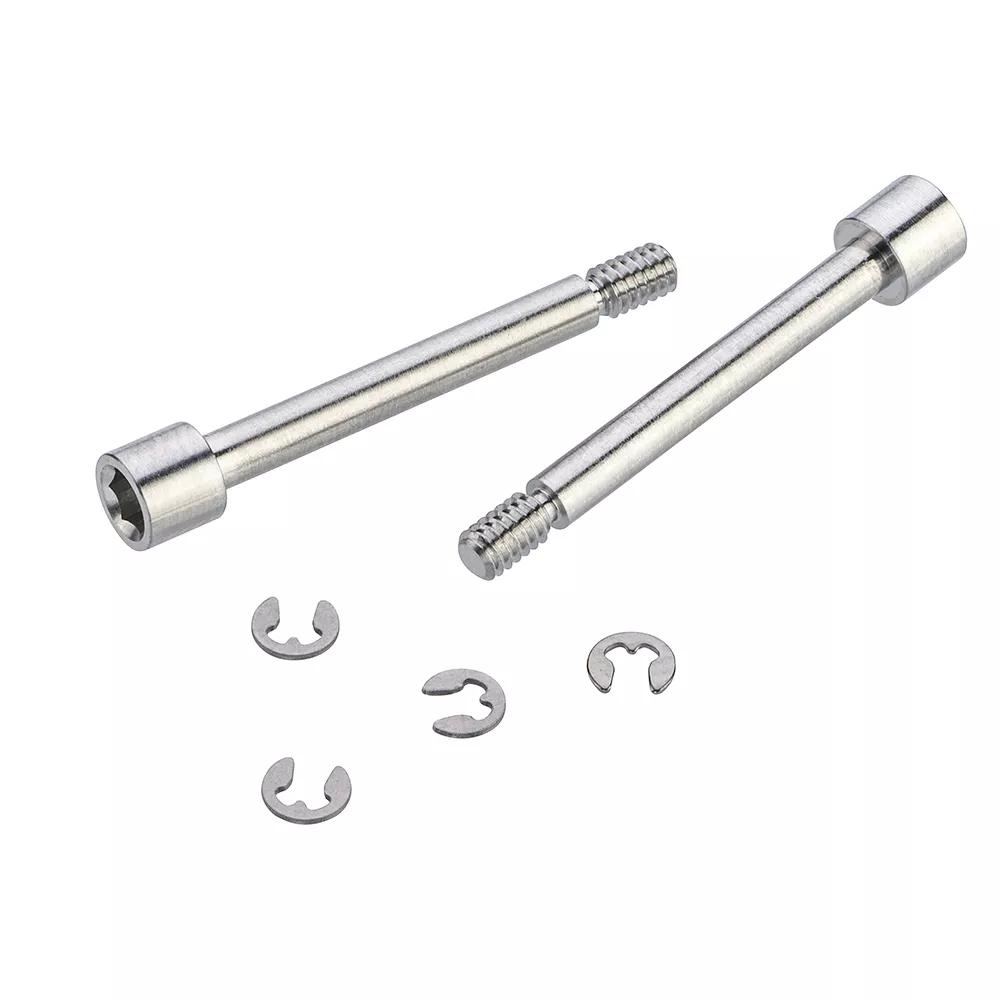

- Female kit includes aluminium alloy backshell (nickel plated), 2 x hex socket jackscrew, 4 x e-clip (2 as spare).

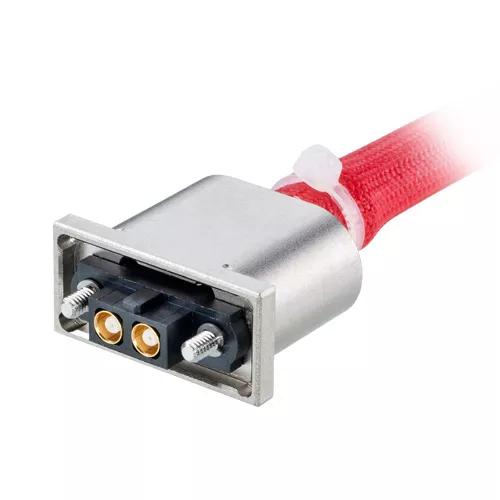

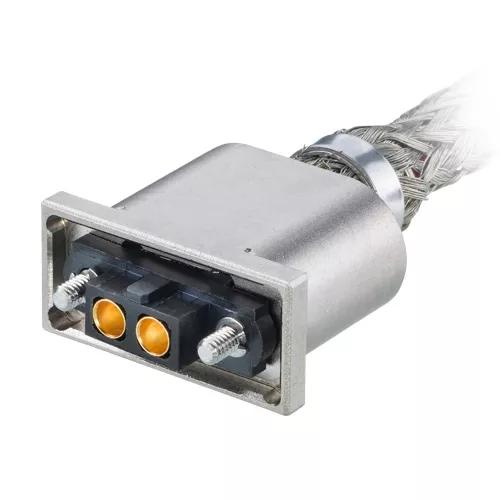

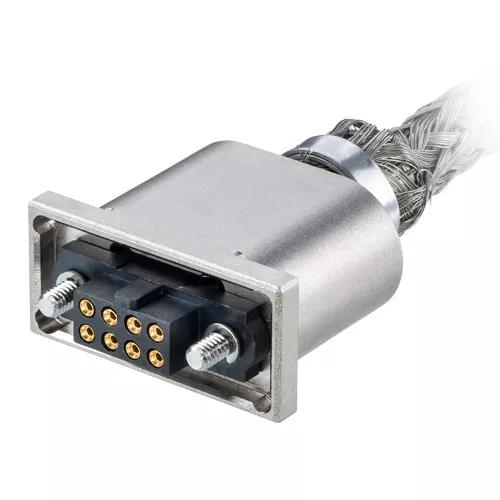

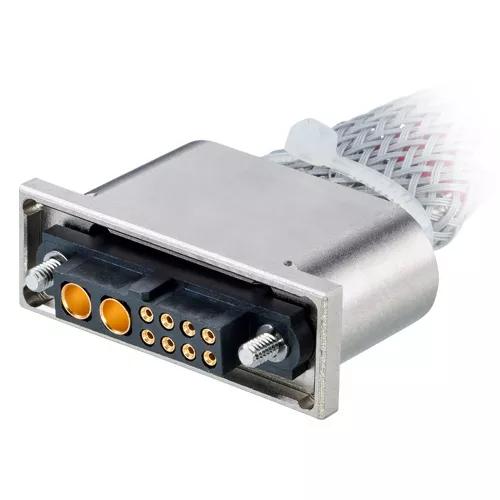

- For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 10 (5+5) contacts, or equivalent sized Mix-Tek connectors.
- Accessory kit only – connectors to be purchased separately. BAND-IT tie M80-9470000 to be purchased separately (for attaching braid to rear of connector, see IS-42).
EU RoHS Status:
-55°C to +125°C
Style of Jackscrews:
Hex Socket, suitable for Hood
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
24.20 x 30.00 x 10.70
Questions & Answers Ask a Question
No questions have been asked yet
M80-9461002 CAD Model (ZIP file containing STP and IGES)Download
