M80-9454202

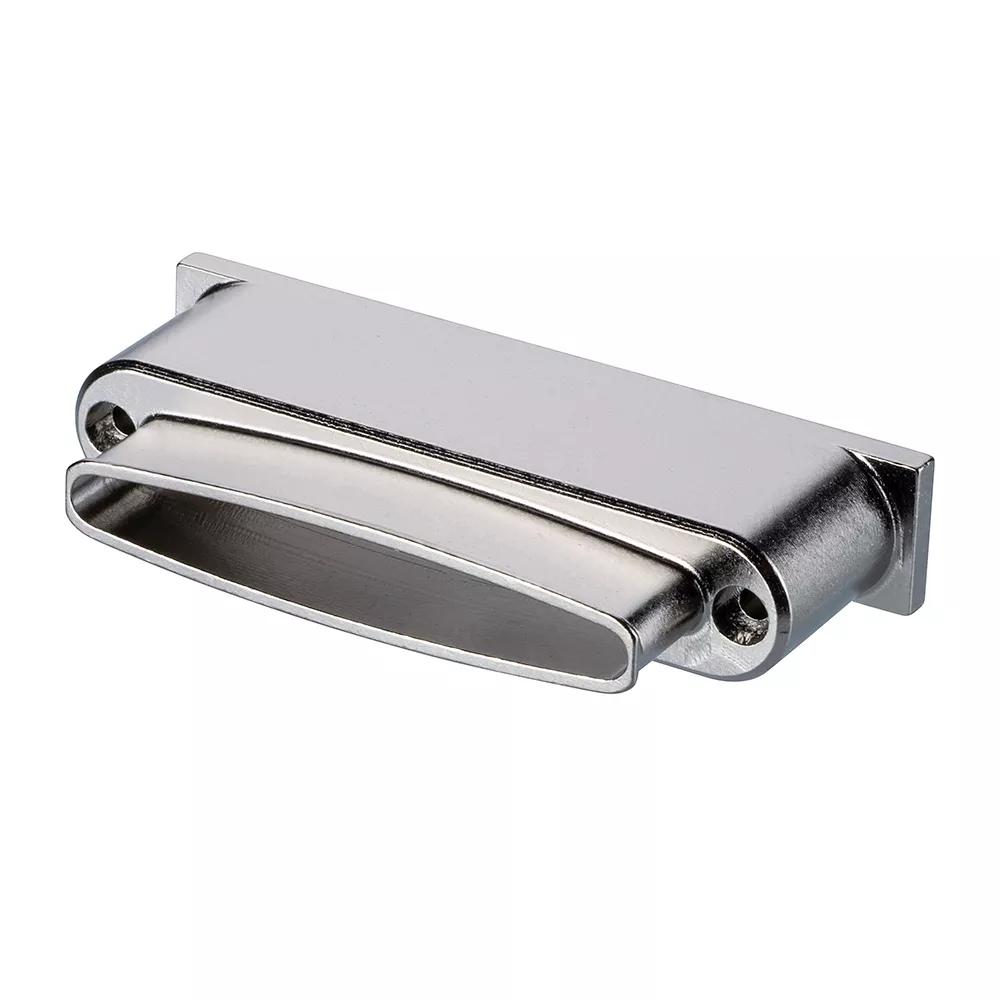

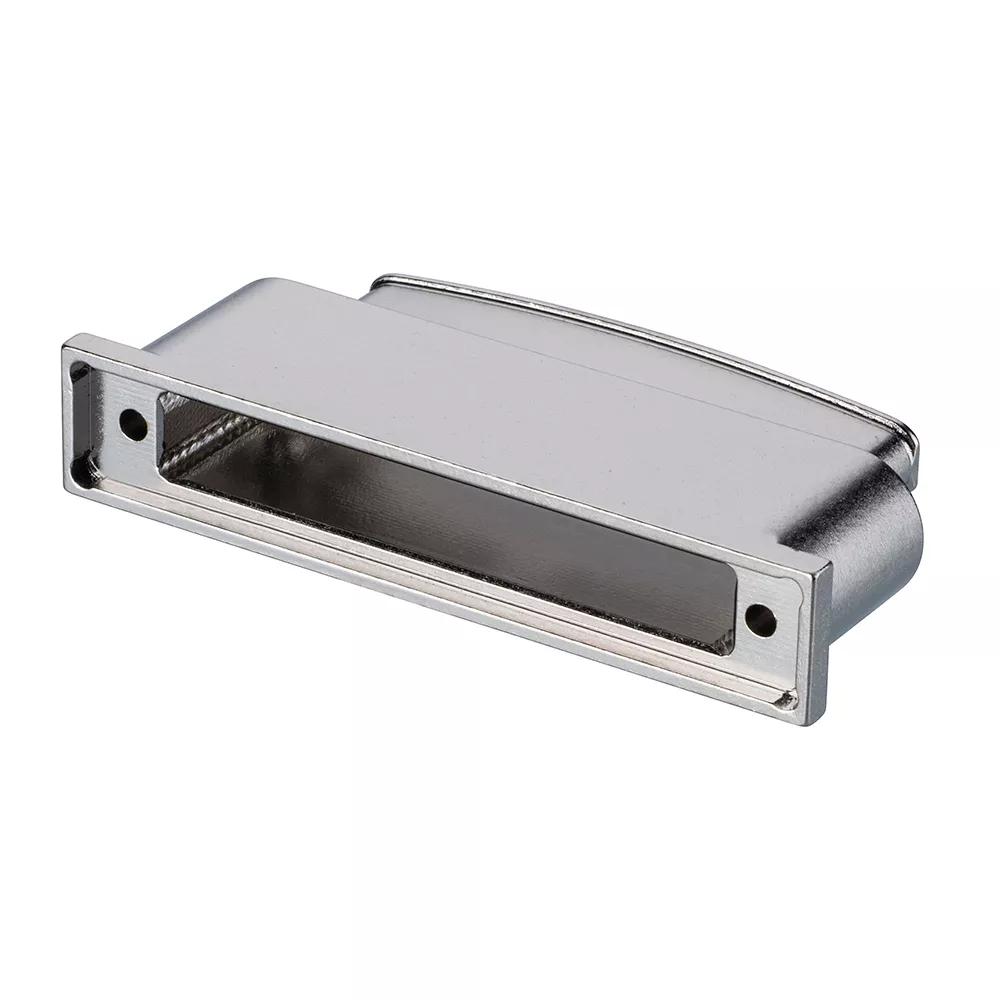

21+21 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate

  • Female kit includes aluminium alloy backshell (nickel plated), 2 x slotted jackscrew, 4 x e-clip (2 as spare).
  • For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 42 (21+21) contacts, or equivalent sized Mix-Tek connectors.
  • Accessory kit only – connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see IS-42).
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Slotted, suitable for Hood

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

42

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

16.894g

Overall Dimensions (L x W x D) in mm:

56.20 x 30.00 x 10.70

Thread Size:

M2

Availability

Limited availability or made-to-order

No availability information is currently available for this product.

Questions & Answers Ask a Question

Can I use this backshell with a Mix-Tek connector fitted with PF5 or PM5 contacts (10AWG High Power)?

Sorry no, I’m afraid the backshell is not suitable for use with a Datamate Mix-Tek connector using PF5 or PM5 contacts. You will need to specify contacts from the range 325 to 329 for female connectors and 335 to 339 for male connectors.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-945.pdf

ZIP

M80-9454202 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C042XX Component Specification - Datamate Metal Backshells (for J-Tek and Mix-Tek connectors)

TEST REPORTS

PDF

C042XX Component Specification - Datamate Metal Backshells (for J-Tek and Mix-Tek connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material Composition for M80-945 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Datamate Metal Backshells range

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-42 - Datamate Metal Backshells M80-945, M80-946 Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate Mix-Tek Metal Backshells

PDF

Catalog page - Datamate J-Tek Female Metal Backshell

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300

PDF

Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties
