M80-9452602

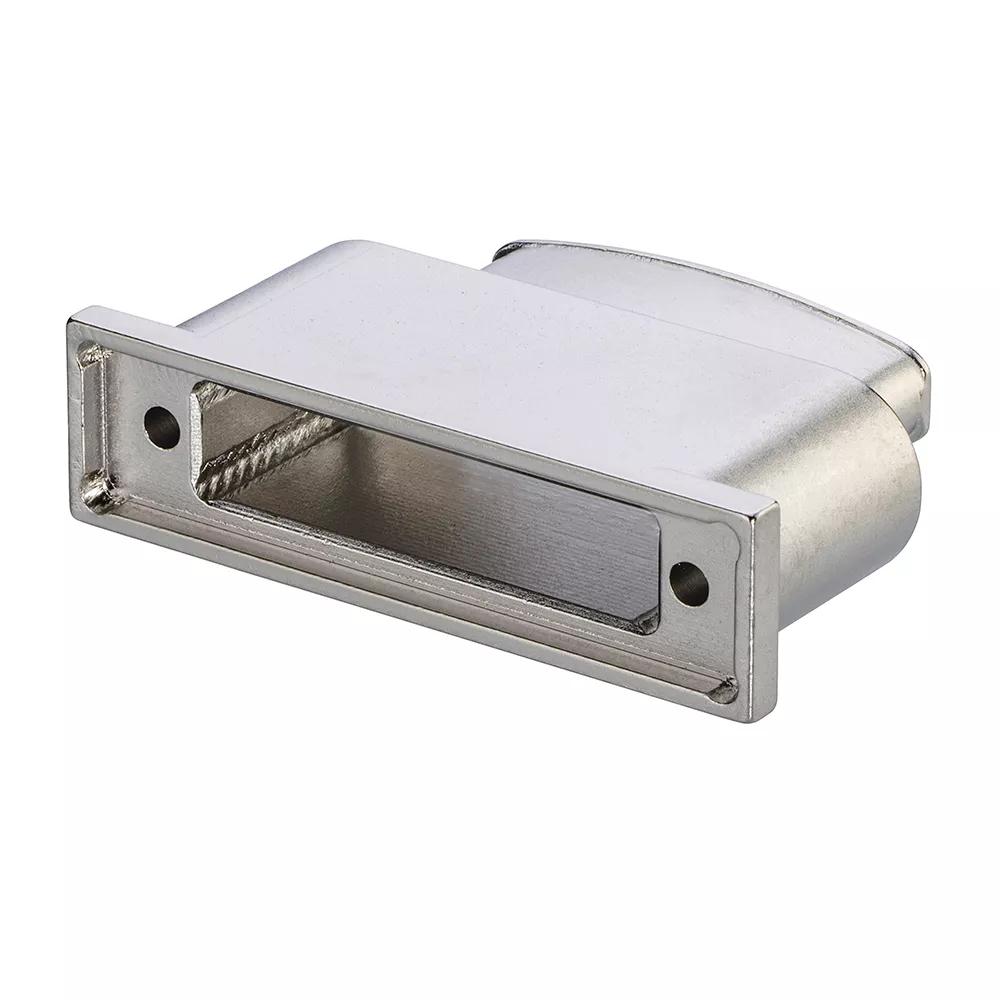

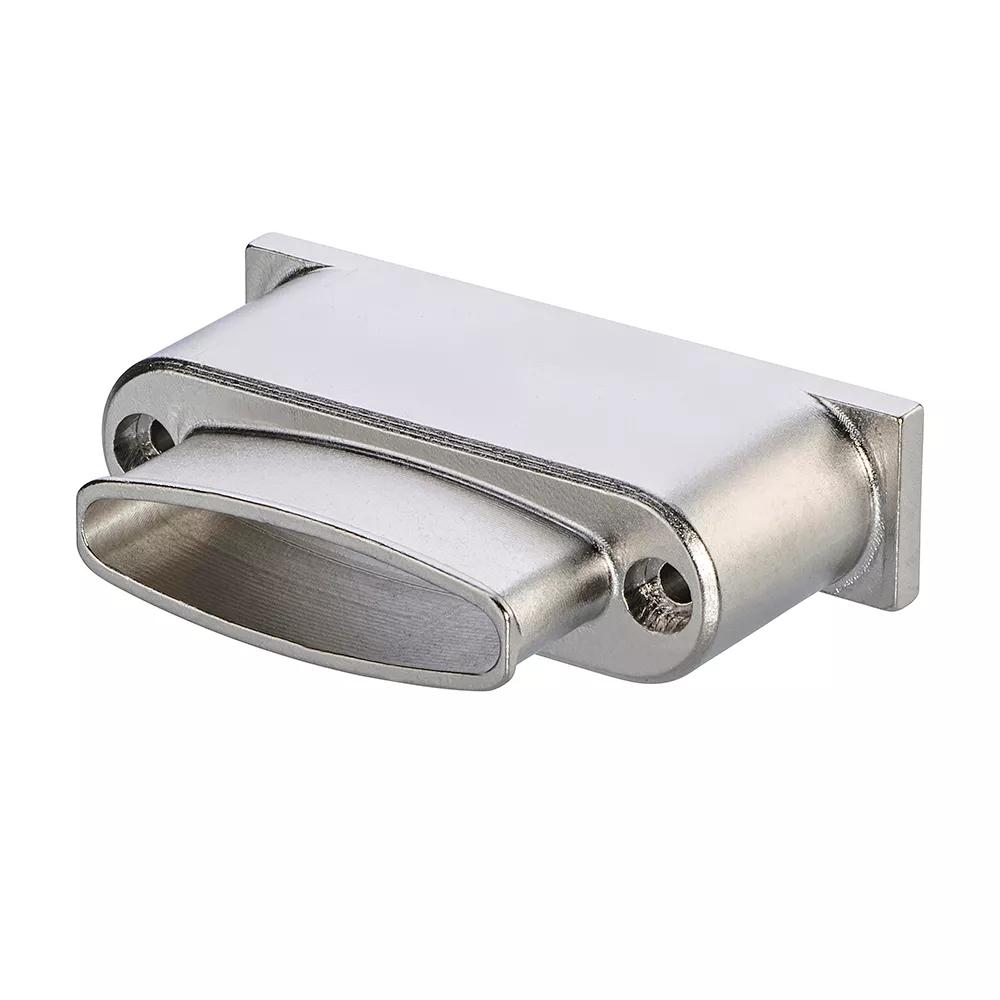

13+13 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate

  • Female kit includes aluminium alloy backshell (nickel plated), 2 x slotted jackscrew, 4 x e-clip (2 as spare).
  • For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 26 (13+13) contacts, or equivalent sized Mix-Tek connectors.
  • Accessory kit only – connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see IS-42).
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Slotted, suitable for Hood

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

12.316g

Overall Dimensions (L x W x D) in mm:

40.20 x 30.00 x 10.70

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status41
Harwin
Global
Status10

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Can I use this backshell with a Mix-Tek connector fitted with PF5 or PM5 contacts (10AWG High Power)?

Sorry no, I’m afraid the backshell is not suitable for use with a Datamate Mix-Tek connector using PF5 or PM5 contacts. You will need to specify contacts from the range 325 to 329 for female connectors and 335 to 339 for male connectors.
