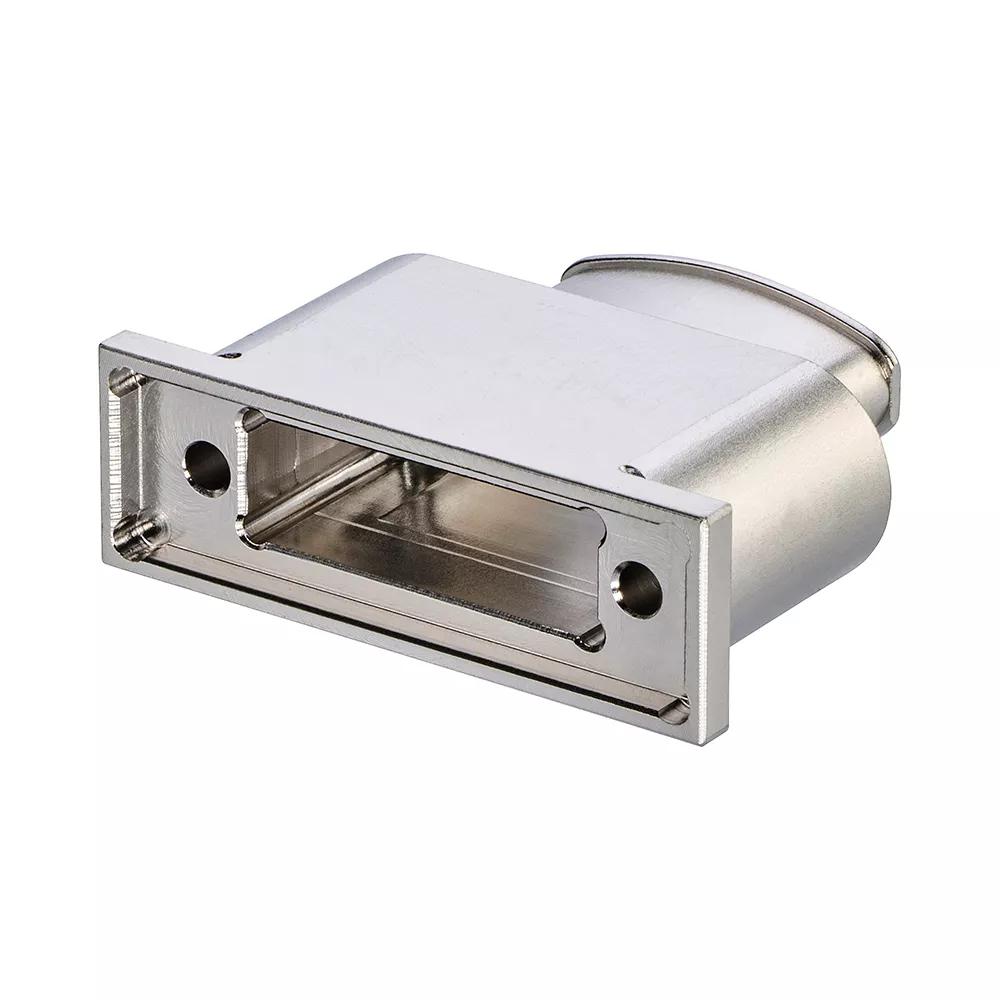

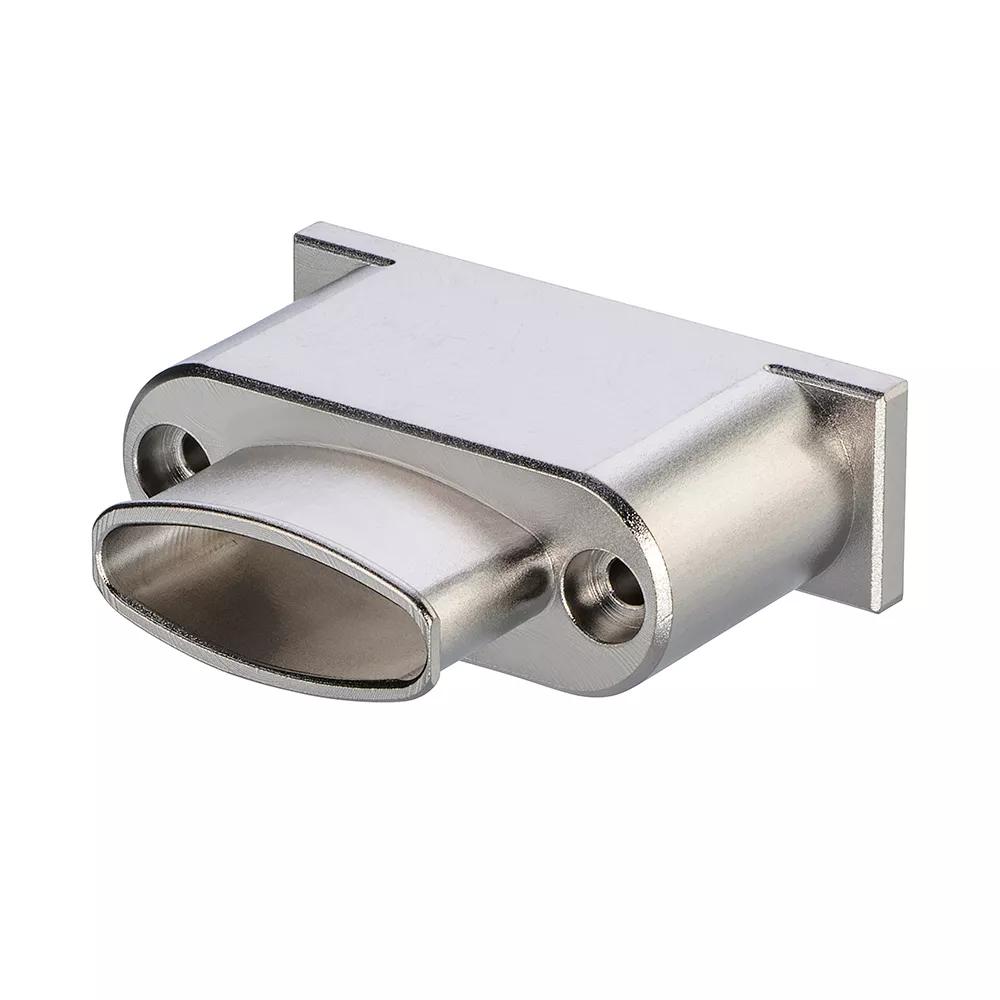

9+9 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate
- Female kit includes aluminium alloy backshell (nickel plated), 2 x slotted jackscrew, 4 x e-clip (2 as spare).
- For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 18 (9+9) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
- Accessory kit only – connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see IS-42).
EU RoHS Status:
Cable (Solder + Crimp)
-55°C to +125°C
Style of Jackscrews:
Slotted, suitable for Hood
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
32.20 x 30.00 x 10.70
34 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Can I use this backshell with a Mix-Tek connector fitted with PF5 or PM5 contacts (10AWG High Power)?
Sorry no, I’m afraid the backshell is not suitable for use with a Datamate Mix-Tek connector using PF5 or PM5 contacts. You will need to specify contacts from the range 325 to 329 for female connectors and 335 to 339 for male connectors.
