M80-9451202

6+6 Pos. Female Metal Backshell for J-Tek or Mix-Tek, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate

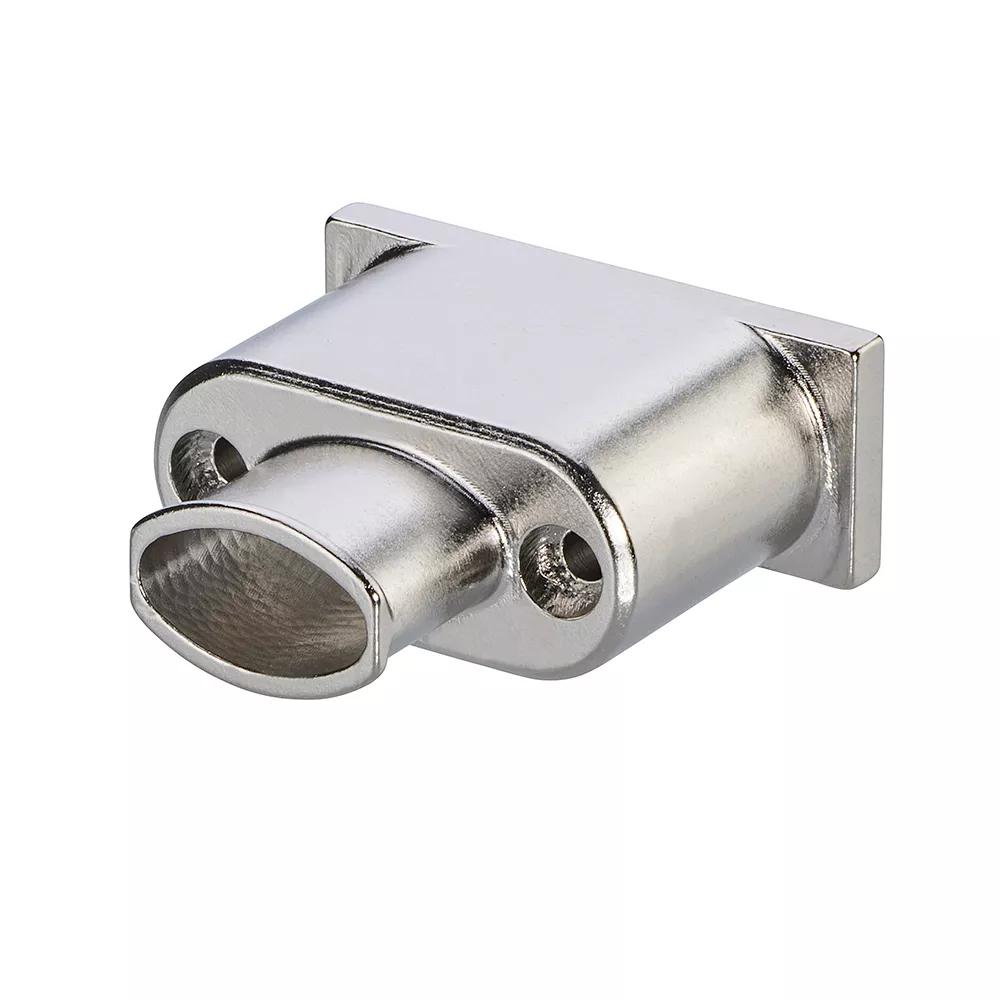

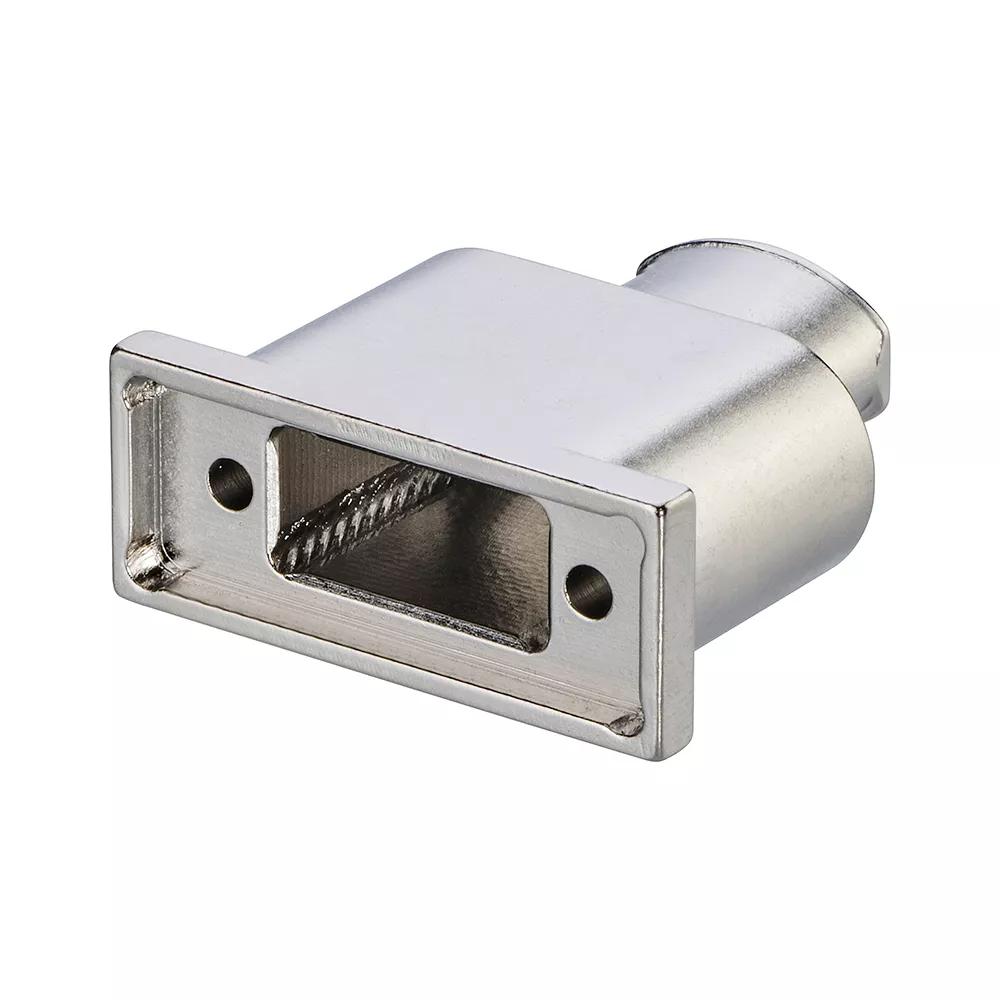

  • Female kit includes aluminium alloy backshell (nickel plated), 2 x slotted jackscrew, 4 x e-clip (2 as spare).

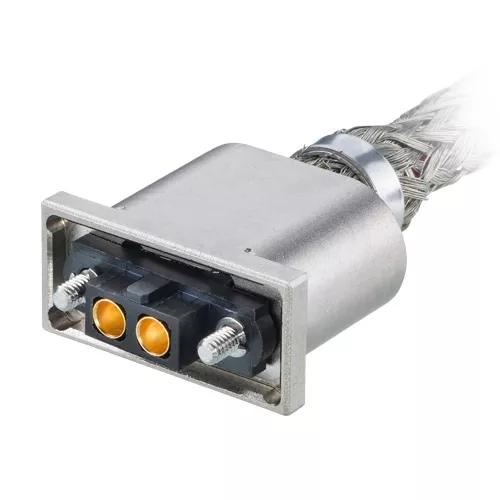

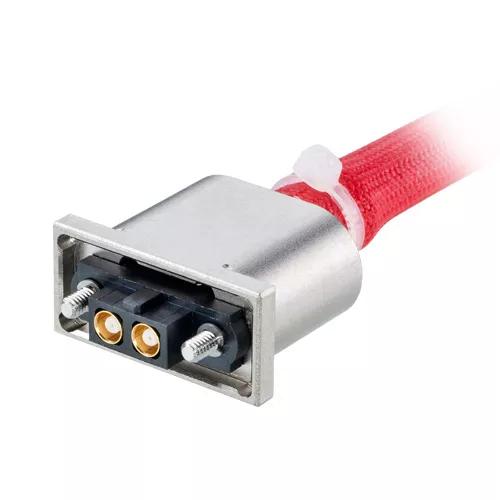

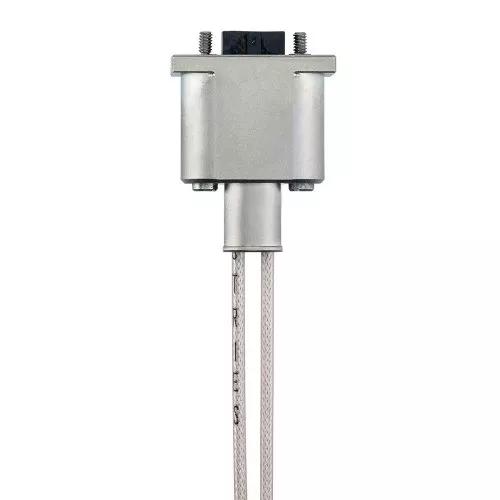

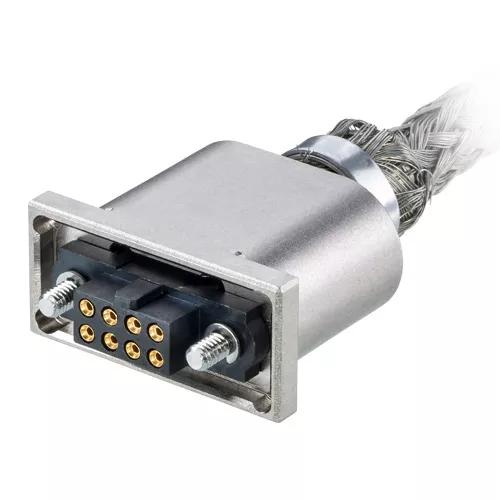

  • For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 12 (6+6) contacts, or equivalent sized Mix-Tek connectors.
  • Accessory kit only – connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see IS-42).
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Slotted, suitable for Hood

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

8.651g

Overall Dimensions (L x W x D) in mm:

26.20 x 30.00 x 10.70

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status51
Harwin
Europe
Status34
Harwin Inc
USA
Status3

*Stock available: contact distributor to purchase
