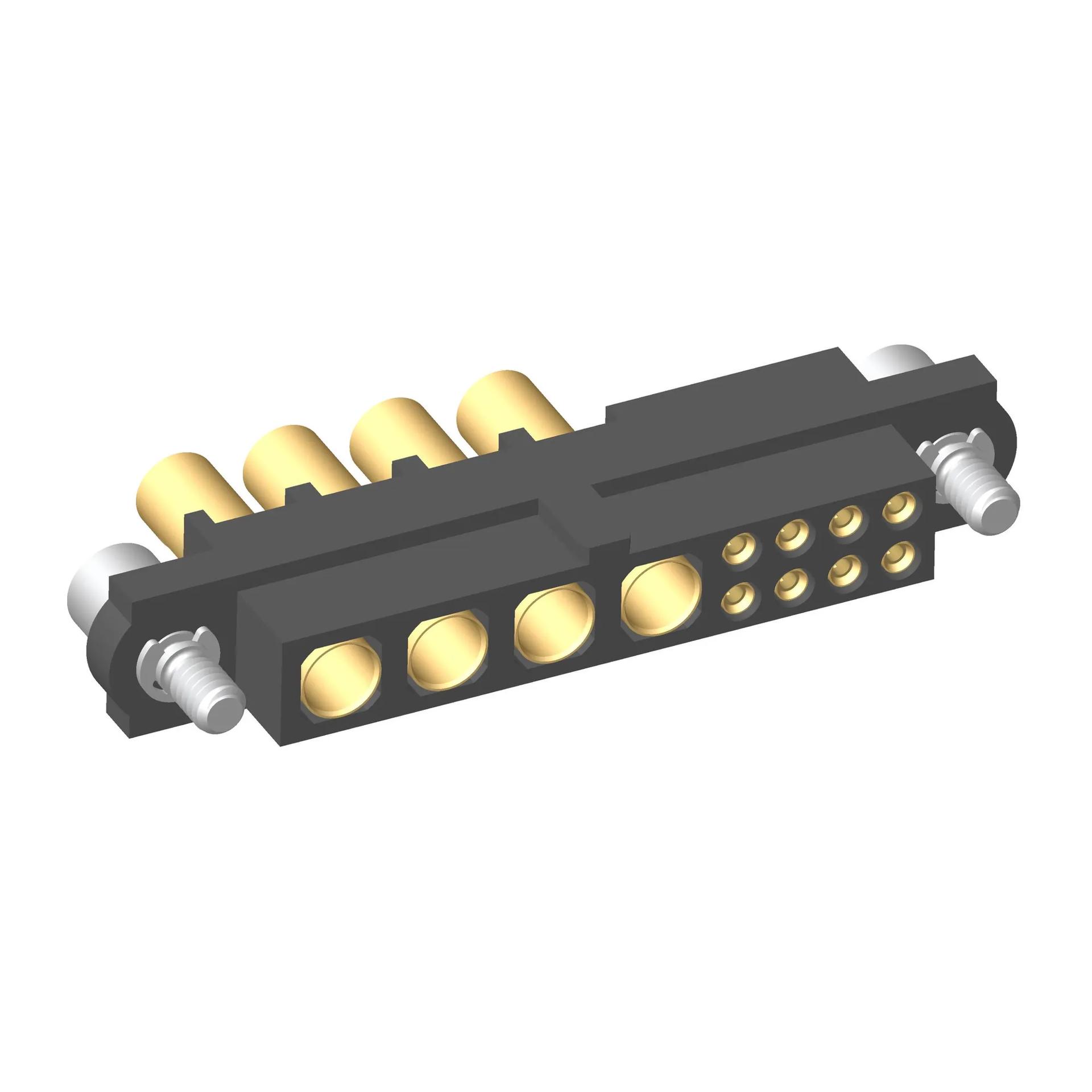

8+4 Pos. Female 22AWG+16AWG Cable Conn. Kit, Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
1 similiar products View products
- Complete kit: housing (with hex socket head (Allen) jackscrews) with 8 x signal and 4 x power contacts supplied loose.
- Power solder contact suitable for 16AWG, Large Bore signal contact suitable for 22AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Cable Conductor Size:
22AWG + 16AWG
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 10A max per contact
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
34.00 x 5.50 x 13.00
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
