2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

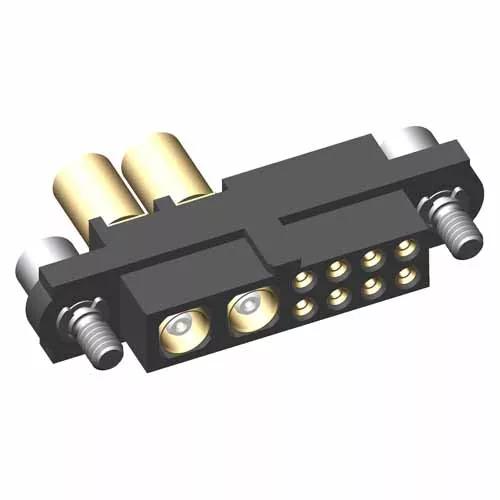

Complete kit: housing (with hex socket head (Allen) jackscrews) with 8 x signal and 2 x coax contacts supplied loose.
Coax crimp contact suitable for RG174, RG179 & RG316 (Ø2.7mm max insulation diameter), Small Bore signal contact suitable for 24 to 28 AWG cable (Ø1.1mm max insulation). Gold finish on contact areas and coax contact termination, Tin finish on signal contact termination.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø0.5mm (signal)
Number of Rows:
Mixed
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
2
Number of Signal Contacts:
8
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Beryllium Copper inner contact + Brass outer shell (coax)
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Finish / Plating on Termination:
100% Tin over Nickel (signal), Gold (power)
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
2.648g
Dimensions:
26.00 x 5.50 x 13.70
Thread Size:
M2
Wire Size:
24 AWG26 AWG28 AWGØ2.7mm (RG174RG179RG316) coax
