M80-4812642

13+13 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

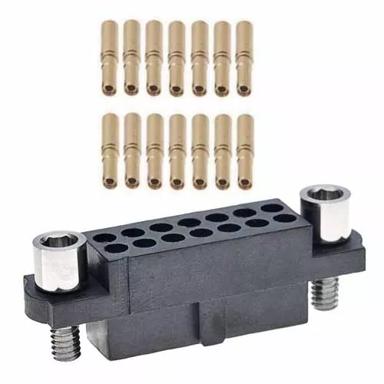

  • Complete kit: housing with hex socket head (Allen) jackscrews fitted, 26 x barrel crimp contacts loose - Gold finish on contact clip, Tin finish on crimp shell.
  • Small Bore - suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130001.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Straight
Connection Type: Cable (Crimp)
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Style of Jackscrews: Hex Socket

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 3.353g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 26
Body Length: 36mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Conductor Size of compatible cable: 24-28AWG
Mating Profiles/Heights

Related Products

+
Hand Crimp Tool: M22520/2-01
Positioner: T5747
Insertion / Removal Tool: Z80-280
Dummy Contacts (for keying): M80-023
Spare Contacts: M80-0130001
Strain-Relief Hoods/Backshells: M80-9452602 M80-9462602
Screwdriver (for board mount units): Z9953-00
Z9951-00
Product Family: M80-481
