  • M80-4611442 - 7+7 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews
  • Youtube Video for M80-4611442

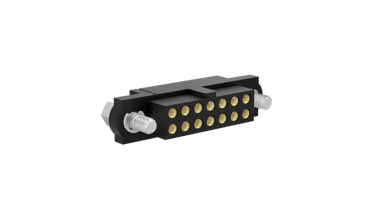

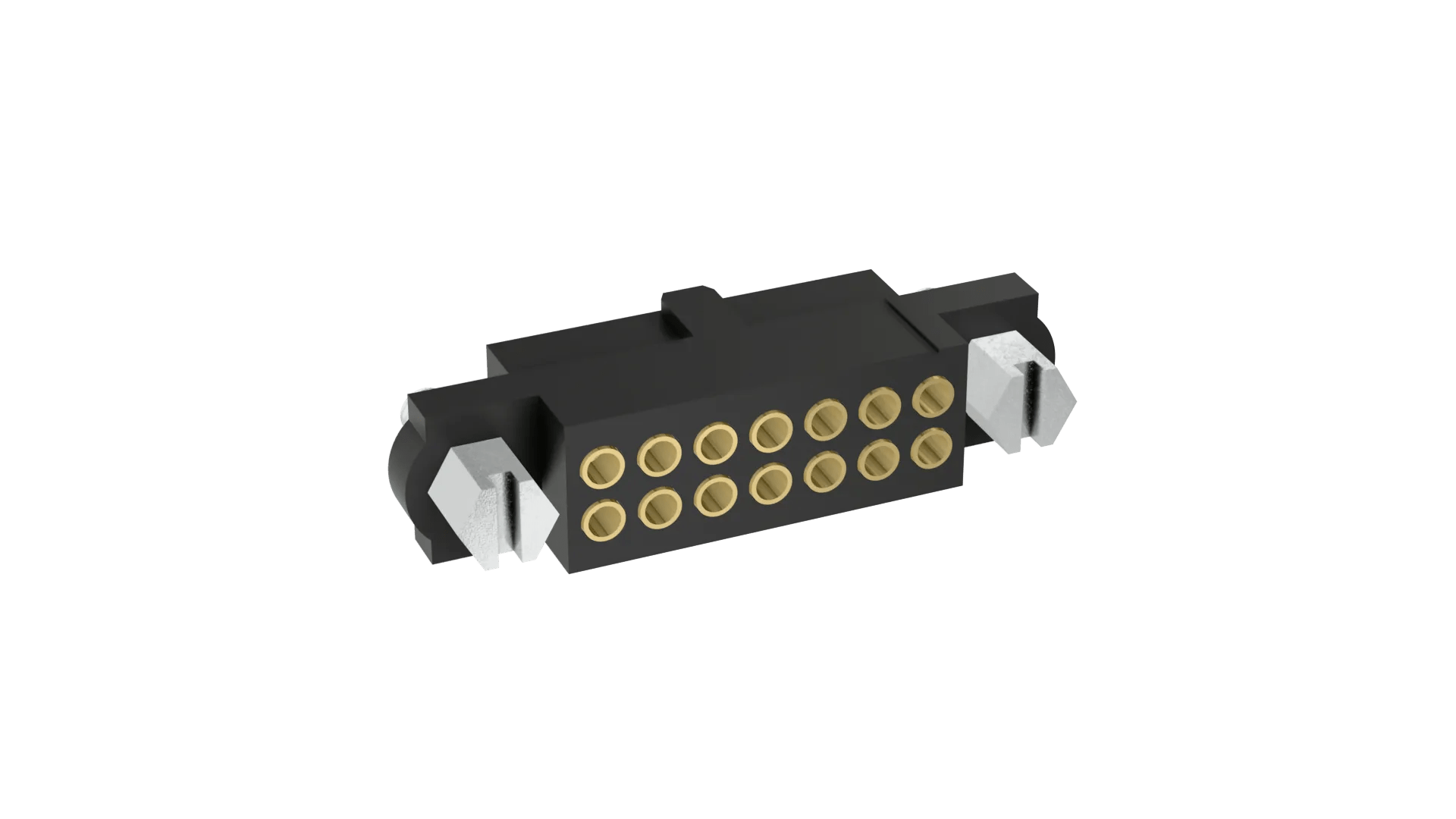

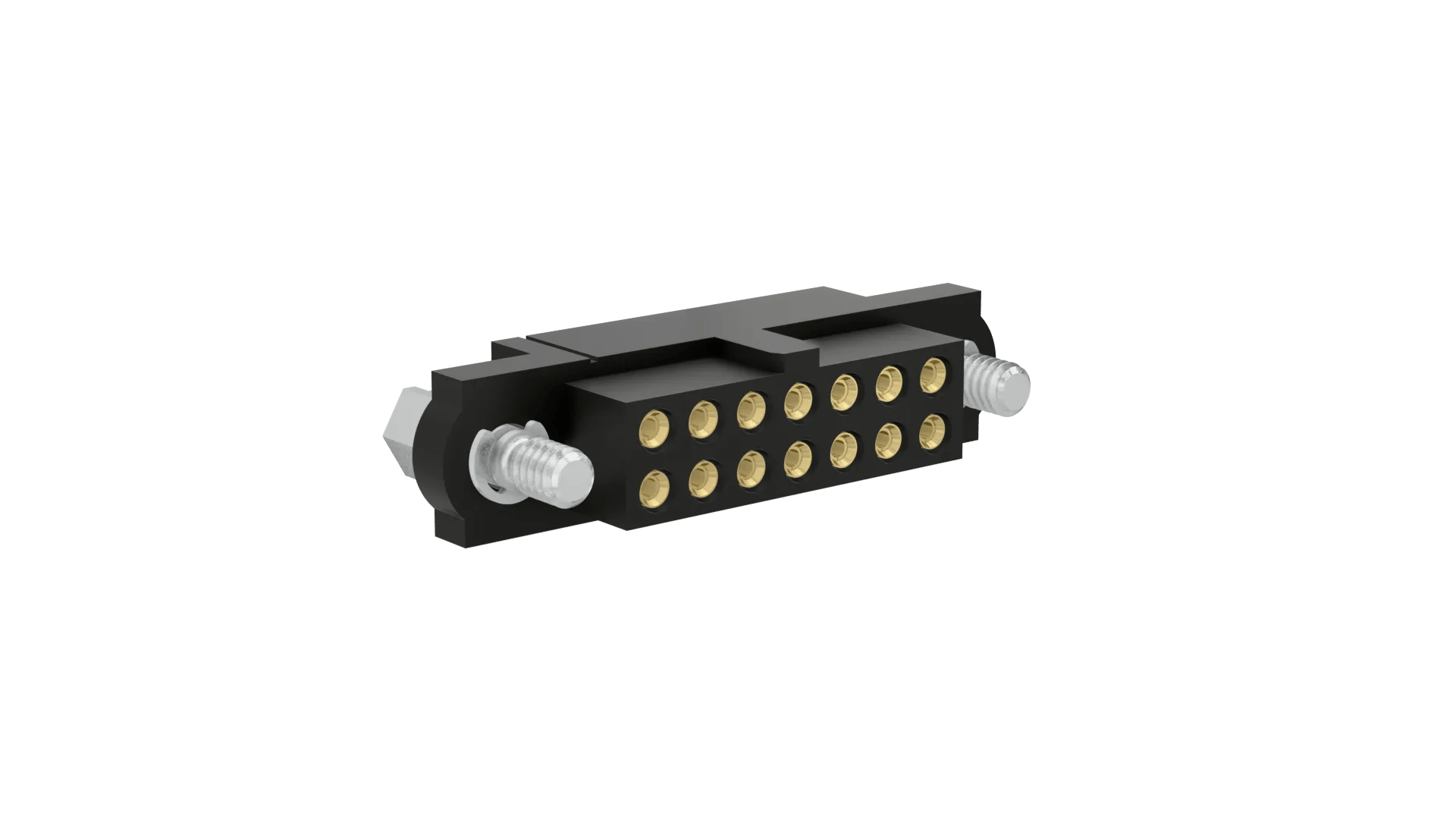

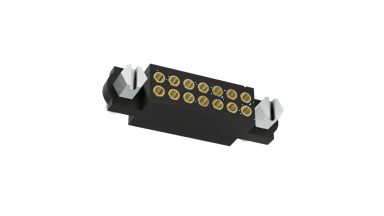

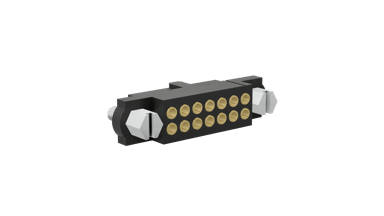

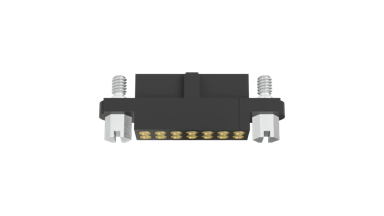

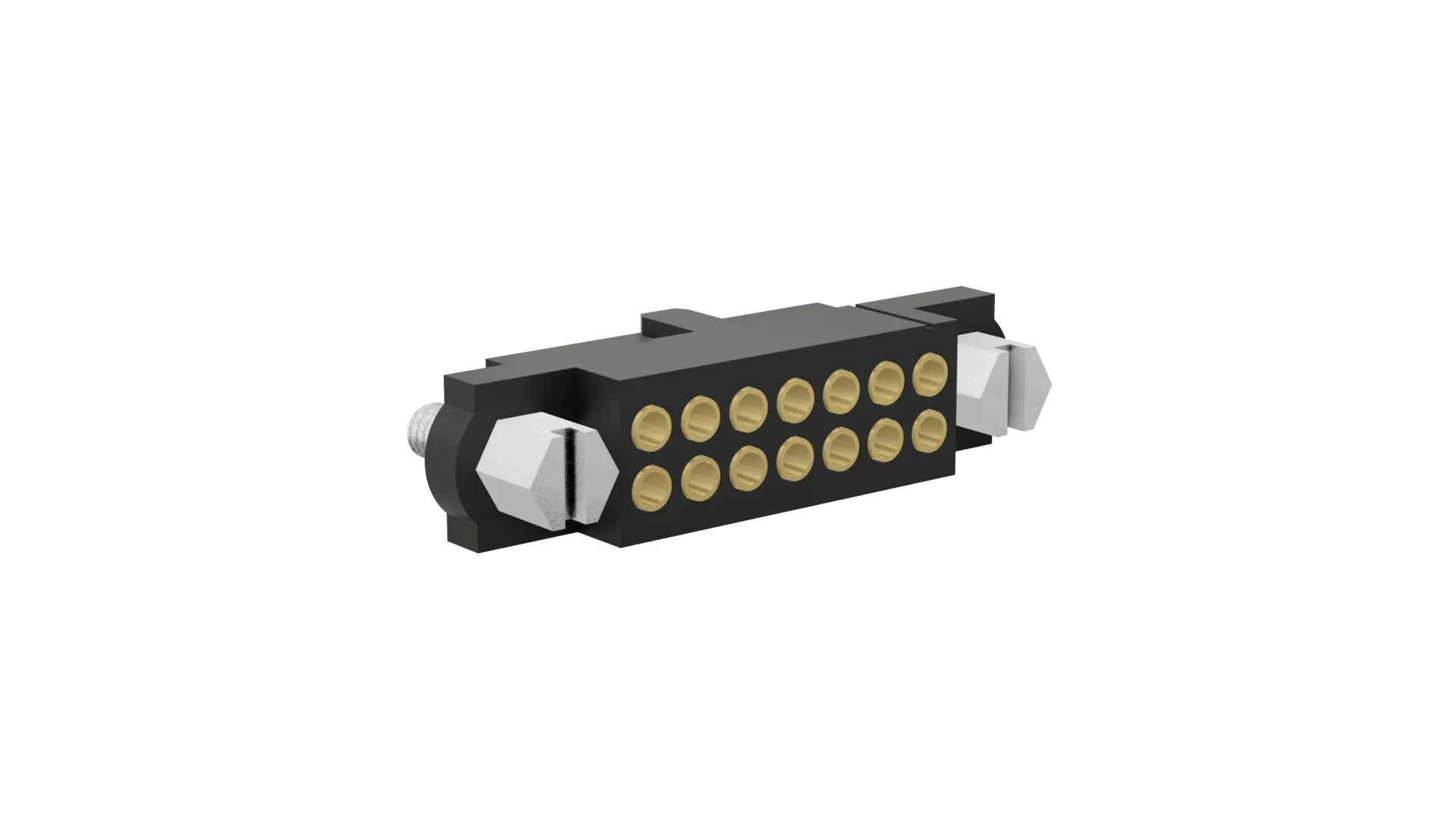

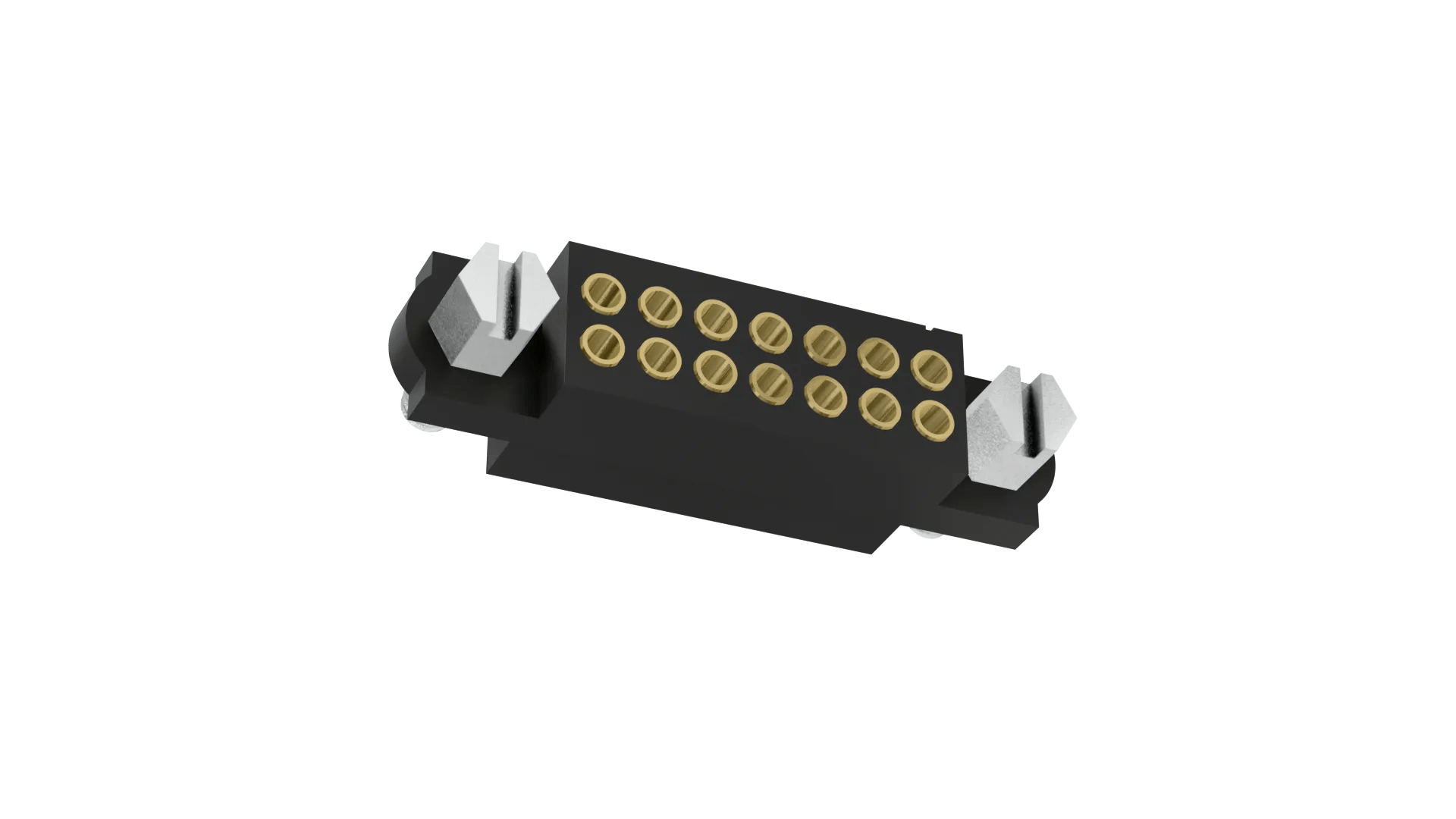

Representative image of product family.

  • M80-4611442 - 7+7 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews

M80-4611442

7+7 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Complete kit: housing with Hexagonal slotted jackscrews fitted, 14 x barrel crimp contacts loose - Gold finish on contact clip, Tin finish on crimp shell.
  • Small Bore - suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130001.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 22 Website
Avnet Abacus Europe 31 Buy Now
Digi-Key Global 238 Buy Now
Mouser Electronics Inc Global 54 Buy Now
TTI Europe Europe 127 Website
Harwin Europe 174

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Straight
Connection Type: Cable (Crimp)
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Style of Jackscrews: Hex Slotted

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 2.135g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 14
Body Length: 24mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Conductor Size of compatible cable: 24-28AWG
Mating Profiles/Heights

Related Products

+
Hand Crimp Tool: M22520/2-01
Positioner: T5747
Insertion / Removal Tool: Z80-280
Dummy Contacts (for keying): M80-023
Spare Contacts: M80-0130001
Strain-Relief Hoods/Backshells: M80-9401442 M80-9451402 M80-9461402
Product Family: M80-461

Mating Products

Previous Next

Alternative products

M80-4611405 - 7+7 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews

Closest alternative:

M80-4611405

7+7 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews
