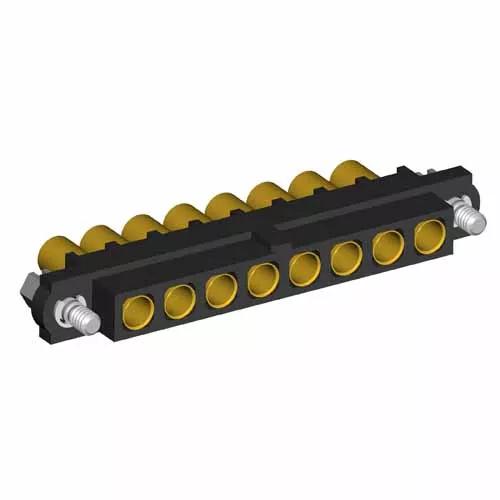

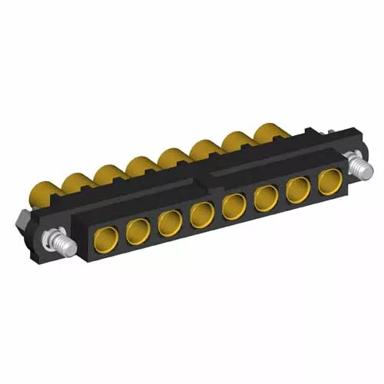

8 Pos. Female SIL 16AWG Cable Conn. Kit, Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Power
Made to order
5 similiar products View products
EU RoHS Status:
Cable Conductor Size:
10A max per contact
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
42.00 x 5.50 x 13.00
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
