M55-8002042-0150A

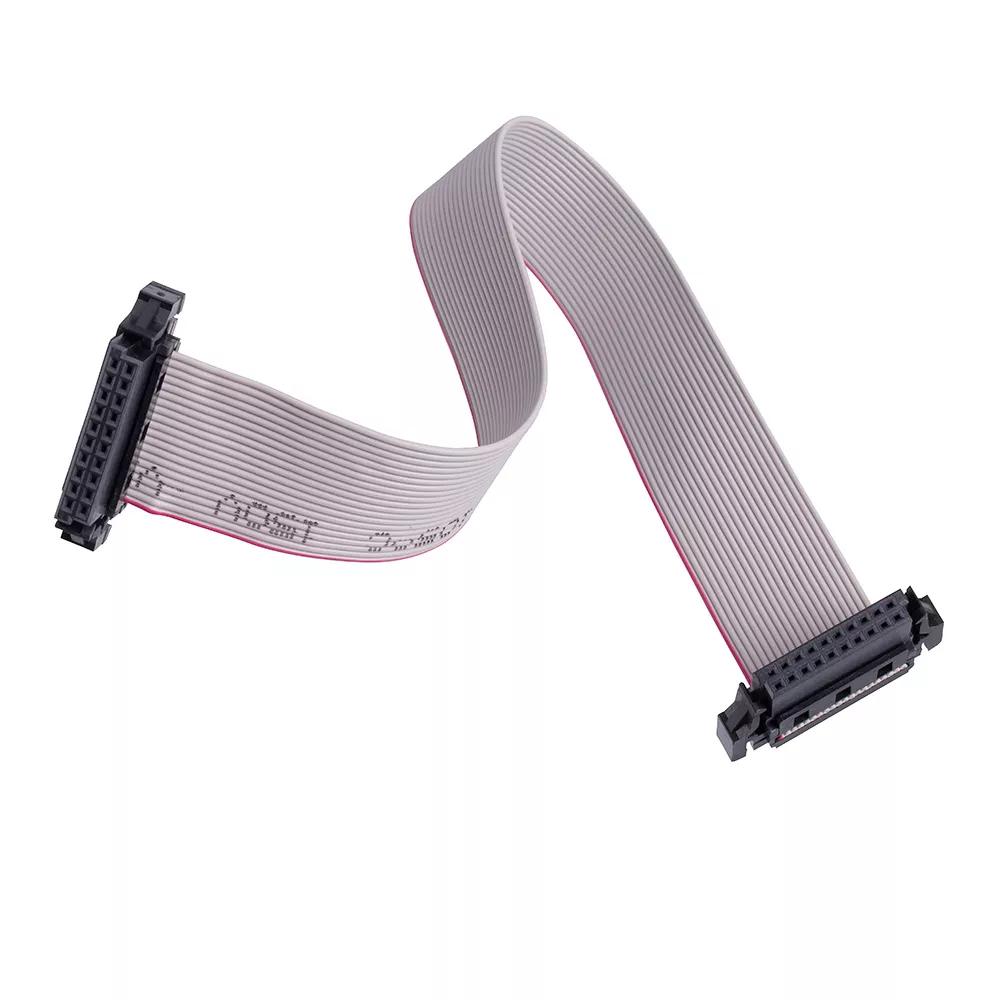

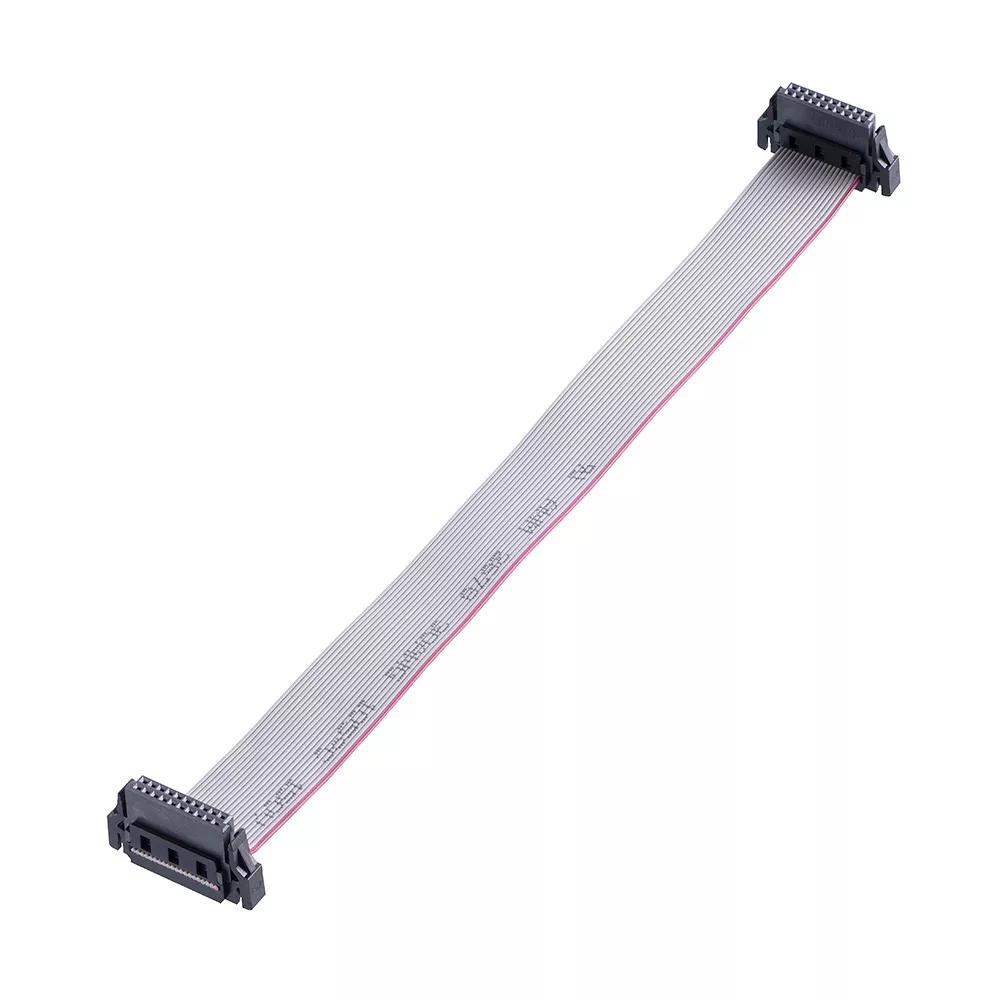

10+10 Pos. Female DIL IDC Cable Assembly, 150mm, double-end

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

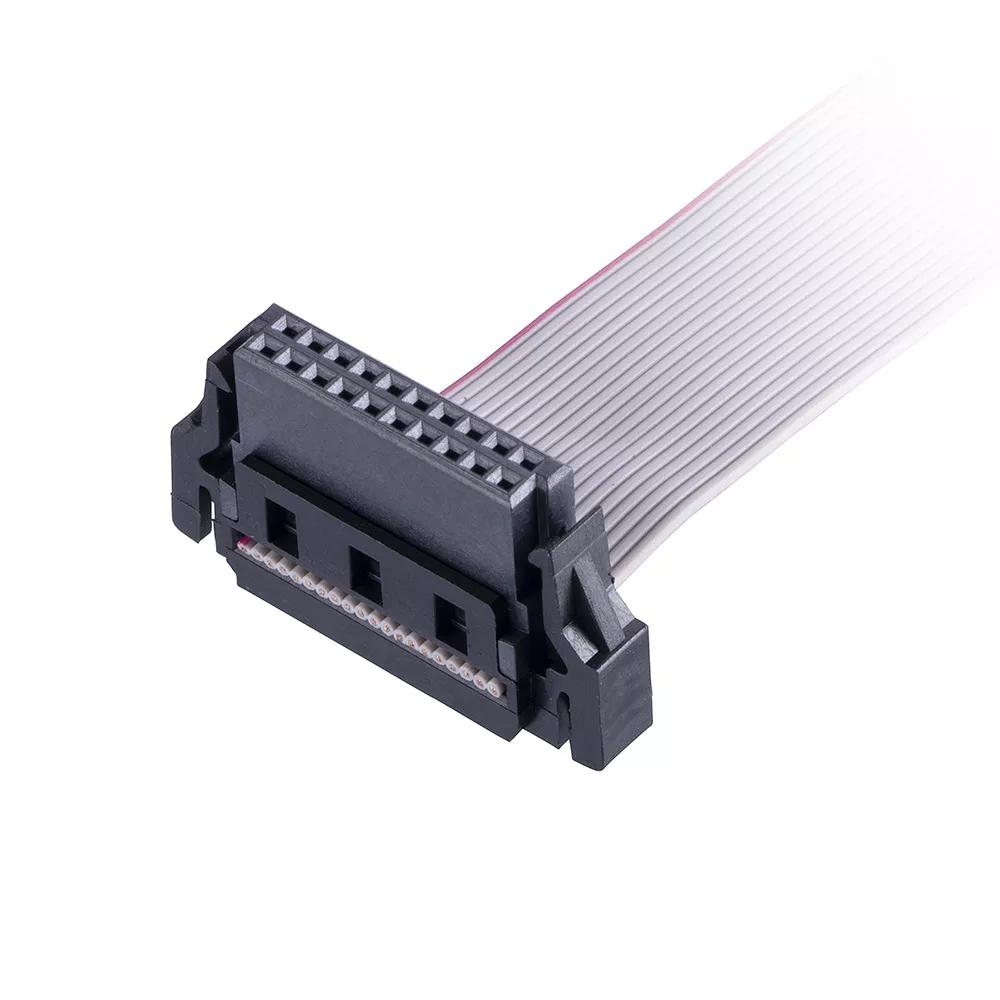

  • Female-to-Female with UL2678 30 AWG ribbon cable, 150mm length – 20 contacts (10+10). Connectors are fitted with latching features, and are polarized and shrouded.
  • Gold finish on connector contact area.
  • For complete pin numbering or pin out information, see Component Specification C047XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Cable Conductor Size:

30AWG

Current Rating:

0.5A max per contact

Operating Temperature:

-20°C to +105°C

Style of Latches:

Built-in Latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP (PA66 Latch Cover)

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.2g

Overall Dimensions (L x W x D) in mm:

157.75 x 21.08 x 12.20

Availability

277 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
