1.27mm (0.05") Pitch PCB Connector - Kontrol

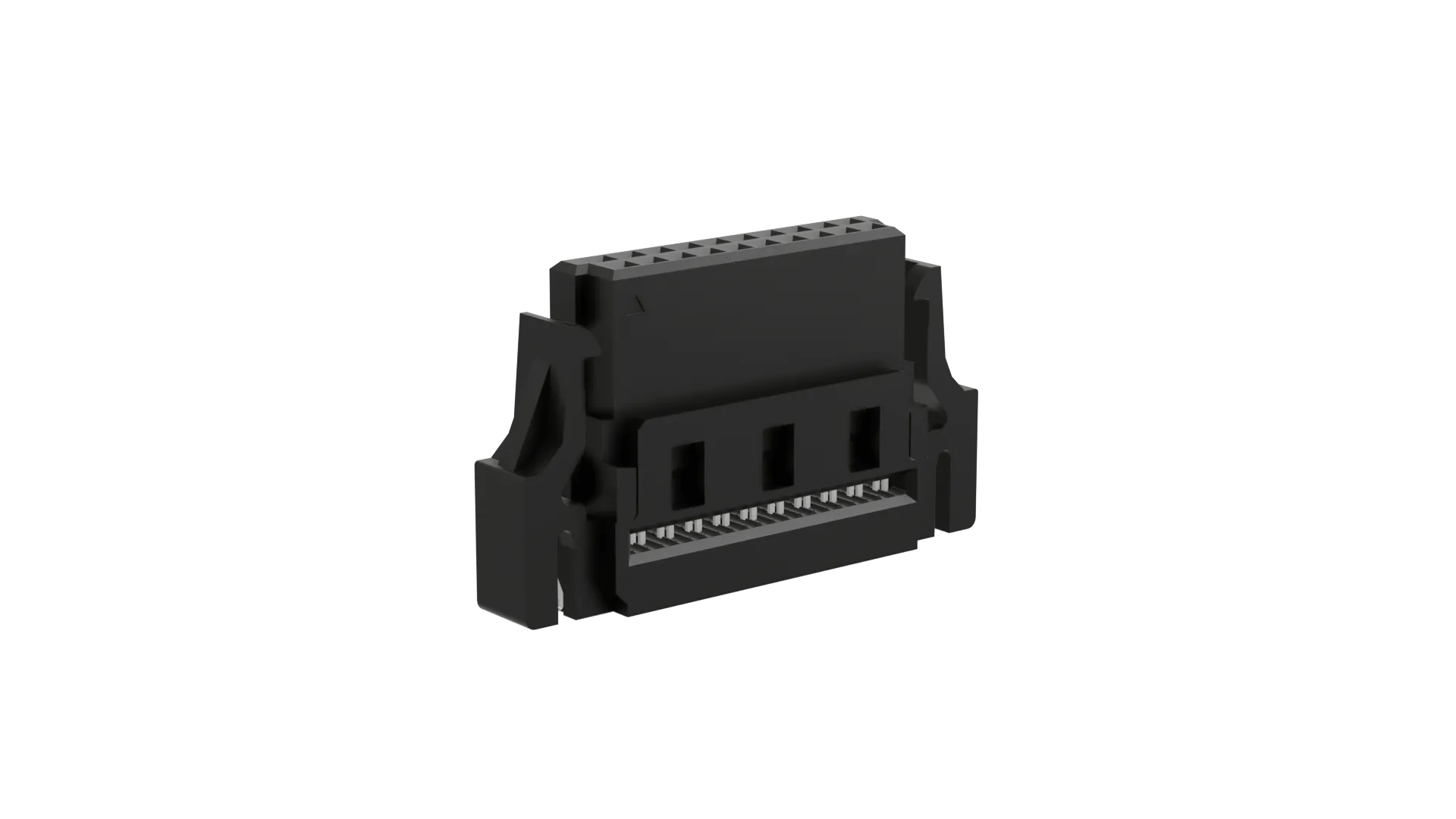

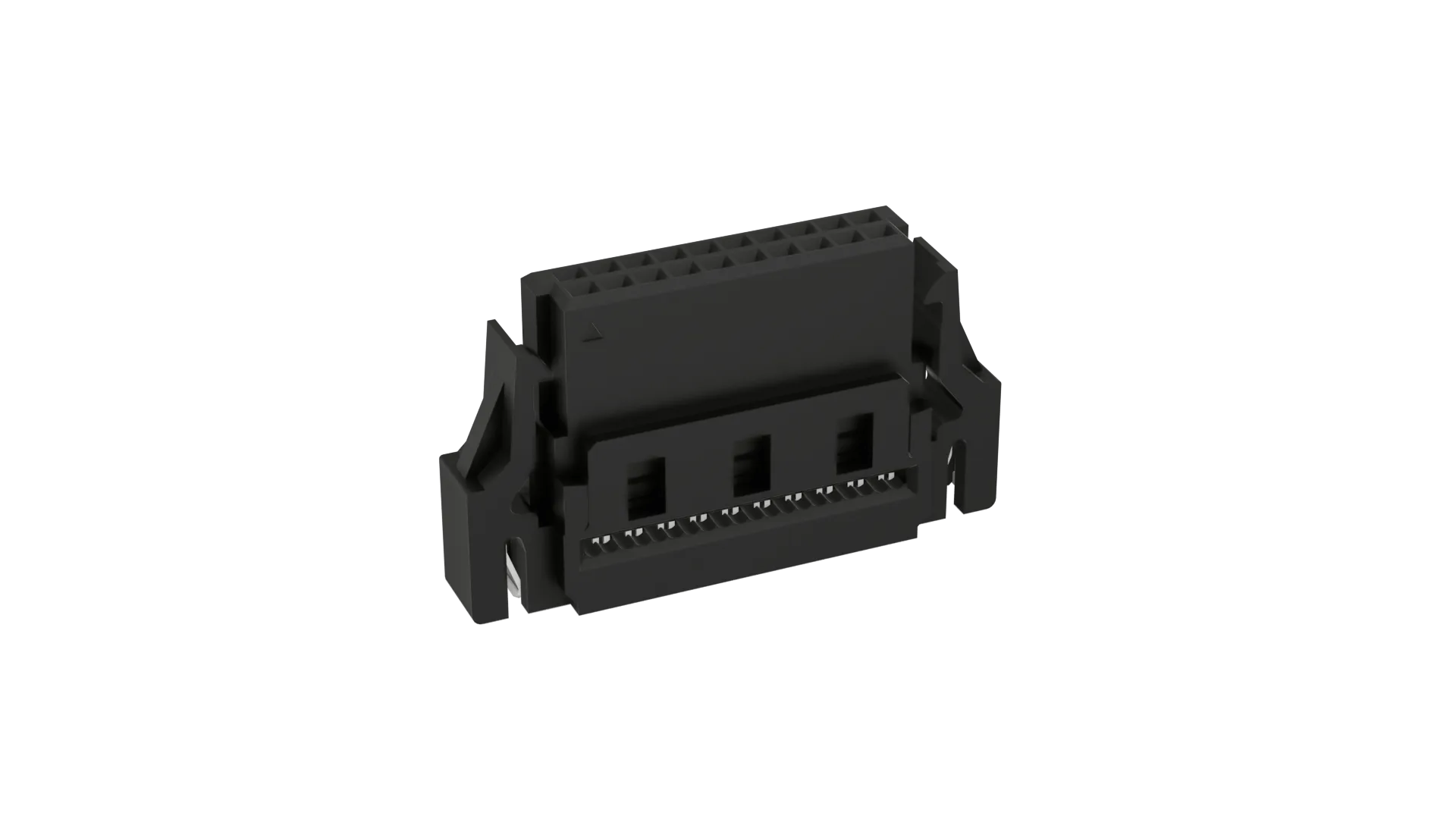

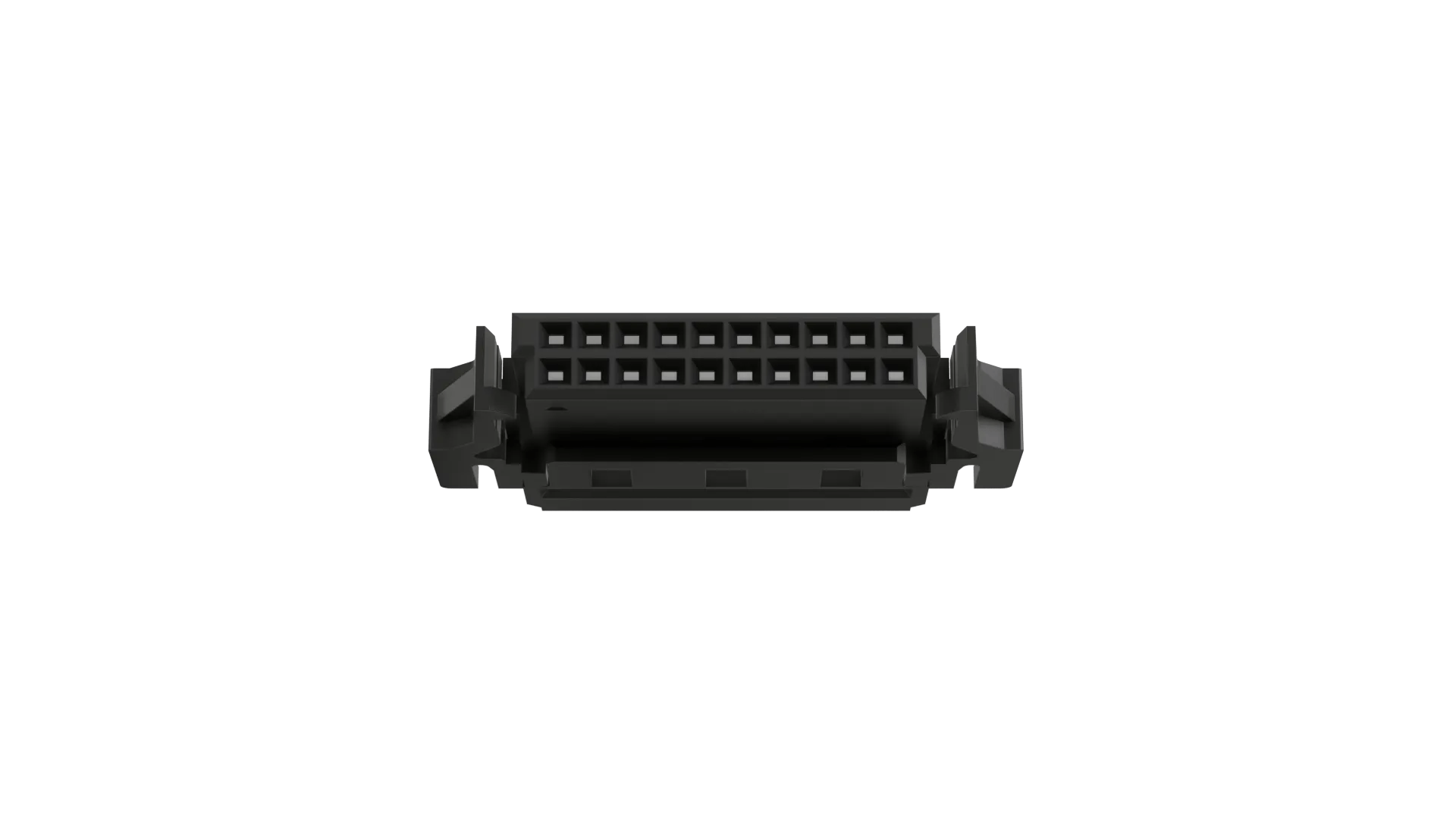

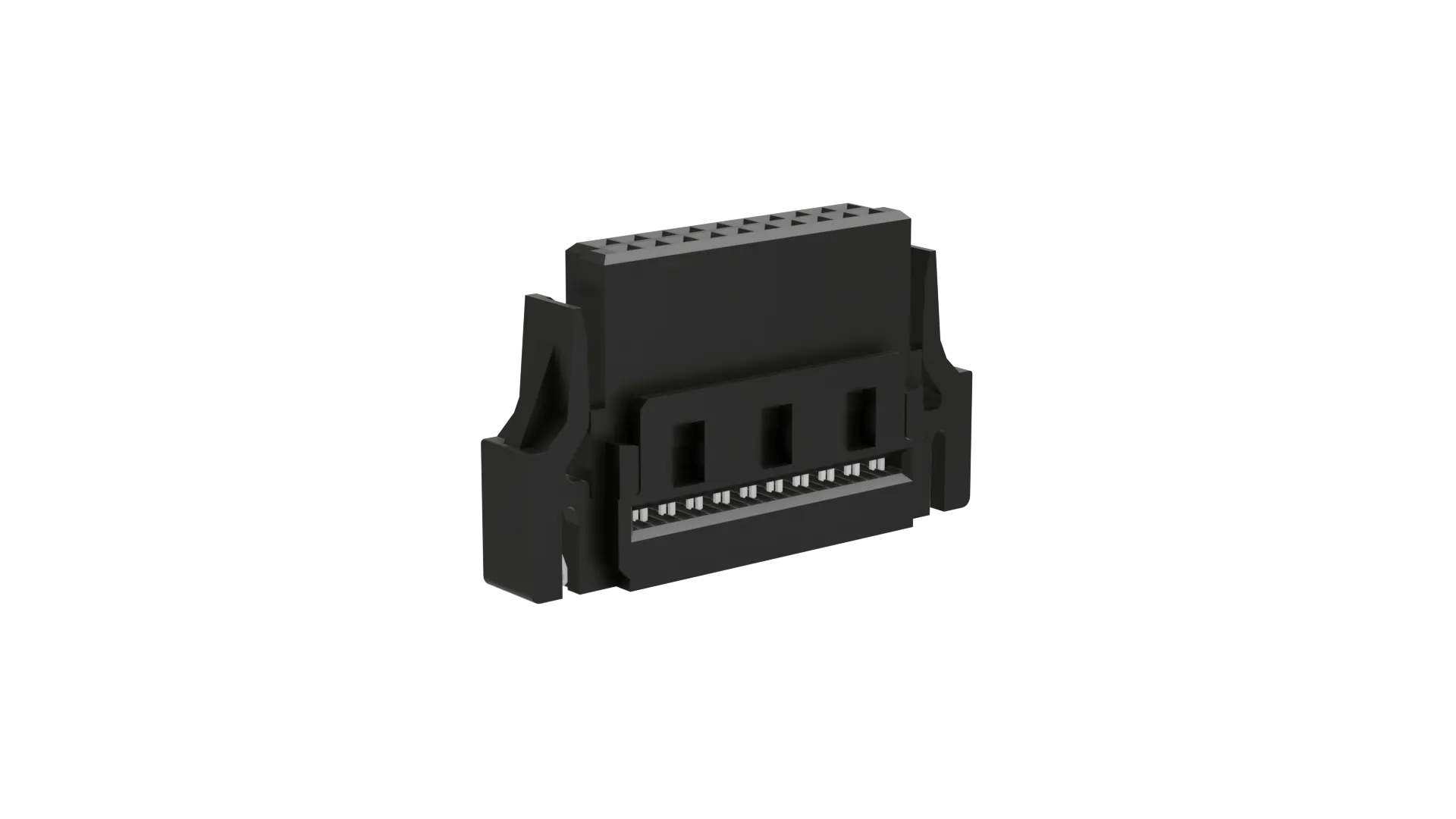

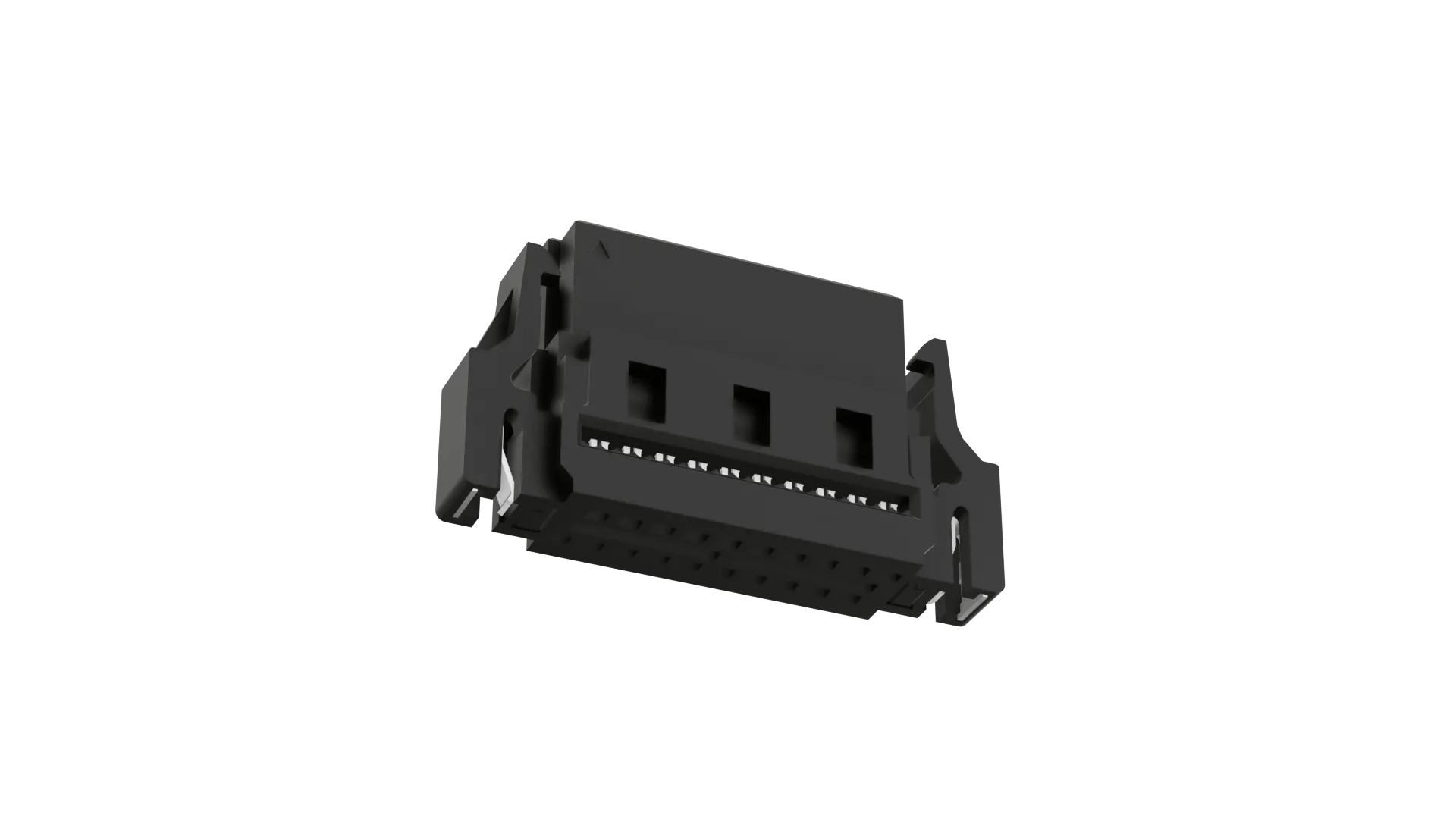

Double row female connector with IDC cable connection - 20 contacts (10+10). Latching features, polarized and shrouded. Gold finish on contact area, Tin finish on termination.
Suitable for 30 AWG ribbon cable, 0.635mm pitch, UL2678.
For complete pin numbering or pin out information, see Component Specification C047XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Built-in Latches
Number of Rows:
2
Connector Orientation:
Angled
Country of Origin:
CN
Side Stackable:
No
Number of Signal Contacts:
20
Operating Temperature:
-20°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP (PA66 Latch Cover)
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tray
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
1.27g
Dimensions:
21.10 x 4.70 x 14.10
Wire Size:
30 AWG
Downloads
C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)
Catalog page - Archer Kontrol Mating Profiles
Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range
Product Training Module - Cable Products from Harwin
IS-51 - Kontrol IDC Termination Hand Tool Instruction Sheet
Product Datasheet - KONTROL: M55 range (BBi)
Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
RoHS - M55-8202042
