Image may be representative. Refer to the product title for more information.

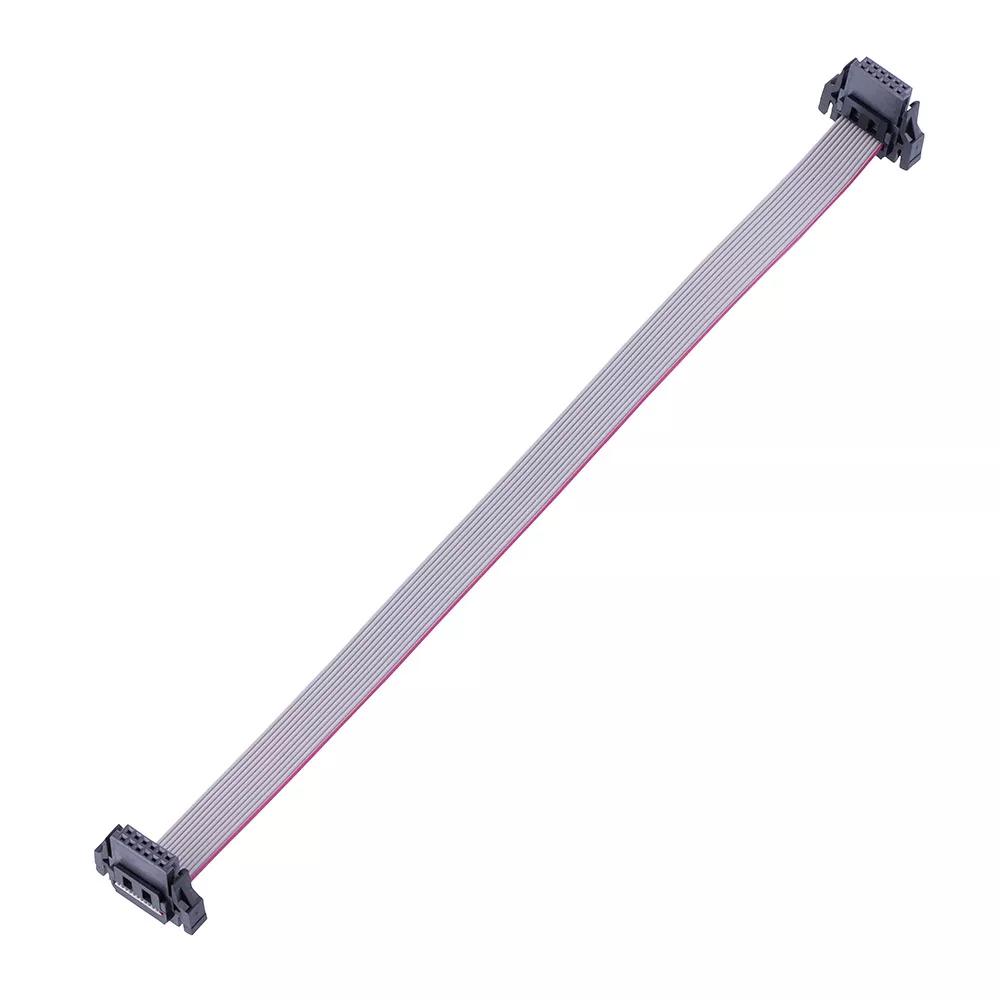

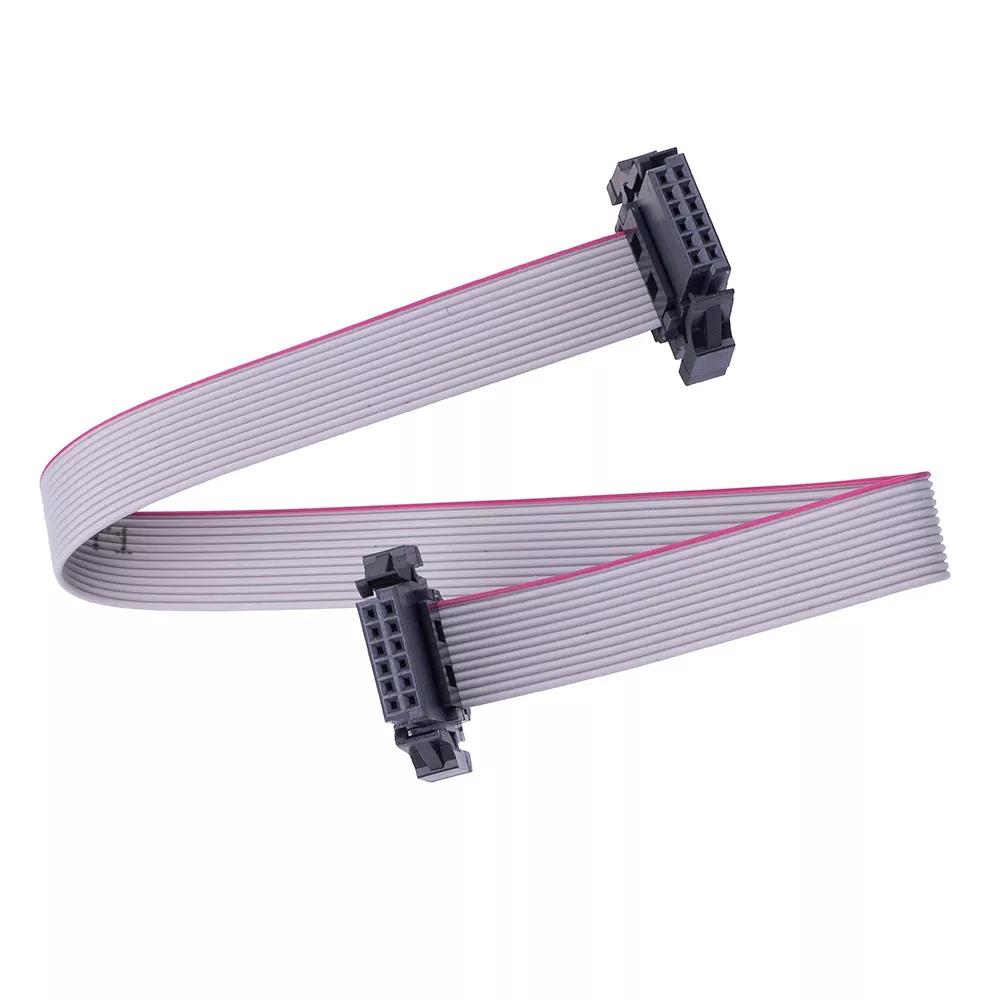

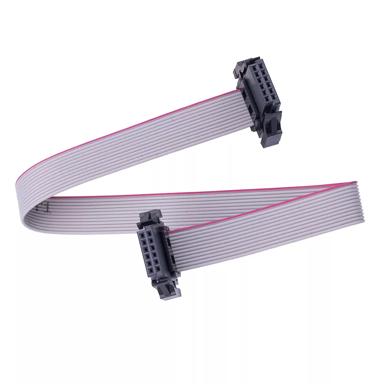

Female-to-Female with UL2678 30 AWG ribbon cable, 300mm (12") long - 12 contacts (6+6). Connection is at 90 degree angle to the cable.

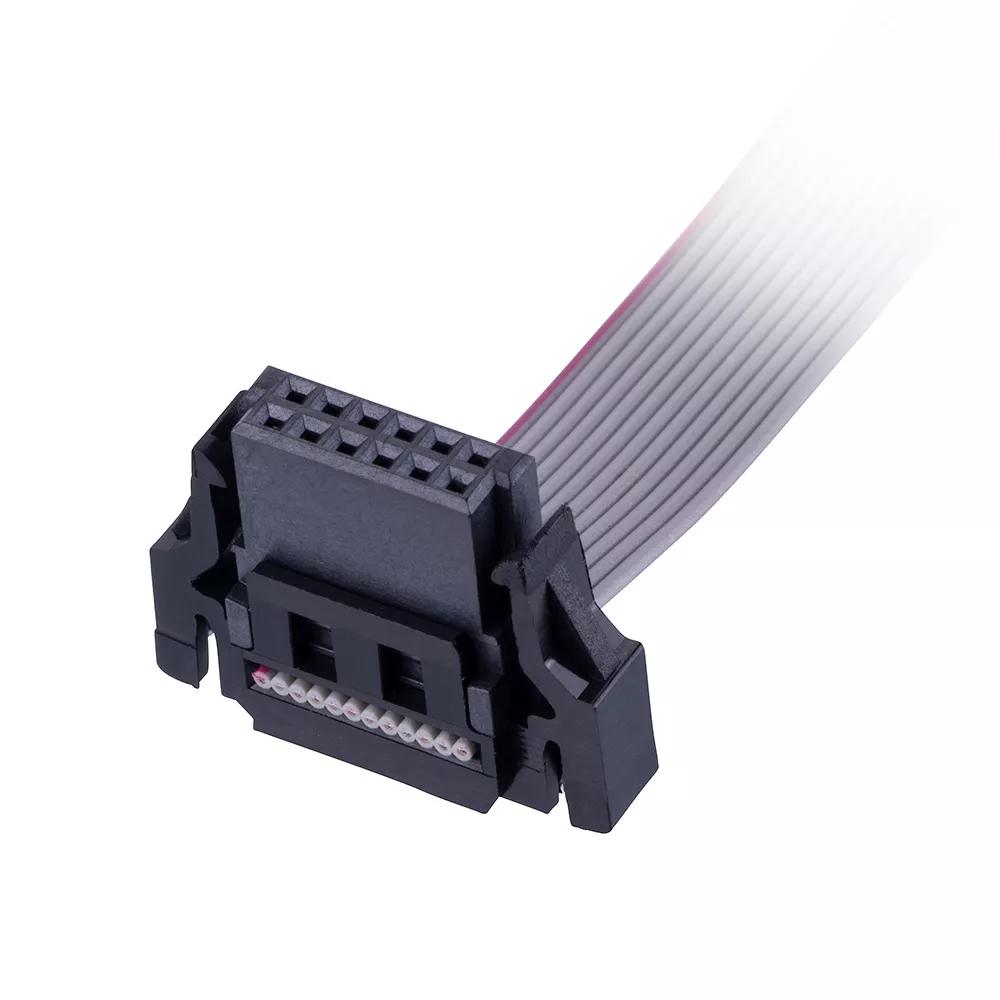

Manufactured with the M55-8201242 female cable connector, featuring latching features, polarization and shrouding. Gold finish on mating contact area.
For complete pin numbering or pin out information, see Component Specification C047XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Latching Style
Built-in Latches
Number of Rows
2
Connector Orientation
Angled
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
12
Operating Temperature
-20°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
0.5A max per contact
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
LCP (PA66 Latch Cover)
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
1.27mm (0.05")
Weight
5.2g
Dimensions
307.75 x 16.00 x 12.20
Wire Size
30 AWG
Downloads
Technical Documentation
Technical Drawing / Datasheet - M55-800.pdf
C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)
Product Information
Catalog page - Archer Kontrol Mating Profiles
Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range
Product Training Module - Cable Products from Harwin
Product Datasheet - KONTROL: M55 range (BBi)
Test Reports
Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M55-800XX42-YYYYA series
RoHS Declaration - M55-8001242-0300A
