M55-8201242

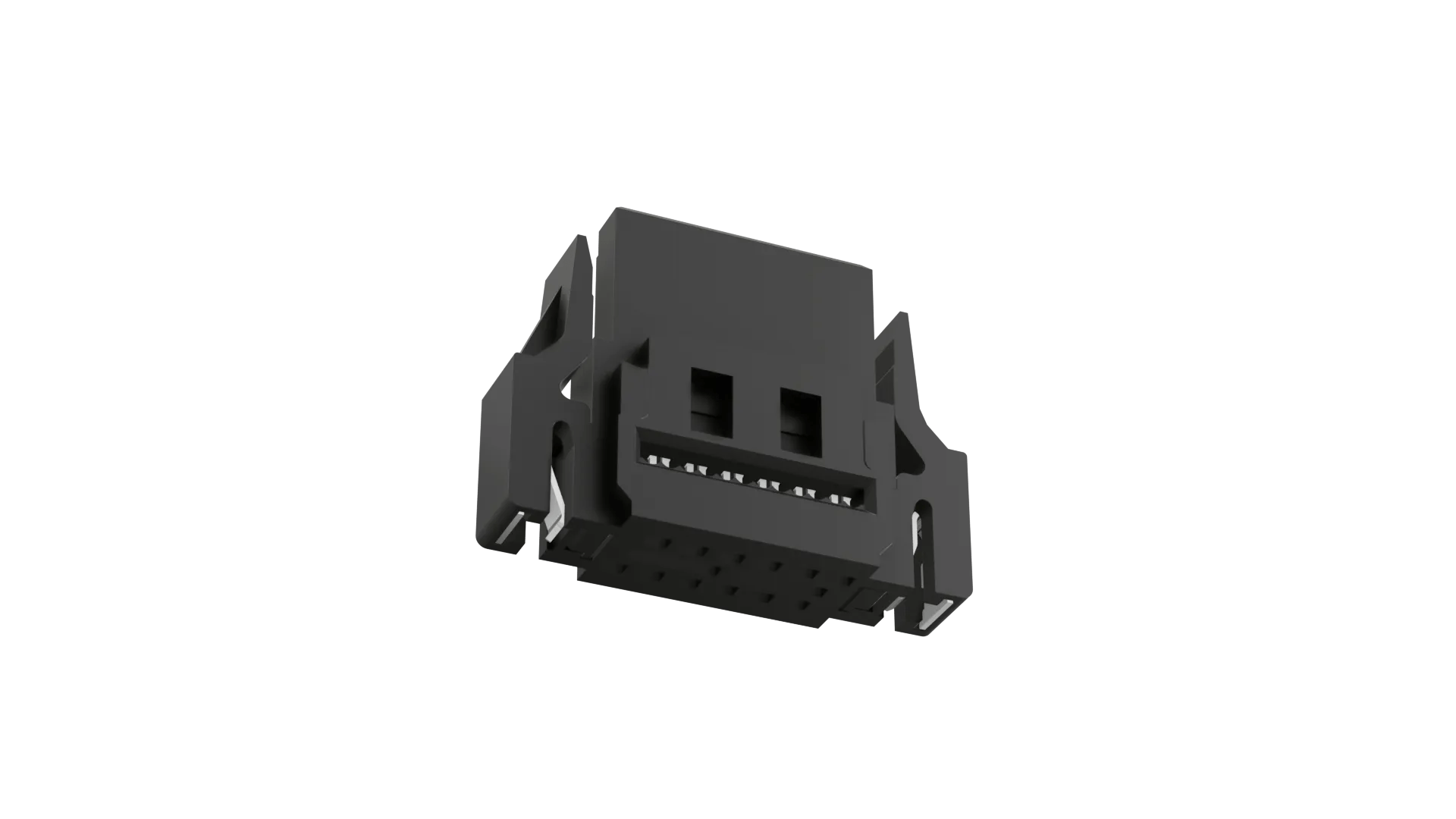

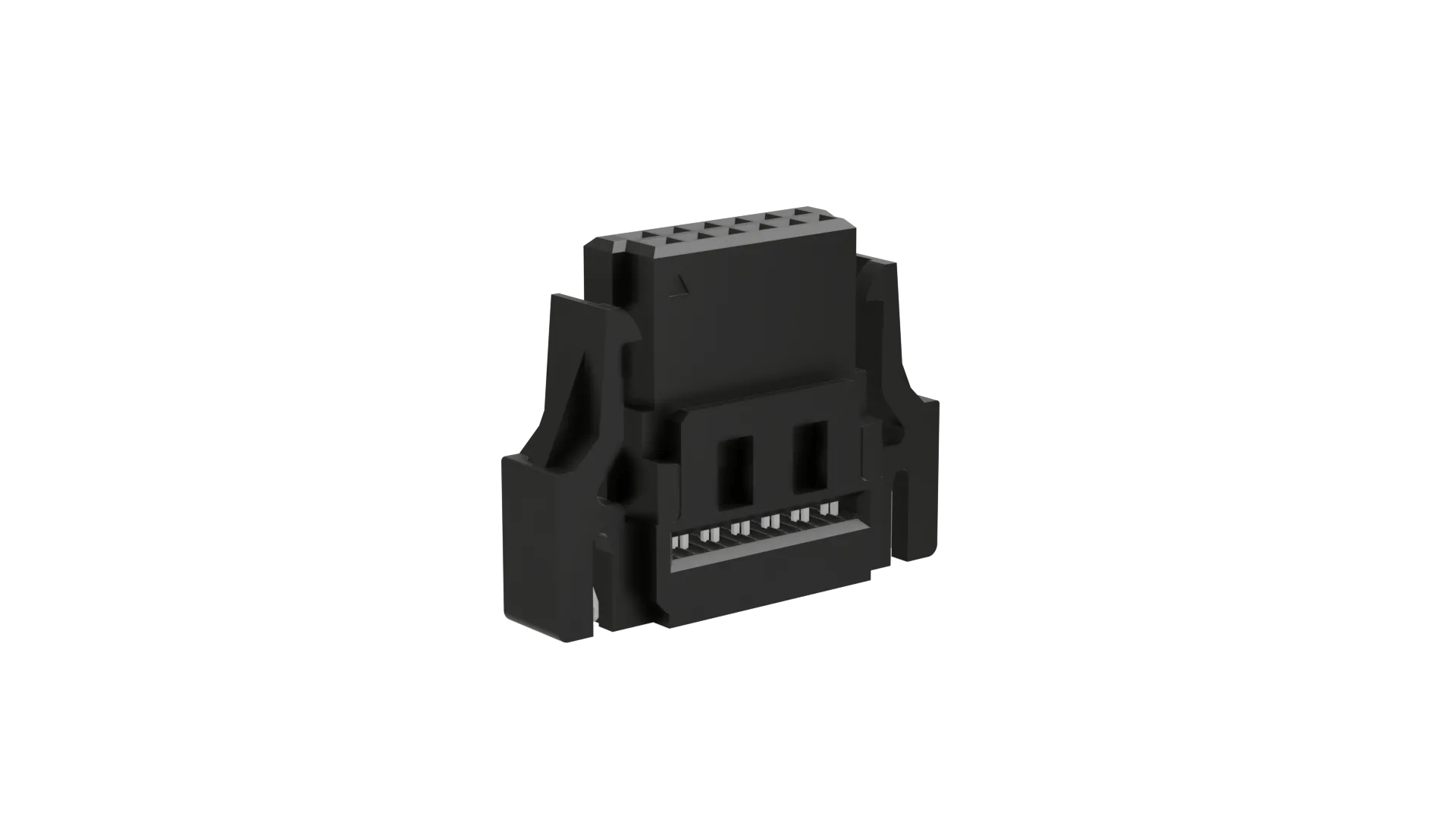

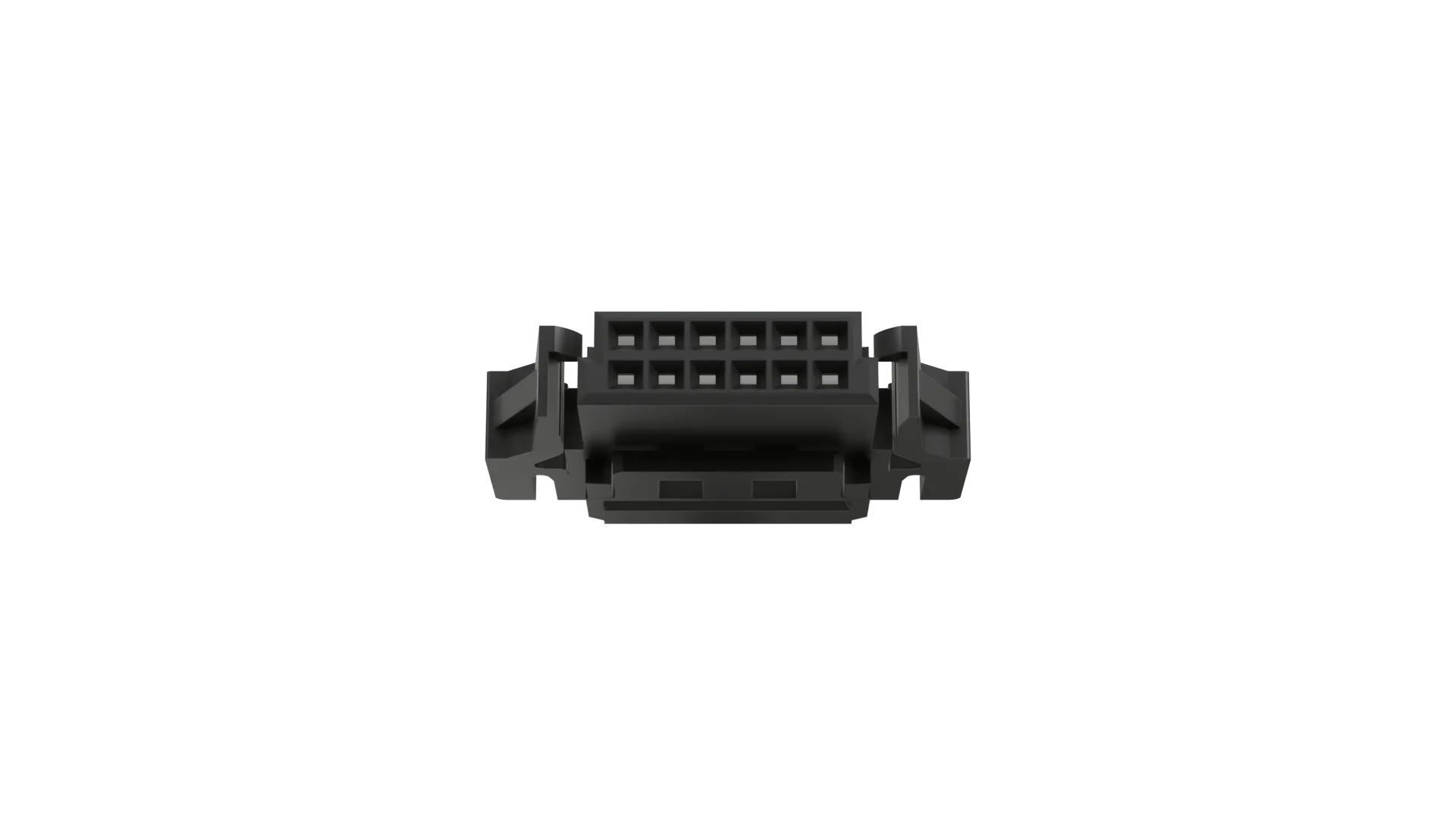

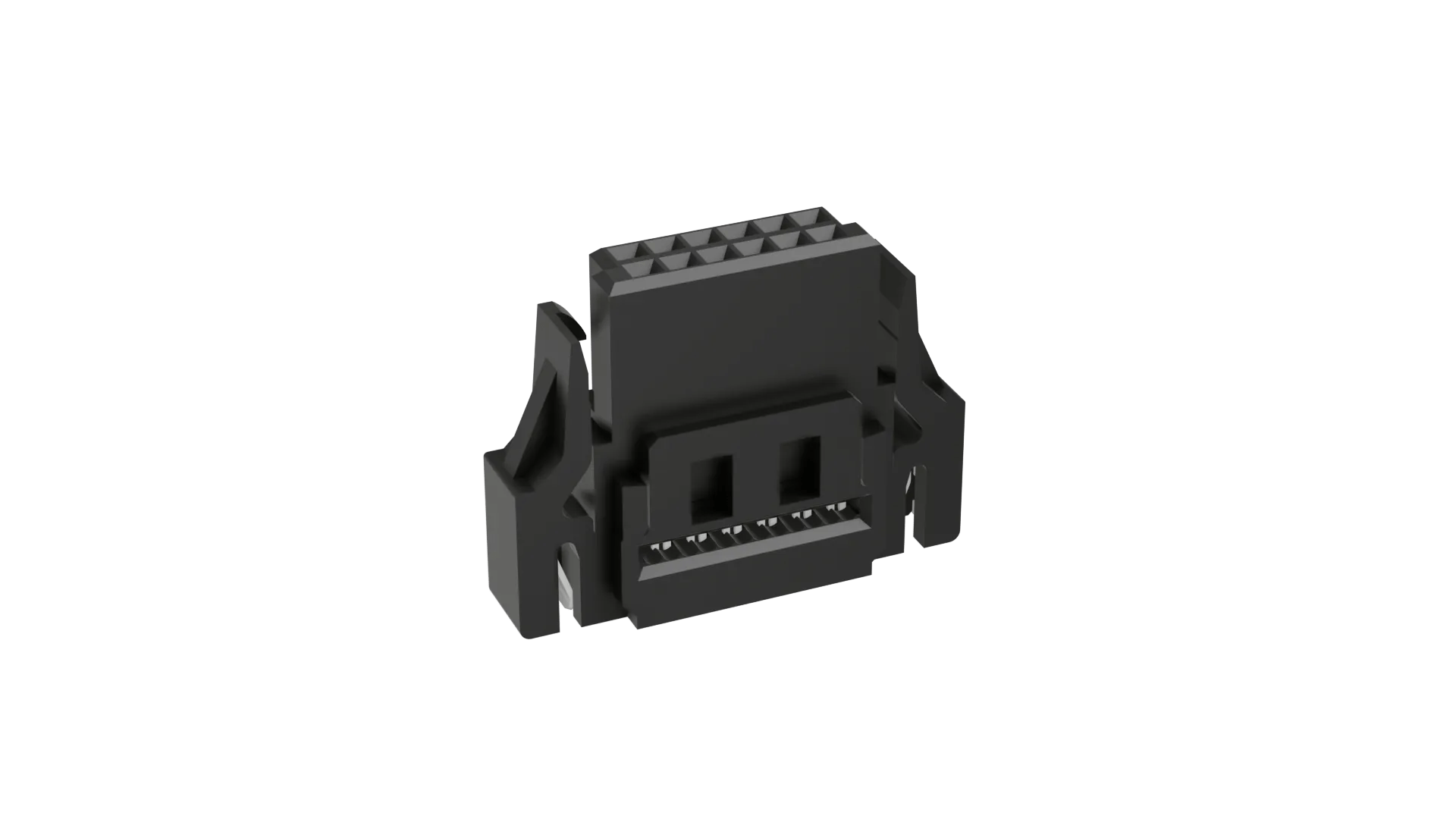

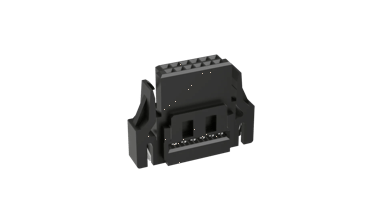

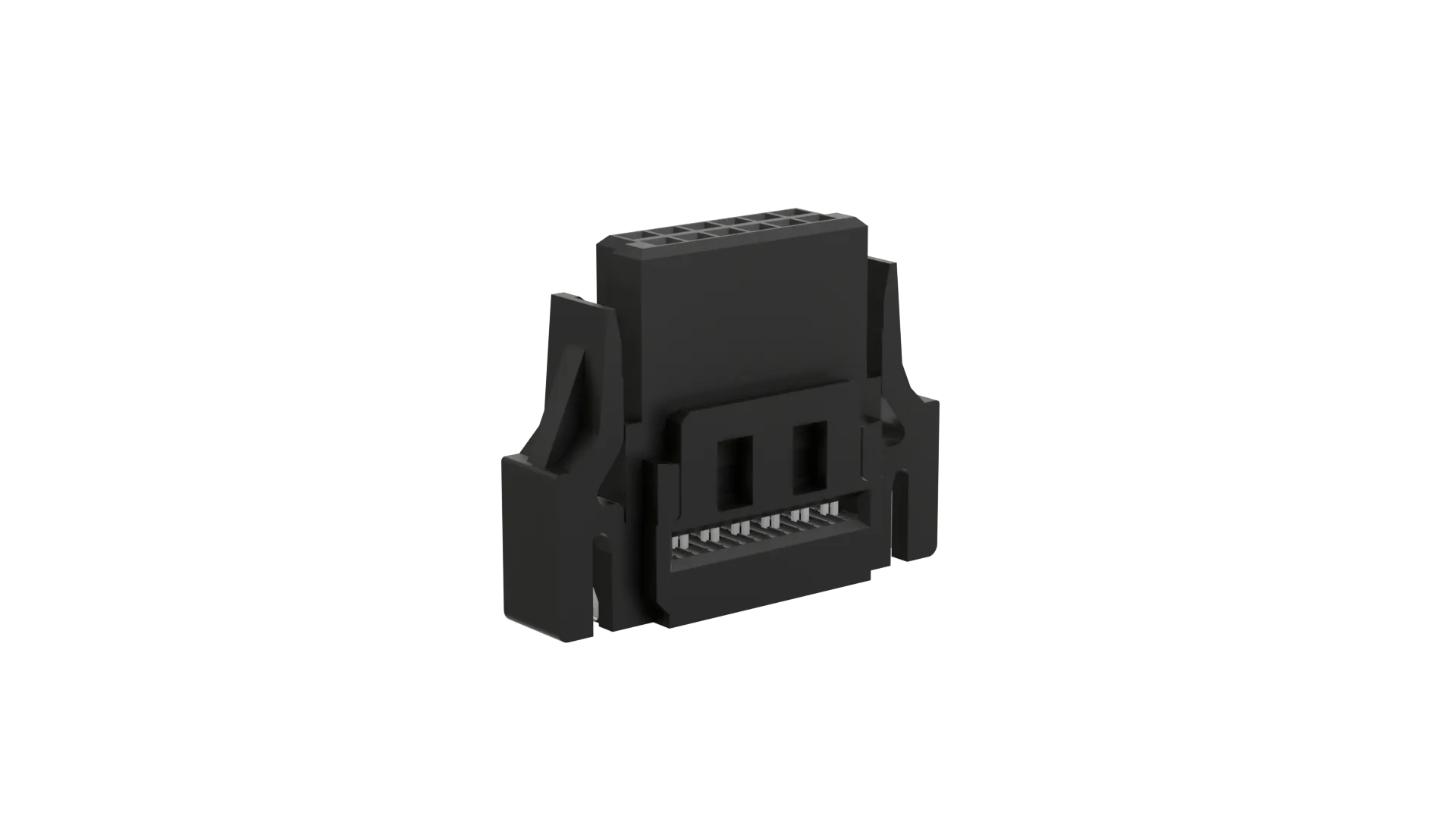

6+6 Pos. Female DIL IDC Cable Connector


1.27mm (0.05") Pitch PCB Connector - Kontrol

  • Double row female connector with IDC cable connection - 12 contacts (6+6). Latching features, polarized and shrouded. Gold finish on contact area, Tin finish on termination.

  • Suitable for 30 AWG ribbon cable, 0.635mm pitch, UL2678.

  • For complete pin numbering or pin out information, see Component Specification C047XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    Built-in Latches

  • Number of Rows:

    2

  • Connector Orientation:

    Angled

  • Side Stackable:

    No

  • Number of Signal Contacts:

    12

  • Operating Temperature:

    -20°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    0.5A max per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    LCP (PA66 Latch Cover)

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tray

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    0.86g

  • Dimensions:

    16.00 x 4.70 x 14.10

  • Wire Size:

    30 AWG

Downloads

    Technical Documentation

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M55-8201242

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
