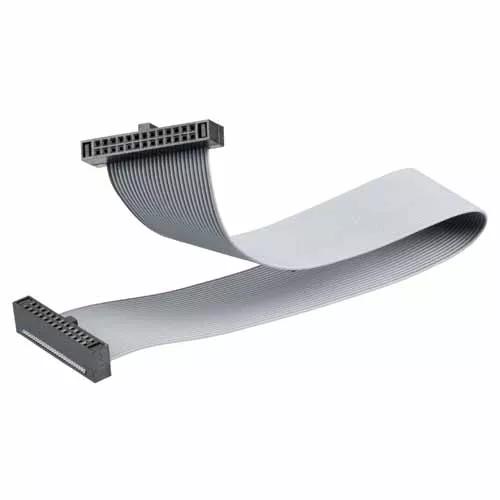

10+10 Pos. Female DIL Cable Assembly, 300mm, double-end
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
- Female-to-Female IDC Cable Assembly (Socket to Socket), 300mm cable (0.635mm pitch ribbon) – 20 contacts (10+10).
- Manufactured with M50-3301042 IDC connectors. Gold finish on contact areas.
- Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
EU RoHS Status:
Mating Pin Size:
0.5A per contact
-40°C to +105°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
306.10 x 16.90 x 5.10
M50-9111042 CAD Model (ZIP file containing STP and IGES)Download
