M50-9011042

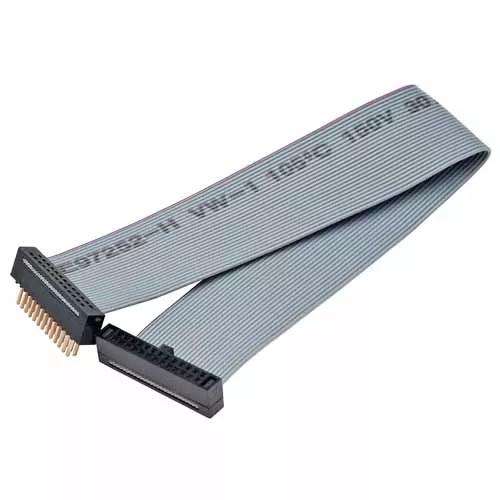

10+10 Pos. Male-Female DIL Cable Assembly, 150mm


1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 150mm (6") long cable (0.635mm pitch ribbon) - 20 contacts (10+10).

  • Manufactured with M50-3301042 and M50-3801042 IDC connectors. Gold finish on contact areas.

  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Mating Pin Size:

    0.4mm square

  • Number of Rows:

    2

  • Connector Orientation:

    Angled

  • Country of Origin:

    CN

  • Side Stackable:

    No

  • Number of Signal Contacts:

    20

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    0.5A per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PBT

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    3.665g

  • Dimensions:

    156.10 x 16.90 x 8.20

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M50-90X.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Product Information

  • Catalog page - Archer M50 IDC Specification + Mating Profiles

  • Product Training Module - Overview Guide to the Harwin Archer range

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)

  • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M50-901 series

  • RoHS - M50-9011042
