Active Product

M50-3651042R

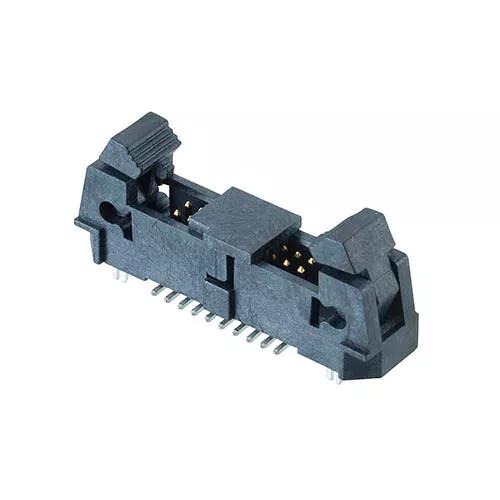

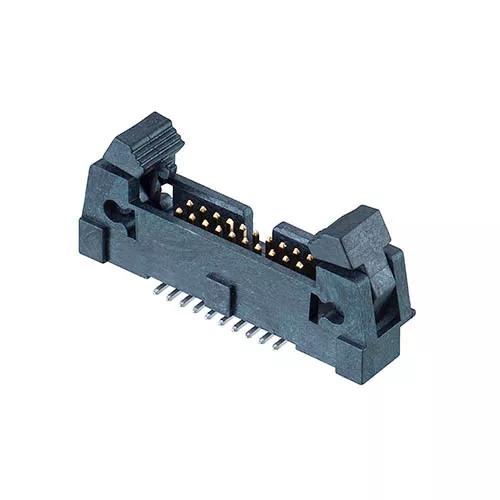

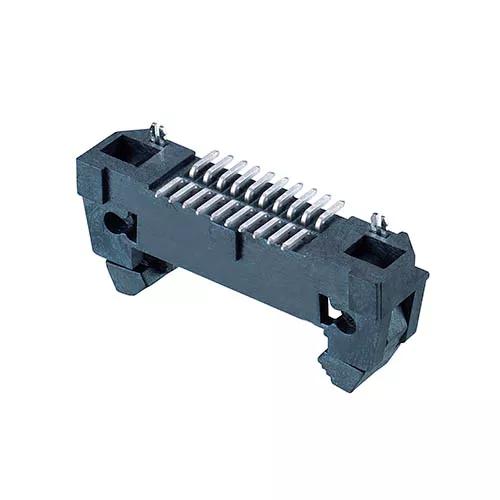

10+10 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Order Sample

Add to Favorites

Loading… Check availability

9 similar products View products

Traceparts account required

Product Description

Double Row, Surface Mount Ejector Header with polarization – 20 contacts (10+10).
Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
Mates with IDC cable connector M50-3301042 or associated Cable Assemblies.

M50-3651042R - 10+10 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1.75A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

1.544g

Overall Dimensions (L x W x D) in mm:

27.18 x 6.67 x 12.82

Height of Connector above PCB:

11.55mm

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles

Frequently Asked Questions Ask a Question

The female end of M50-9021042 will mate with the male PCB connector M50-3651042R. You would need to use a different connector from the M50 series to mate with the male connection on the end of the M50-9021042, or solder the male end directly to a PCB. The M50-3111042 should be suitable, but please note we have not specifically tested this connection. If you need further assistance, do please contact one of our Experts.

Was this answer useful?

For this range, we do not specify any particular pin numbering system. You are free to use any convention you prefer, or use your own. There is a small indent on the housing that you can use to signify a number 1 pin. You can also find information on pin numbering on our Support article on this topic.

Was this answer useful?
