Home > M50-3551042
Active

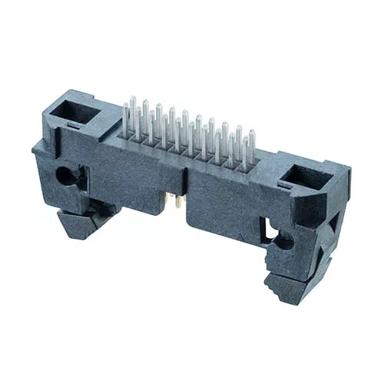

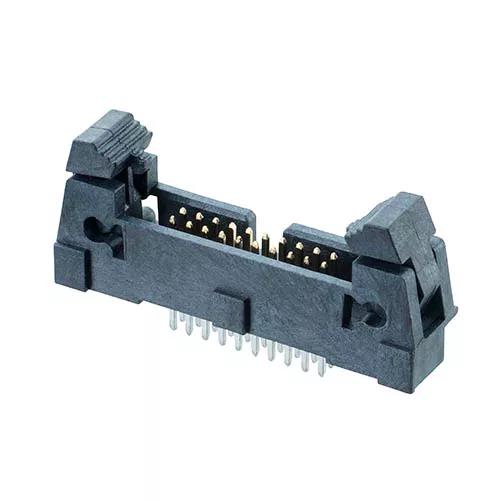

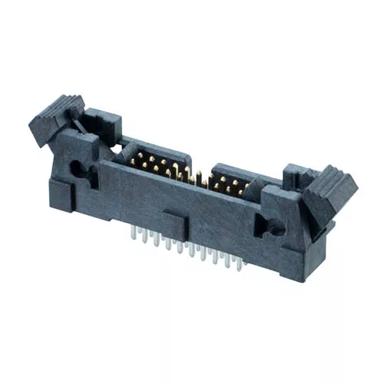

M50-3551042

10+10 Pos. Male DIL Vertical Throughboard Conn. with Ejector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row, 2.7mm PC Tail Ejector Header with polarization – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination. Fitted with ejector latches to assist unmating.
  • Mates with IDC cable connector M50-3301042 or associated Cable Assemblies.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1.75A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.461g

Overall Dimensions (L x W x D) in mm:

27.18 x 6.67 x 14.02

Height of Connector above PCB:

11.30mm

Length of Throughboard Tail:

2.72mm

Availability

2,087 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1271
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 816
