M300-FC60305F2-0450L

M300 SIL Cable Assembly, Female Single-Ended with Hex Socket jackscrews, white 20 AWG cable, 450mm long, 3 contacts


3.00mm Pitch High-Reliability Connector - M300

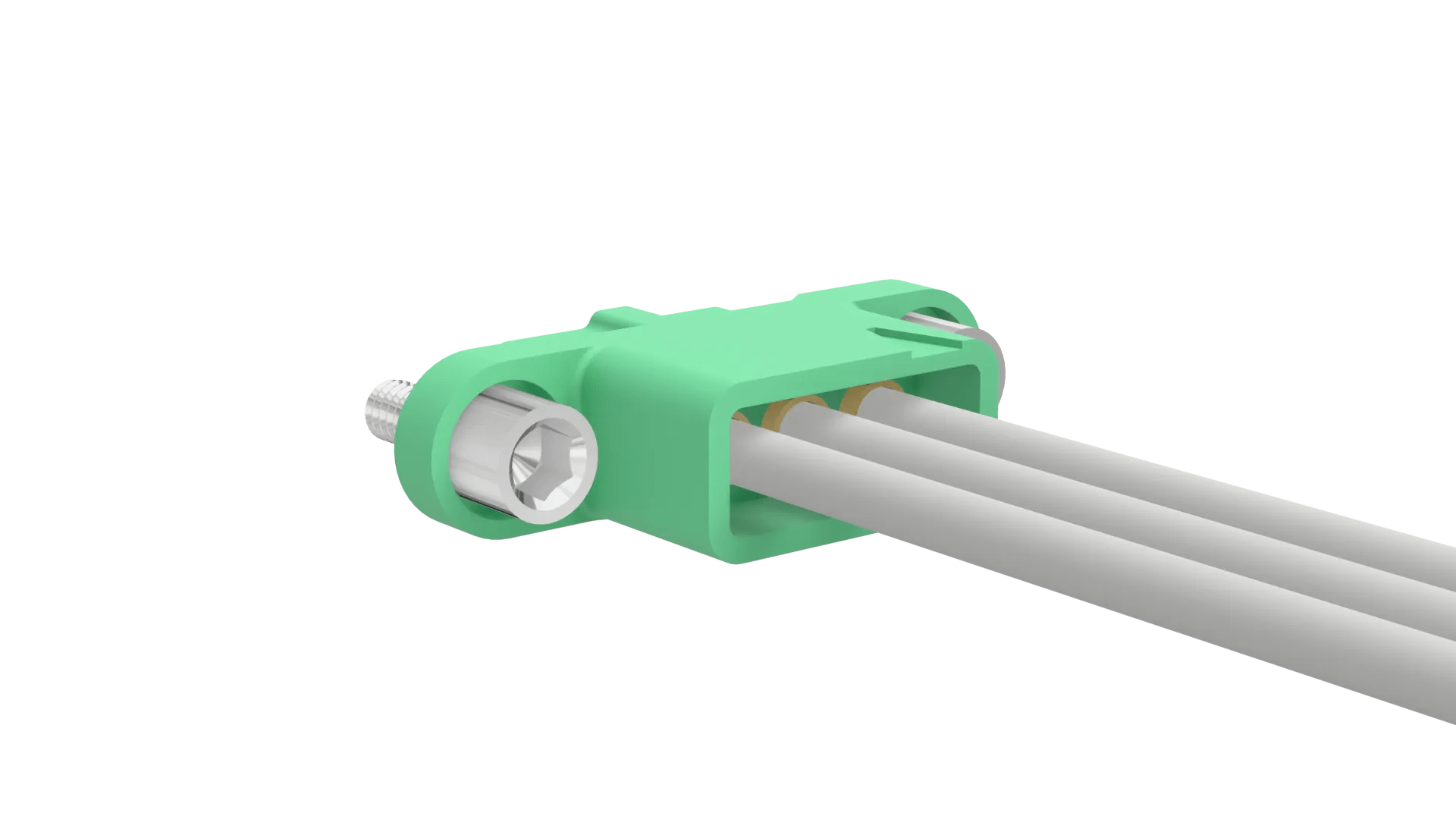

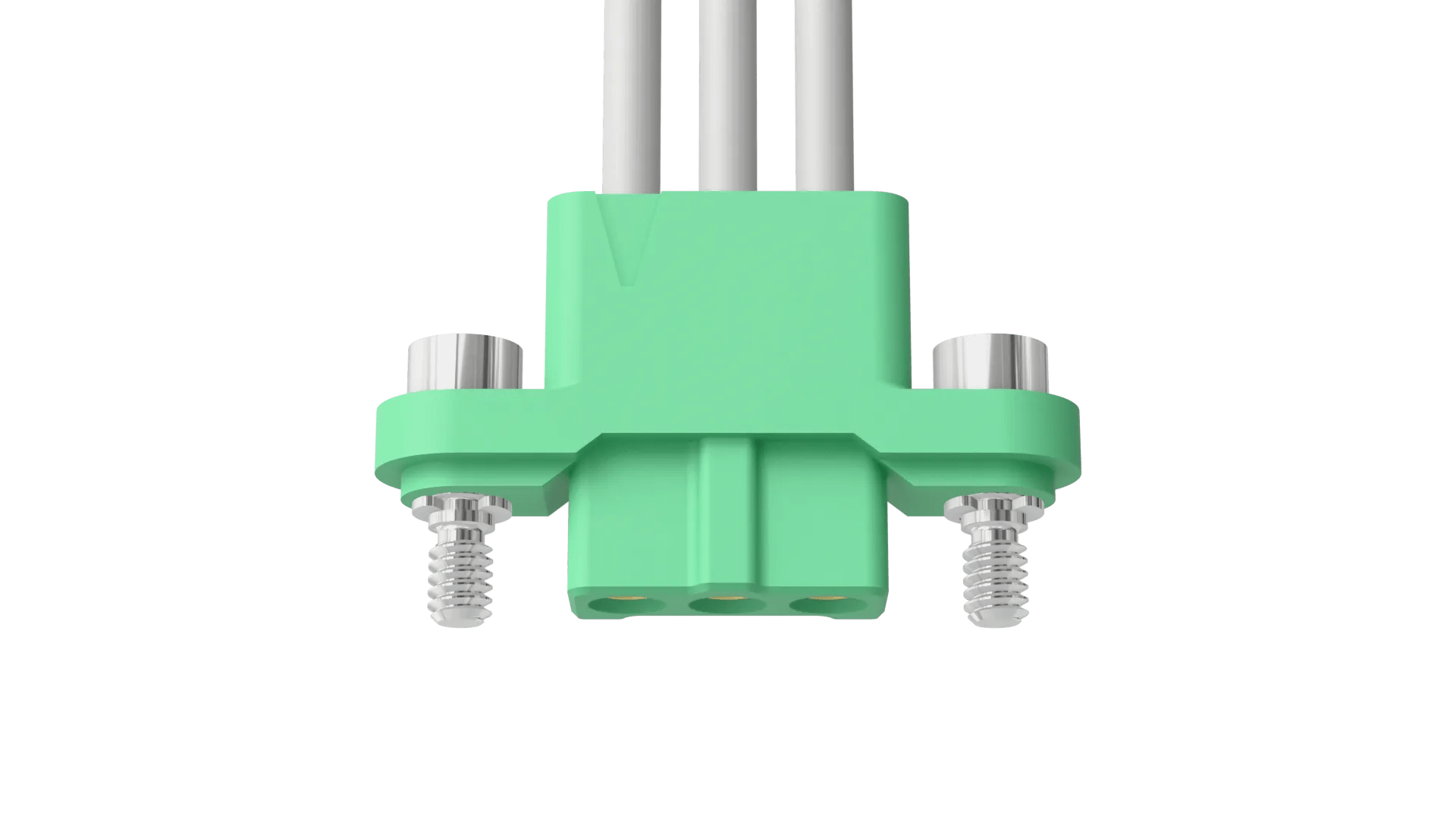

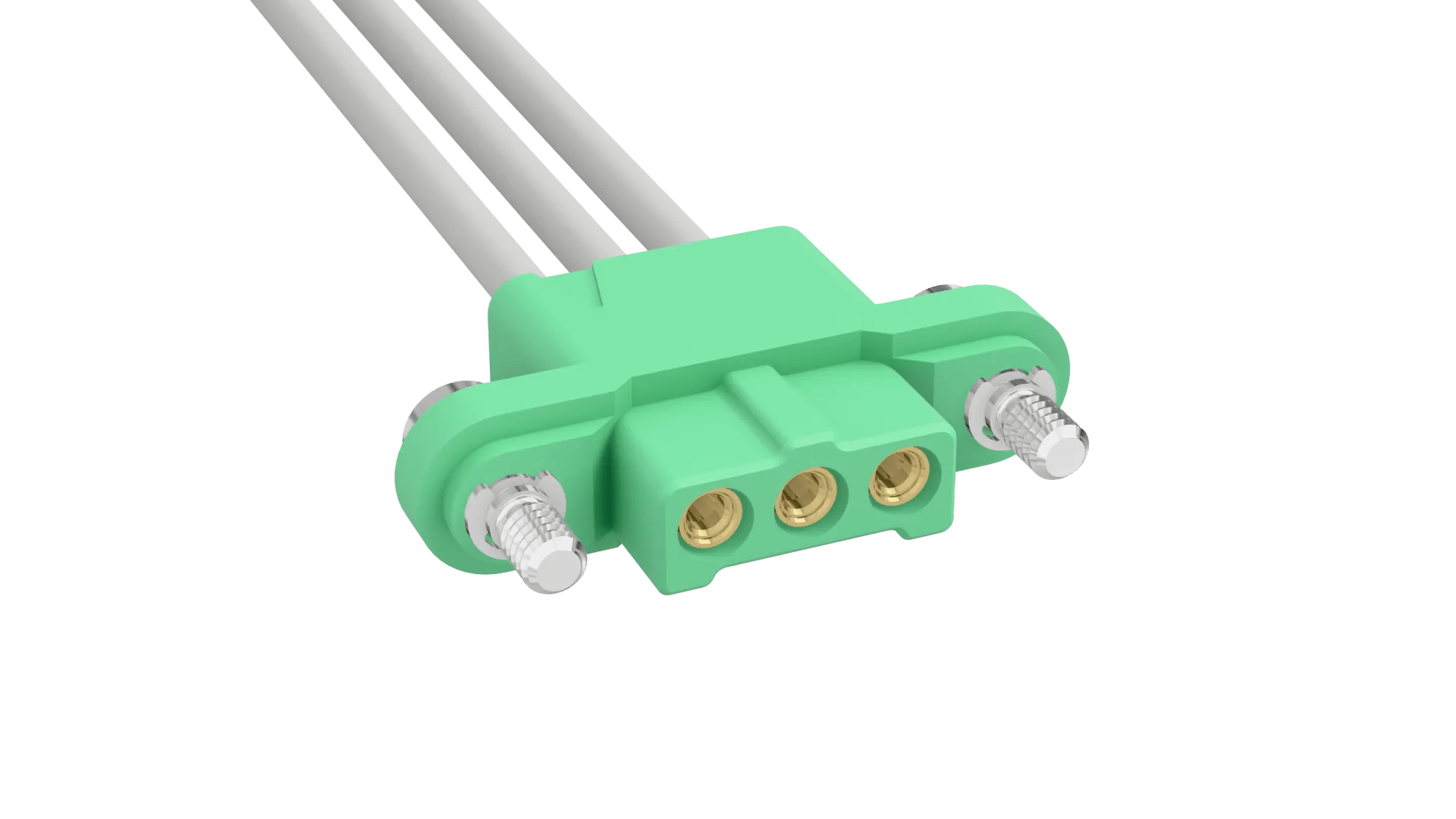

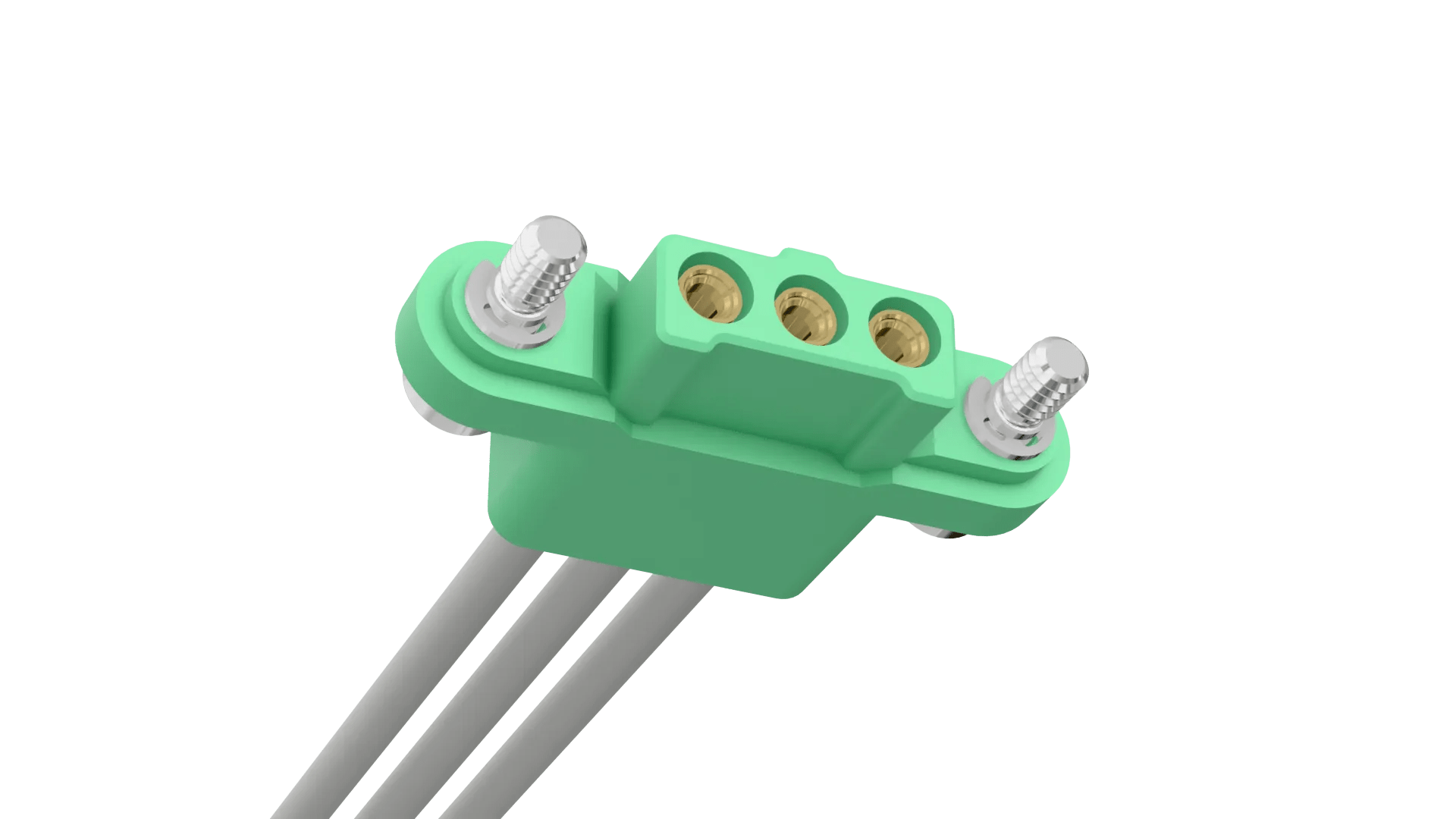

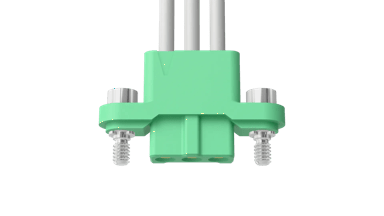

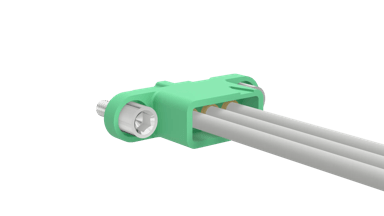

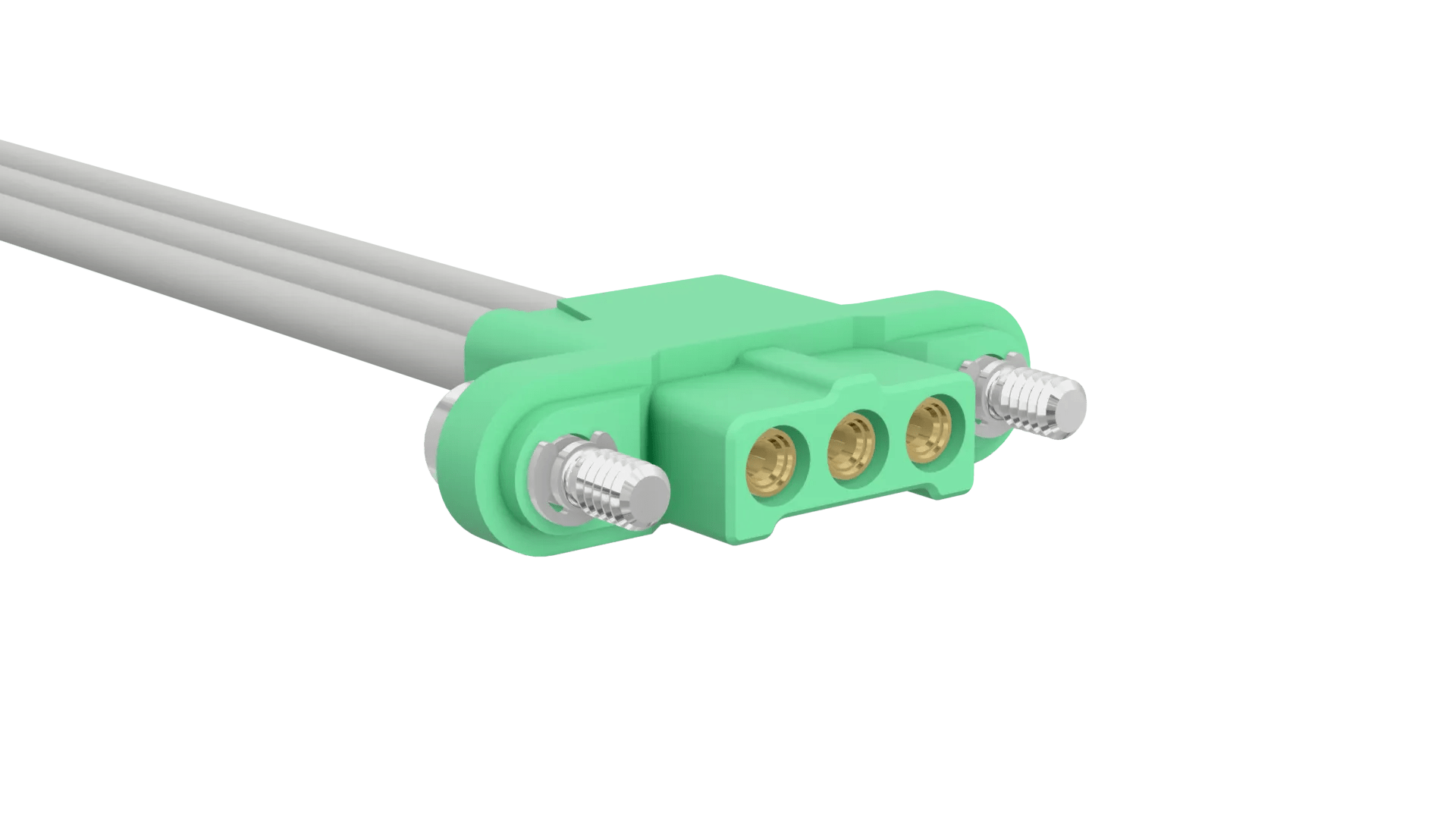

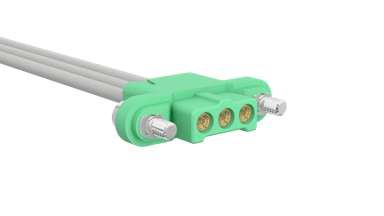

  • Female Single-Ended with white 20 AWG cable, 450mm (18") long - 3 contacts. Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.

  • Manufactured with the M300-0010045 crimp contacts, M300-2250396F2 Single Row crimp housing.

  • For complete pin numbering or pin out information, see Component Specification C048XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Floating Jackscrew with Hex Socket Head (Standard Gender)

  • Mating Pin Size:

    Ø1mm

  • Number of Rows:

    1

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB/US

  • Side Stackable:

    No

  • Number of Signal Contacts:

    3

  • Operating Temperature:

    -65°C to +175°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    8A max per contact simultaneous

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 4T

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    3.00mm (0.118")

  • Weight:

    12.561g

  • Dimensions:

    451.00 x 21.30 x 5.30

  • Thread Size:

    M2

  • Wire Size:

    20 AWG

Downloads

    Product Information

  • Catalog page - M300 Mating Profiles + Pin Numbering

  • Product Datasheet - M300: M300 range (HRi)

  • Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Technical Documentation

  • Technical Drawing / Datasheet - M300-FCXXX05F2-XXXXL.pdf

  • Plating thickness on M300 contacts

  • C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M300-FC60305F2-0450L

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT043 - M300 Series - General (Electrical + Mechanical and Environmental)
