Active Product

M300-FC31005F2-0450L

5+5 Pos. Female DIL 22AWG Cable Assembly, 450mm, single-end, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

Female Single-Ended with white 22 AWG cable, 450mm long – 10 contacts (5+5). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
Manufactured with the M300-0020045 crimp contacts, M300-2241096F2 Double Row crimp housing.
For complete pin numbering or pin out information, see Component Specification C048XX.

M300-FC31005F2-0450L - 5+5 Pos. Female DIL 22AWG Cable Assembly, 450mm, single-end, Jackscrews

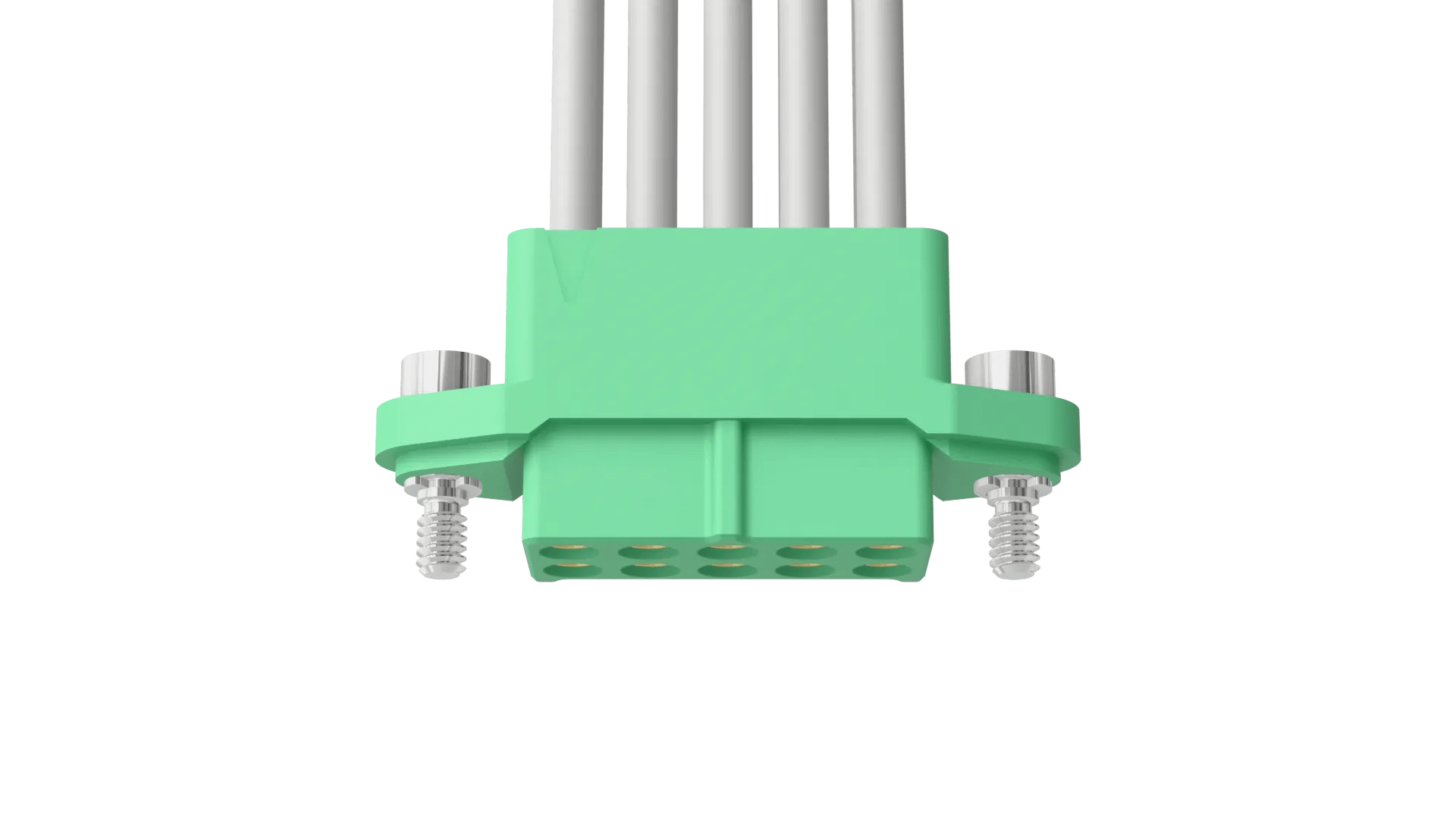

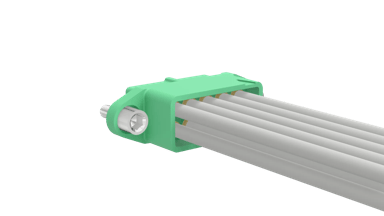

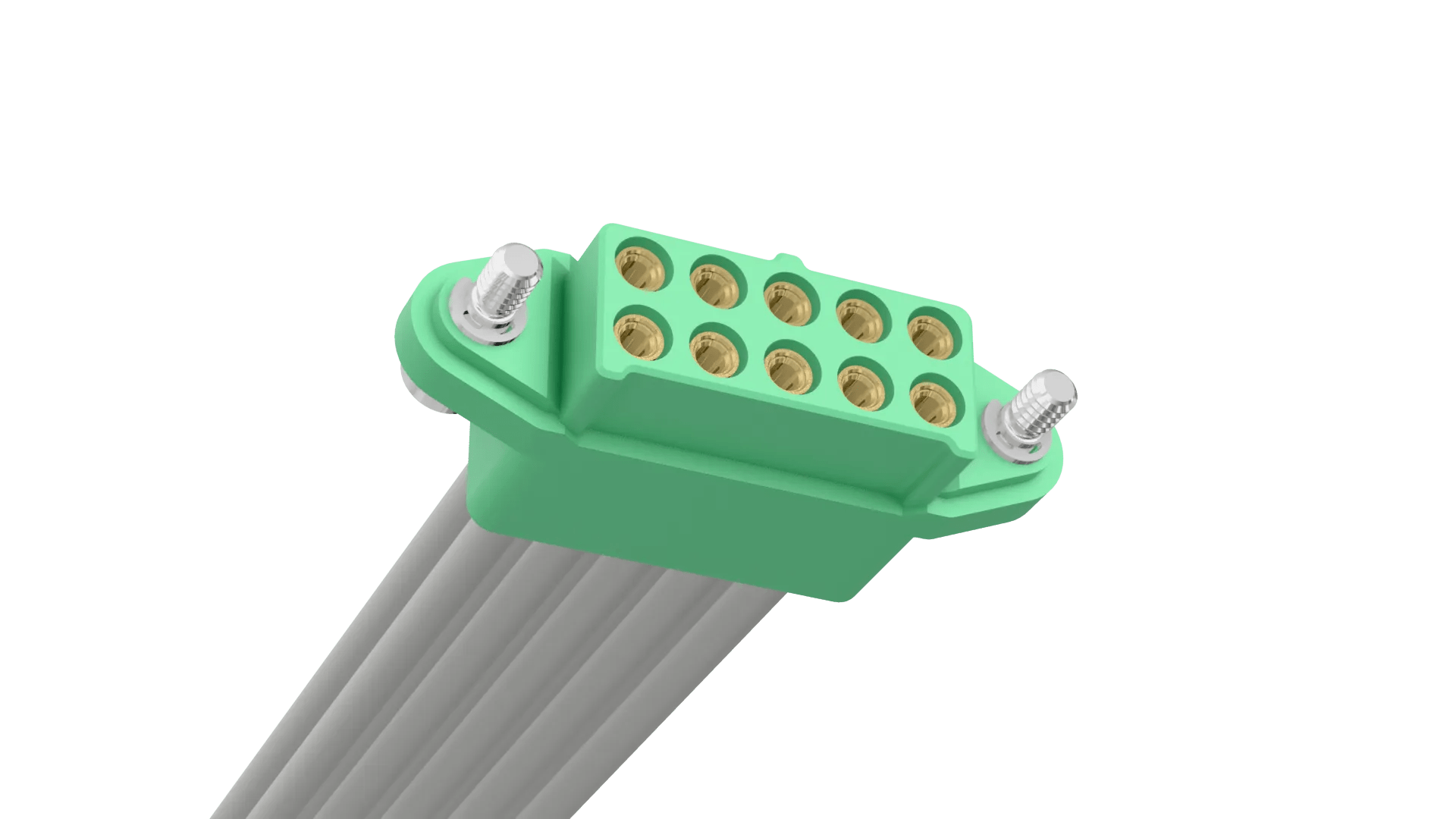

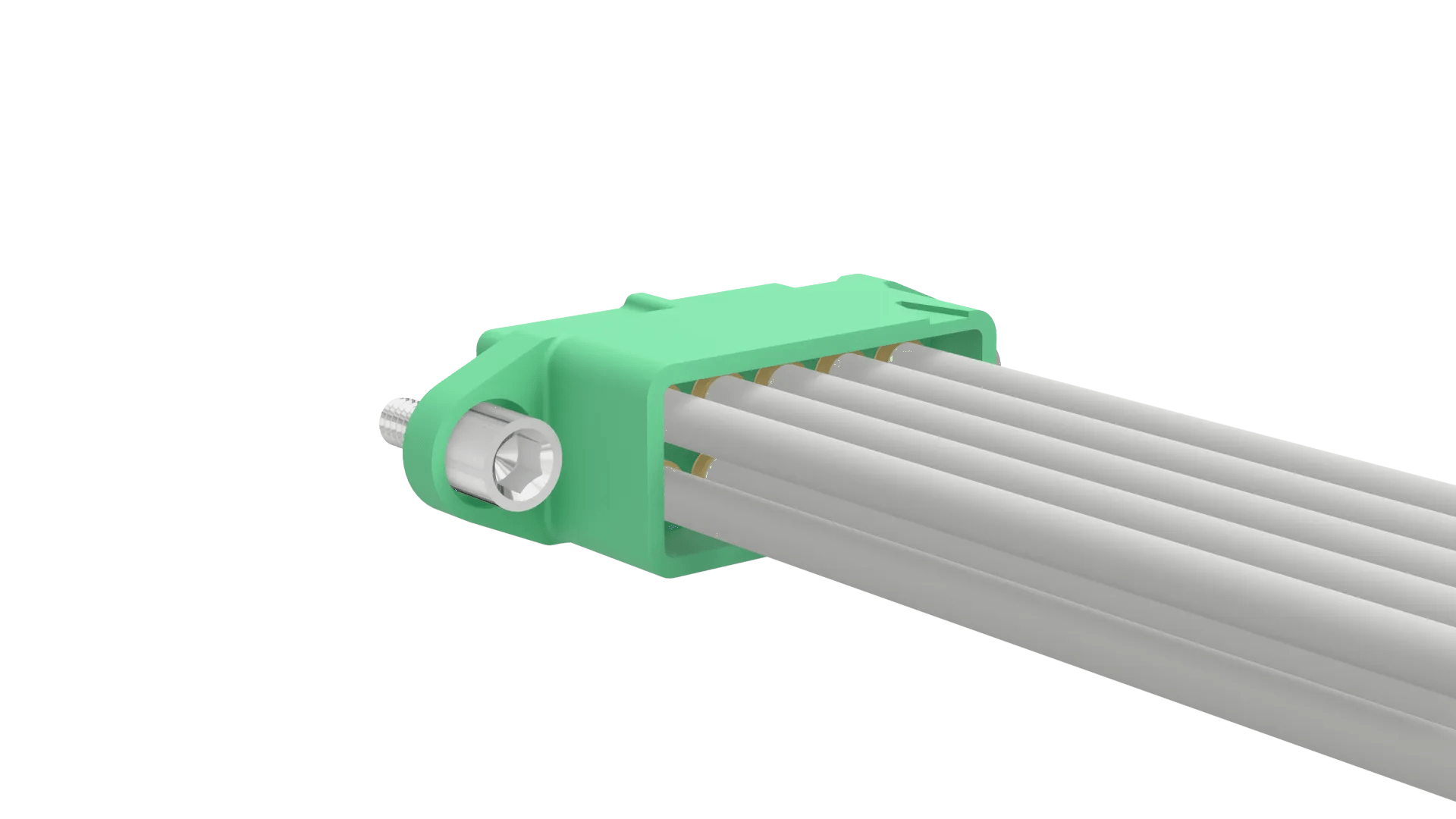

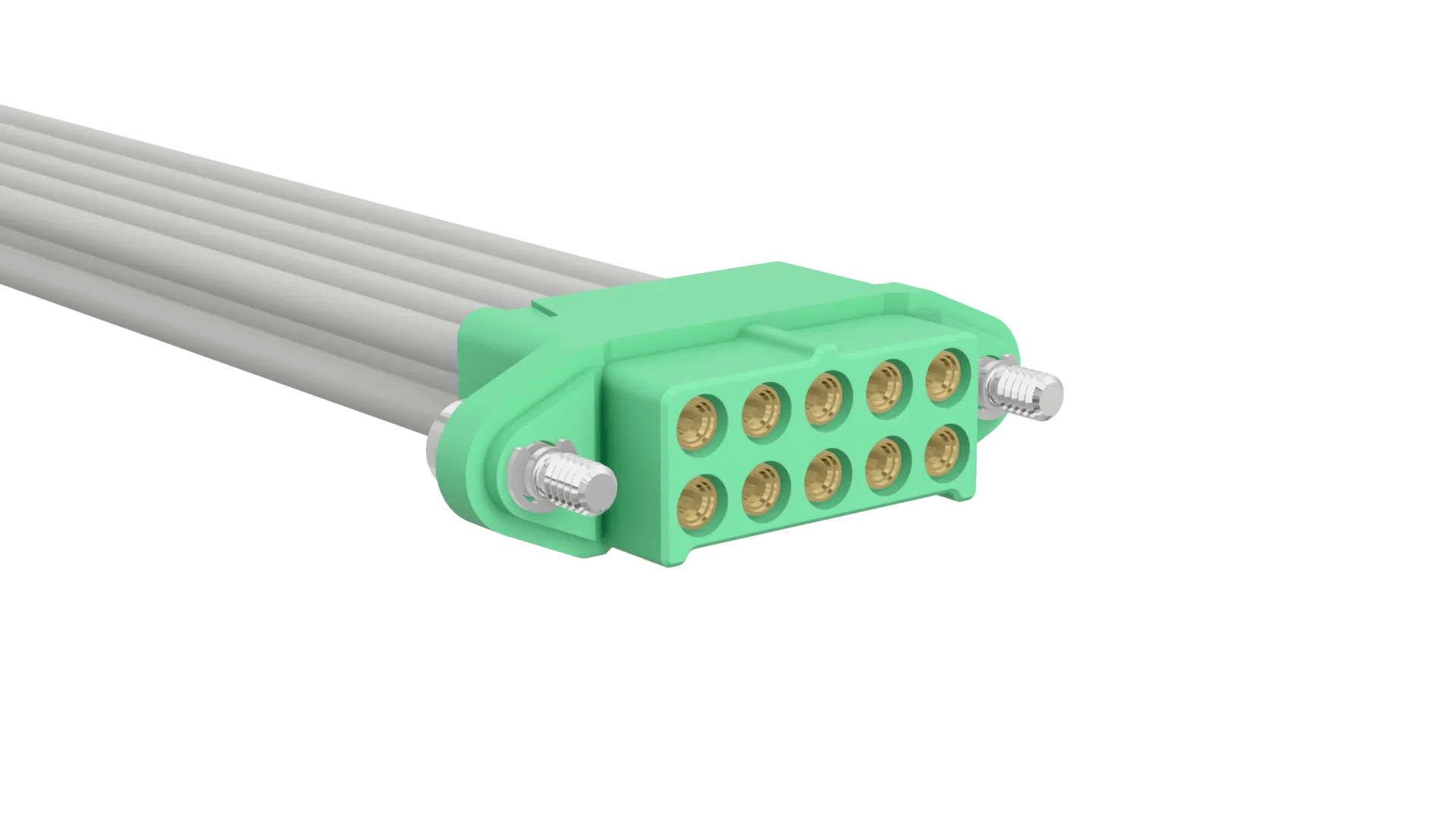

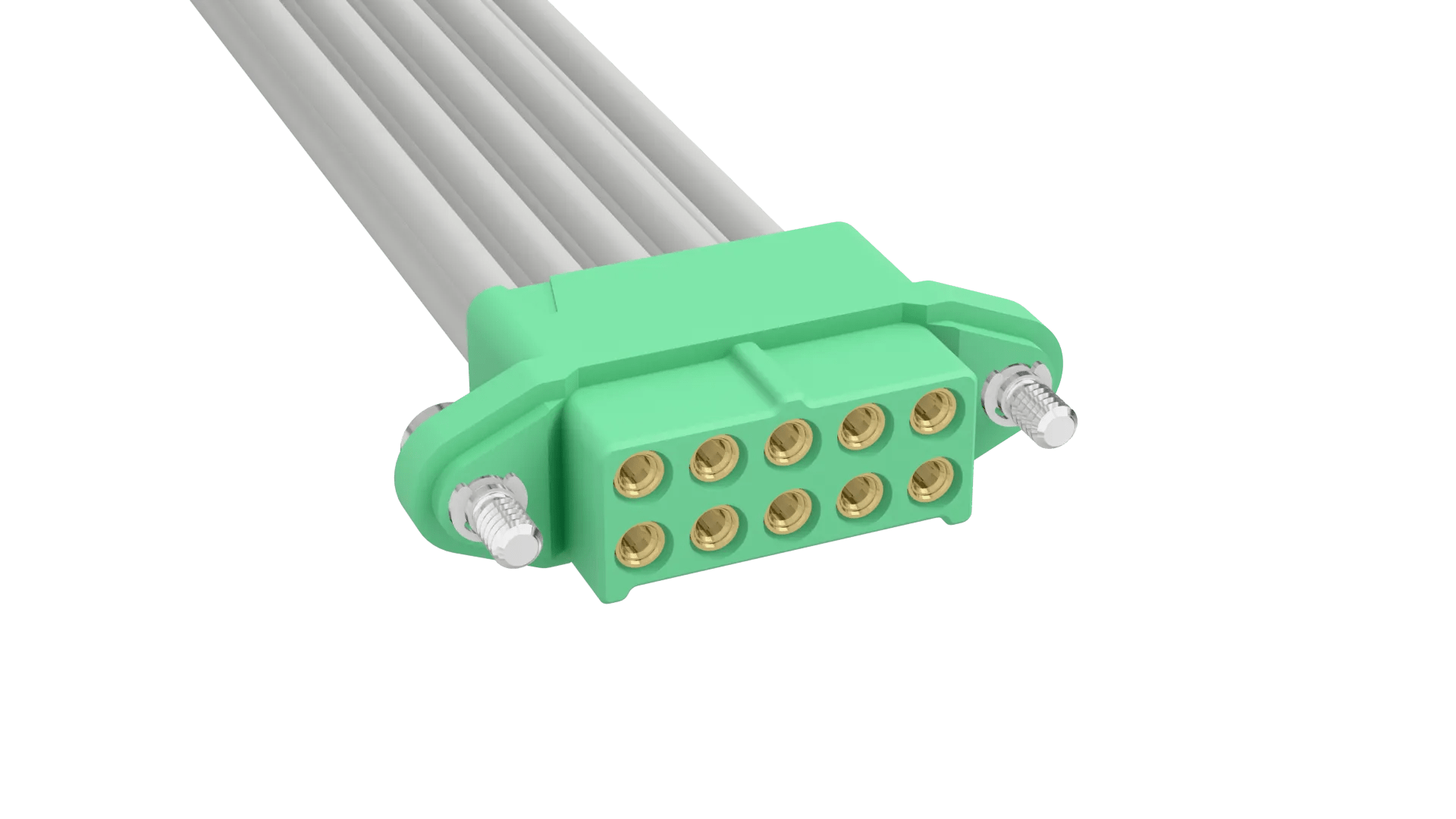

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø1mm

Current Rating:

5A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

28.24g

Overall Dimensions (L x W x D) in mm:

451.00 x 27.30 x 8.00

Thread Size:

Mating Profiles:

Catalog page - M300 Mating Profiles, Pin Numbering

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Was this answer useful?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

How can we help you?

Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.

Ask an Expert
Book a meeting
