Home > M300-FC21005F2-0450L
Active Product

M300-FC21005F2-0450L

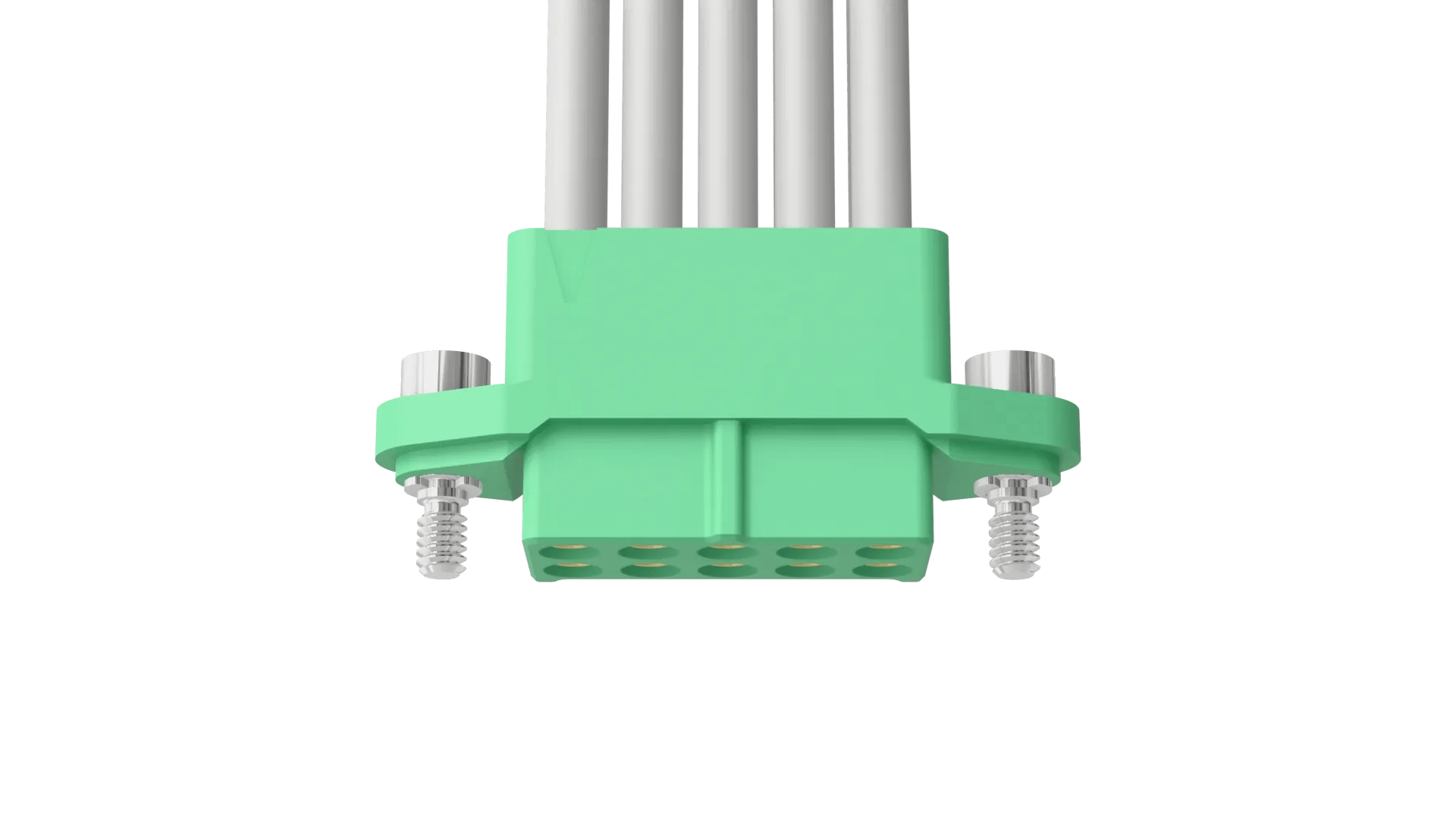

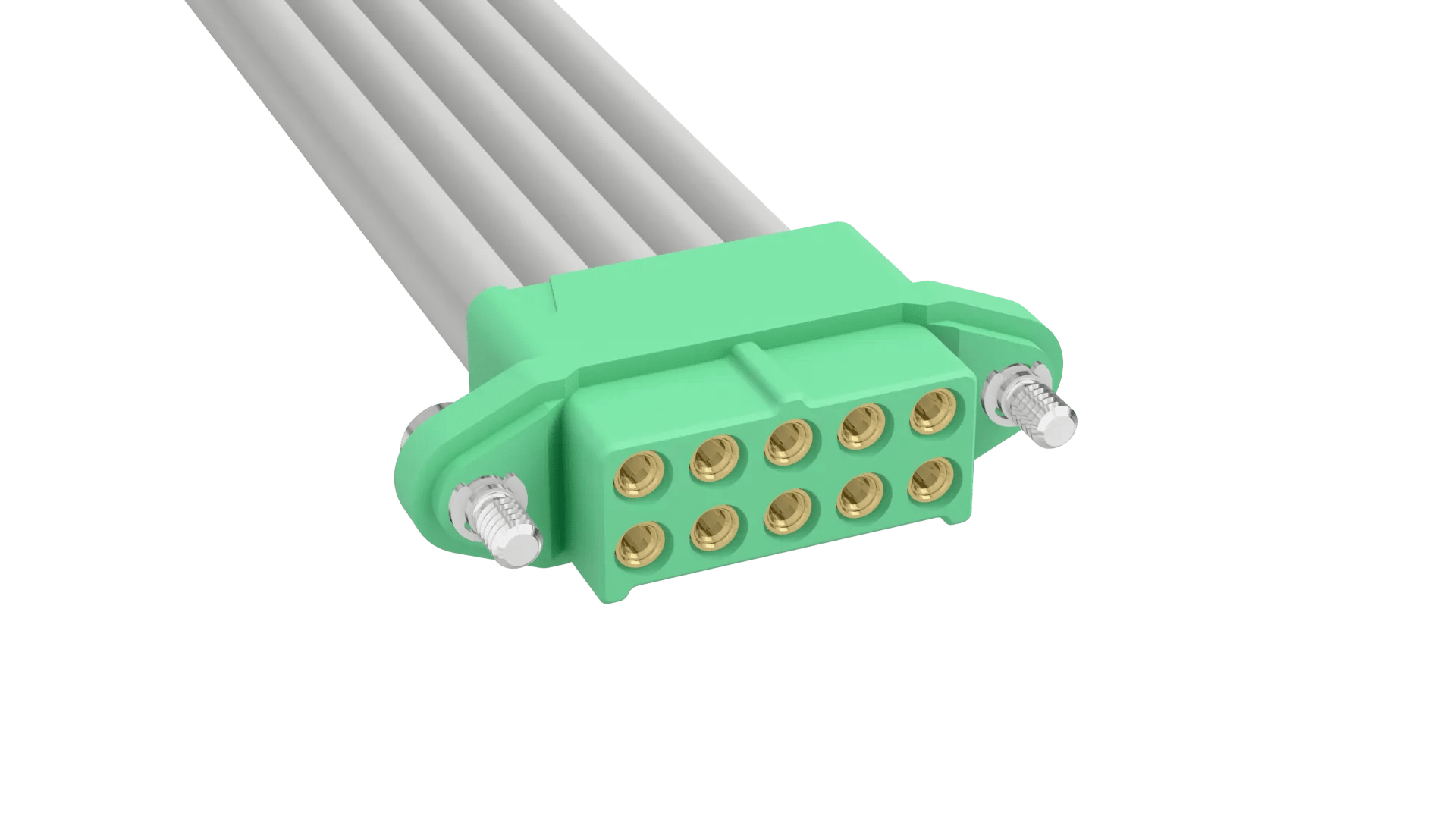

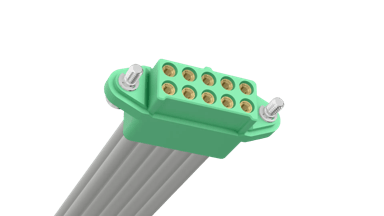

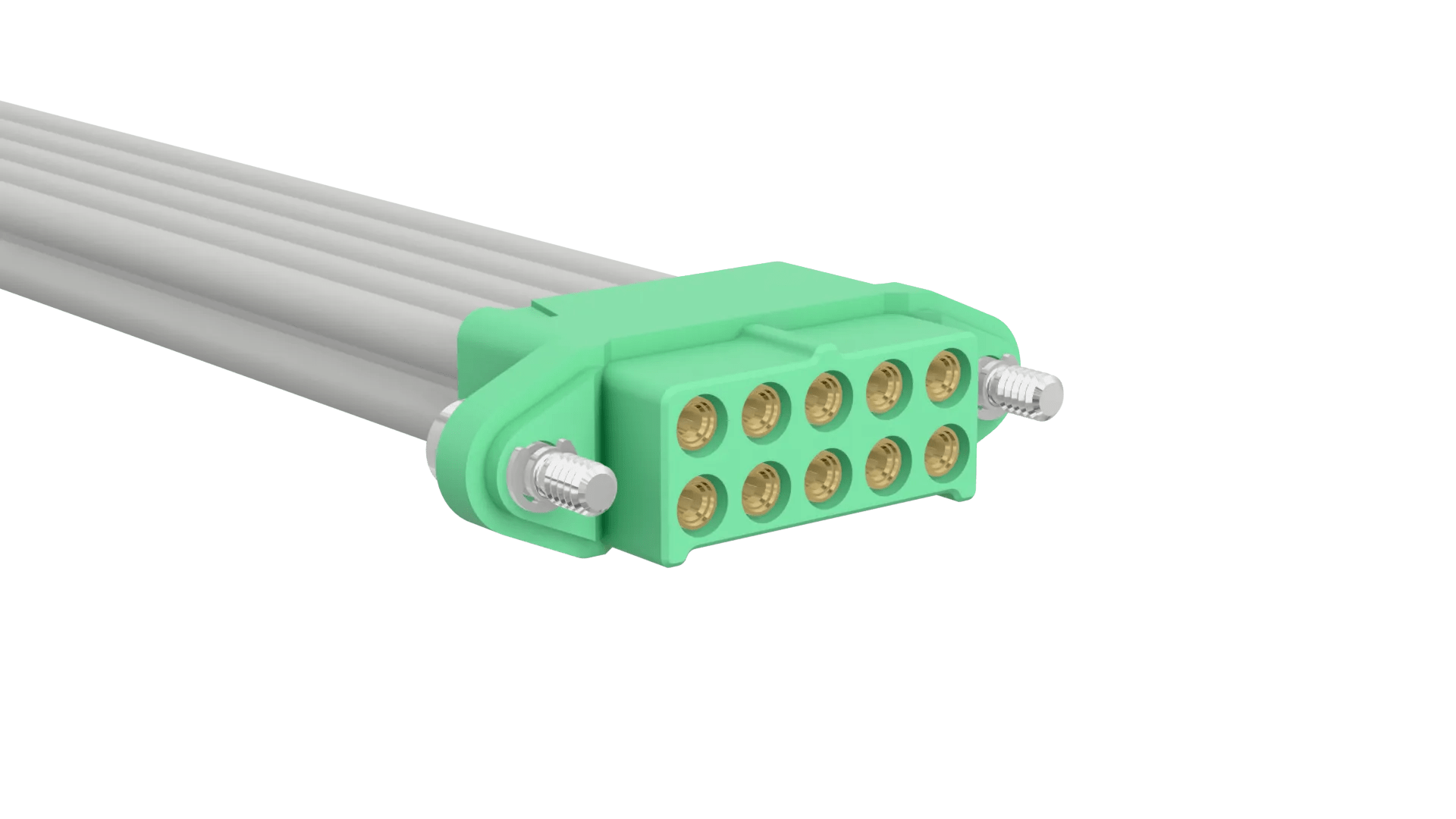

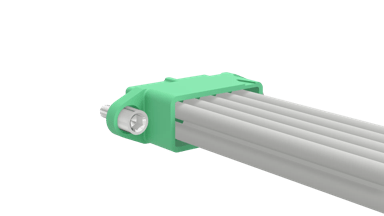

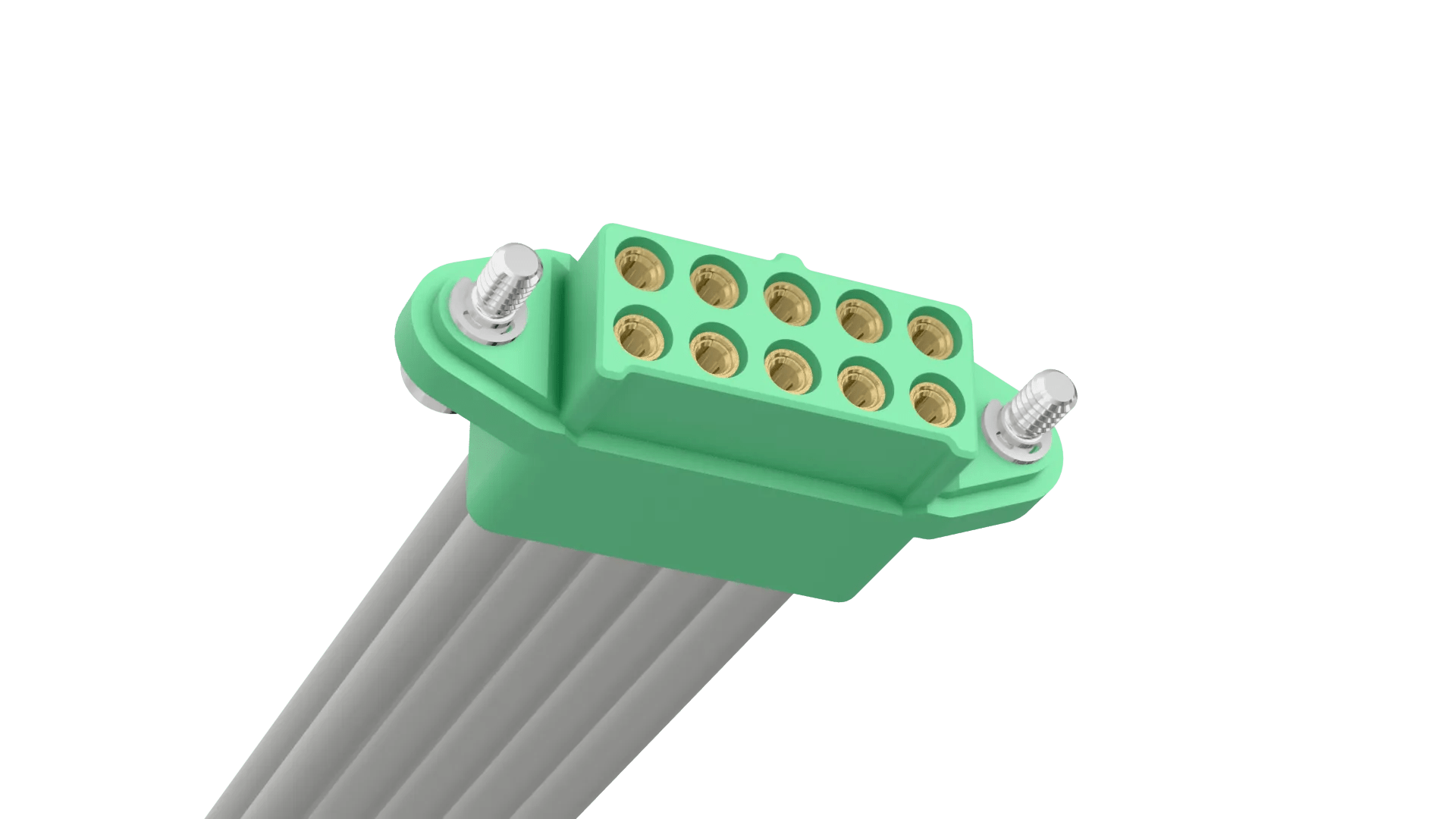

5+5 Pos. Female DIL 20 AWG Cable Assembly, 450mm, single-end, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Add to Favorites

Loading…   Check availability

4 similar products View products

Traceparts account required

Product Description

  • Female Single-Ended with white 20 AWG cable, 450mm (18″) long – 10 contacts (5+5). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
  • Manufactured with the M300-0010045 crimp contacts, M300-2241096F2 Double Row crimp housing.
  • For complete pin numbering or pin out information, see Component Specification C048XX.

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

20 AWG

Mating Pin Size:

Ø1mm

Current Rating:

8A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

39.518g

Overall Dimensions (L x W x D) in mm:

451.00 x 27.30 x 8.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained  to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Was this answer useful?

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
