Home > M300-FC11005F2-0150L
Active

M300-FC11005F2-0150L

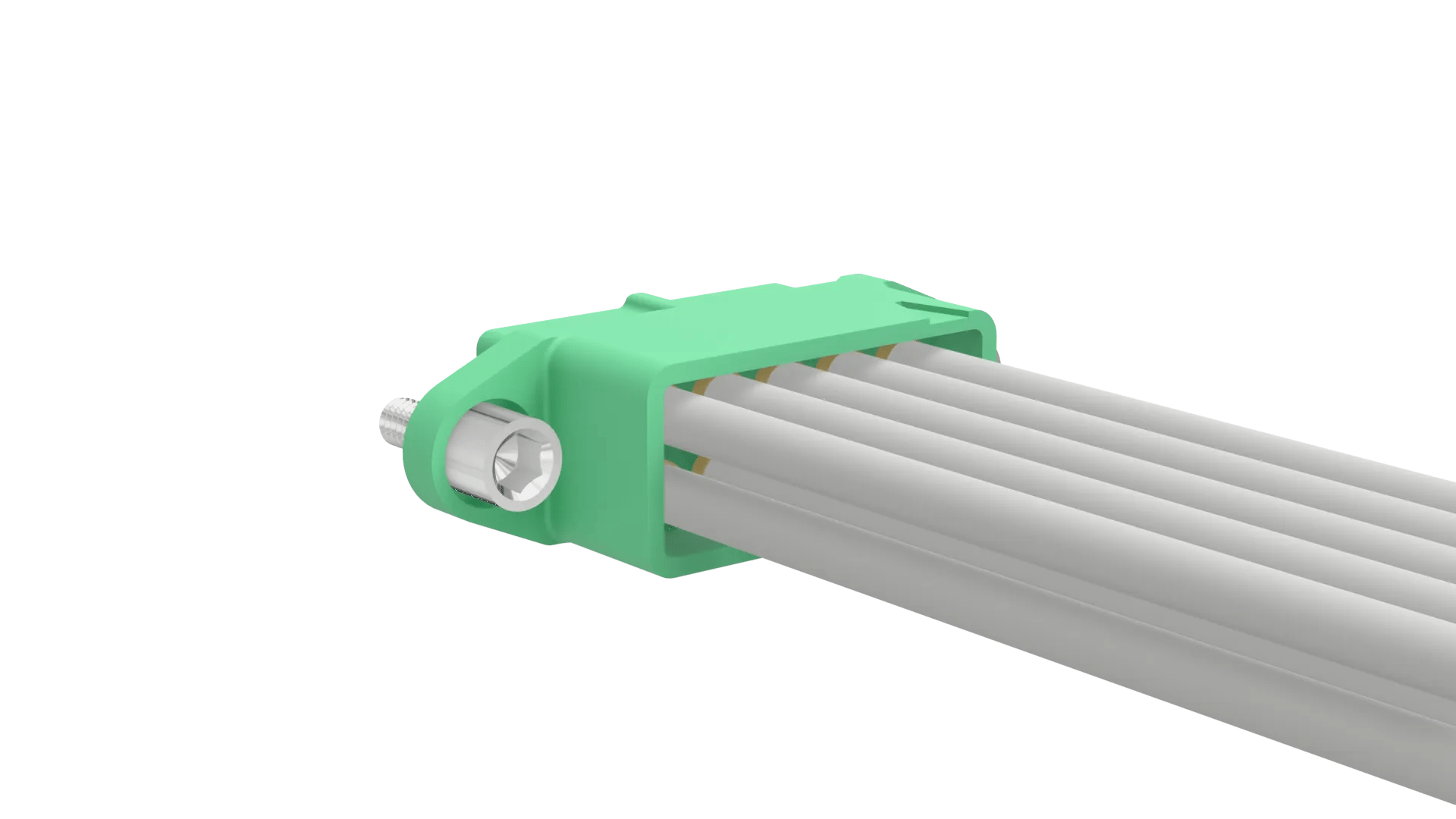

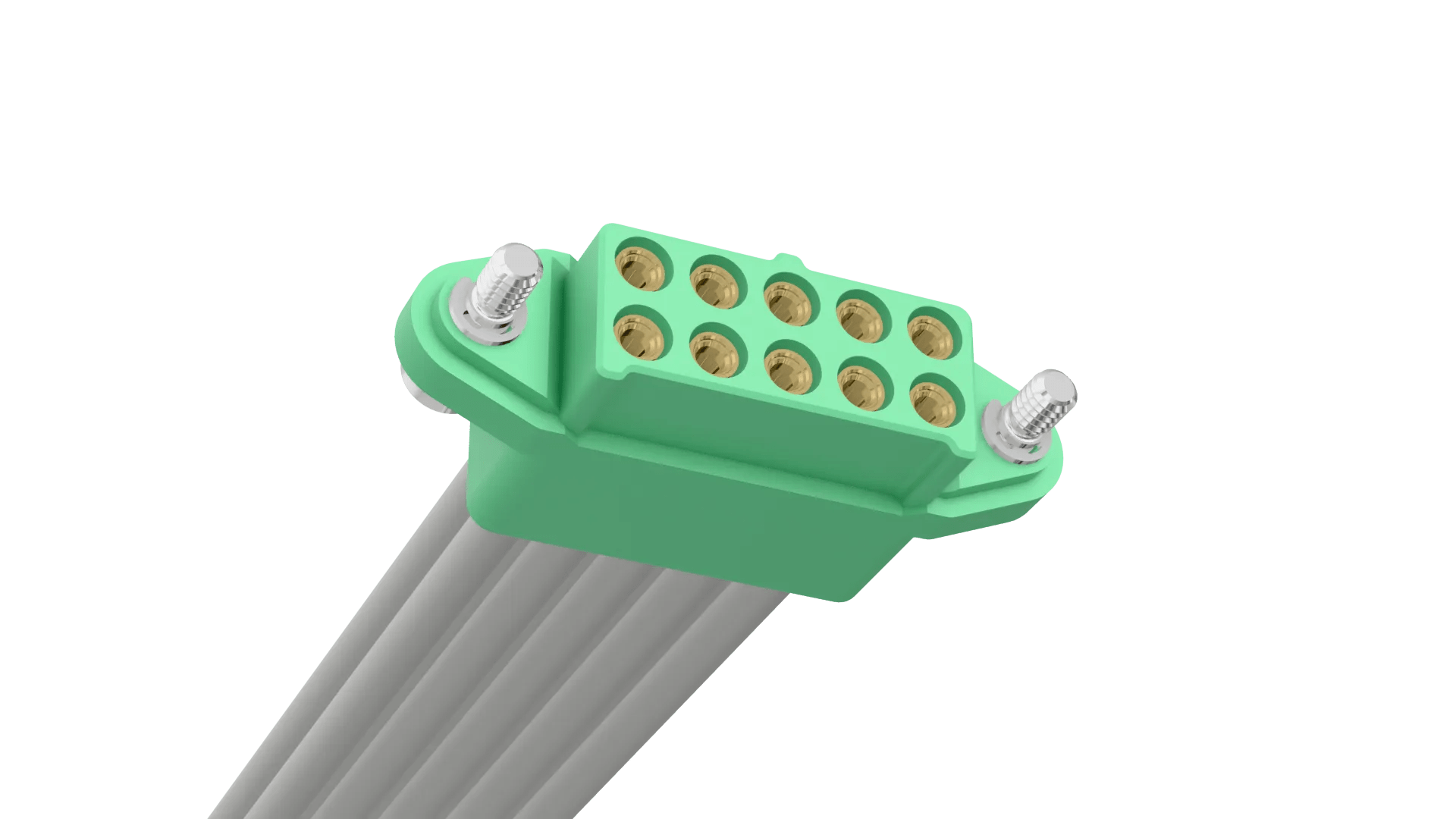

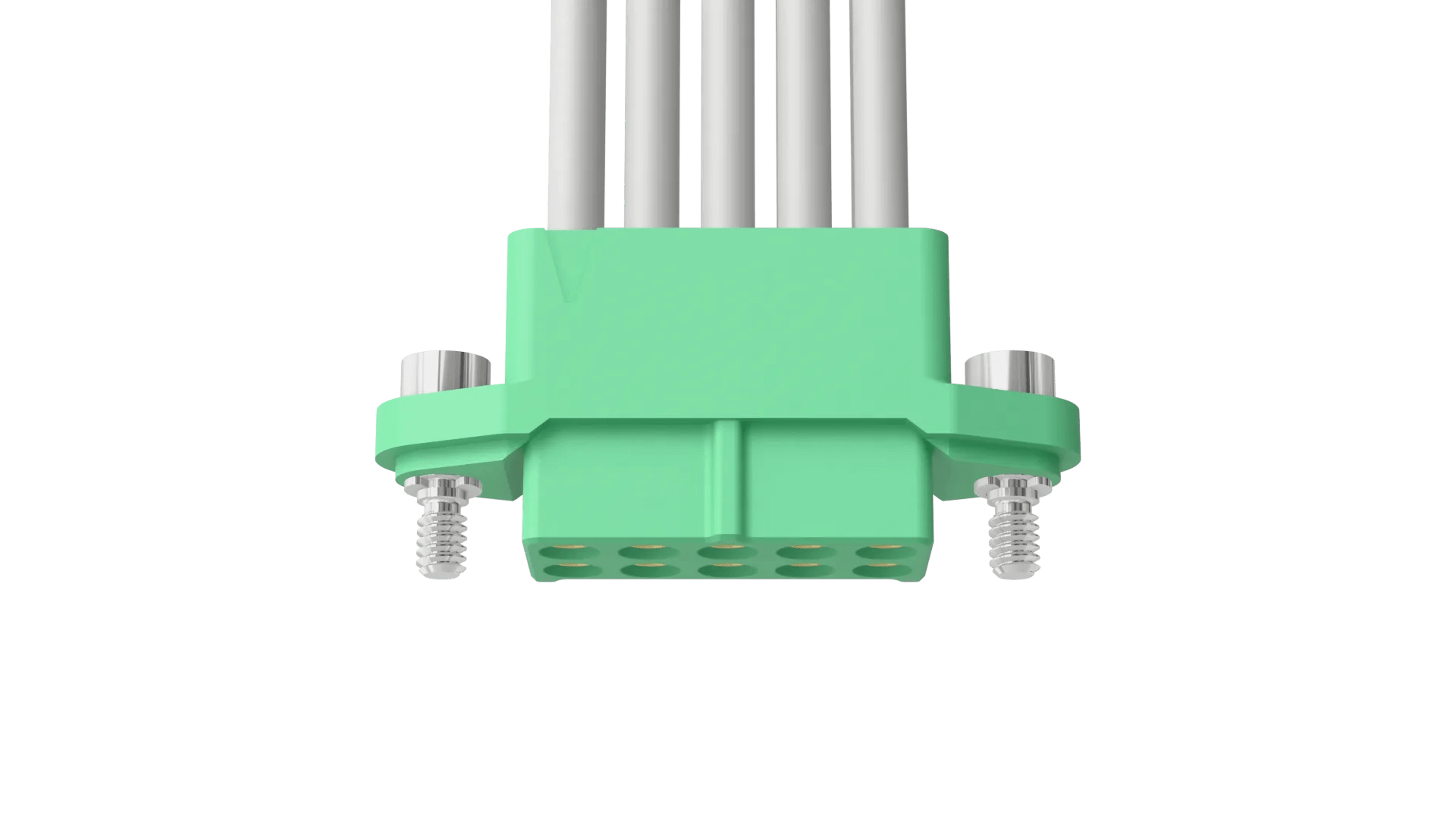

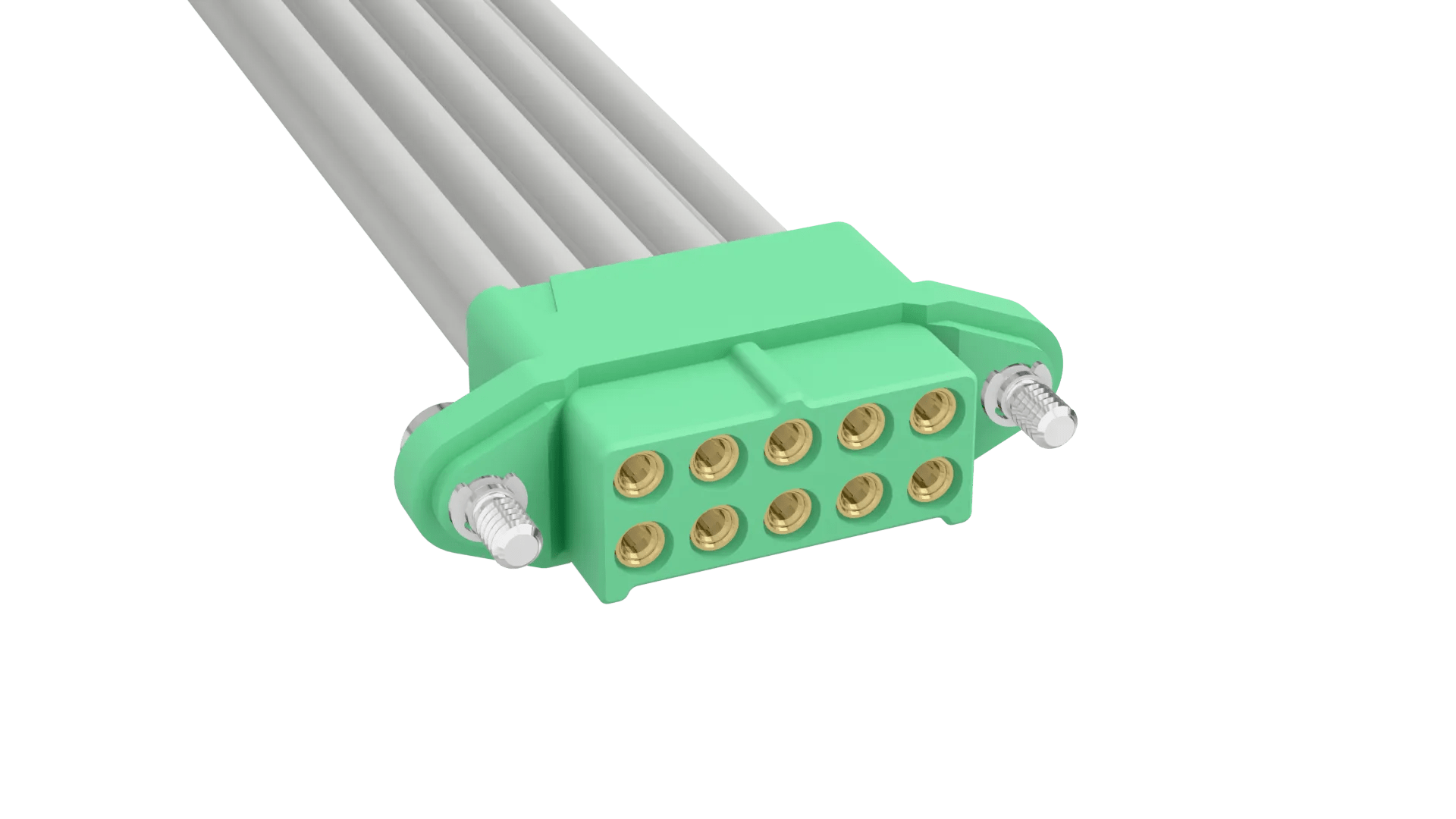

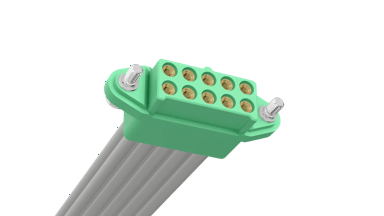

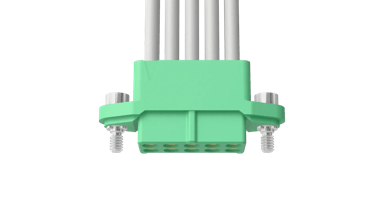

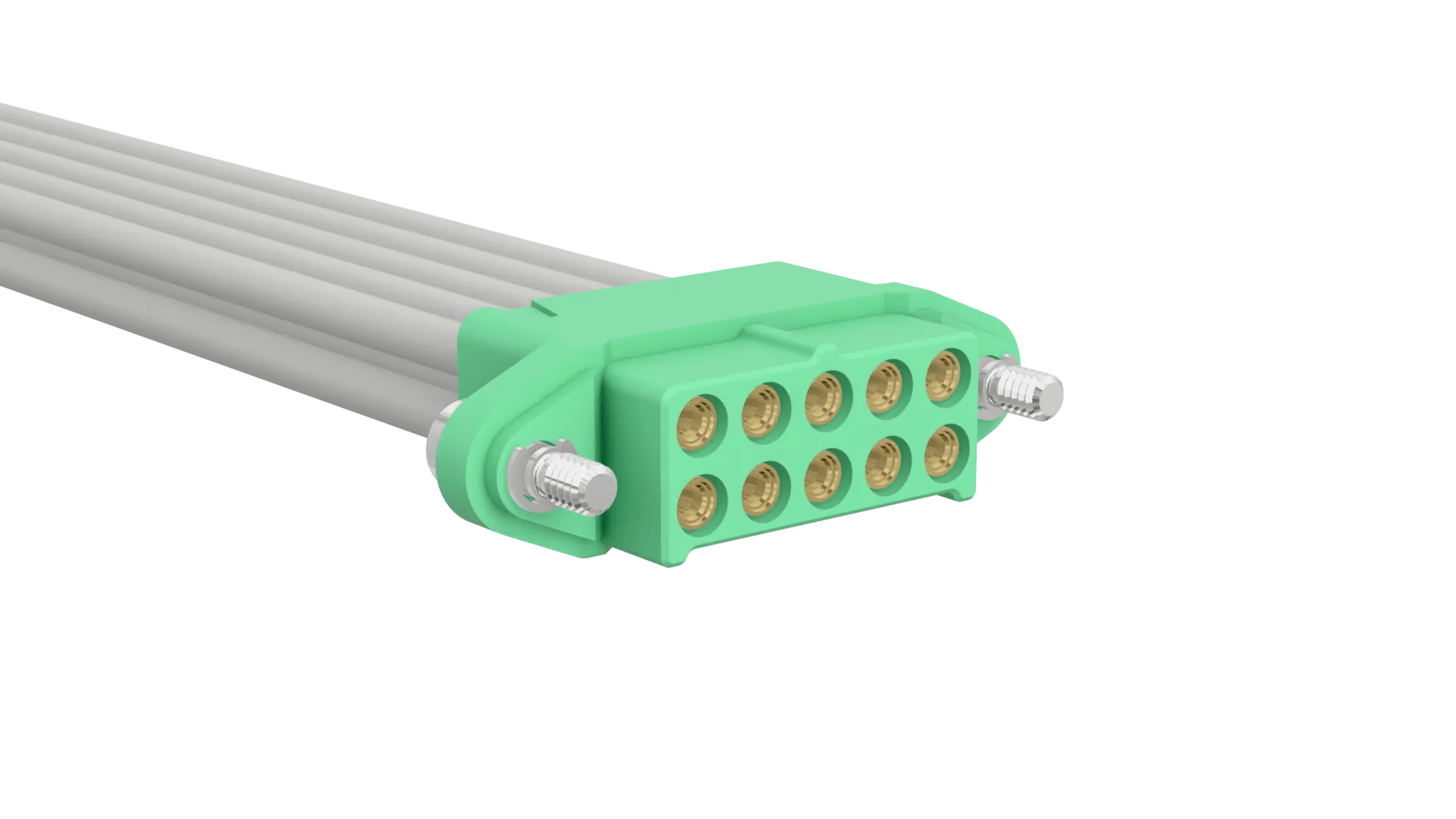

5+5 Pos. Female DIL 18AWG Cable Assembly, 150mm, single-end, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

  • Female Single-Ended with white 18 AWG cable, 150mm long – 10 contacts (5+5).
  • Manufactured with the M300-0010045 crimp contacts, M300-2241096F2 Double Row crimp housing.
  • Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

18AWG

Mating Pin Size:

Ø1mm

Current Rating:

10A

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Hex Socket

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

21.081g

Overall Dimensions (L x W x D) in mm:

151.00 x 27.30 x 8.00

Thread Size:

M2

Availability

Limited availability or made-to-order
Distributor Location Quantity
Digi-Key
Global
Status29
Farnell
Europe
Status10
Harwin
Europe
Status30
Mouser Electronics Inc
Global
Status102

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M300-FCXXX05F2-XXXXL.pdf

ZIP

M300-FC11005F2-0150L CAD Model (ZIP file containing STP and IGES)

Download
PDF

C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

TEST REPORTS

PDF

Test Report HT043 - M300 Series - General (Electrical, Mechanical and Environmental)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the M300 connectors, 3mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

Catalog page - M300 Female Cable Assemblies

PDF

Catalog page - M300 Specification

PDF

Catalog page - M300 Mating Profiles, Pin Numbering

PDF

Catalog page - M300 Introduction
