M22-3070500

5 Pos. Female SIL Cable Housing

2.00mm (0.079") Pitch PCB Connector - M22 Series

Order Sample

Add to Favorites

Loading… Check availability

2 similar products View products

Traceparts account required

Product Description

Single row female crimp housing with polarizing & bump latches – 5 contact.
Use with crimp contacts M22-3060046 or M22-3080046.

M22-3070500 - 5 Pos. Female SIL Cable Housing

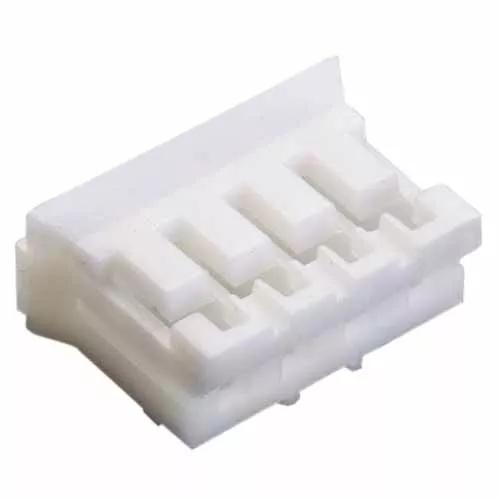

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.5mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +95°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.138g

Overall Dimensions (L x W x D) in mm:

11.80 x 4.45 x 6.85
