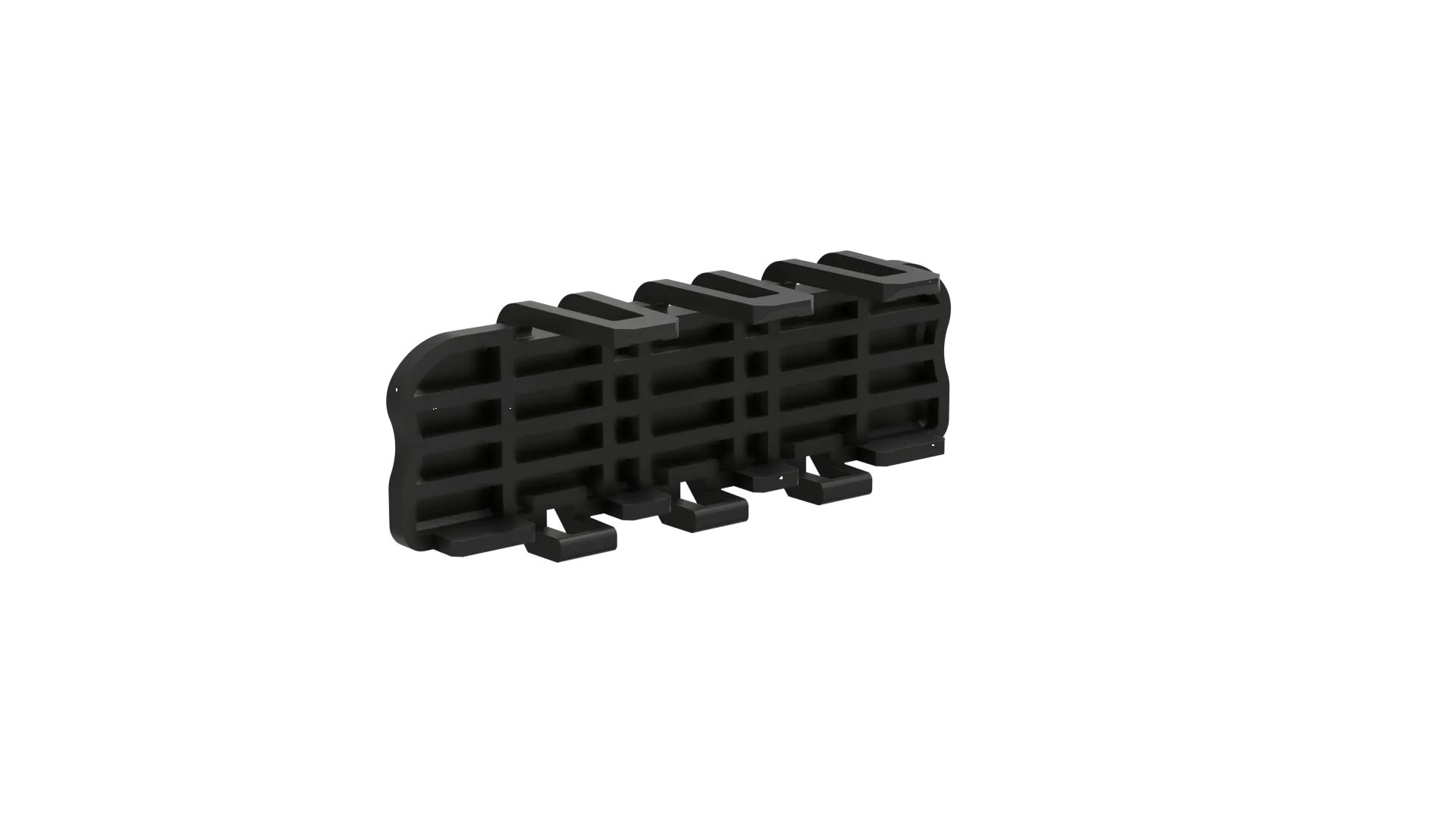

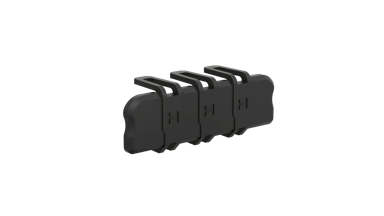

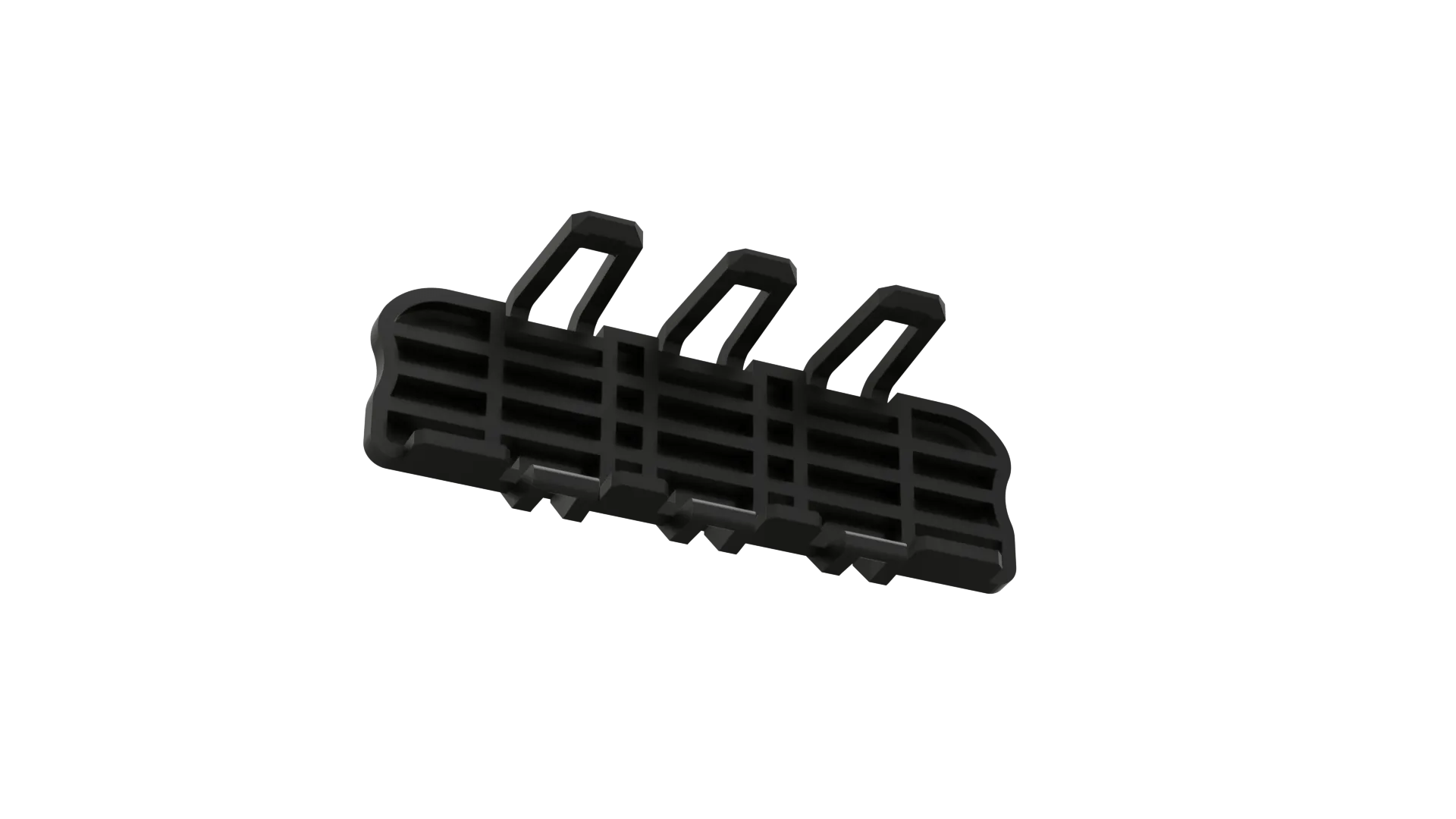

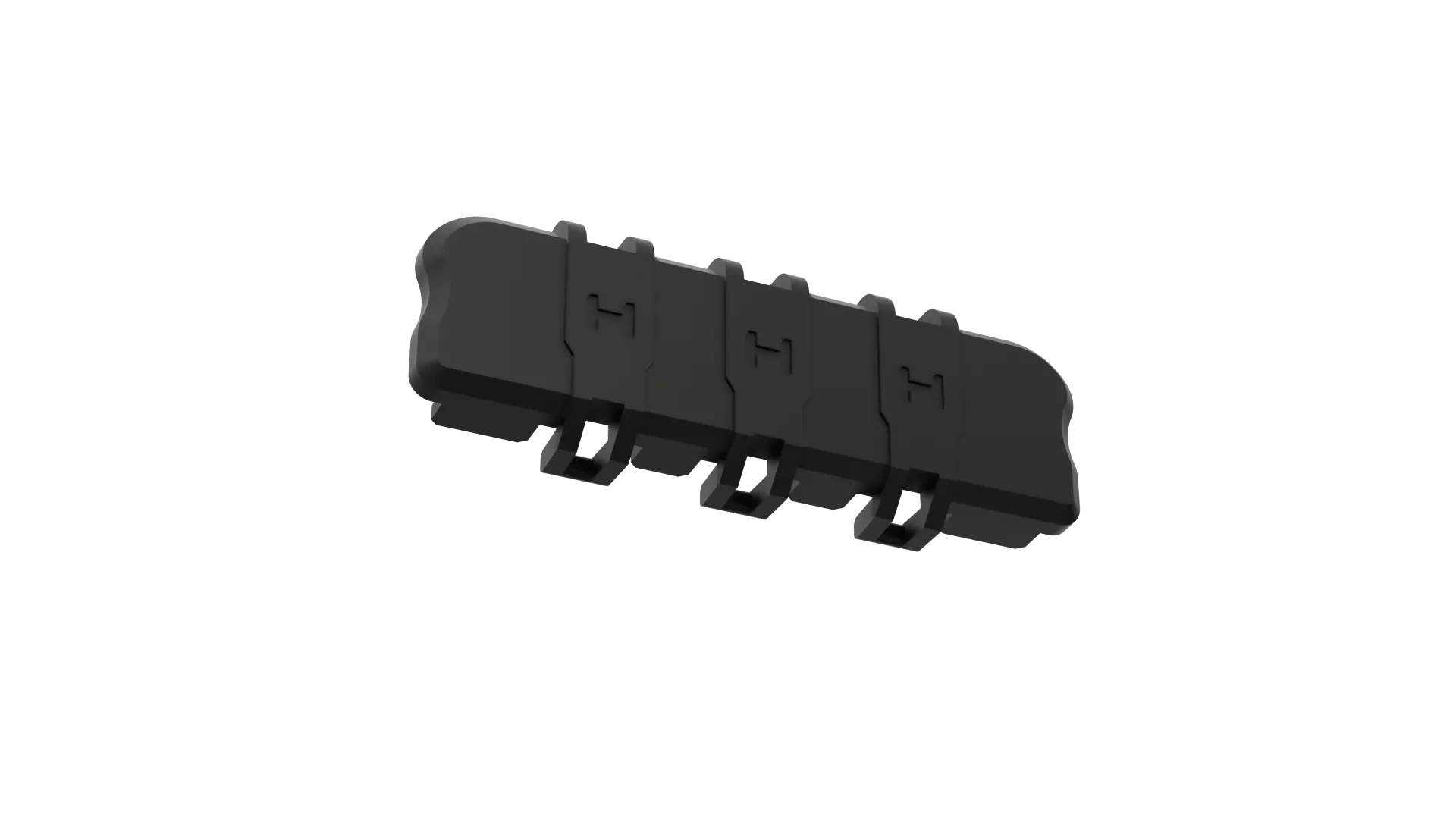

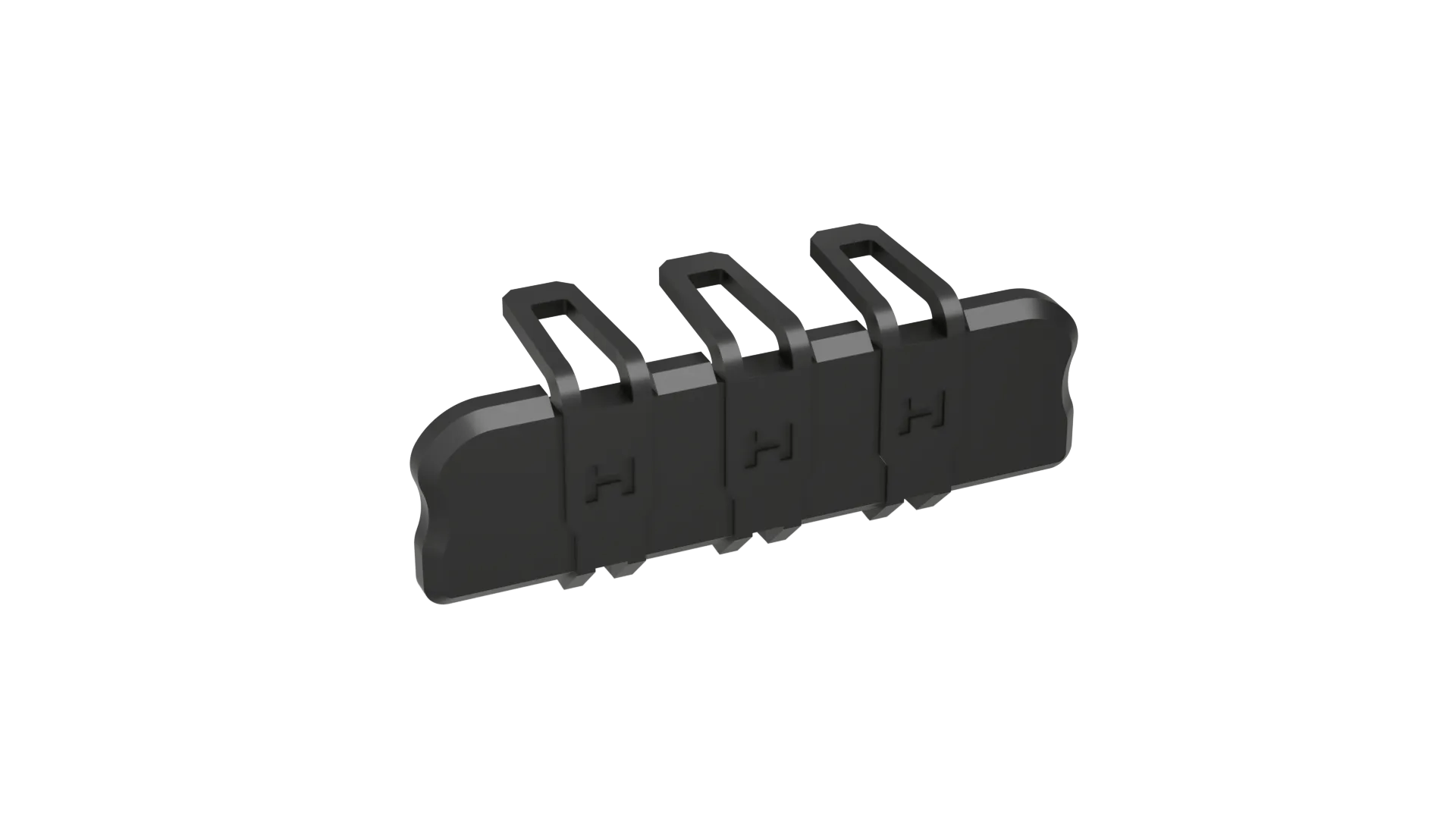

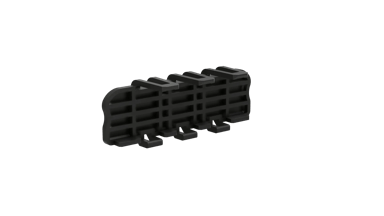

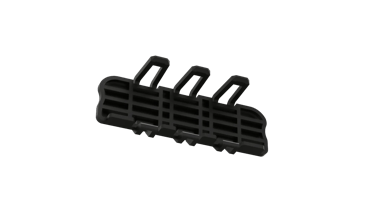

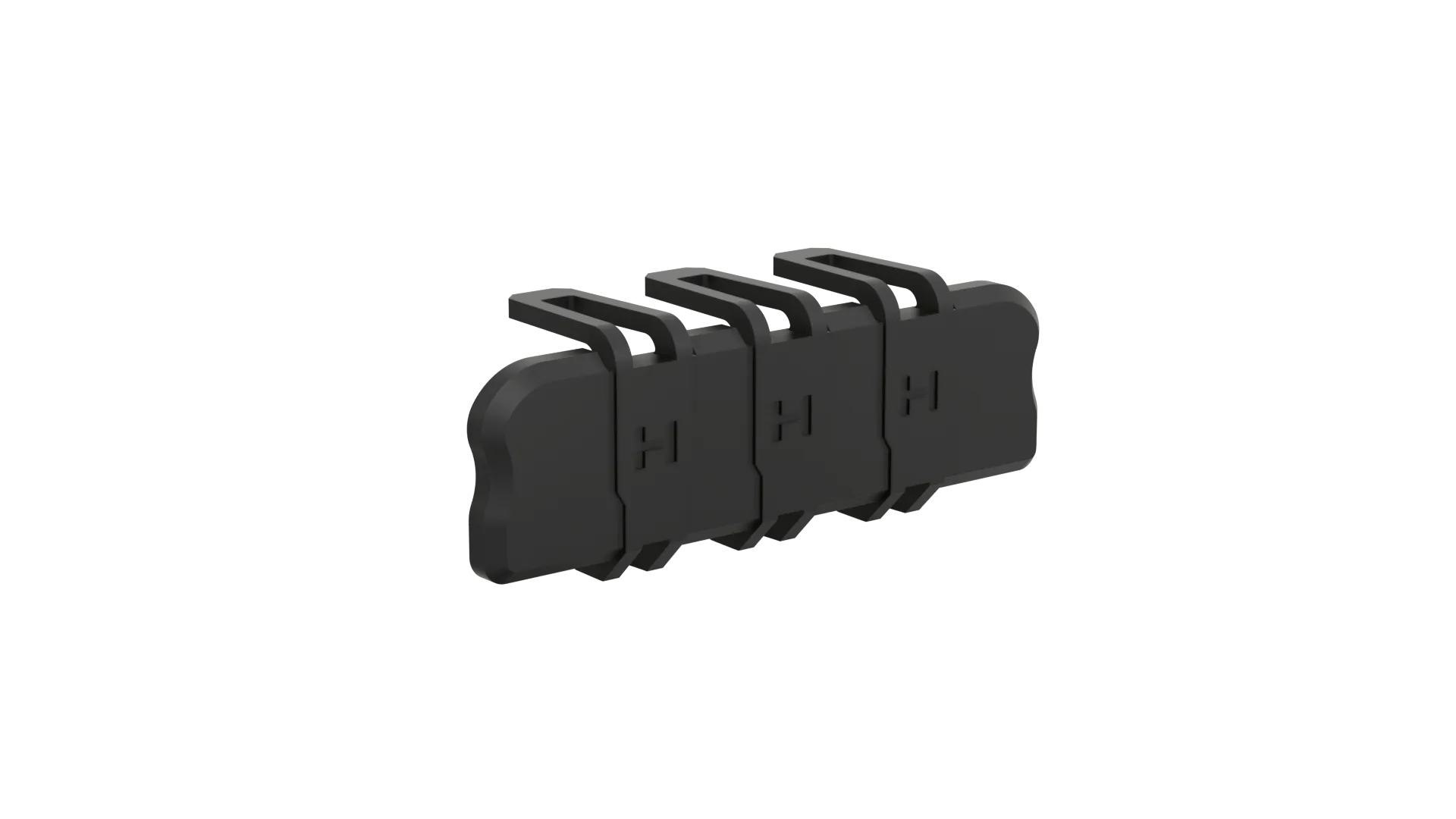

Rear Cap for single row Female Right Angled housing - 4 contact. Add Rear Cap to cable housing once cabled contacts are assembled.
Main Housing and Contacts to be purchased separately - use with rear cap KA1-2020498F1 and 8 AWG power solder contact KA1-0500005.
For complete pin numbering or pin out information, see Component Specification C052XX.
View Technical Details
In Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
1
Connector Orientation:
Angled
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
4
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
60A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
PPS
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Dimensions
Contact Pitch:
8.50mm (0.335")
Weight:
1.05g
Dimensions:
35.90 x 10.20 x 12.90
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-510.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Kona contacts
Product Information
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
IS-49 - Kona Contact Assembly and Removal Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Kona range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for KA1-510XX98.pdf
RoHS - KA1-5100498
Cable Assembly
Ready-made complete cable assemblies and pre-wired contacts
