Image may be representative. Refer to the product title for more information.

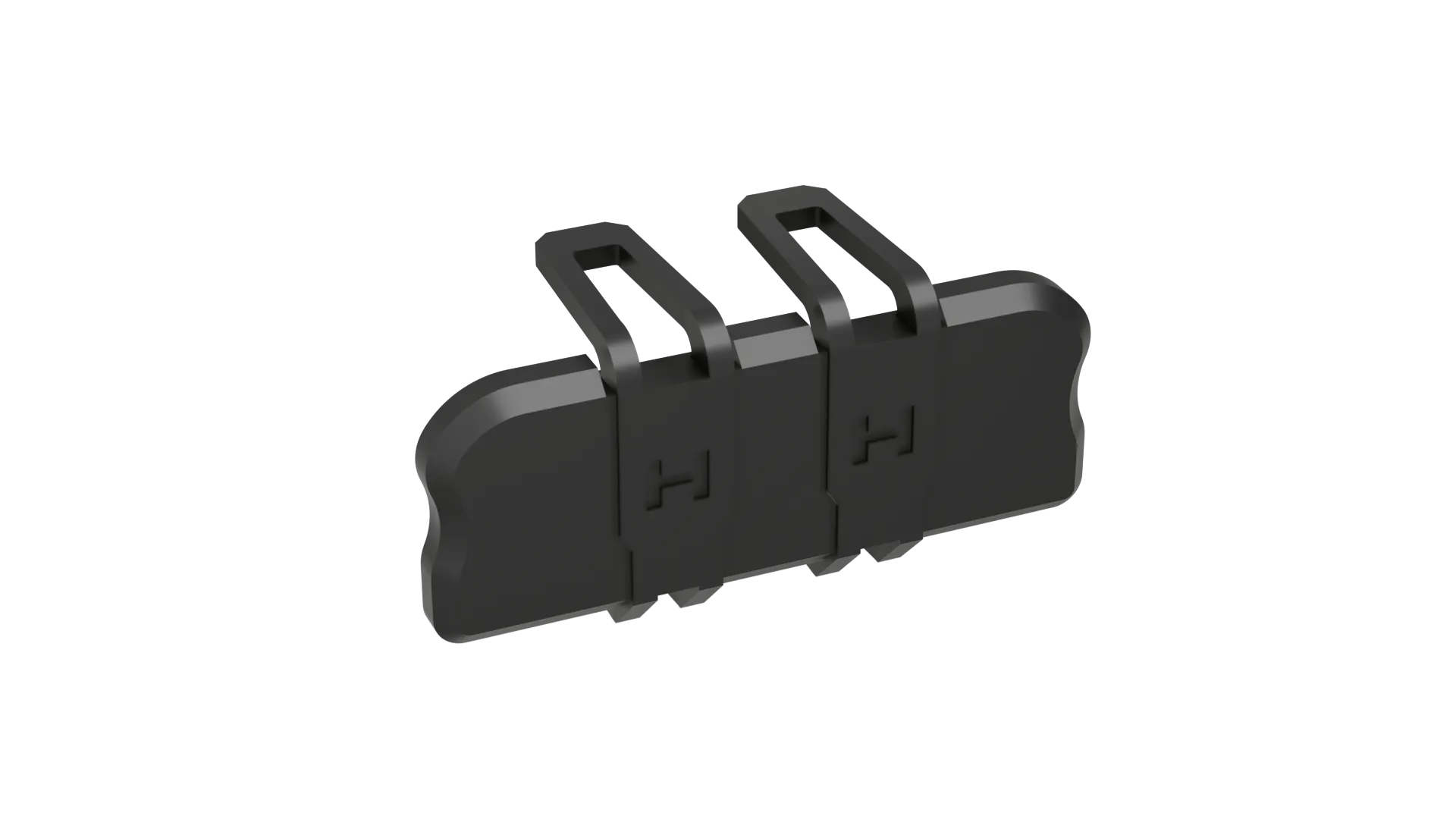

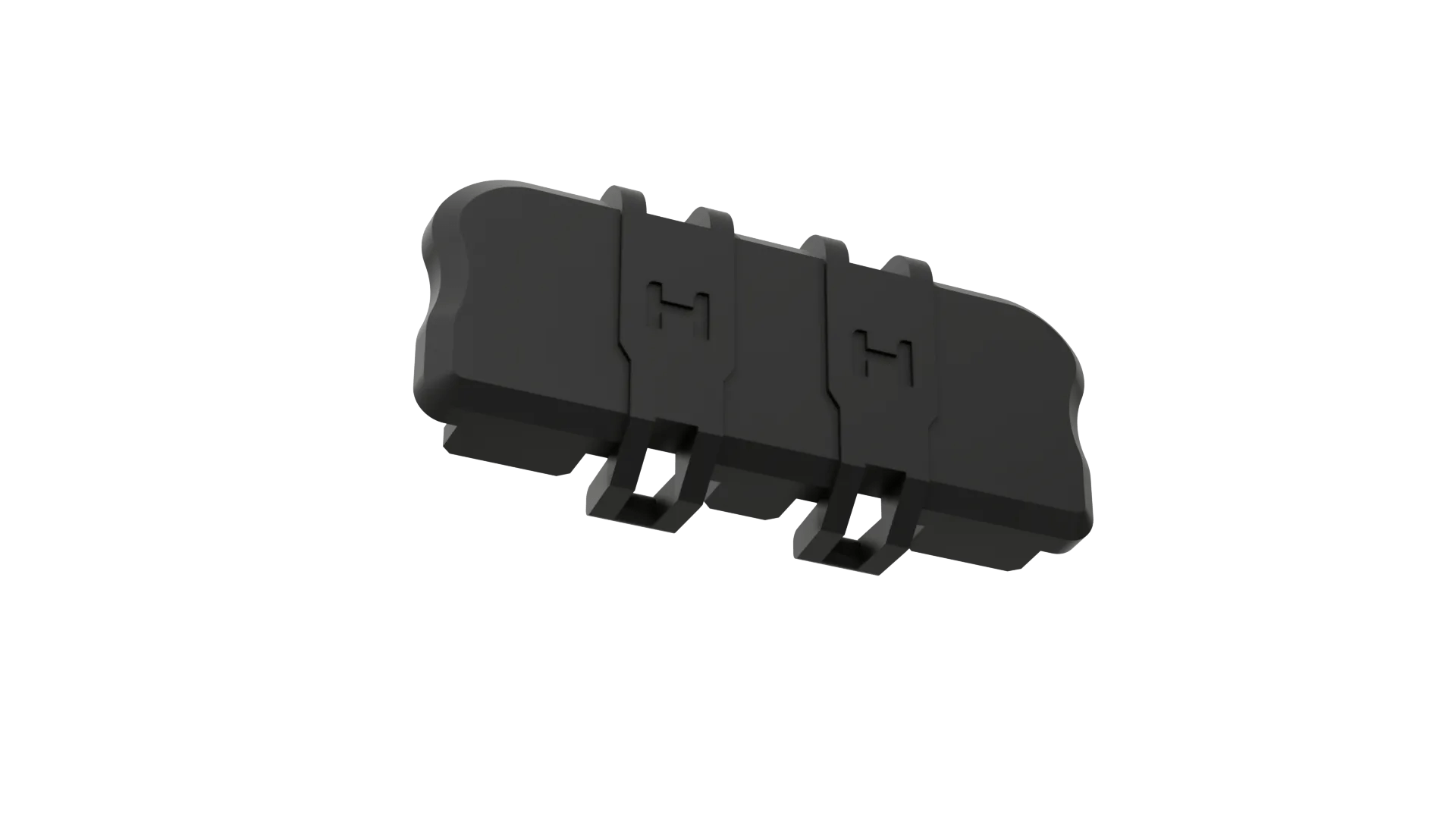

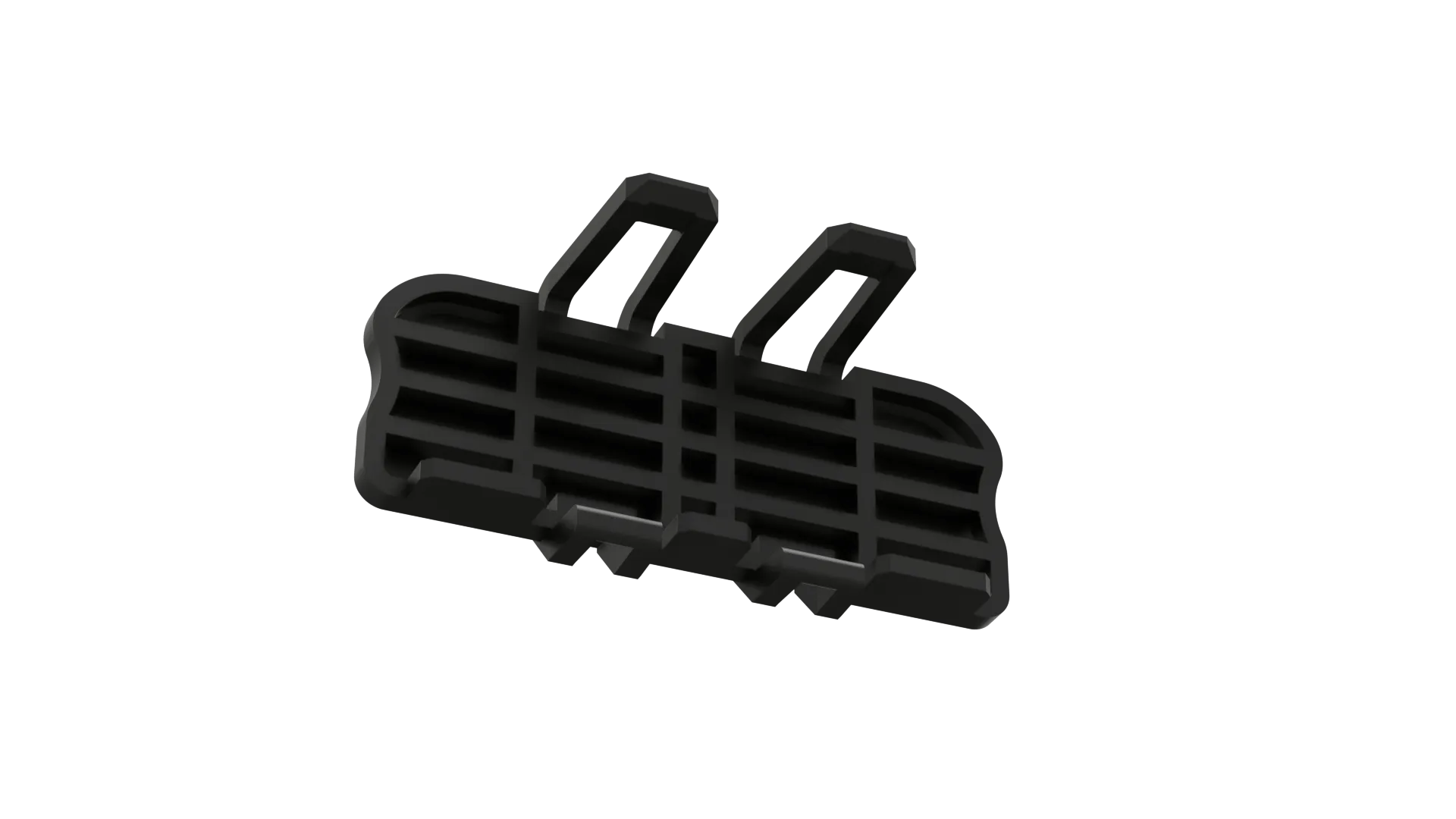

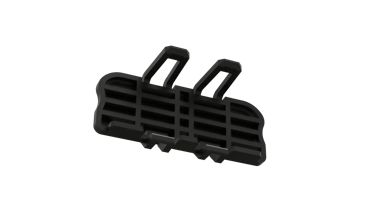

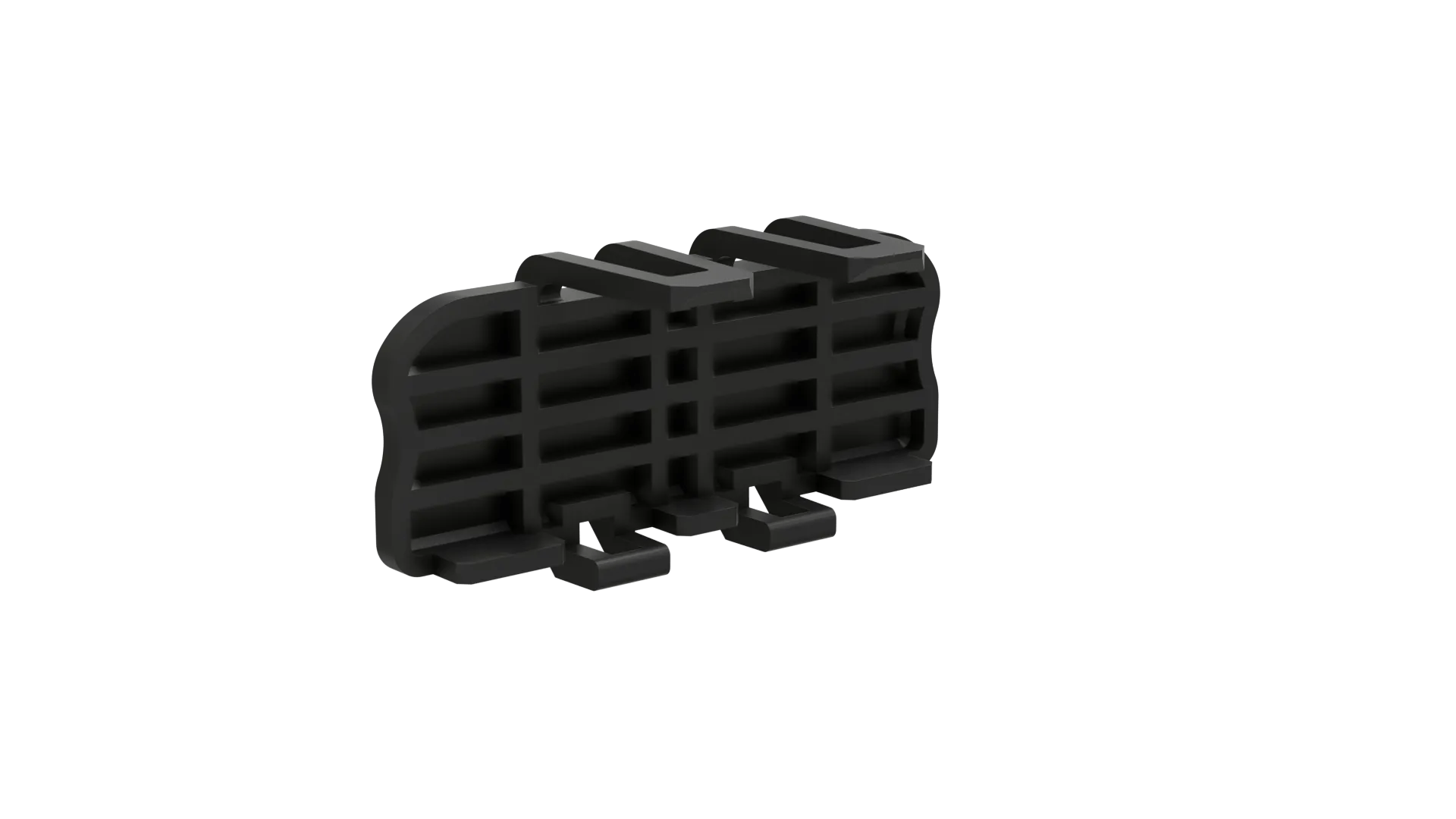

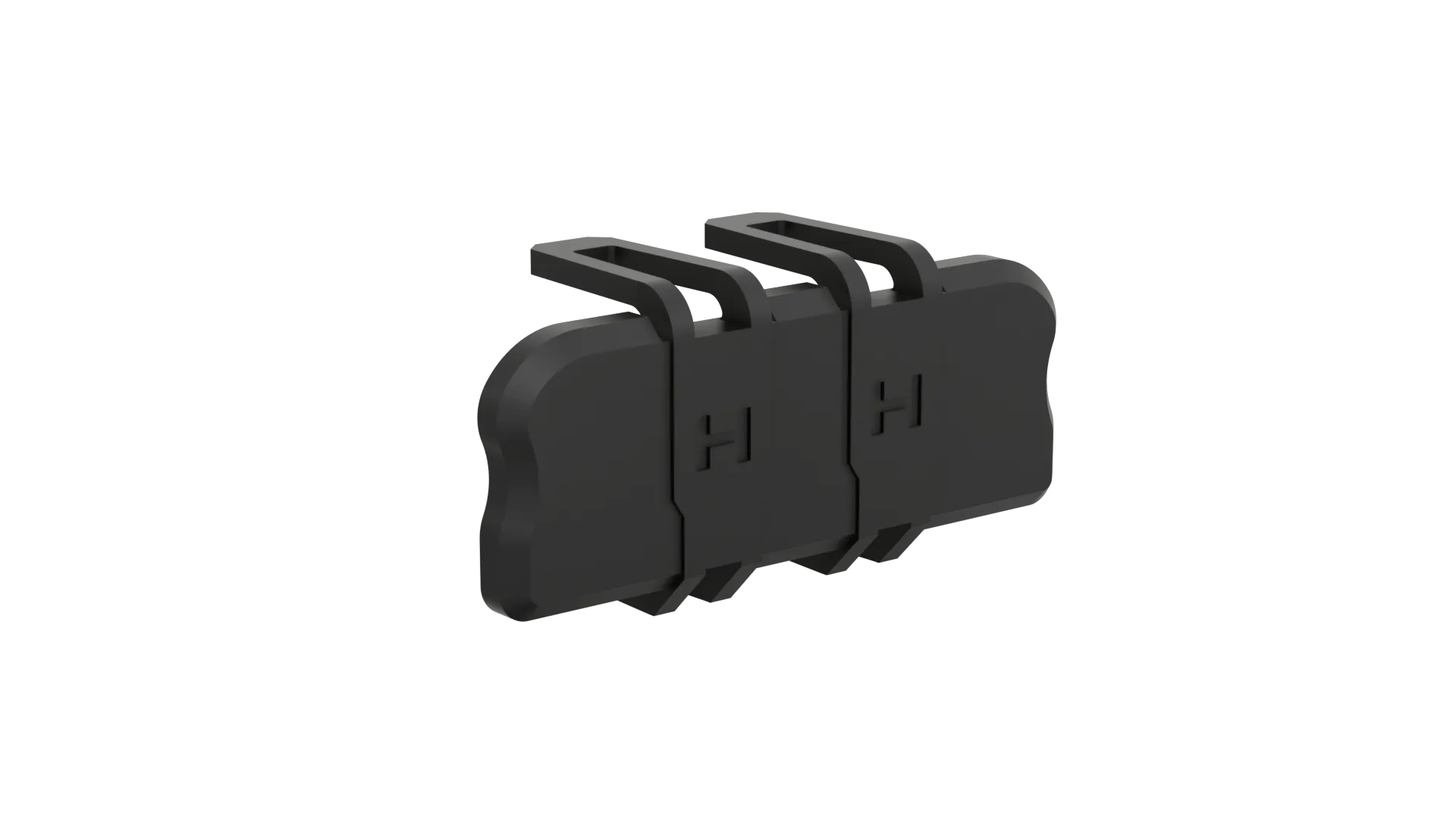

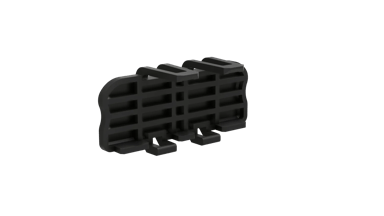

Rear Cap for Female receptacle Single Row right-angle cable connector housing - 3 contacts. Add Rear Cap to cable housing once cabled contacts are assembled.
Main Housing and Contacts to be purchased separately - use with housing KA1-2020398F1 and 8 AWG power solder contact KA1-0500005.
For complete pin numbering or pin out information, see Component Specification C052XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
1
Connector Orientation
Angled
Country of Origin
CN
Side Stackable
No
Number of Power/Coax Contacts
3
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
60A max per contact
Polarised
Yes
Cuttable
No
Materials
Housing Material
PPS
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Housing Colour
Black
Dimensions
Contact Pitch
8.50mm (0.335")
Weight
0.78g
Dimensions
27.40 x 10.20 x 12.90
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-510.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Kona contacts
Product Information
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
IS-49 - Kona Contact Assembly and Removal Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Kona range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for KA1-510XX98.pdf
RoHS Declaration - KA1-5100398
