Home > G125-MV12005M2P
Active

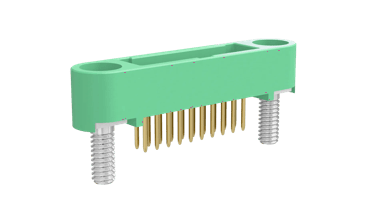

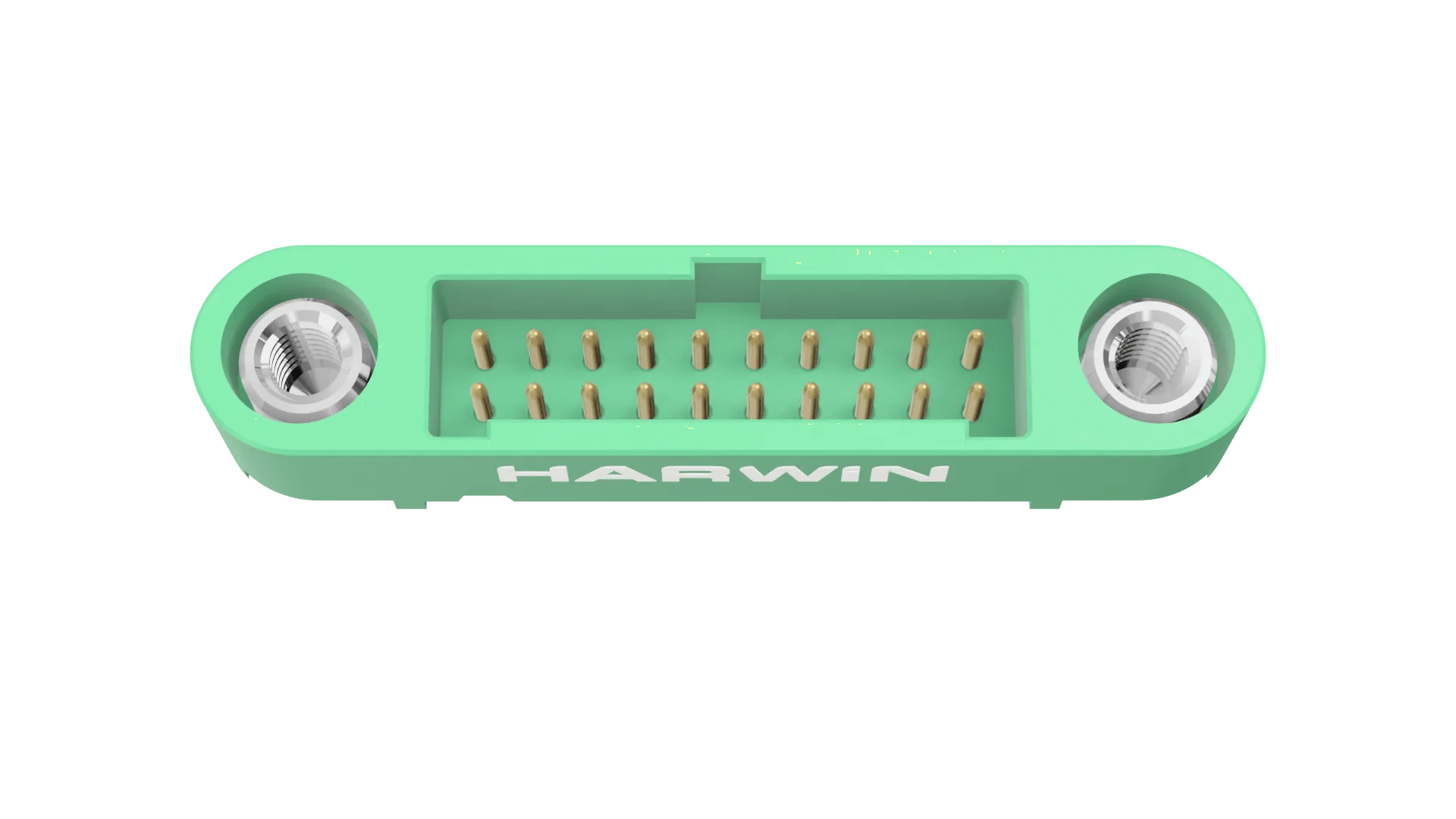

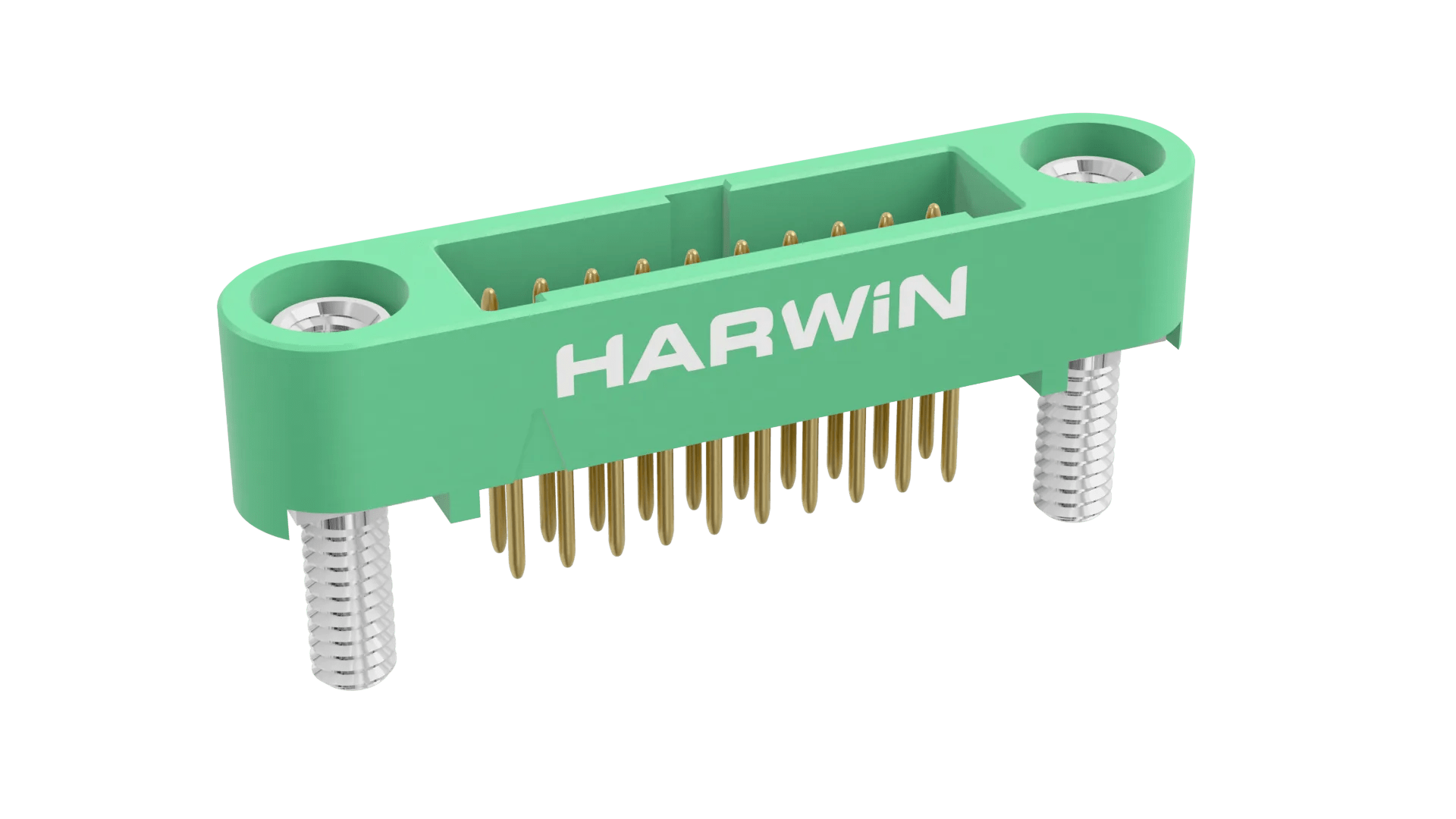

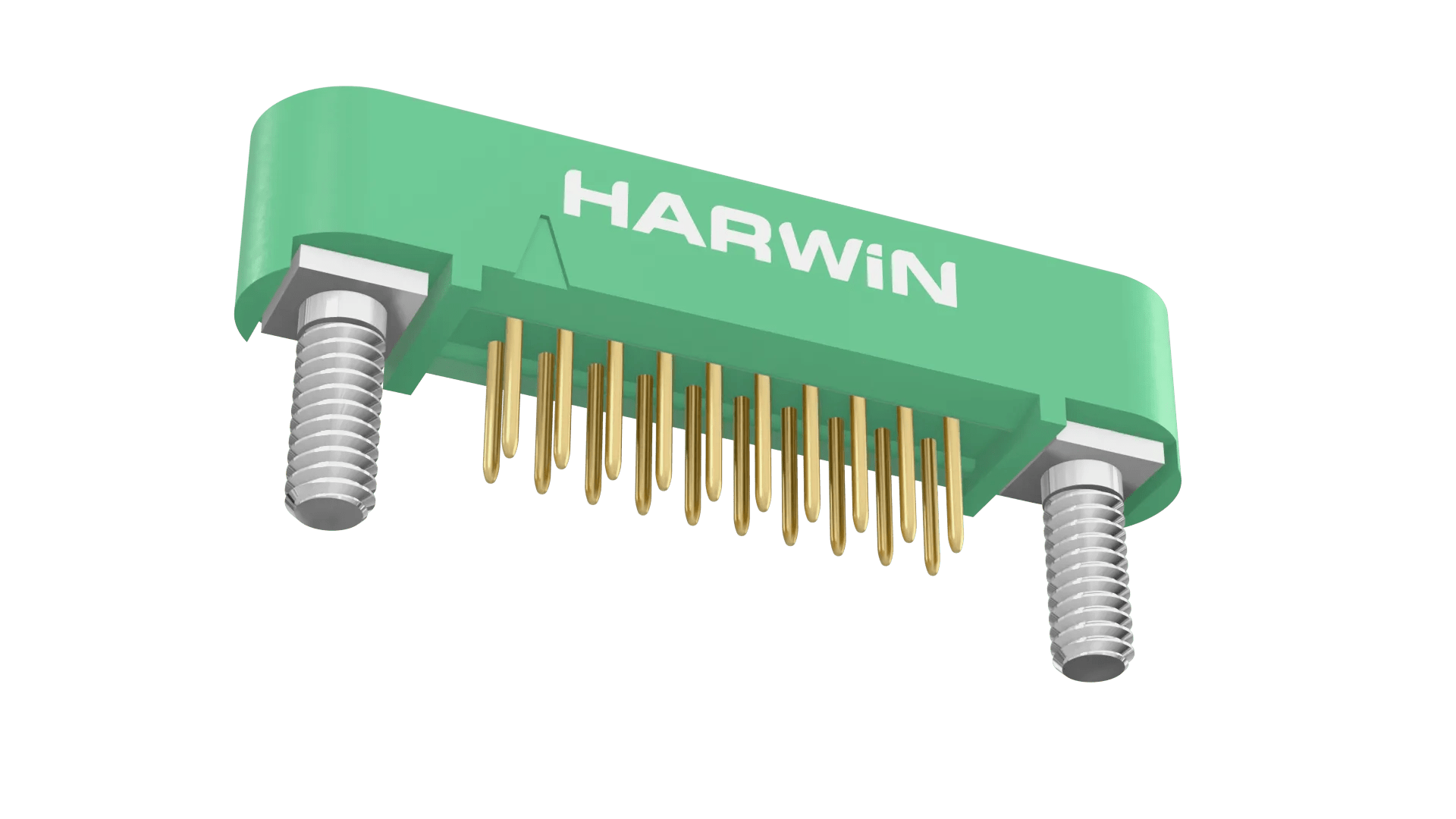

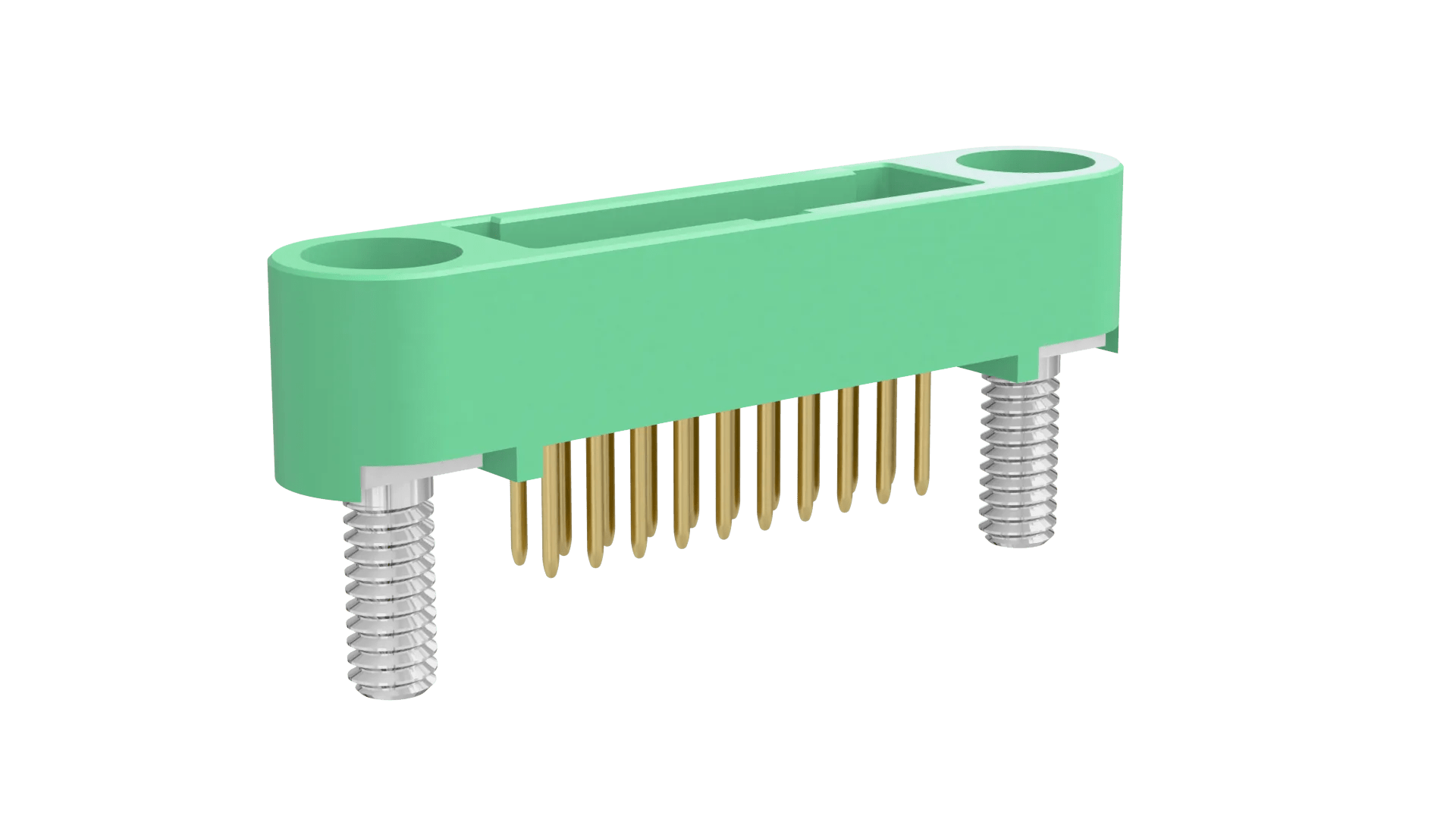

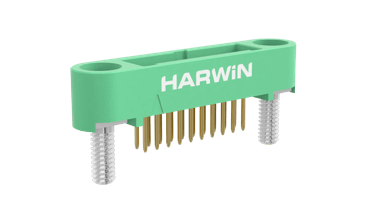

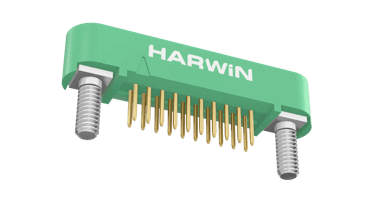

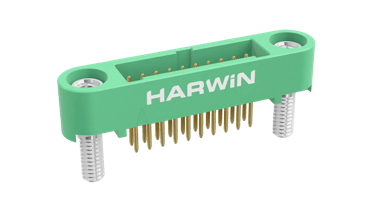

G125-MV12005M2P

10+10 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok with Board Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.192g

Overall Dimensions (L x W x D) in mm:

23.95 x 4.90 x 9.90

Male Stud Length:

5.00mm

Thread Size:

M2

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Availability

1,527 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1001
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 234
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 160
Distributor Anglia
Location Europe
Quantity (Updated Daily) 73
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 59

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).
