G125-9602002

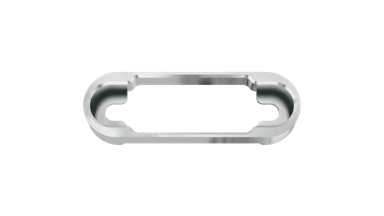

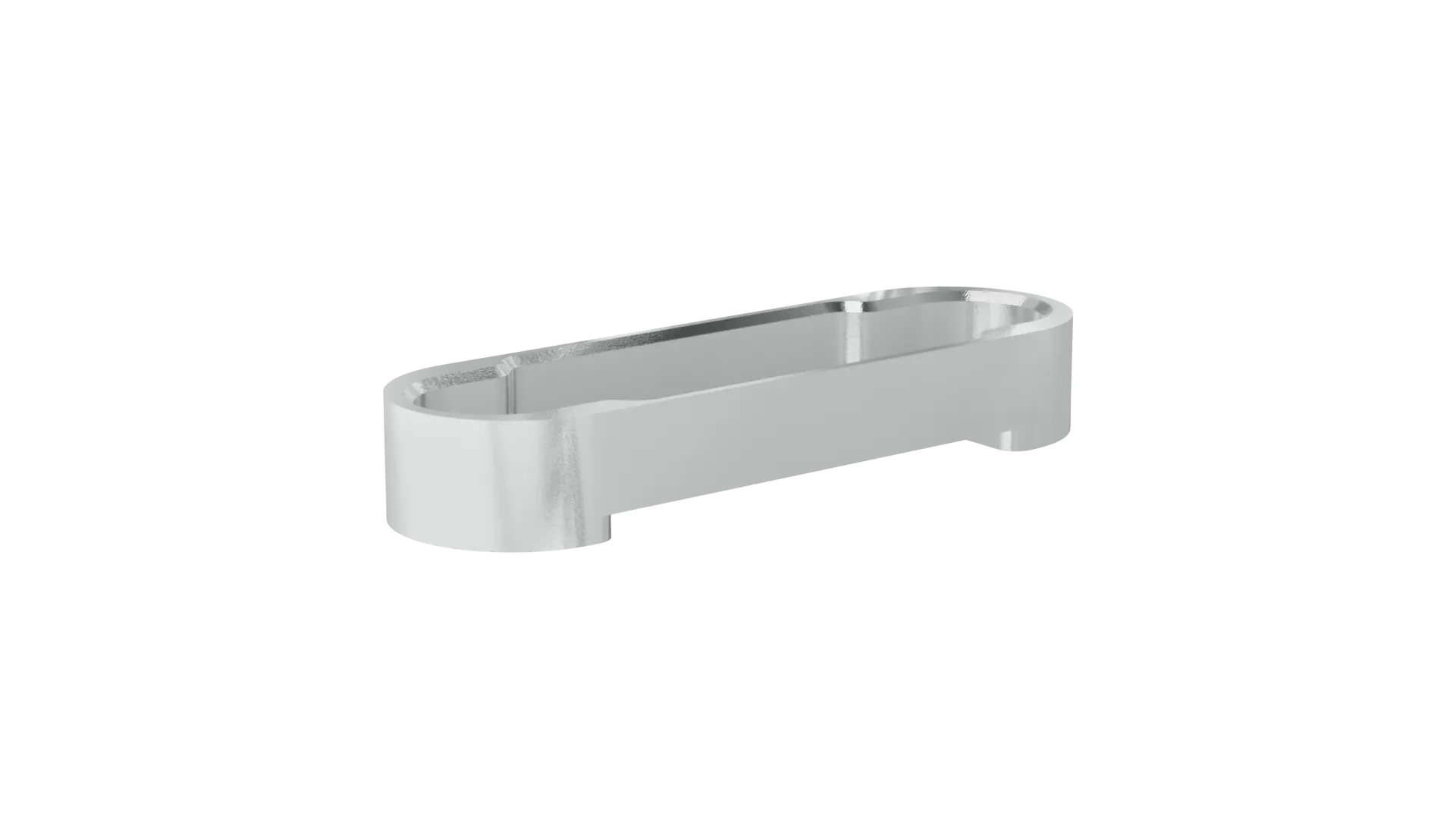

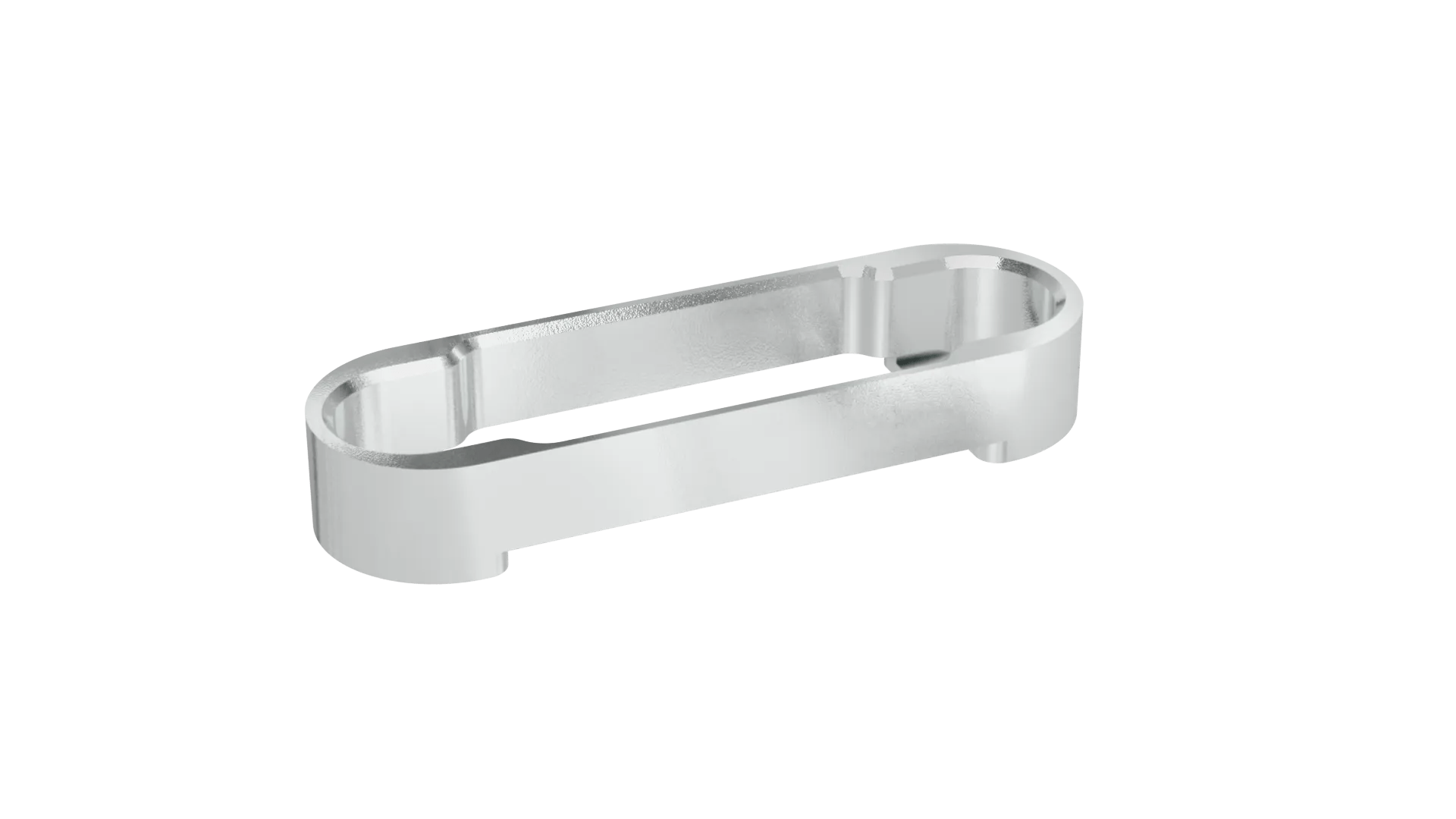

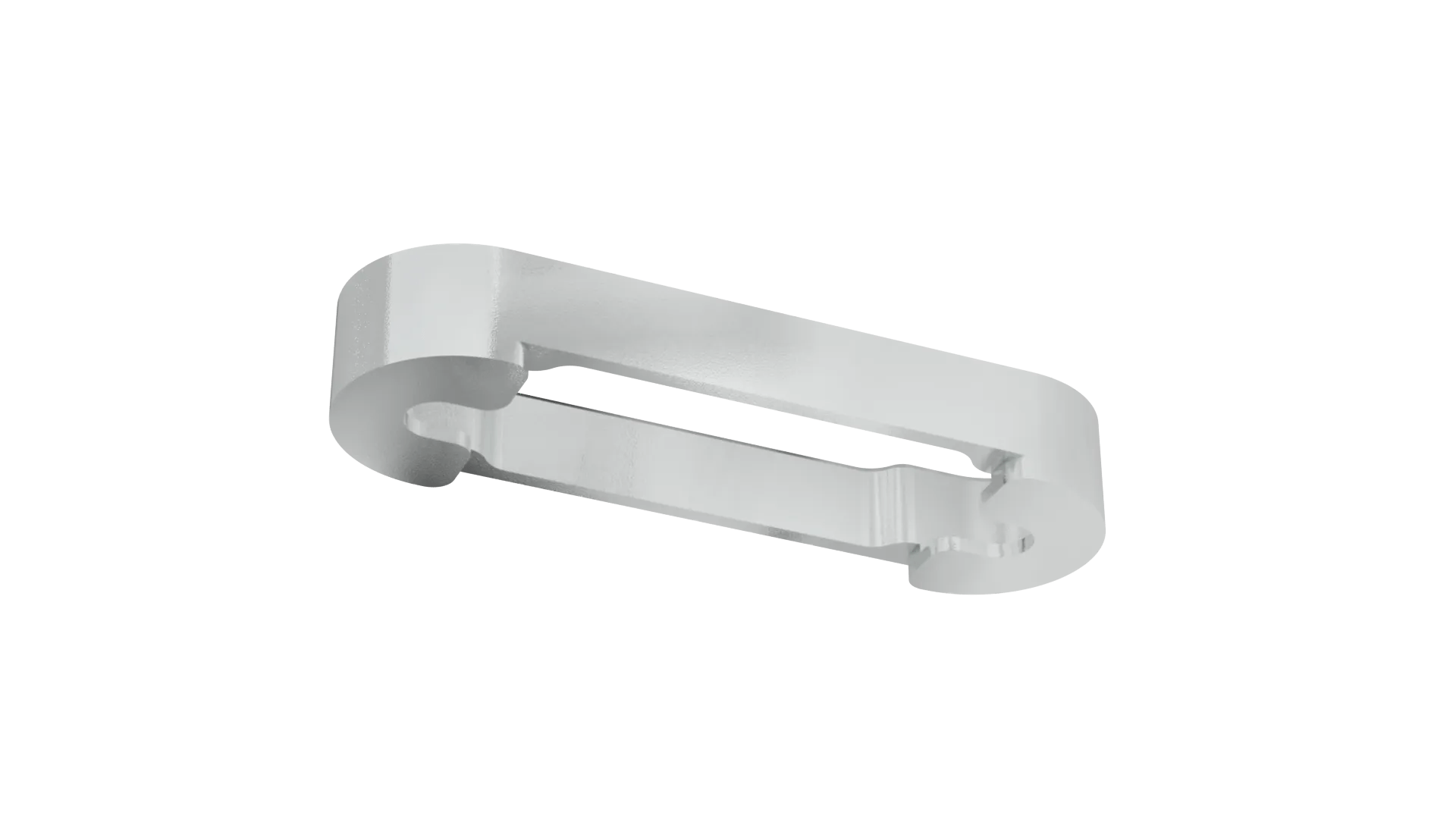

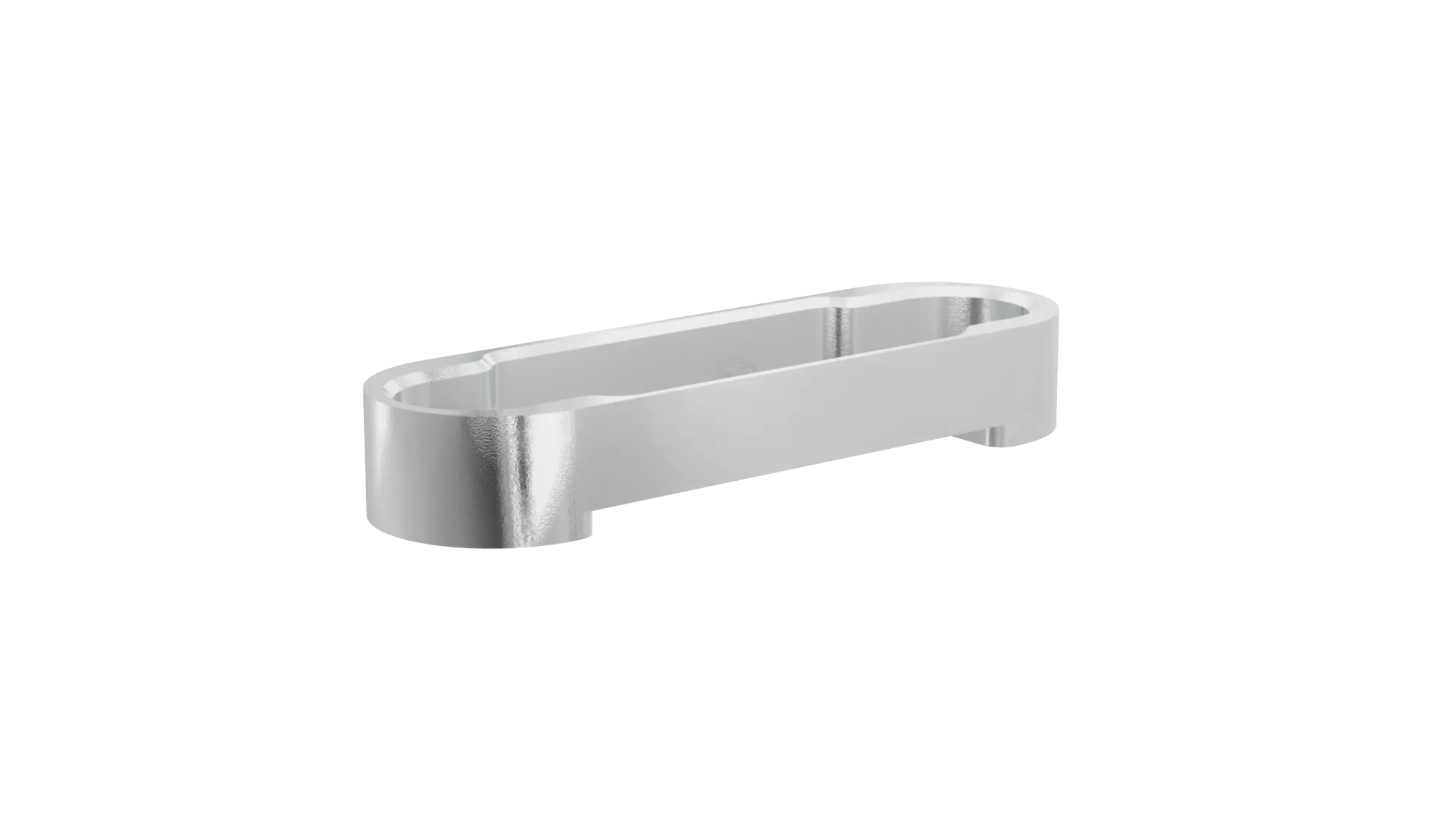

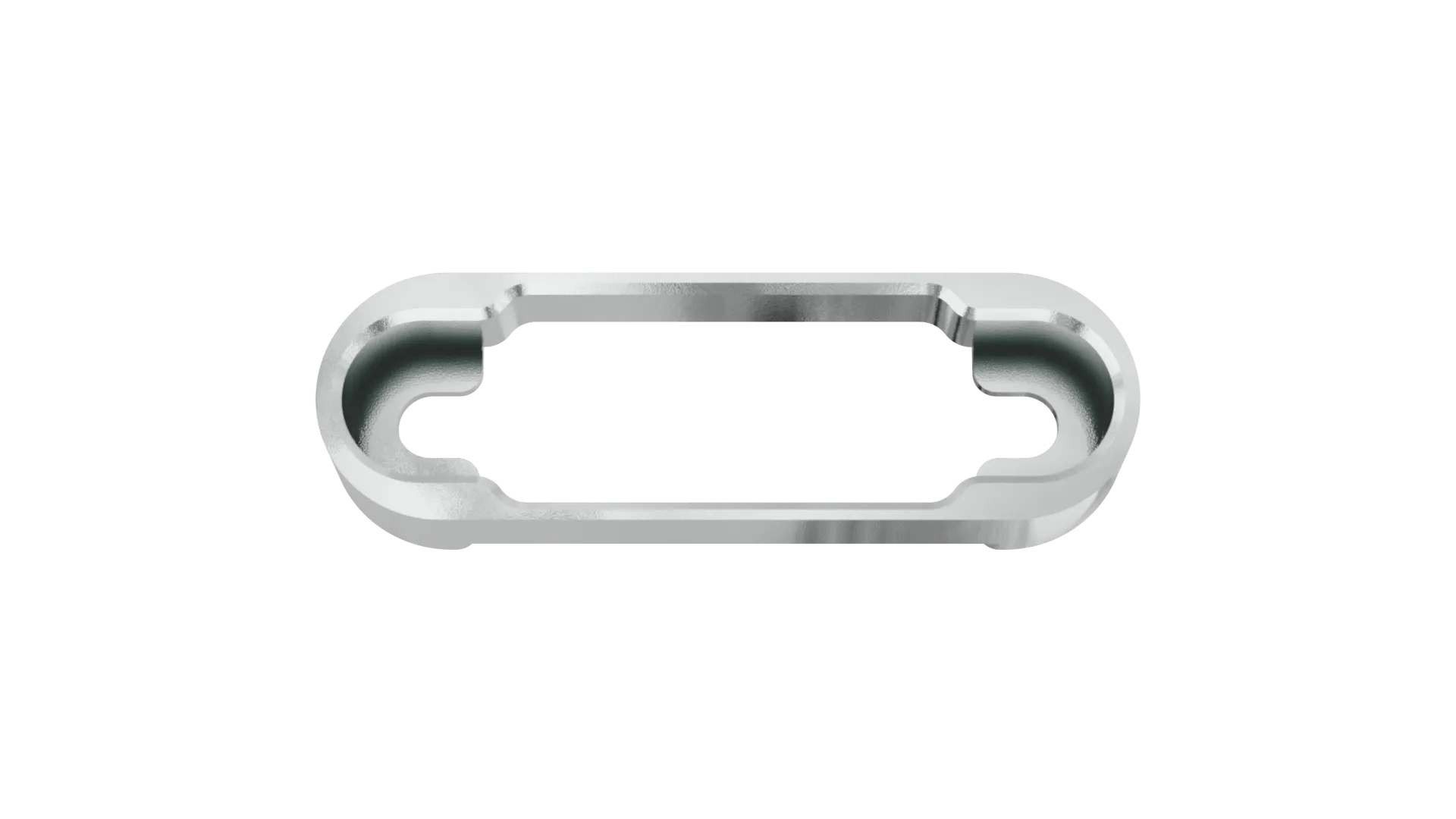

10+10 Pos. Panel Mount Metal Backshell for Gecko-SL


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell item for use with front panel mount (cable) or board mount (PCB) connectors. Use with female reverse fix screw-loks, or male standard gender screw-loks.

  • Use with the following 20-contact connectors or housings: male cable front panel mount G125-3242096M2, male PCB connector G125-MV12005M2P, female cable front panel mount G125-2242096F3 or female PCB connector G125-FV12005F3P .

  • If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    20

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    0.624g

  • Dimensions:

    25.65 x 8.00 x 3.95

  • Height of Connector above PCB:

    3.95mm

Downloads

    Product Information

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Panel Mount with Gecko-SL

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-960.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - G125-9602002

  • Material composition for G125-960XX02 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
