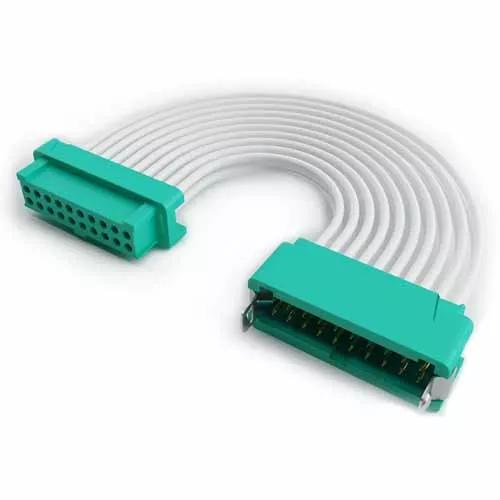

10+10 Pos. Male DIL 26AWG Cable Assembly, 300mm, Female 2nd end, no Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Male-to-Female (Female-to-Male) with white 26 AWG cable, 300mm long – 20 contacts (10+10). Male connector housing is not fitted with latches. Female connector housing is compatible for mating to male connectors with latches.
- Manufactured with G125-1010005 male crimp contacts, G125-3042096L0 male Double Row crimp housing, G125-0010005 female crimp contacts and G125-2042096L0 female Double Row crimp housing. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Male & Female
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Brass (Male), Beryllium Copper (Female)
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
300.00 x 15.05 x 4.90
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
